Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

14 part groups · 2 illustrations

Illustrations

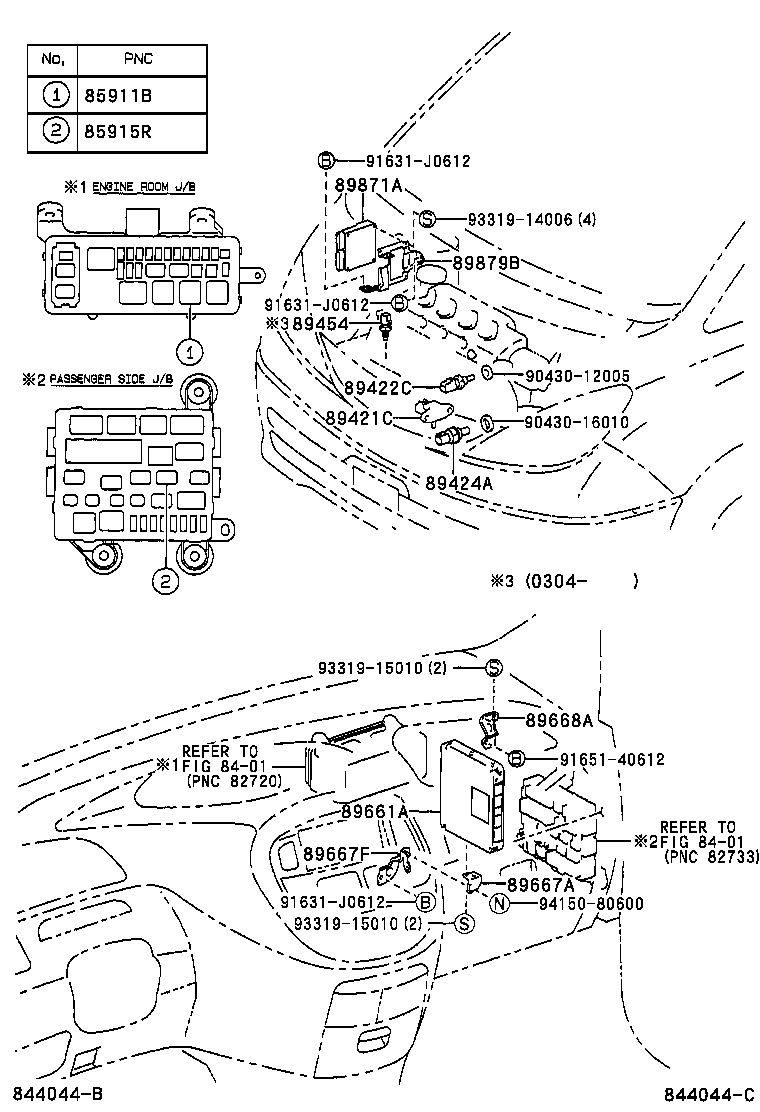

Figure 844043C 844043C 2001-02 → — Figure 844044C 844044C 2001-02 → —

Part groups

PNCDescription
85911B Relay, Computer (FOR DIESEL TURBO)
85915R Relay Assy, Circuit Opening (FOR DIESEL)
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89424A Sensor, Inlet Air Temperature (FOR DIESEL TURBO)
89454 Sensor, Fuel Temperature
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89667F Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89669B Bracket, Engine Control Computer, NO.3
89669C Bracket, Engine Control Computer, NO.4
89871A Driver, Injector
89879B Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
