Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

9 part groups · 5 illustrations

Illustrations

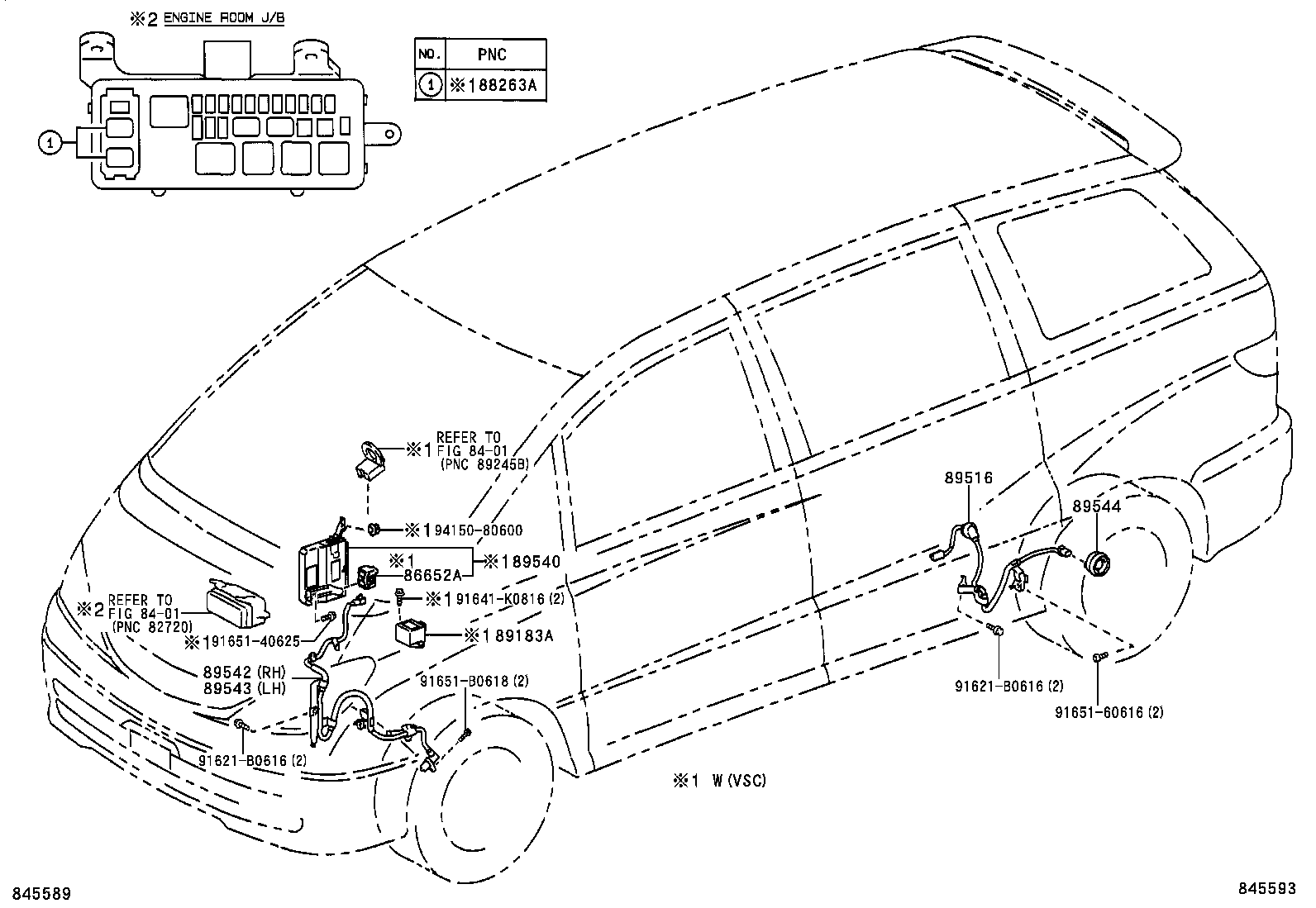

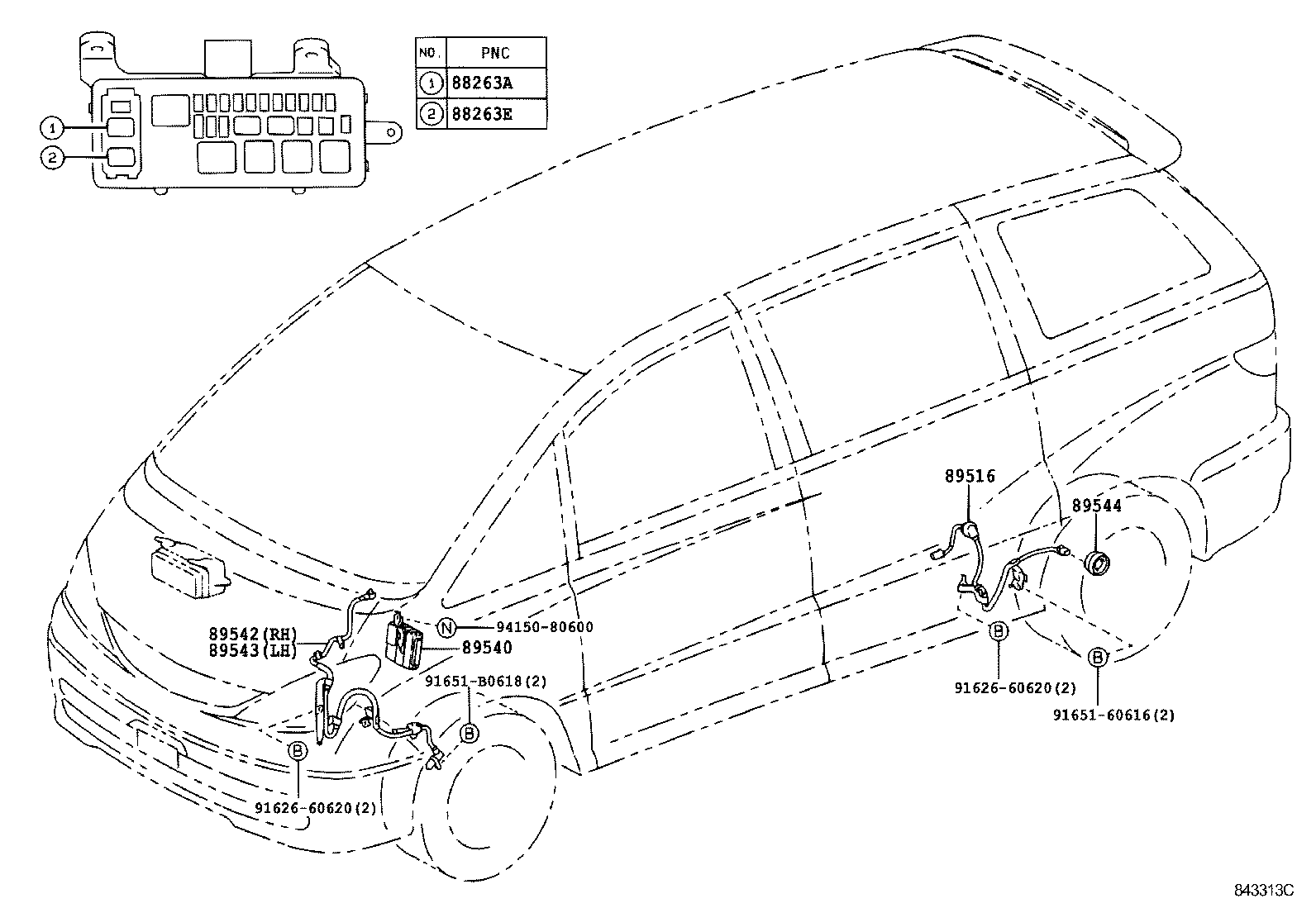

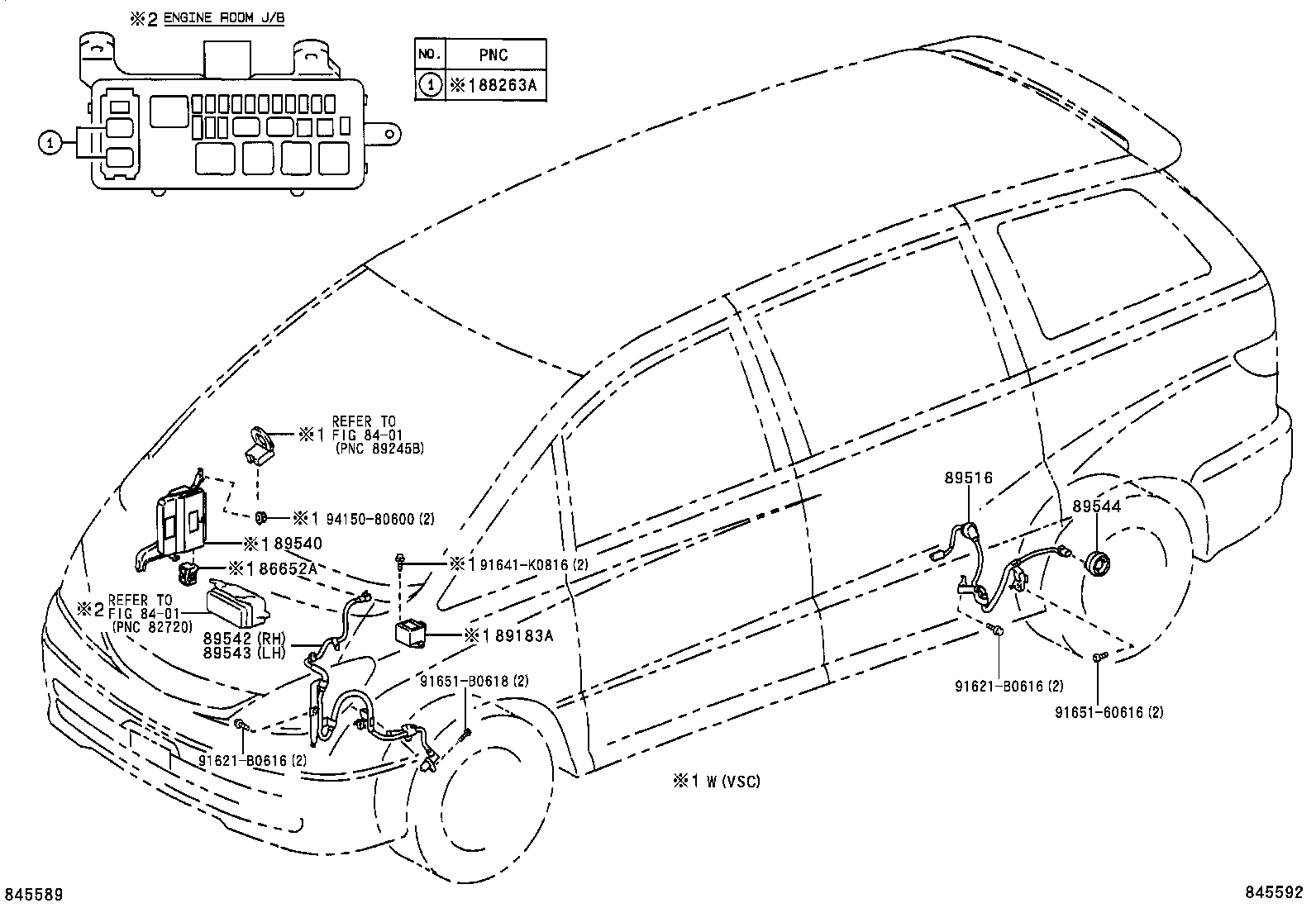

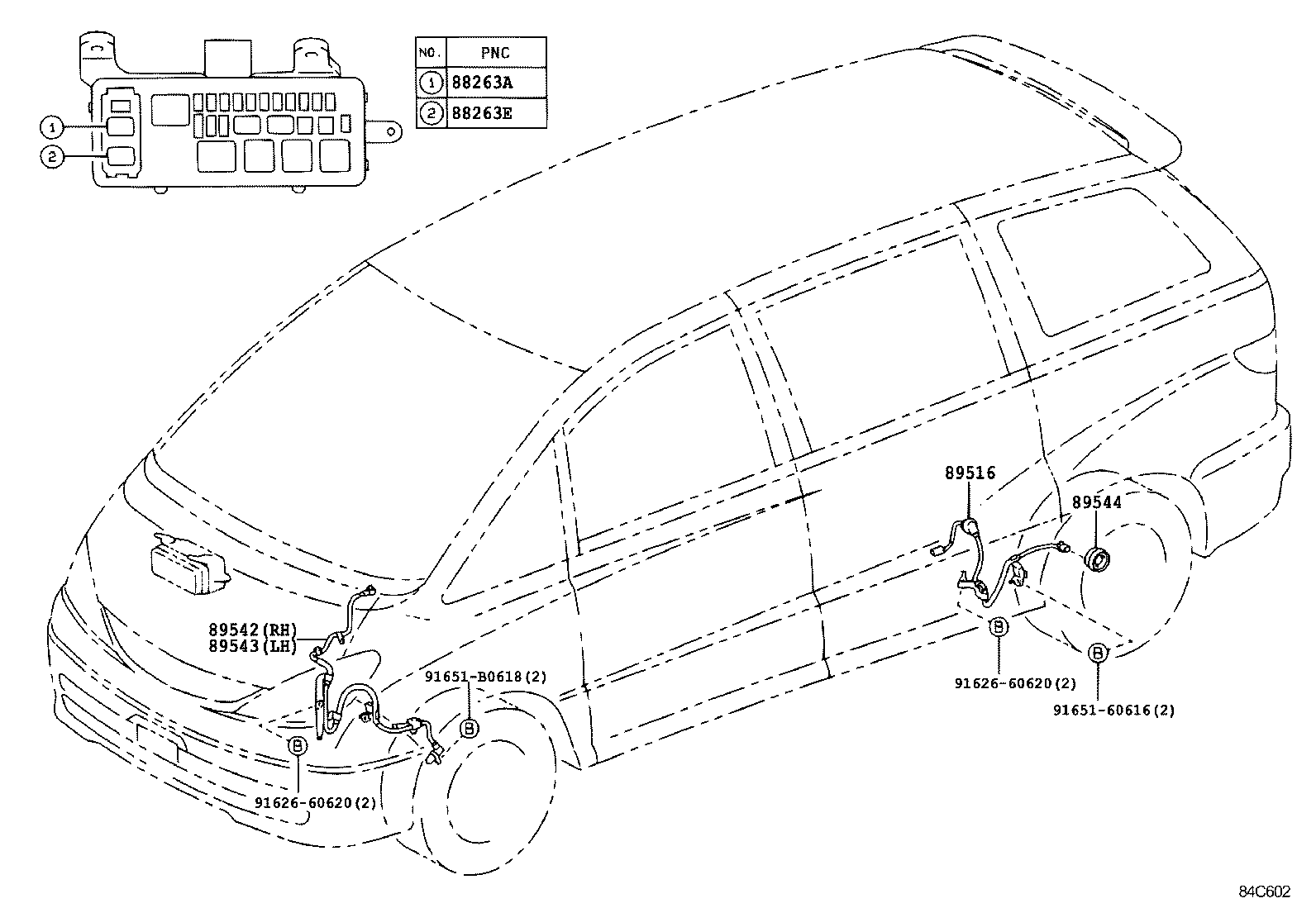

Figure 843312B 843312B 2000-02 → 2003-04 Figure 843313C 843313C 2000-02 → 2000-08 Figure 84C602 84C602 2000-08 → 2003-04 Figure 845592 845592 2003-04 → — Figure 845593 845593 2003-04 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
88263A Relay, Skid Control
88263E Relay, Skid Control NO.2
89183A Sensor, Yawrate
89516 Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89544 Sensor, Skid Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
