Toyota Previa/Tarago
2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe
Discontinued model
Data version 2006-09

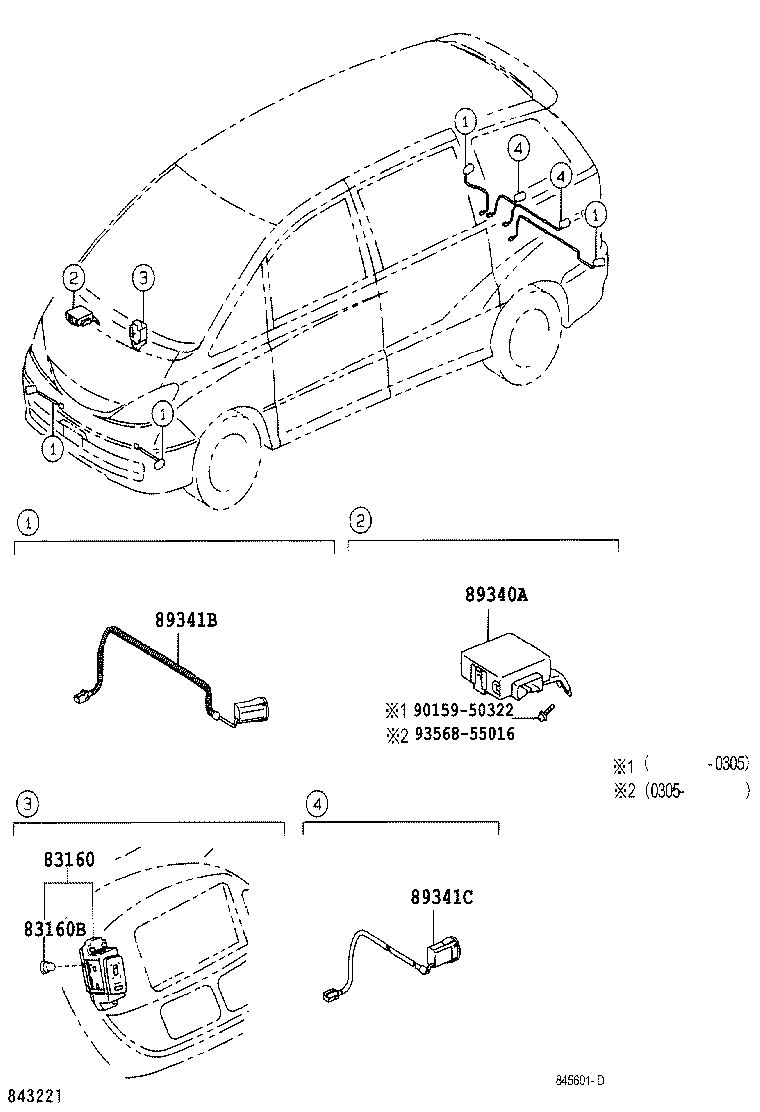

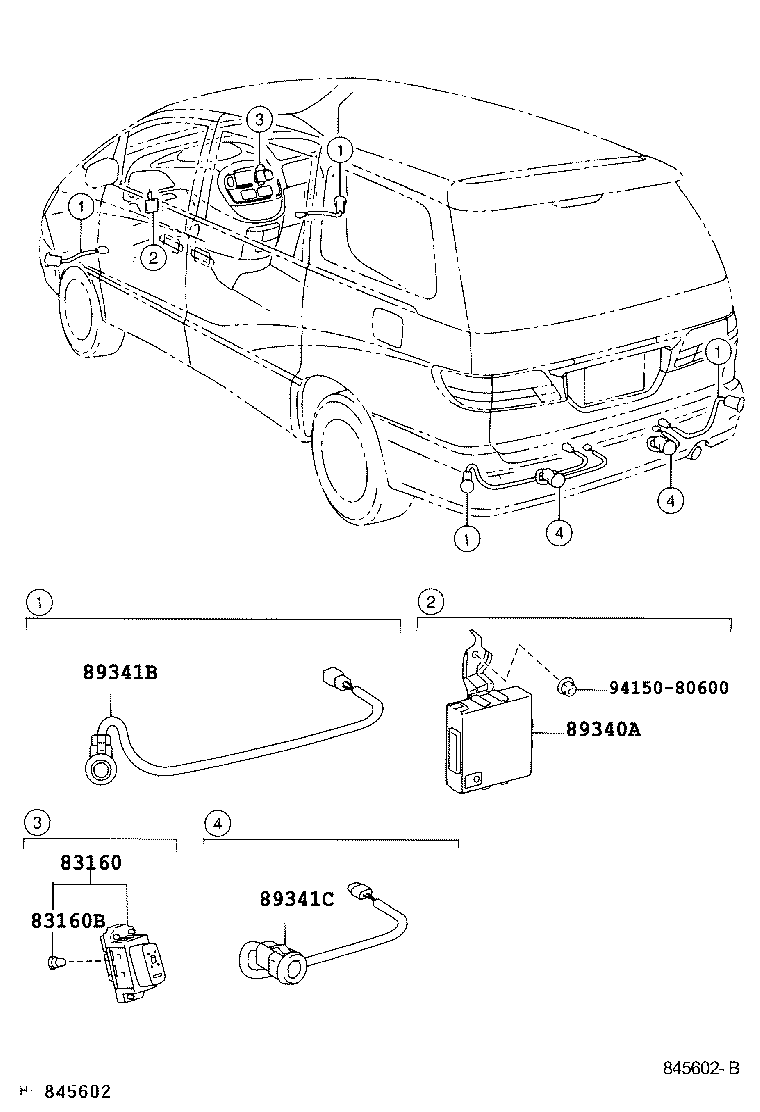

Clearance & Back Sonar
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 83160 | Indicator Assy, Clearance Warning |
| 83160B | Bulb (FOR CLEARANCE WARNING INDICATOR) |
| 89340A | Computer Assy, Clearance Warning |
| 89341A | Sensor, Ultrasonic, NO.1 |
| 89341B | Sensor, Ultrasonic, NO.2 |
| 89341C | Sensor, Ultrasonic, NO.3 |
| 89356 | Label, Clearance Warning Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
