Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

8 part groups · 4 illustrations

Illustrations

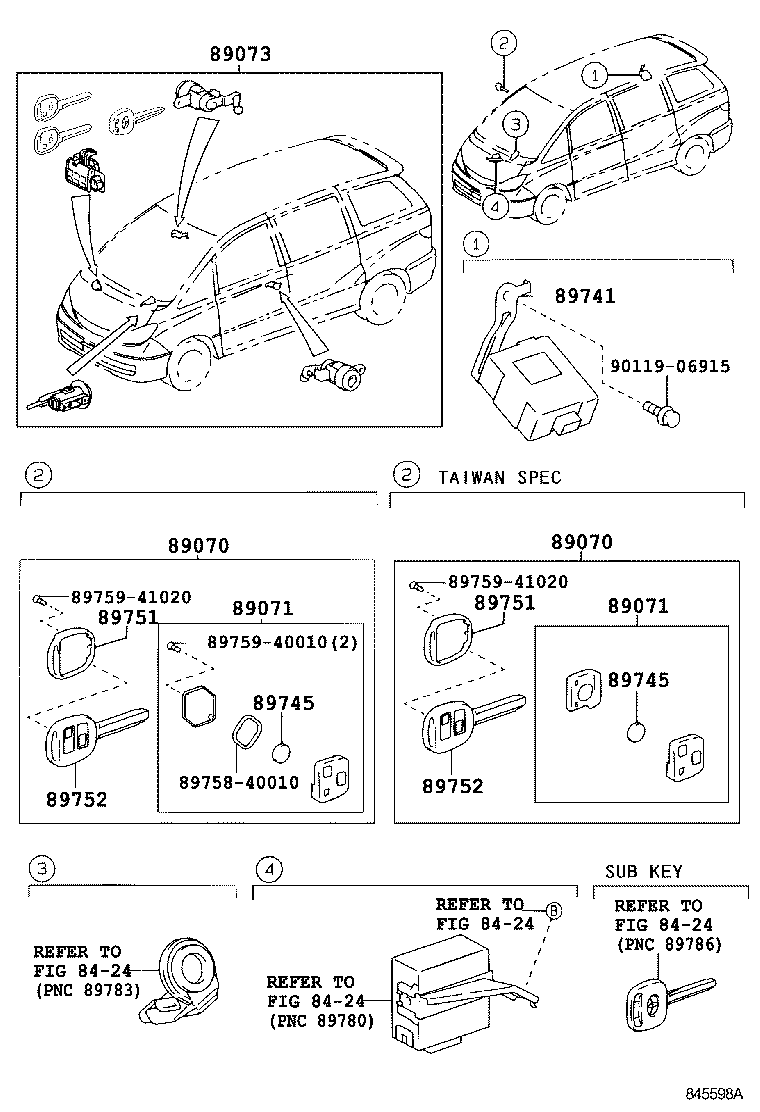

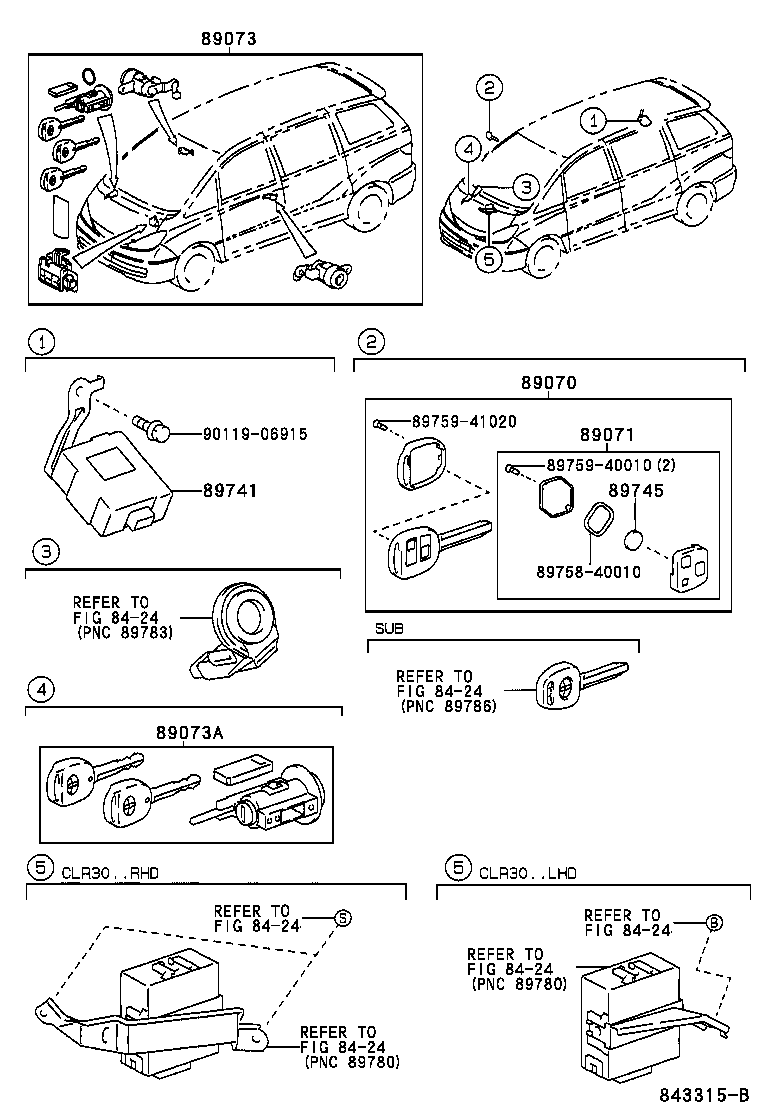

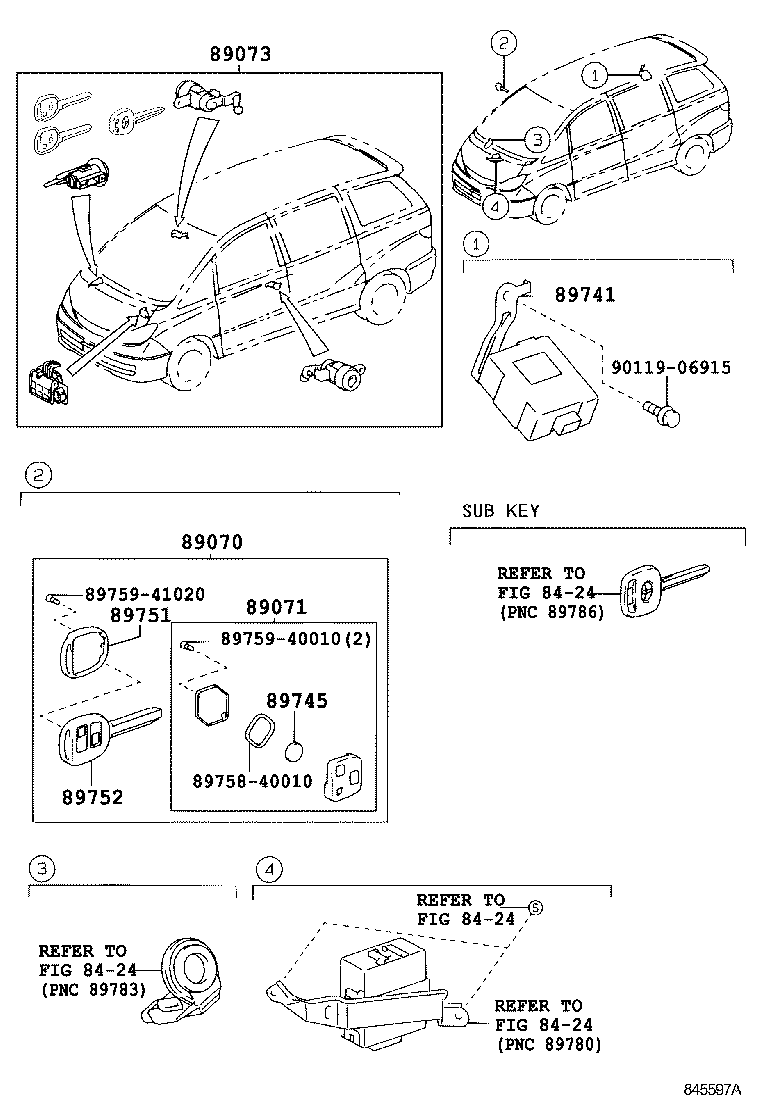

Figure 843314A 843314A 2000-02 → 2003-04 Figure 843315B 843315B 2000-02 → 2003-04 Figure 845597A 845597A 2003-04 → — Figure 845598A 845598A 2003-04 → —

Part groups

PNCDescription
89070 Transmitter Assy, Door Control
89071 Module Set, Transmitter Sub-assy, Door Control
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073A Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY)
89741 Receiver, Door Control
89745 Battery, Transmitter
89751 Cover, Transmitter Housing
89752 Case, Transmitter Housing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
