Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

3 part groups · 3 illustrations

Illustrations

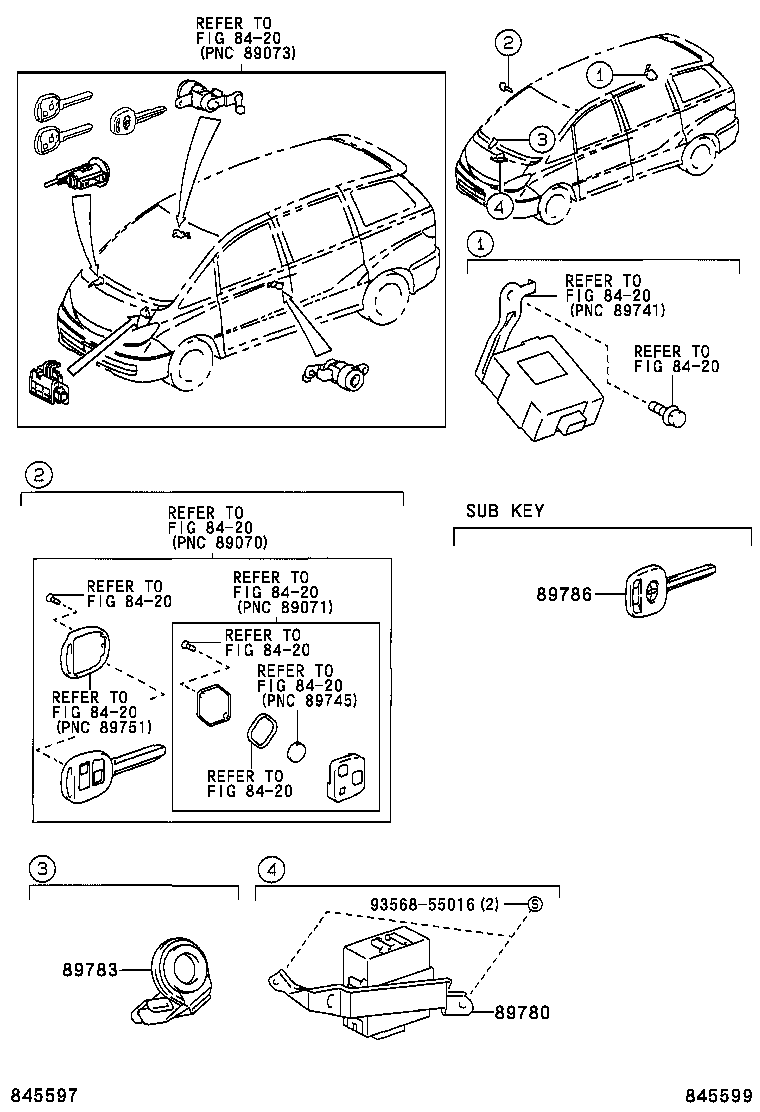

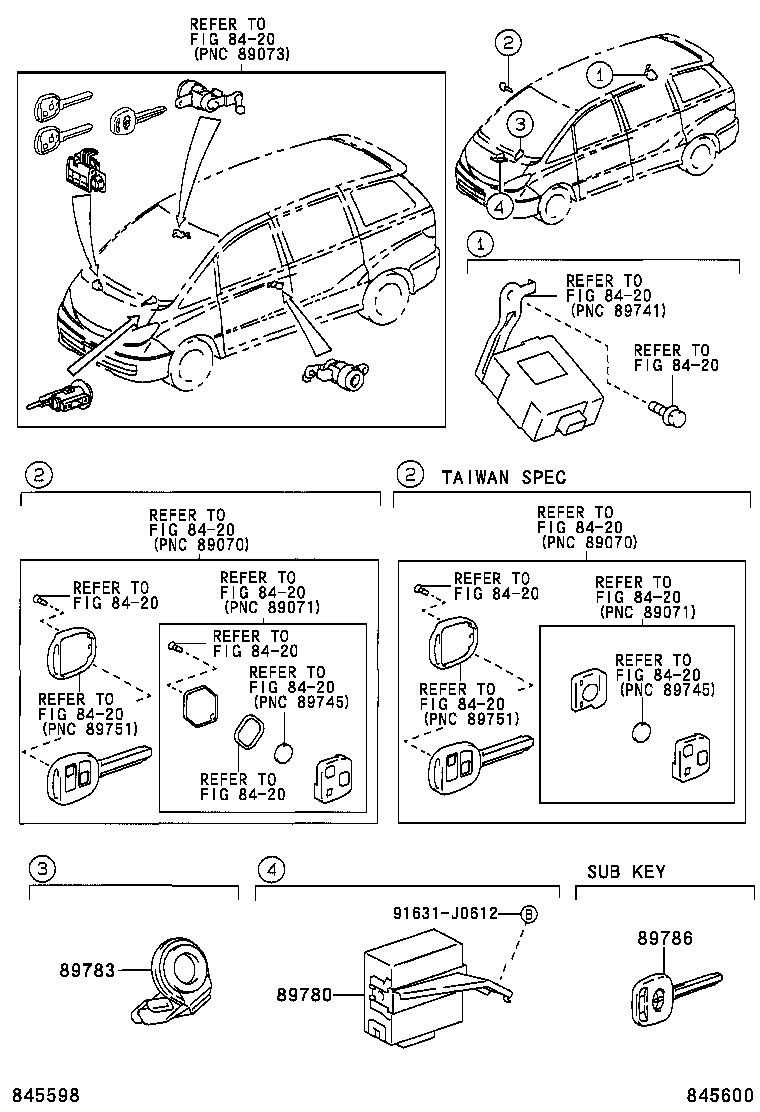

Figure 843316B 843316B 2000-02 → 2003-04 Figure 845599 845599 2003-04 → — Figure 845600 845600 2003-04 → —

Part groups

PNCDescription
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
89786 Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
