Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

19 part groups · 4 illustrations

Illustrations

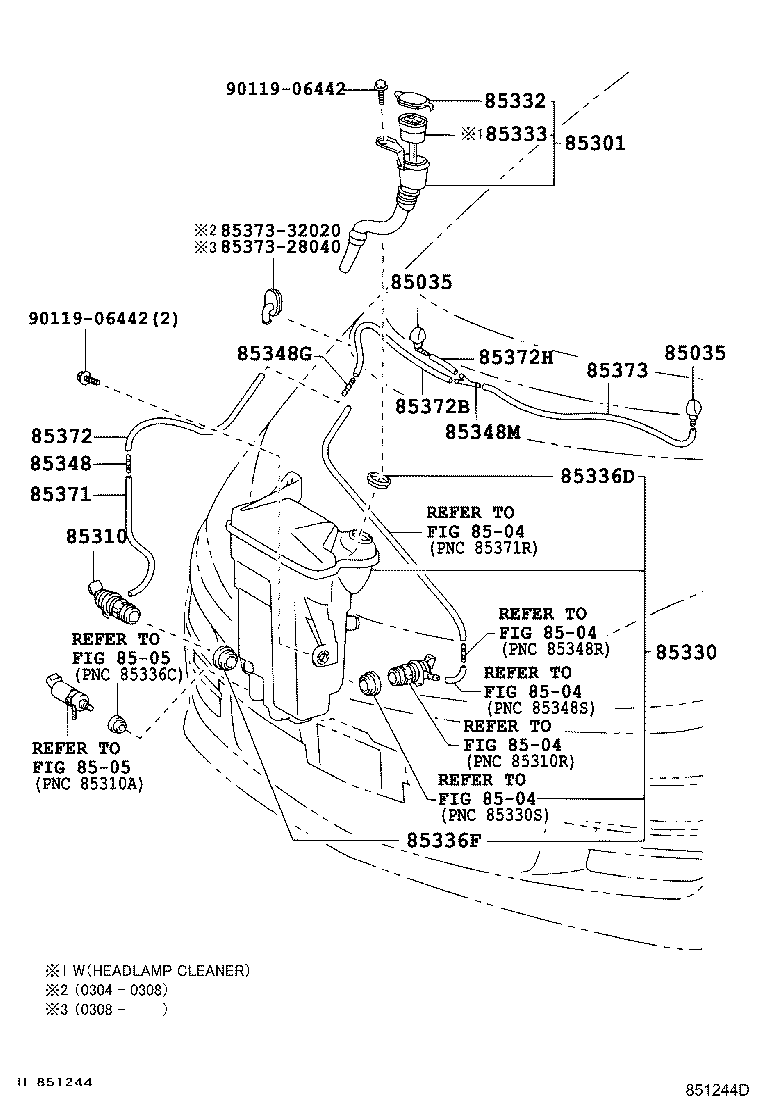

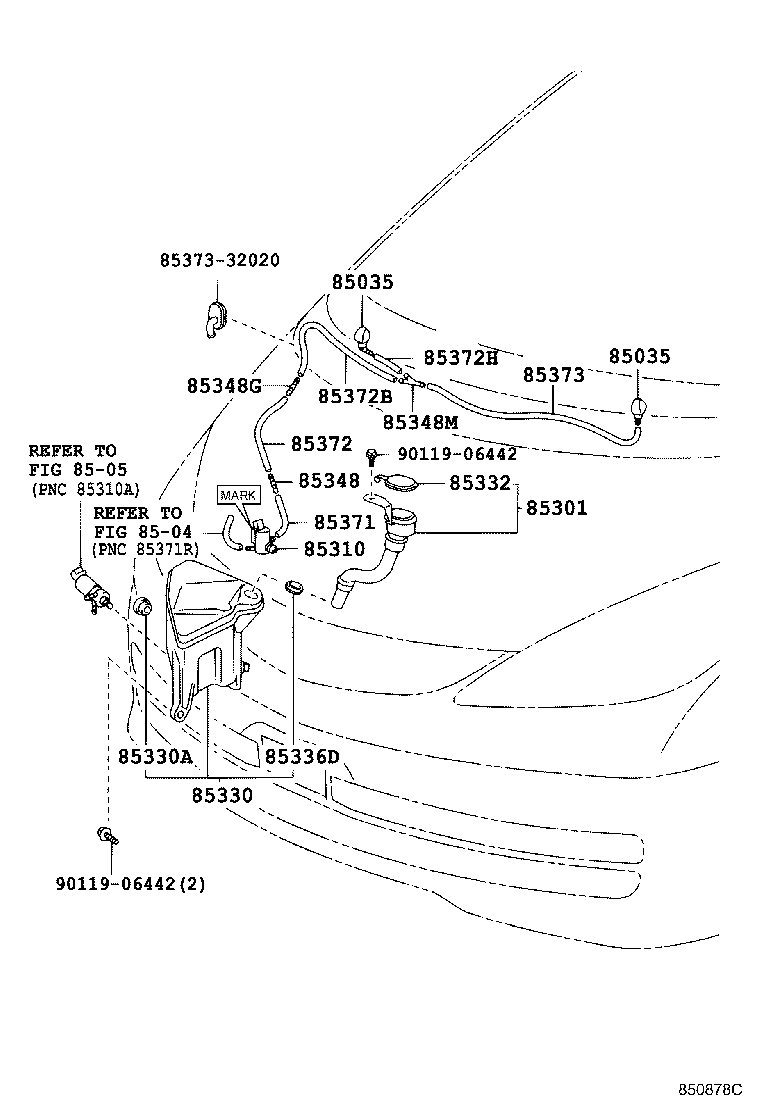

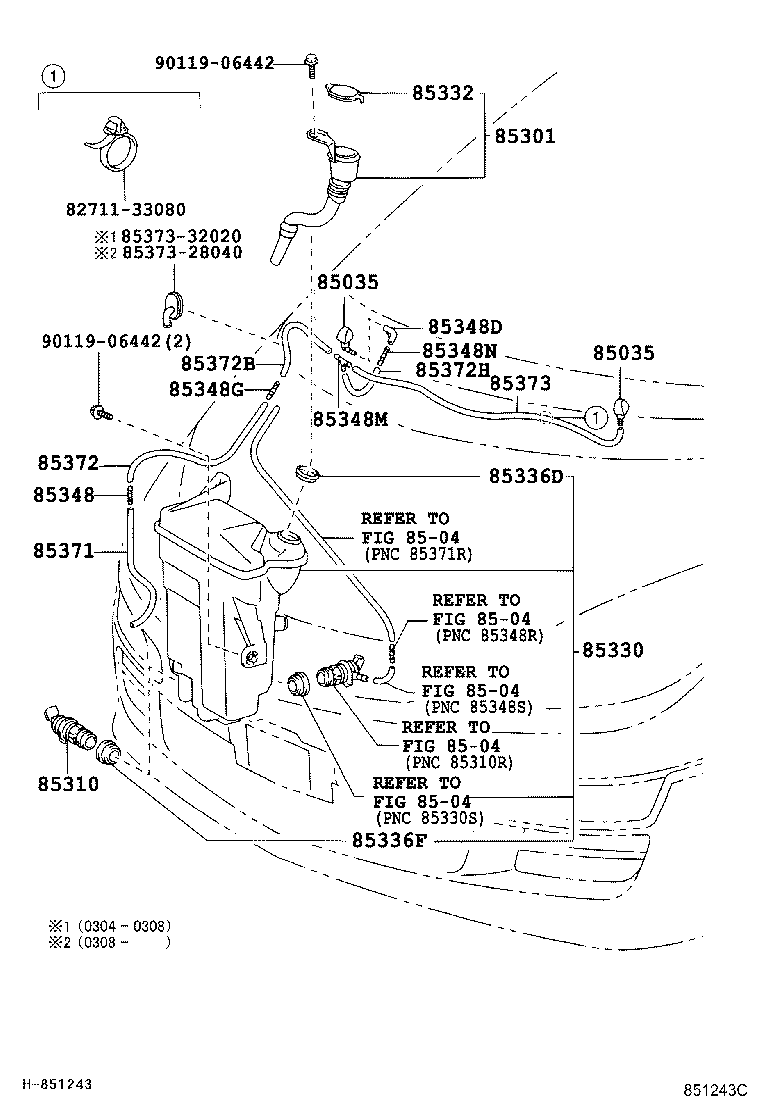

Figure 850746E 850746E 2000-02 → 2003-04 Figure 850878C 850878C 2000-02 → 2003-04 Figure 851243C 851243C 2003-04 → — Figure 851244D 851244D 2003-04 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85301 Inlet Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85336D Packing, Windshield Washer Jar
85336F Packing, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85348G Joint, Windshield Washer Hose, NO.2
85348M Joint, Windshield Washer Hose, NO.3
85348N Joint, Windshield Washer Hose, NO.4
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
