Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

25 part groups · 2 illustrations

Illustrations

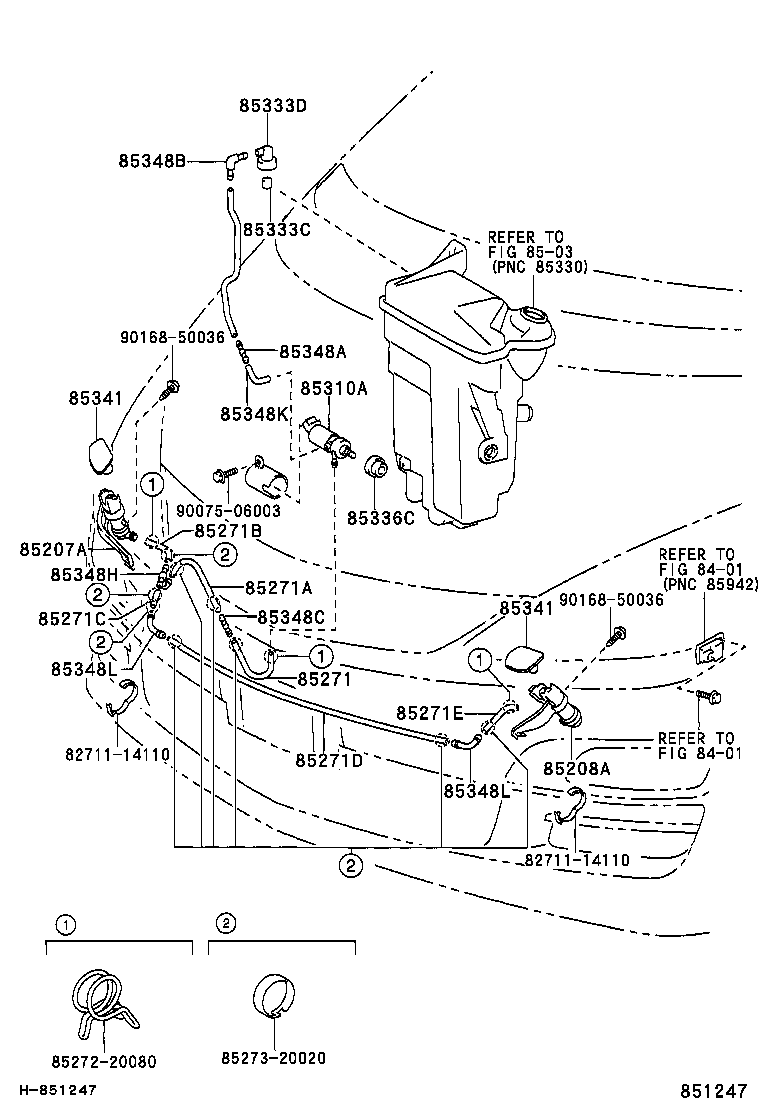

Figure 850749C 850749C 2000-02 → 2003-04 Figure 851247 851247 2003-04 → —

Part groups

PNCDescription
85031 Valve, Headlamp Cleaner Washer Hose
85044 Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH
85045 Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85271D Hose, Headlamp Cleaner, NO.5
85271E Hose, Headlamp Cleaner, NO.6
85272A Clamp, Headlamp Cleaner, NO.1
85283 Bracket, Headlamp Cleaner Washer
85310A Motor And Pump Assy, Headlamp Cleaner Washer
85333C Filter, Headlamp Cleaner
85333D Cover, Headlamp Cleaner
85336C Packing, Headlamp Cleaner Motor
85338A Hose, Breather
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85348C Joint, Headlamp Cleaner Hose, NO.3
85348H Joint, Headlamp Cleaner Hose, NO.4
85348K Joint, Headlamp Cleaner Elbow, NO.1
85348L Joint, Headlamp Cleaner Elbow, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
