Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

37 part groups · 9 illustrations

Illustrations

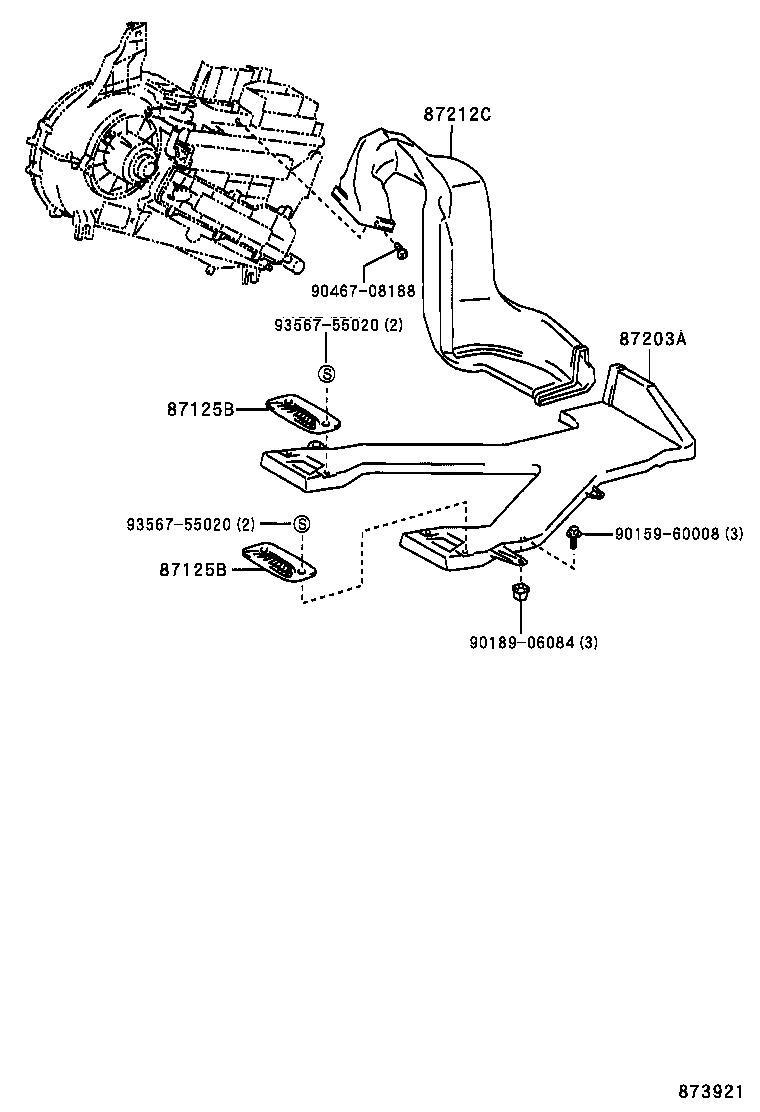

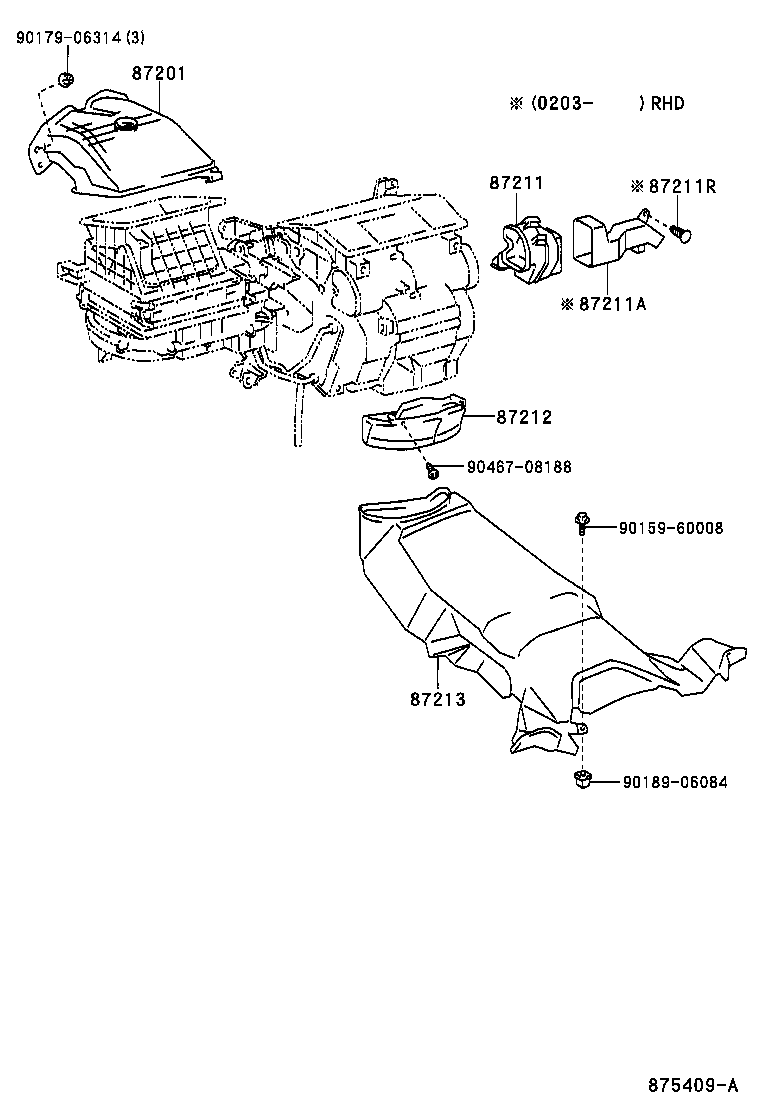

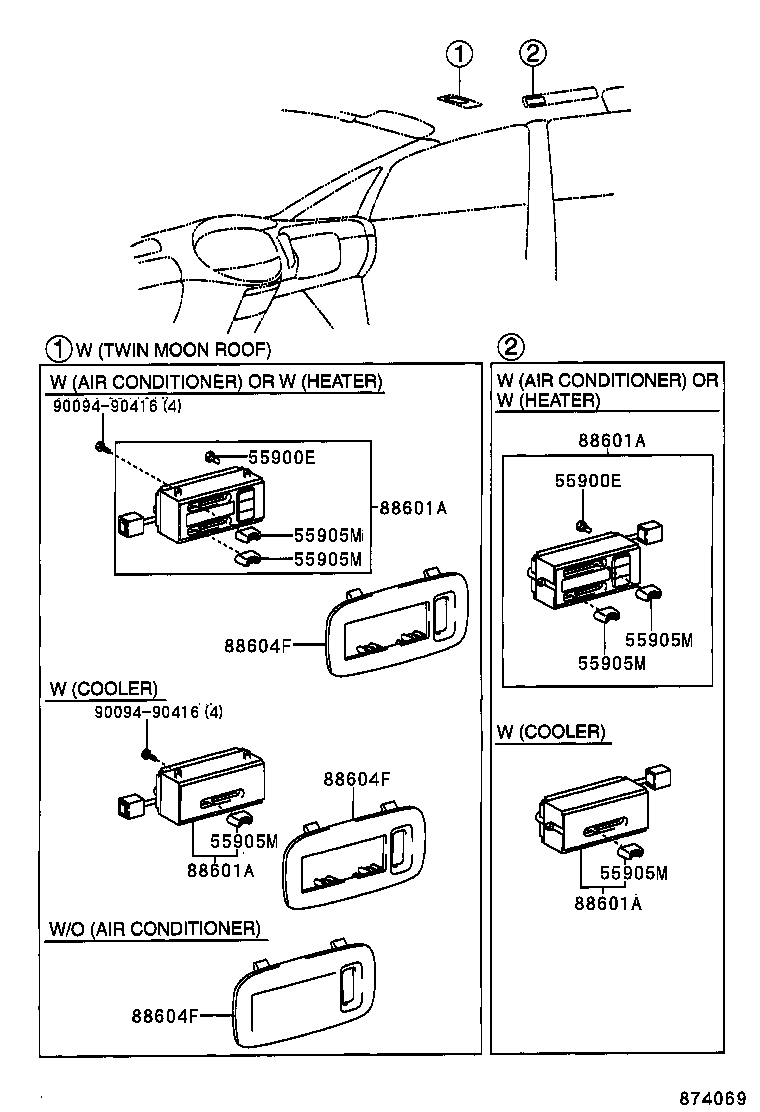

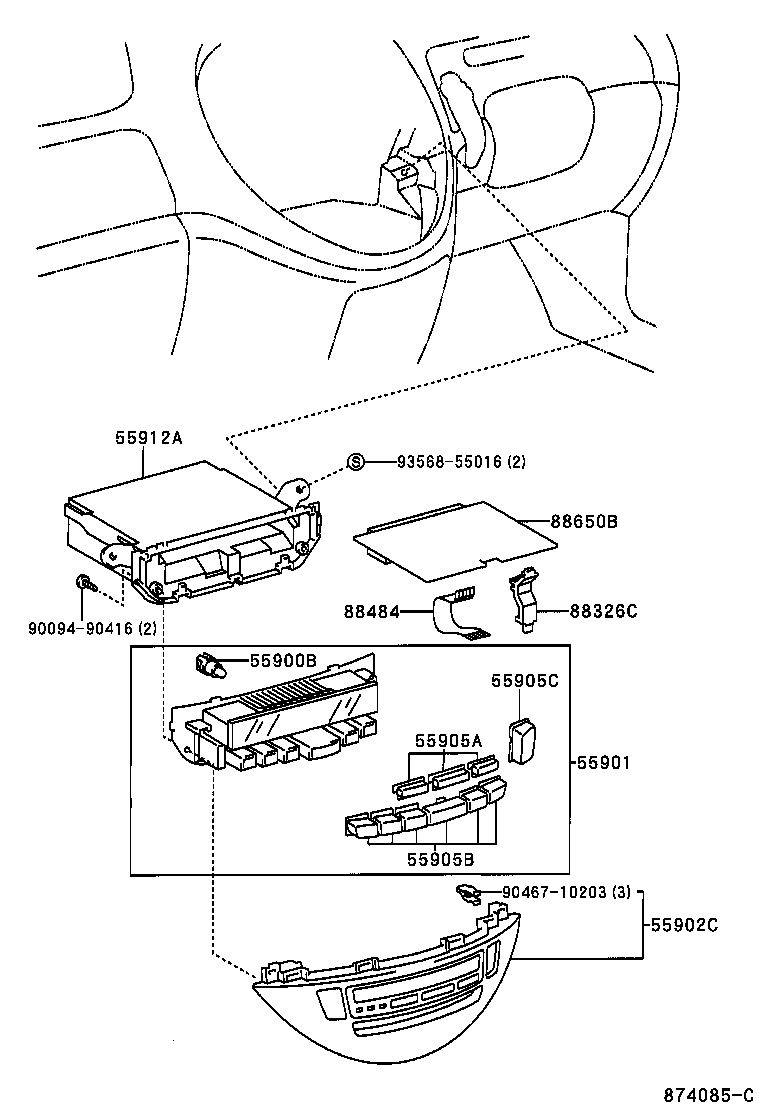

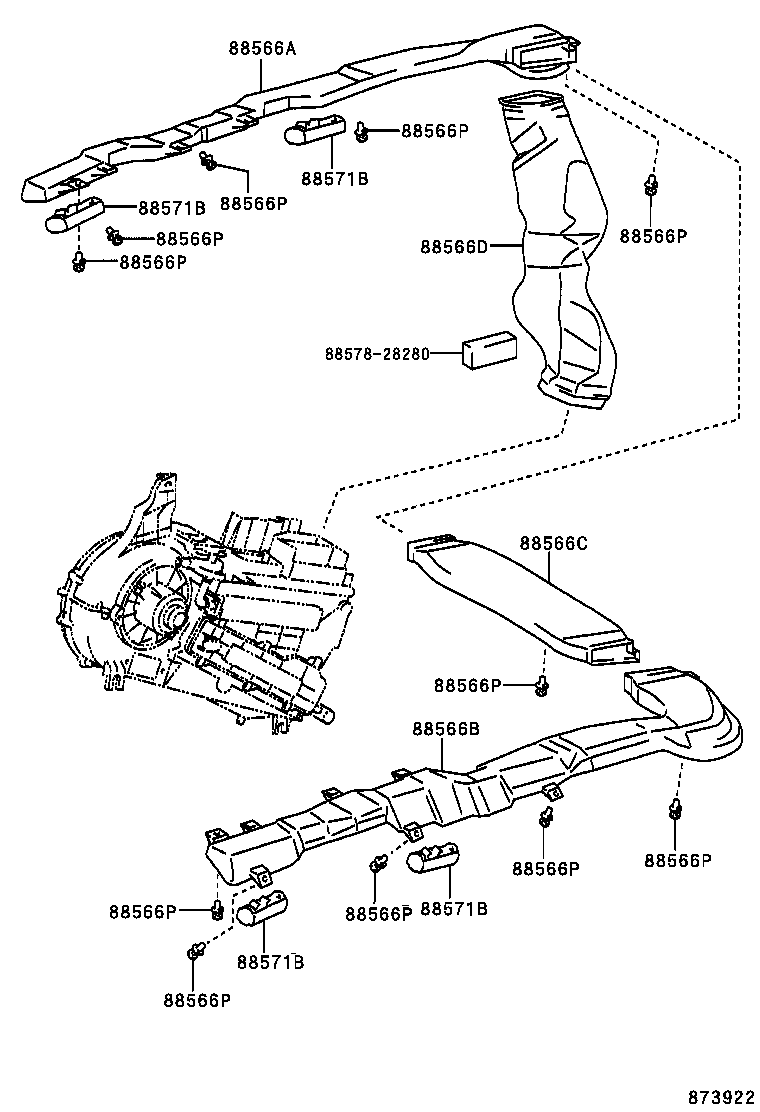

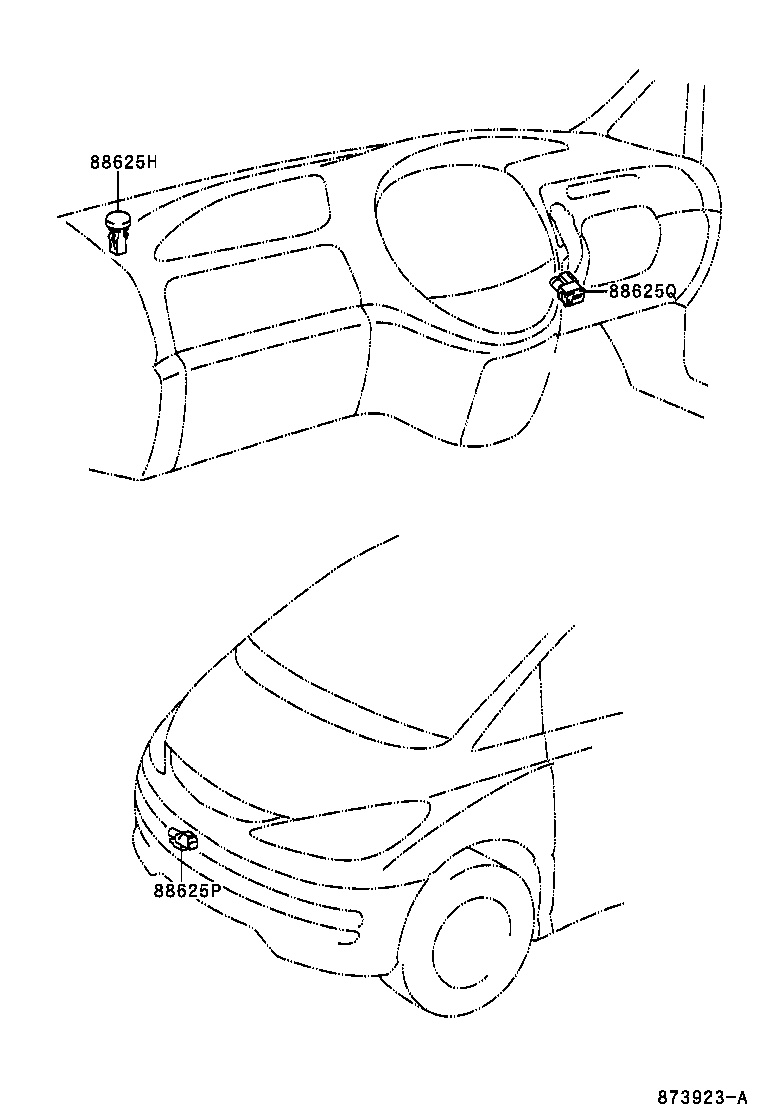

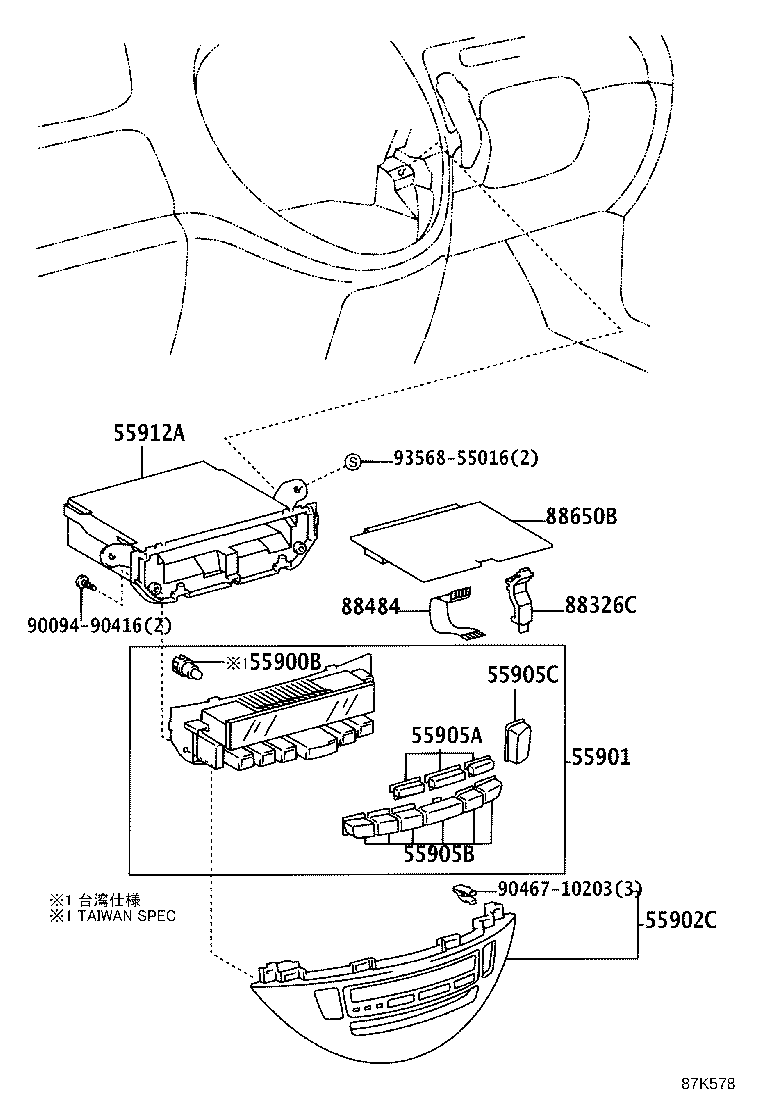

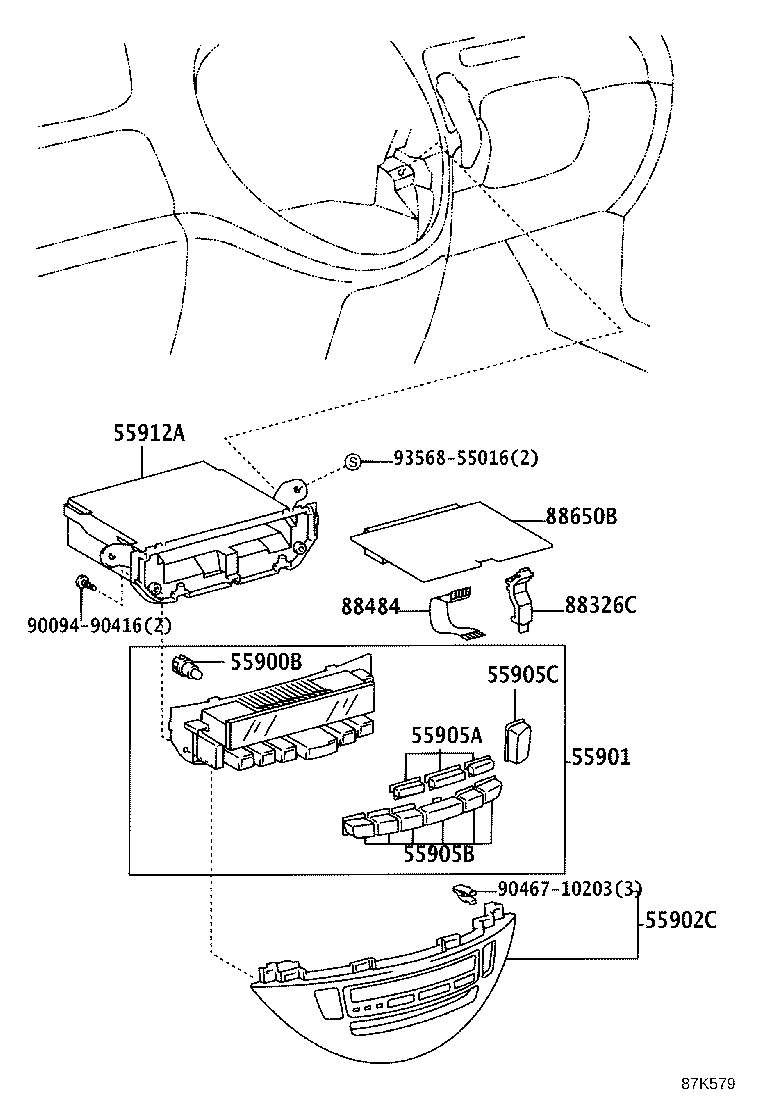

Figure 874068C 874068C 2000-02 → — Figure 874085C 874085C 2000-02 → 2003-11 Figure 87K578 87K578 2003-11 → — Figure 87K579 87K579 2003-11 → — Figure 874069 874069 2000-02 → — Figure 875409A 875409A 2000-02 → — Figure 873921 873921 2000-02 → — Figure 873922 873922 2000-02 → — Figure 873923A 873923A 2000-02 → —

Part groups

PNCDescription
55900B Bulb, Air Conditioner Control
55900E Bulb, Air Conditioner Control, NO.2
55901 Base Sub-assy, Heater Control
55902C Panel Sub-assy, Air Conditioner
55904A Housing Sub-assy, Heater Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905M Knob Sub-assy, Control
55905T Cover, Switch Hole, NO.1
55911A Base, Heater Control
55912A Housing, Heater Control
81942A Sheet, Heater Control Name, NO.1
87125B Grille, Heater Air Outlet
87201 Duct Sub-assy, Air, NO.1
87203A Duct Assy, Heater Air, Rear
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212C Duct, Air, RR
87213 Duct, Air, Rear NO.2
88326C Plate, Cover
88484 Wire, Cooler, NO.1
88566A Duct, Cooler Air, NO.1
88566B Duct, Cooler Air, NO.2
88566C Duct, Cooler Air, NO.3
88566D Duct, Cooler Air, NO.4
88566P Clip, Cooler Air Duct
88571B Grille, Air Outlet
88601A Switch Sub-assy, Cooler Control
88604F Panel Sub-assy, Cooler Control
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88638B Lens, Indicator Lamp
88650B Amplifier Assy, Airconditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
