Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

30 part groups · 24 illustrations

Illustrations

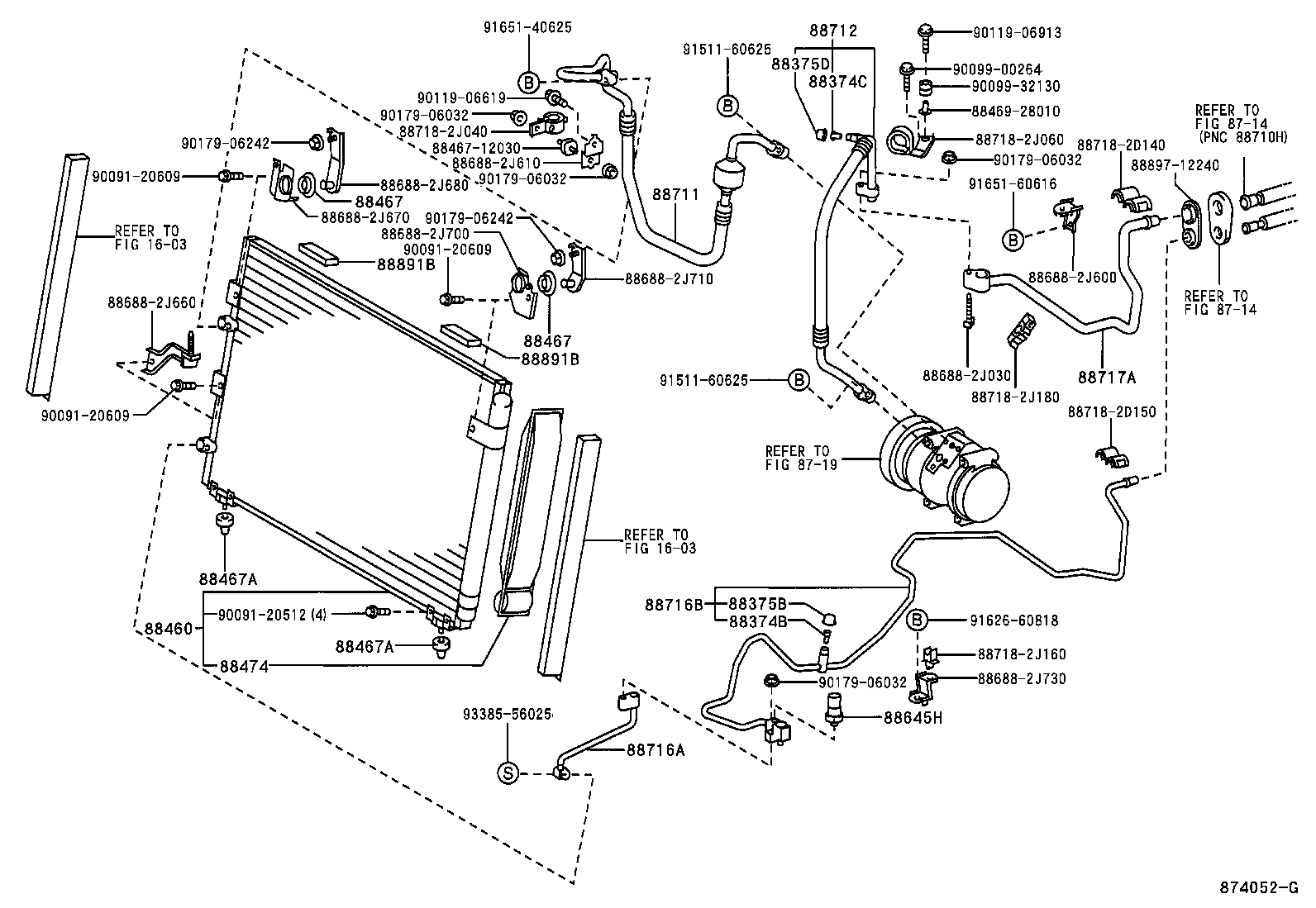

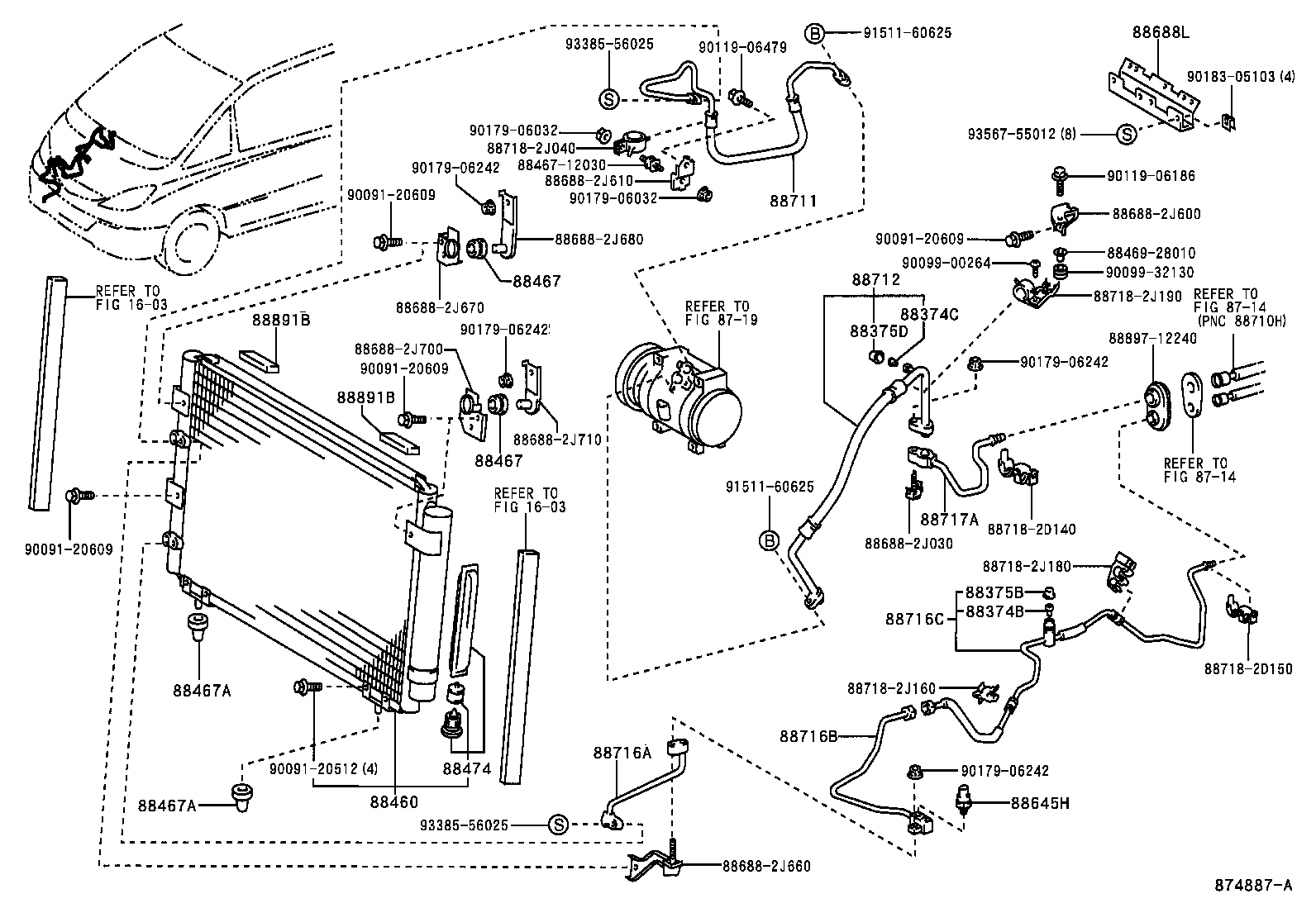

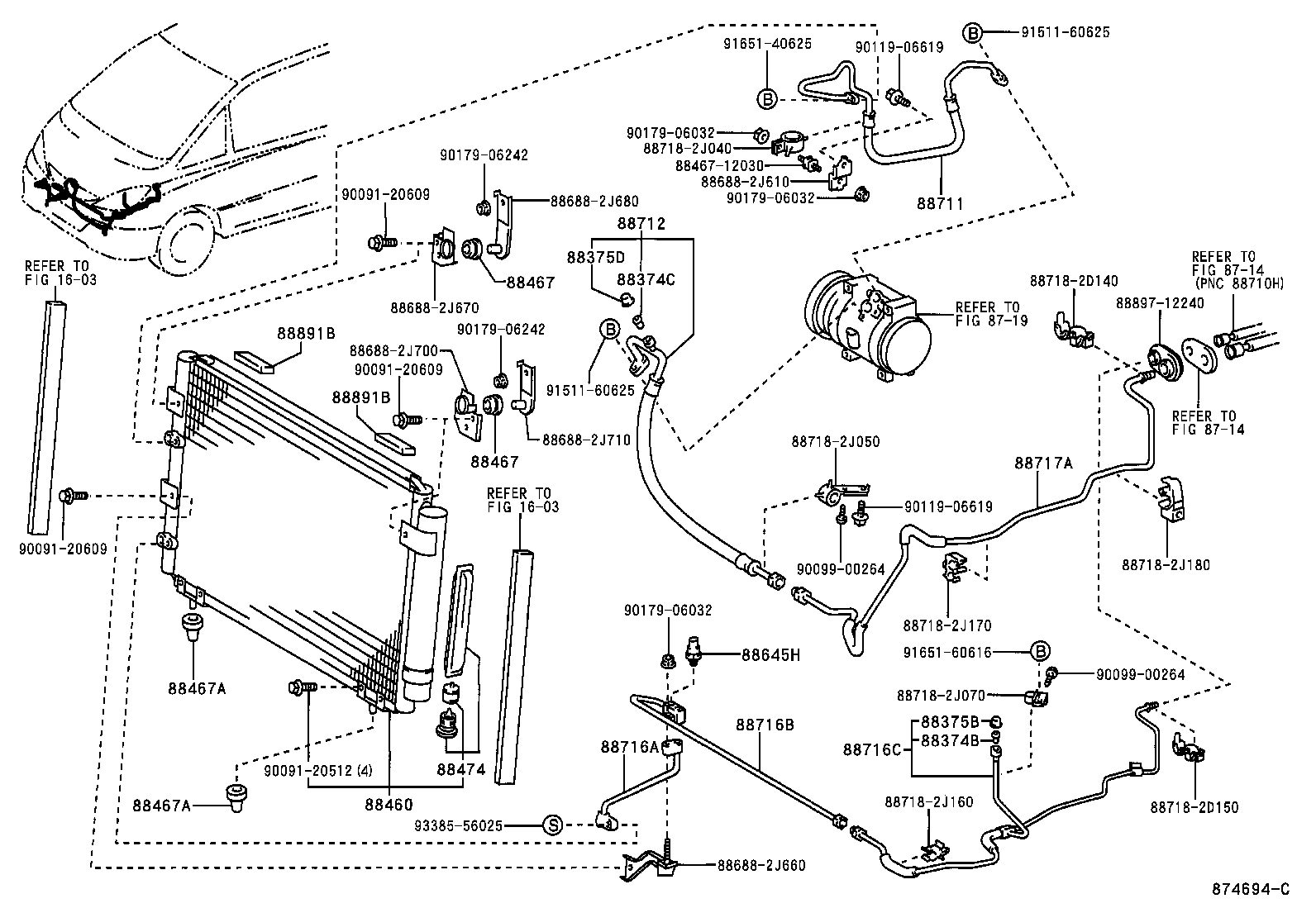

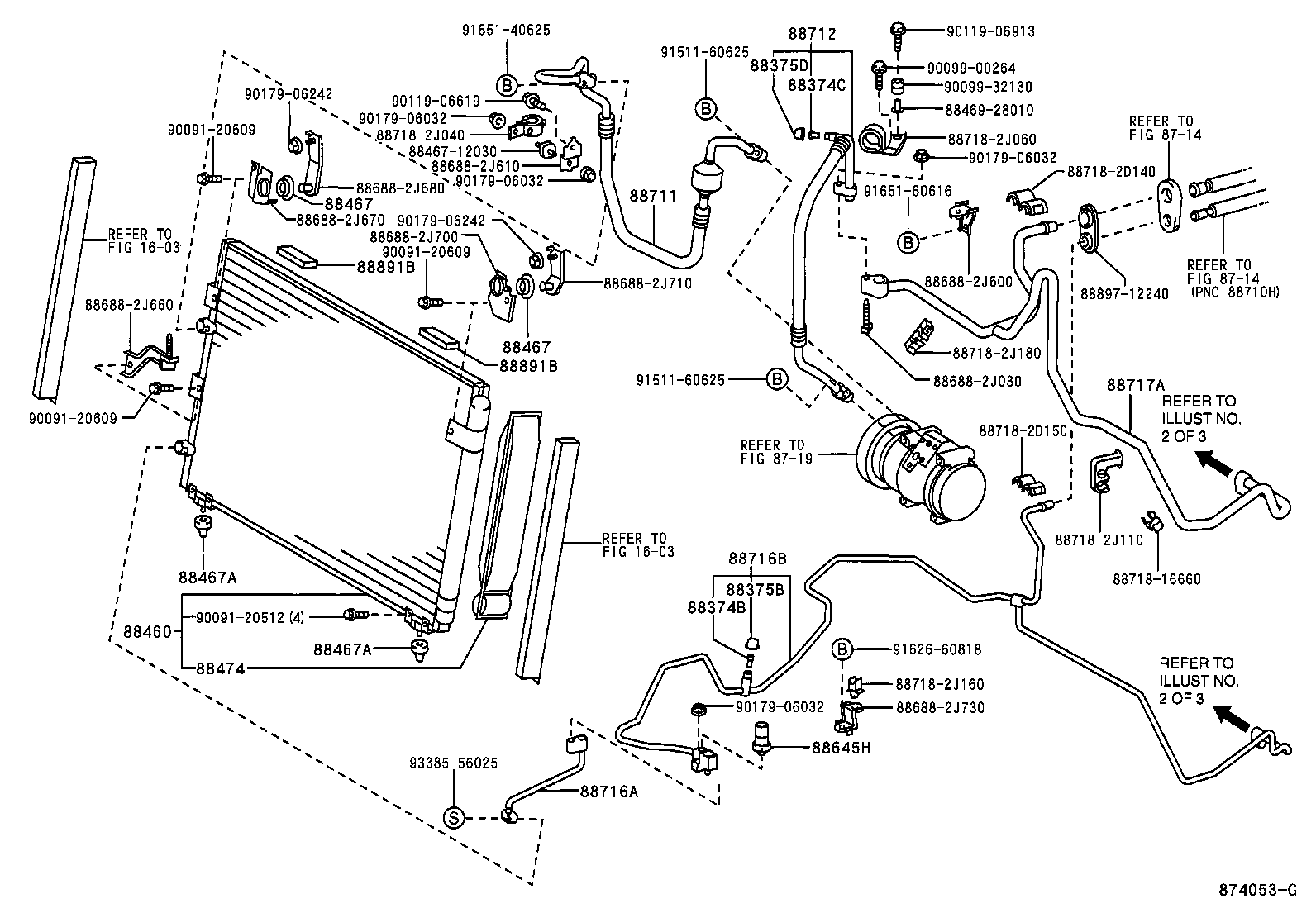

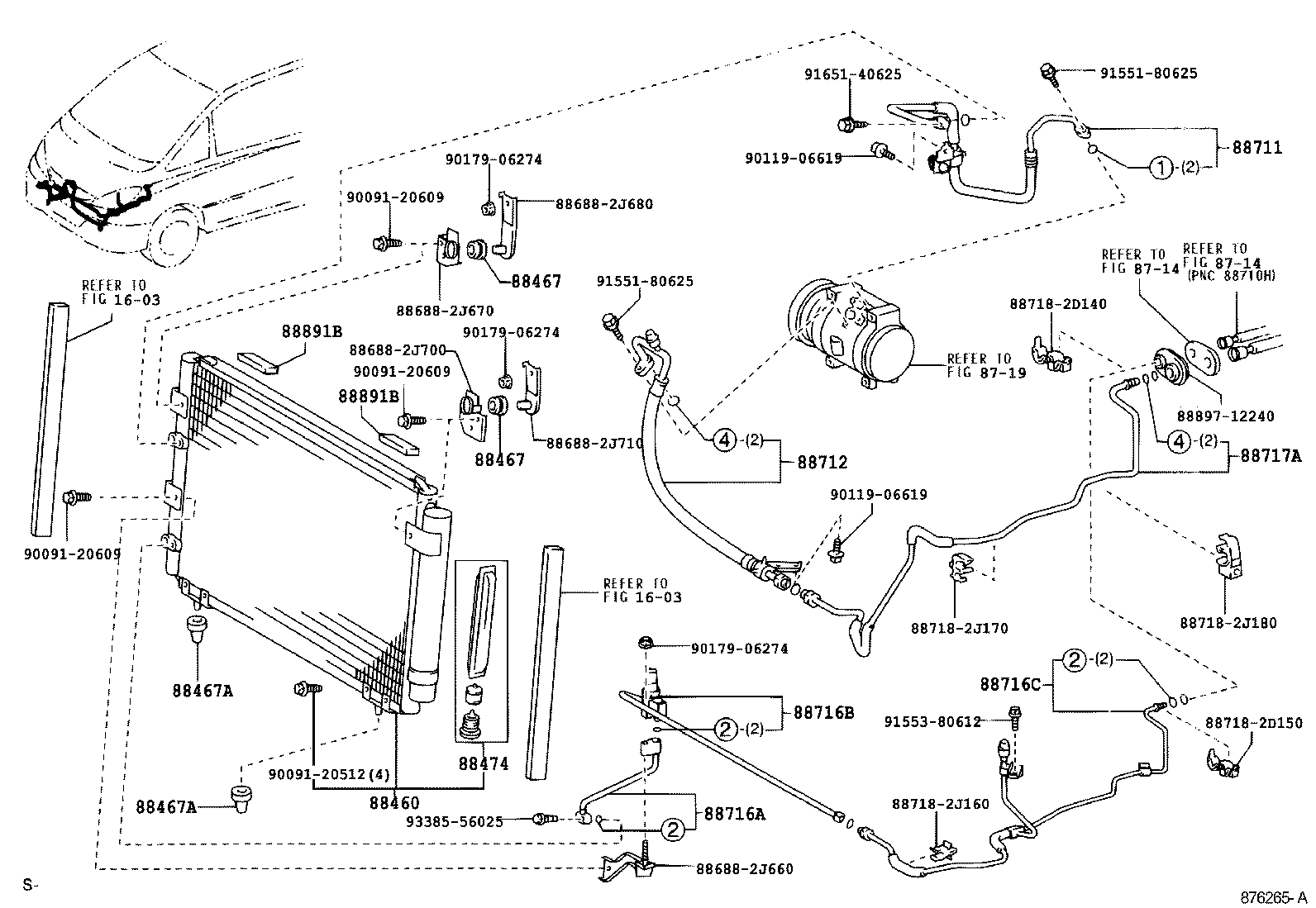

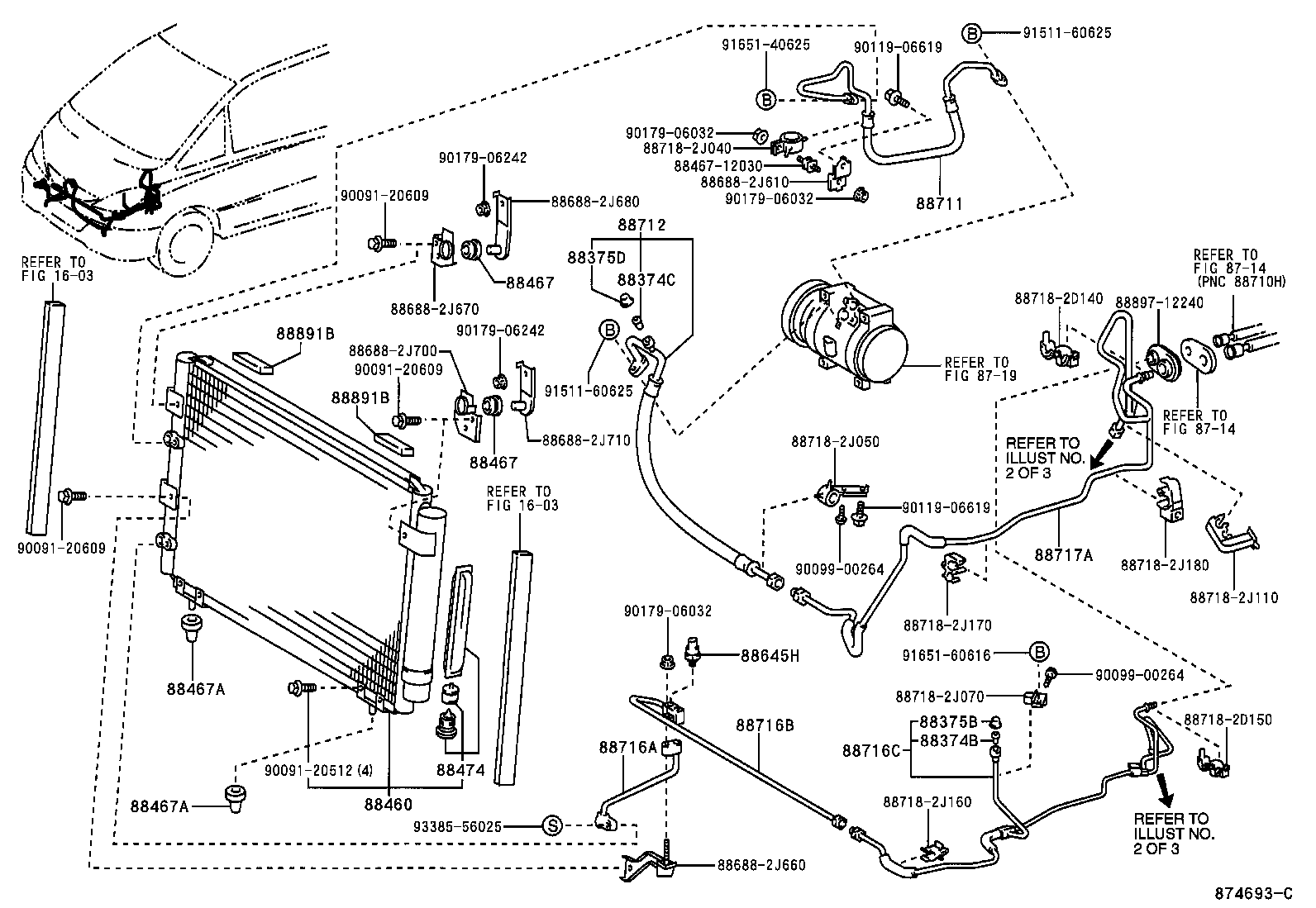

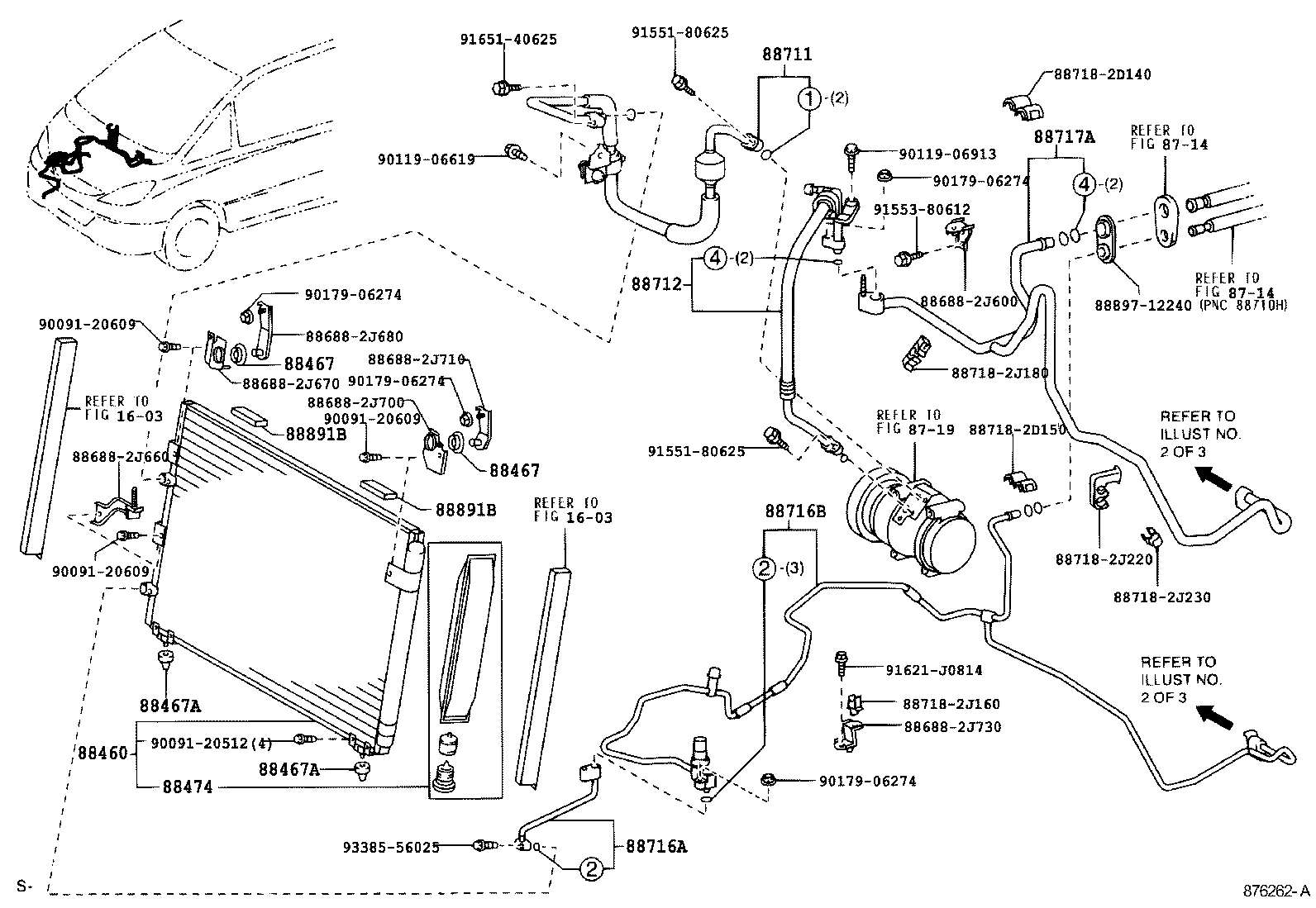

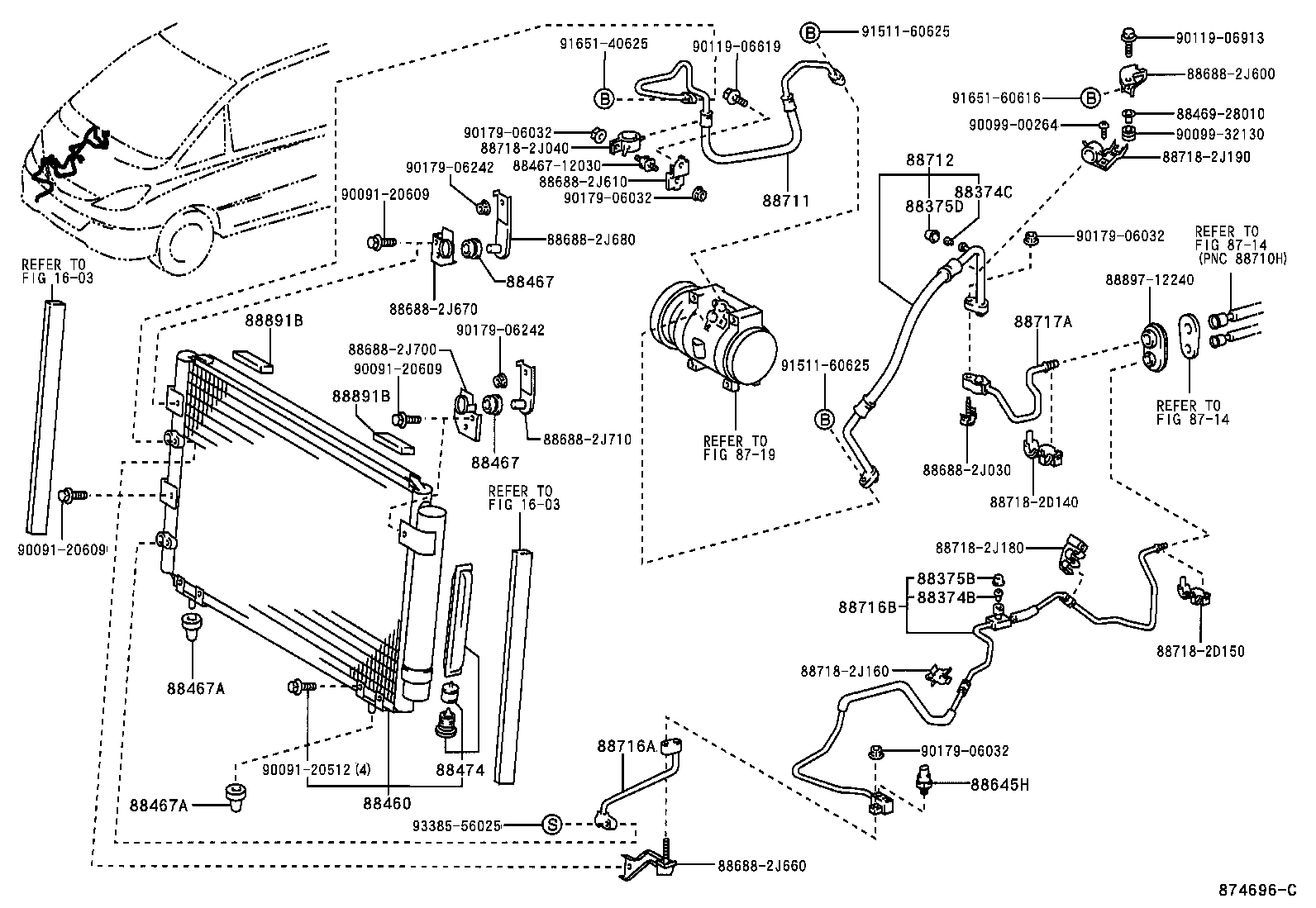

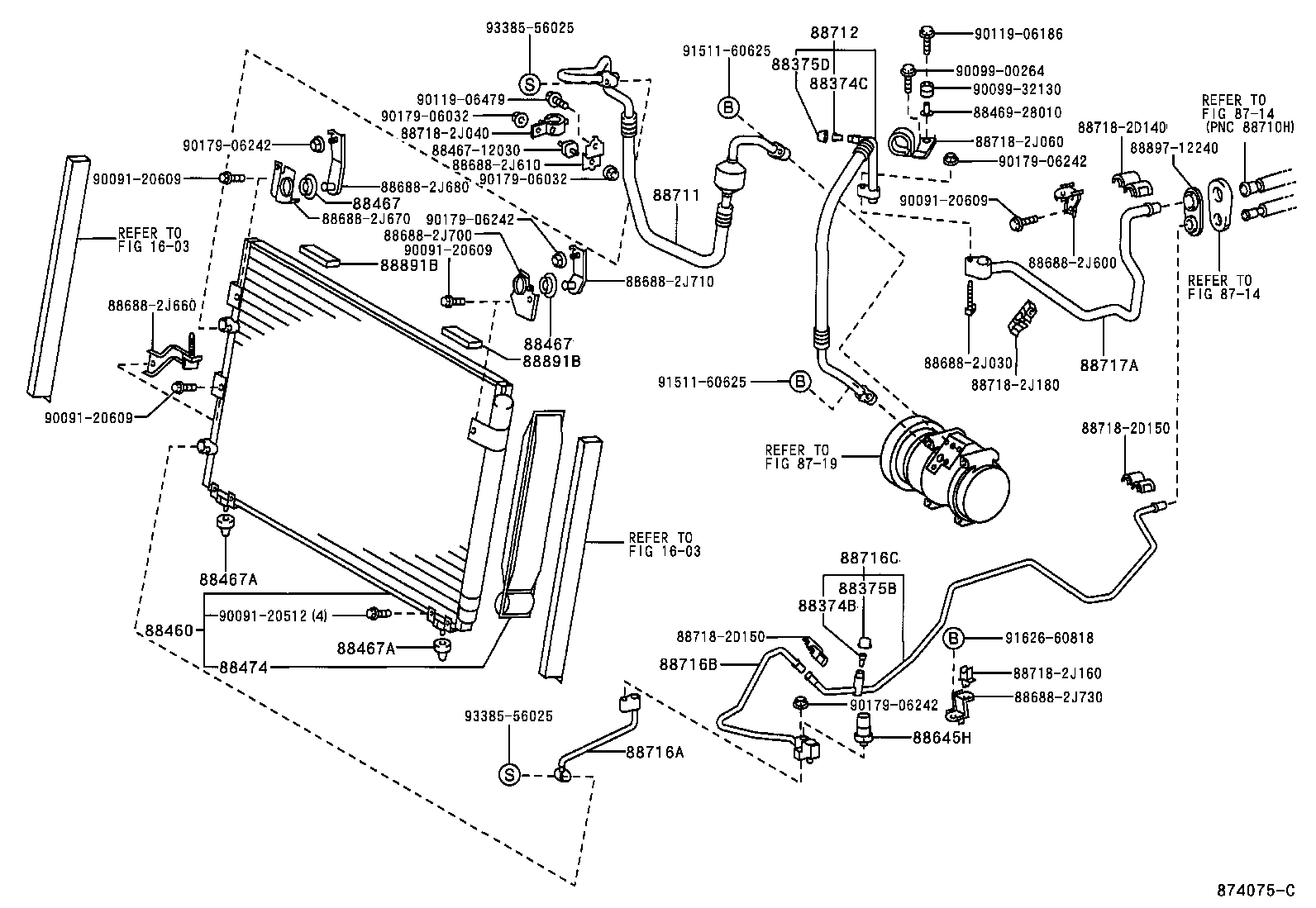

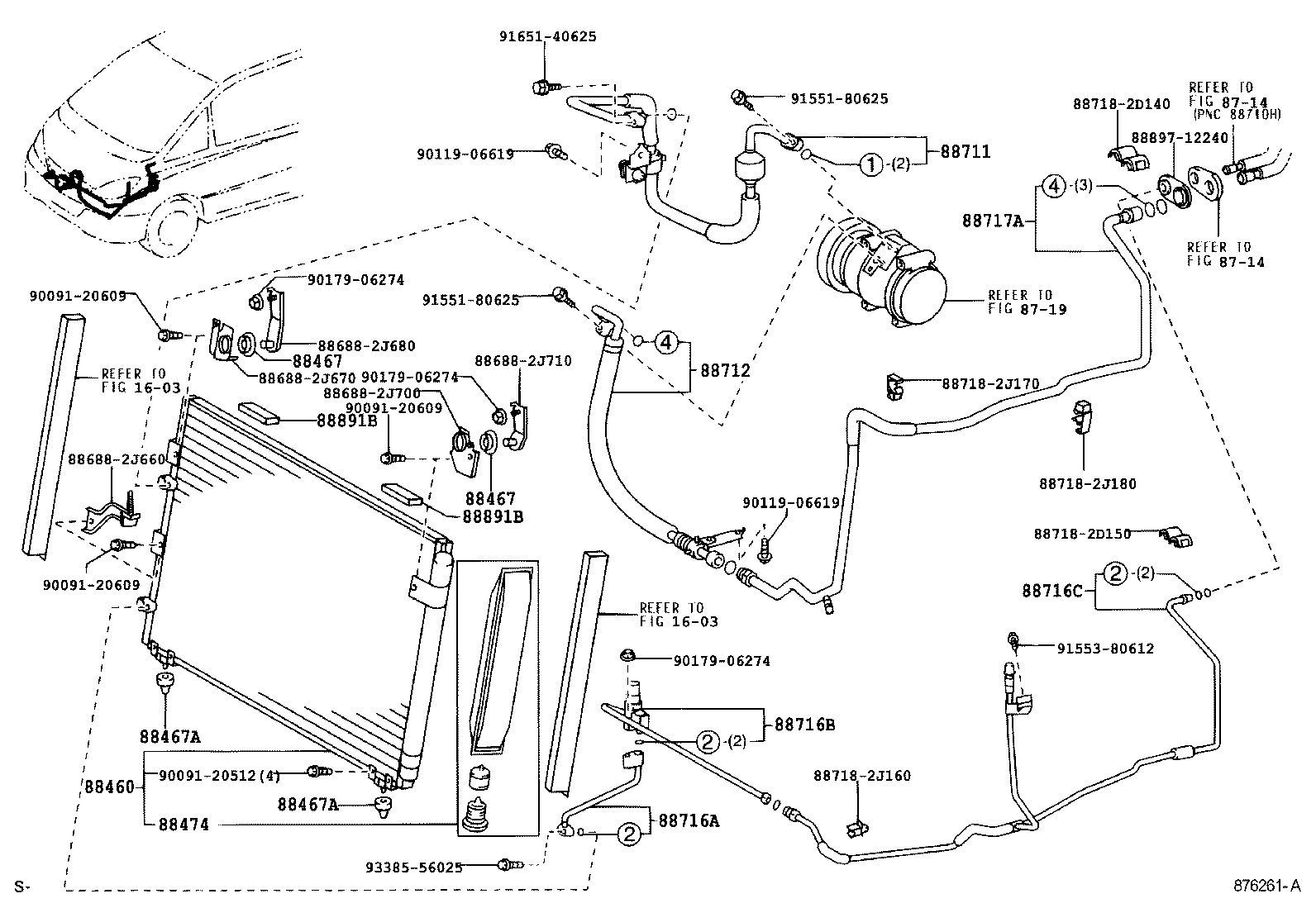

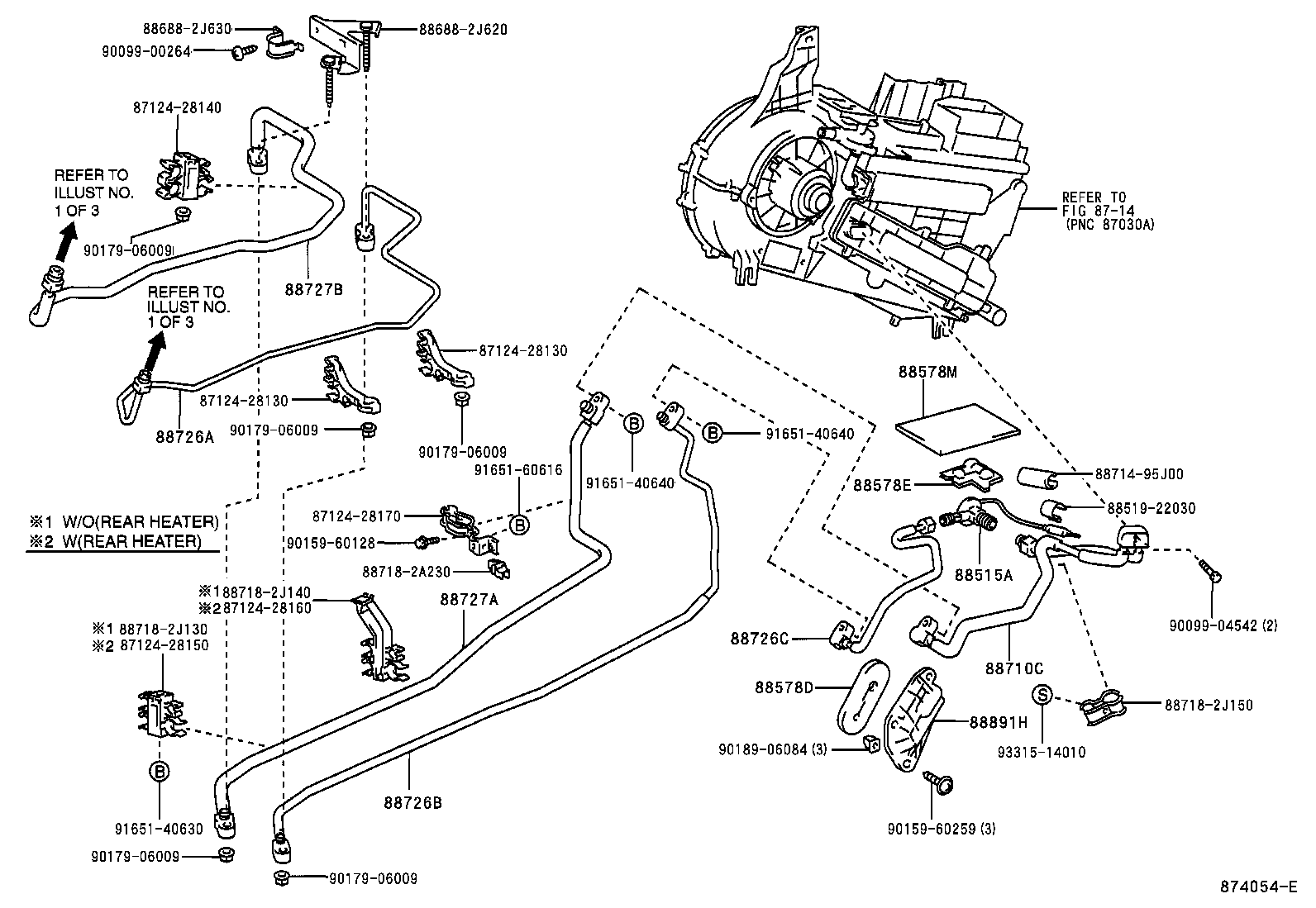

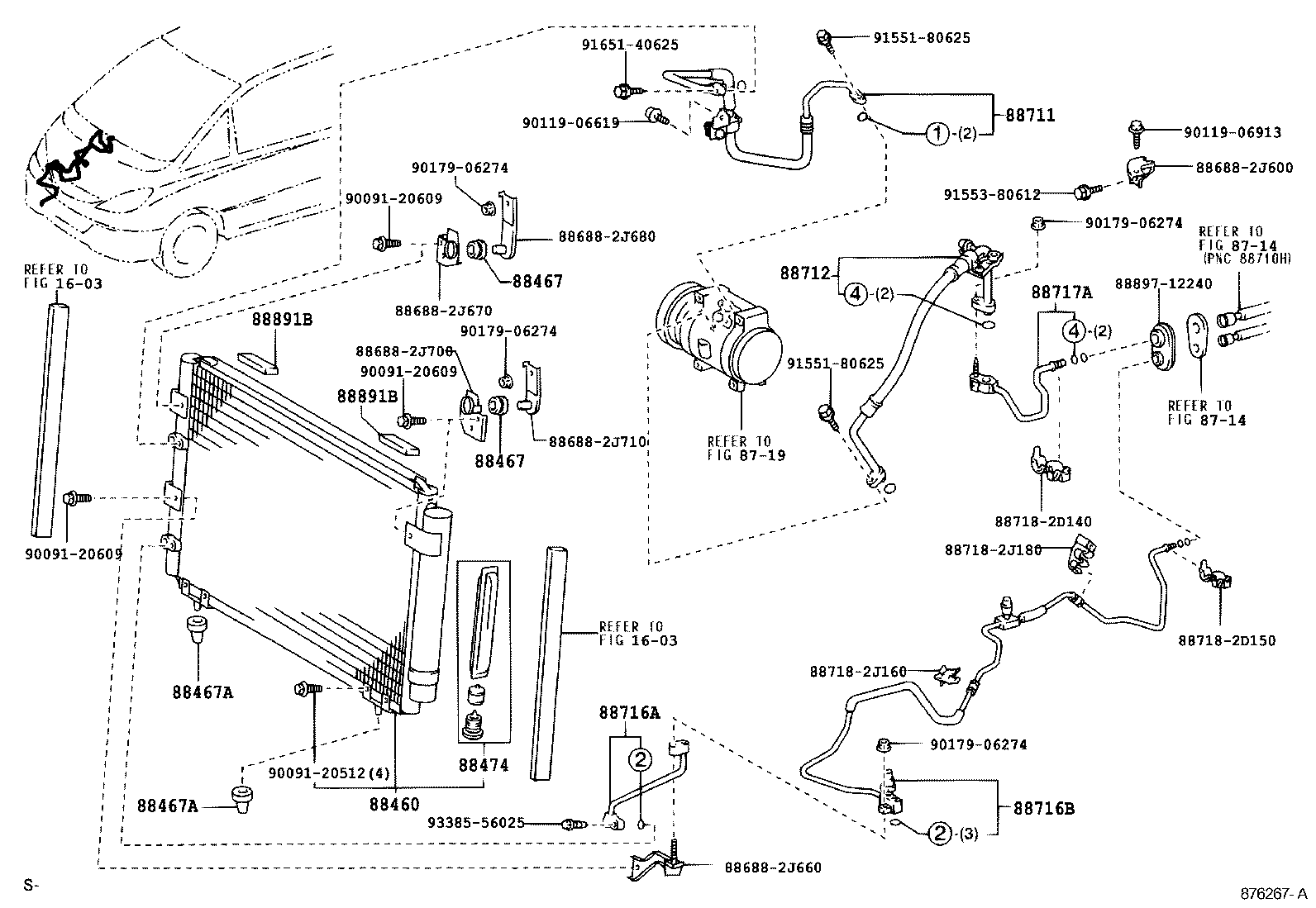

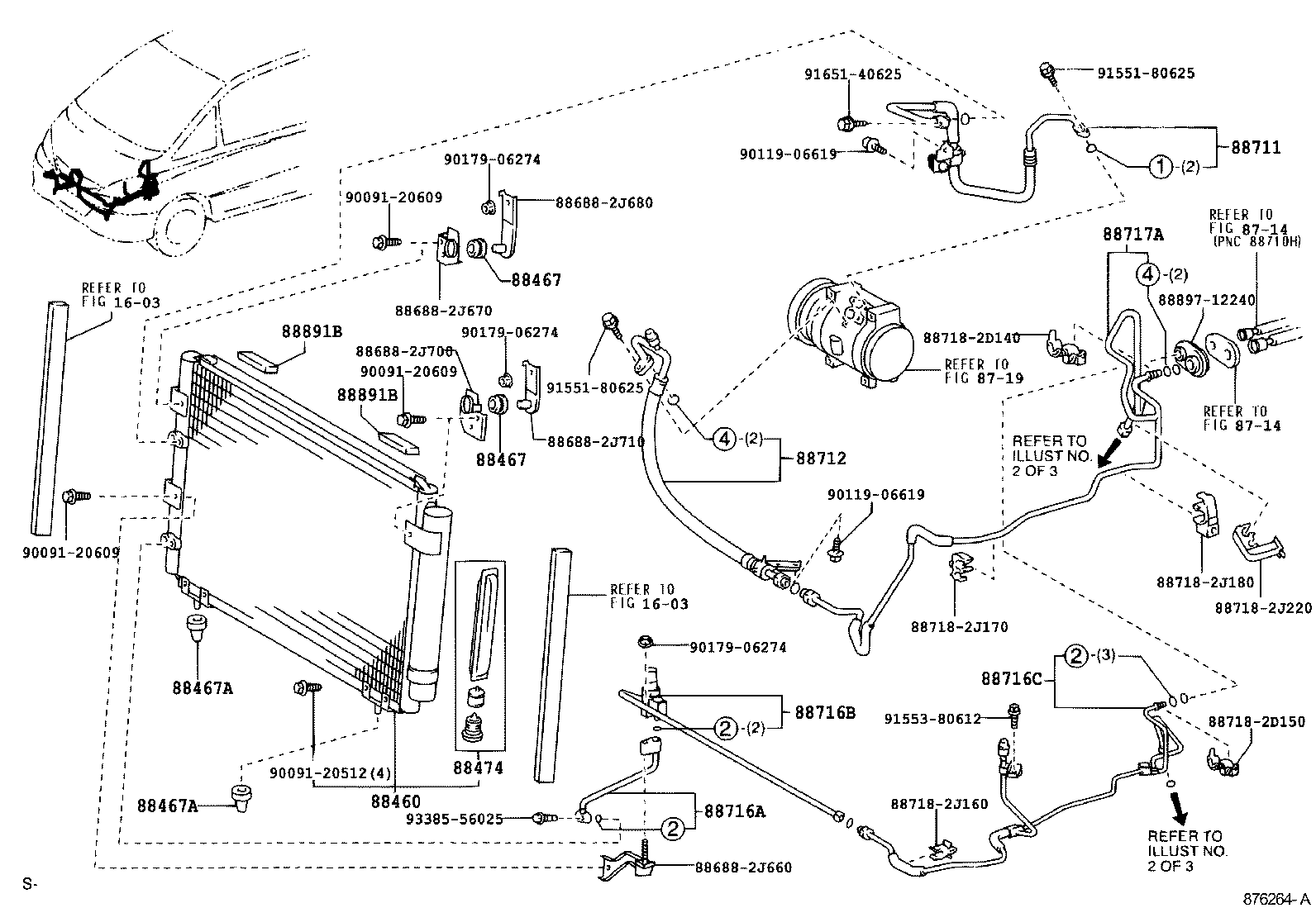

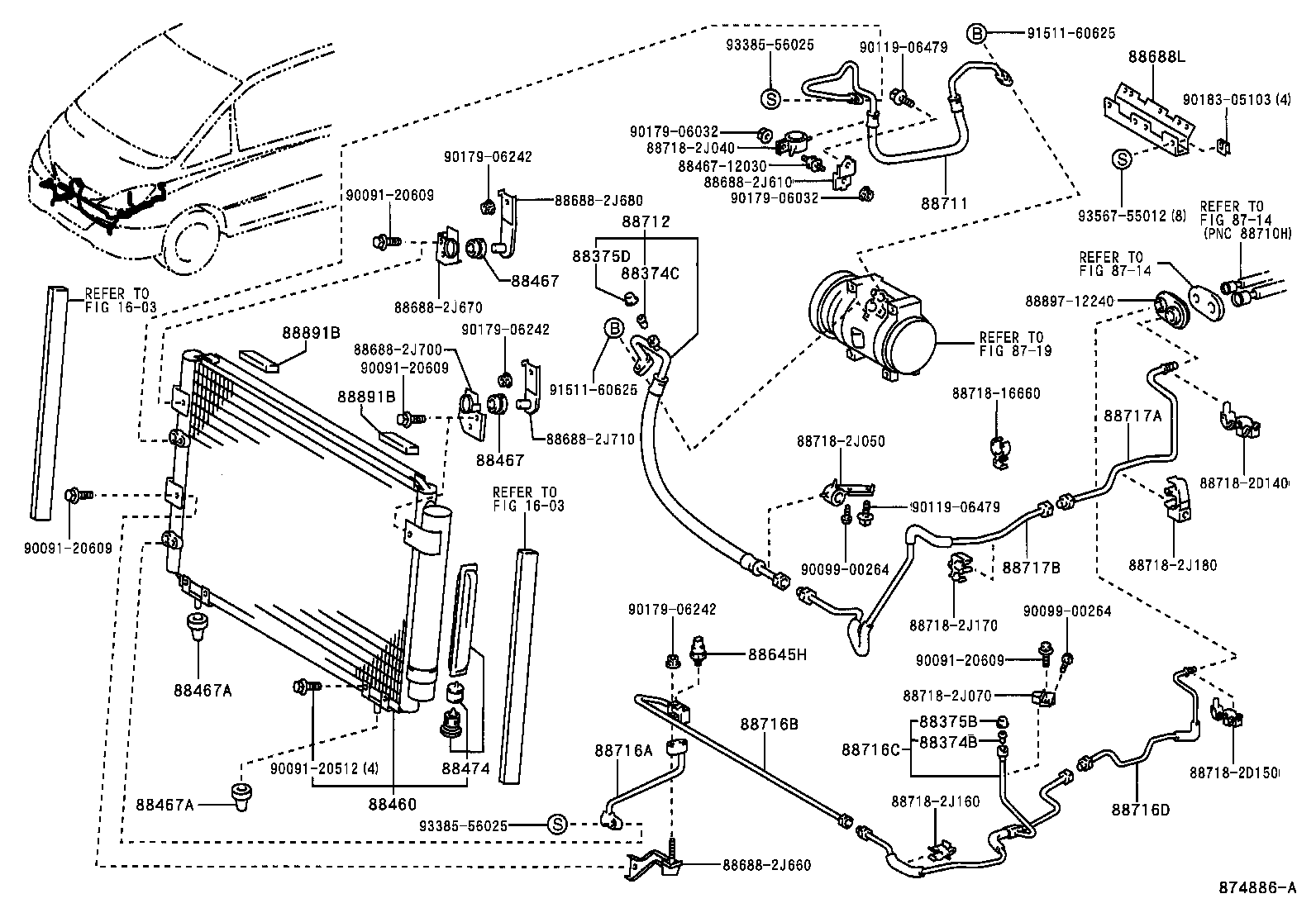

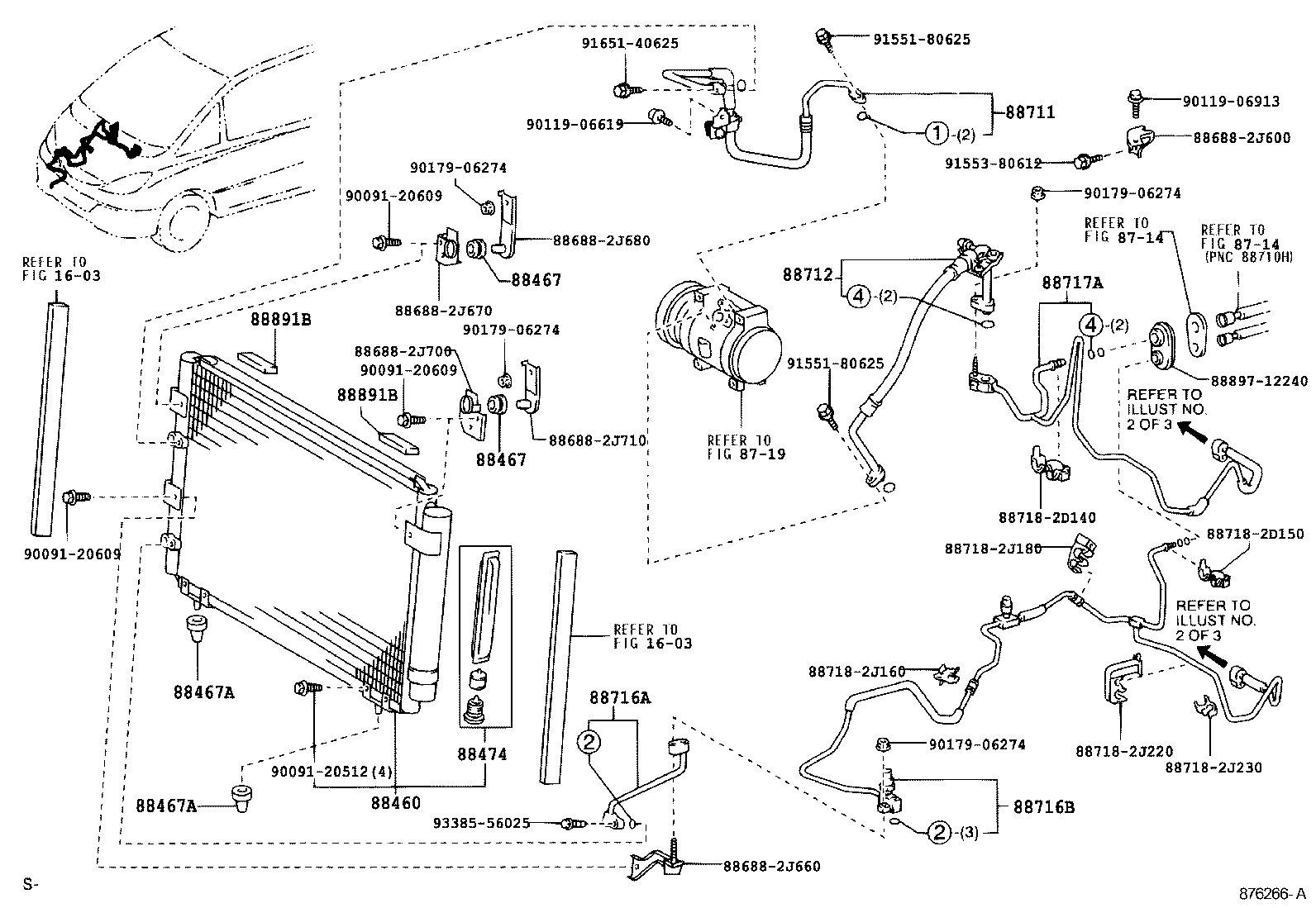

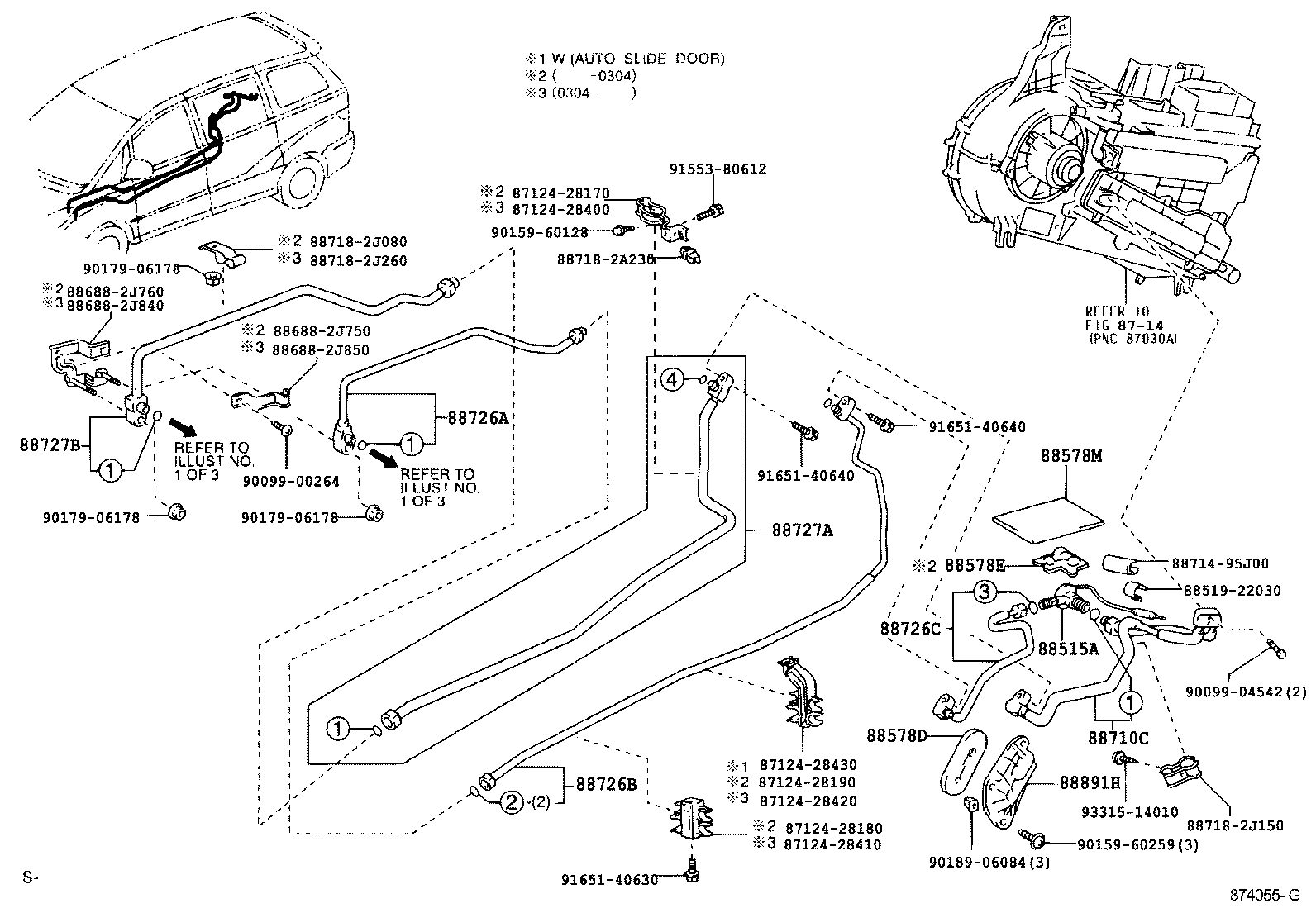

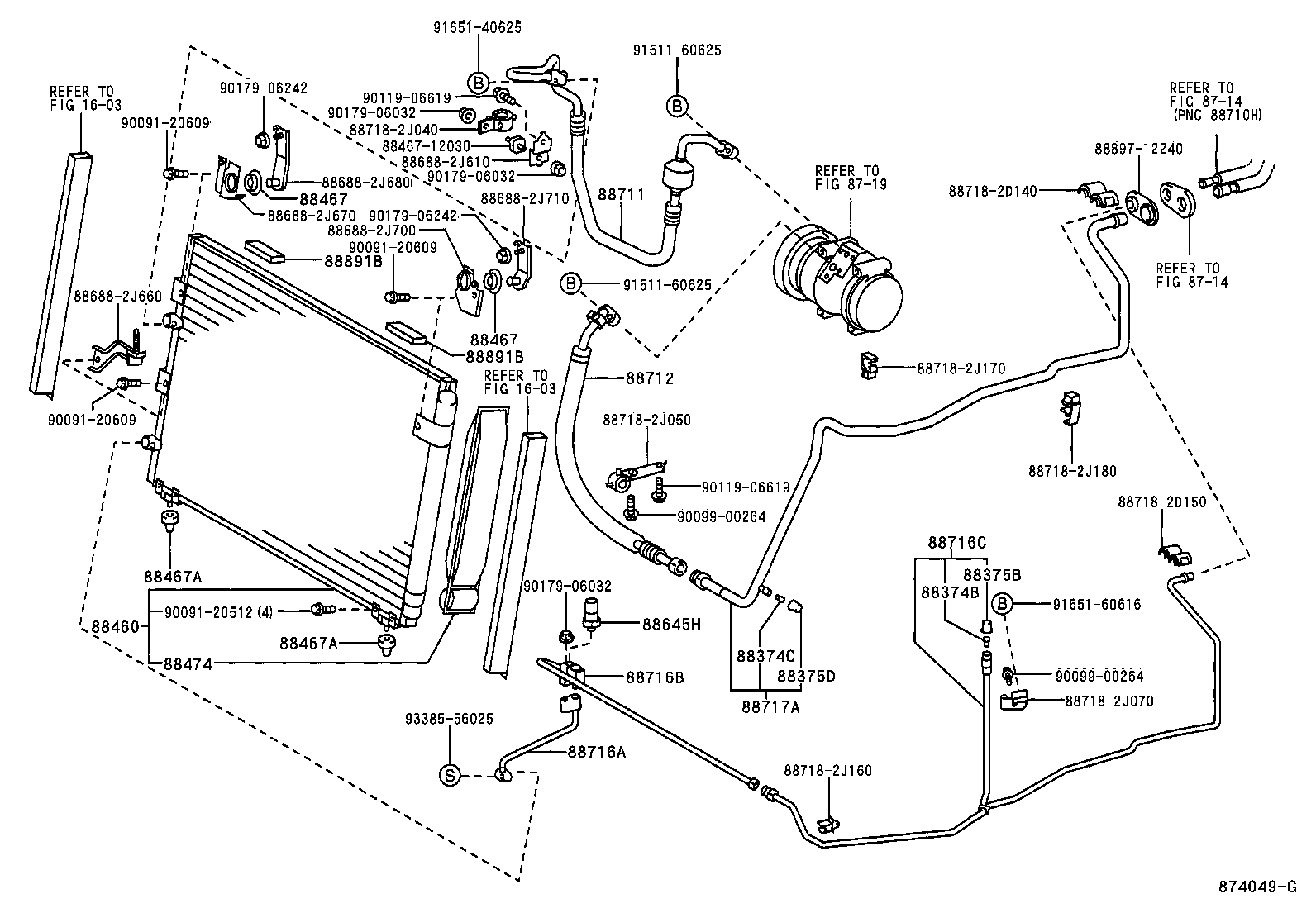

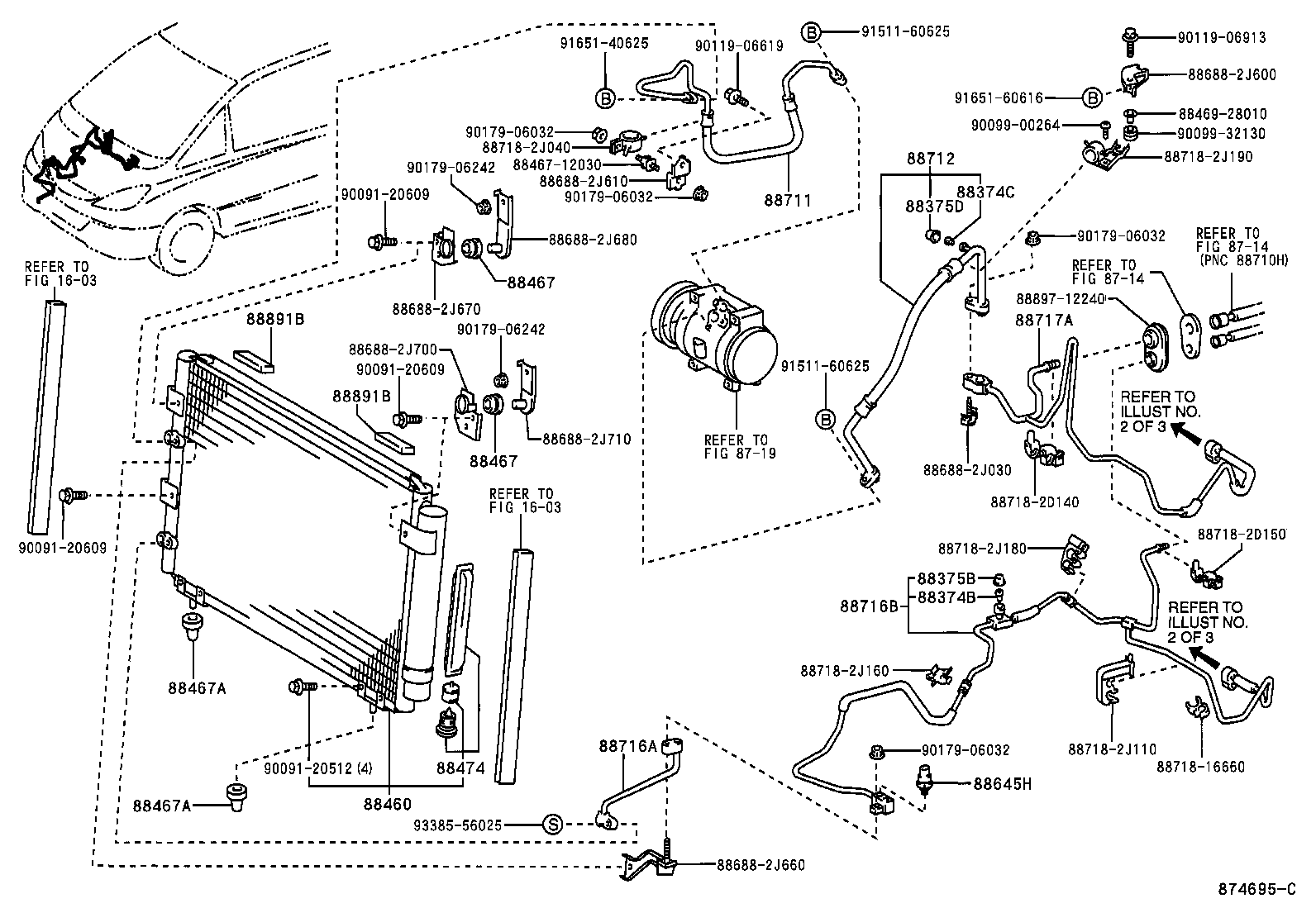

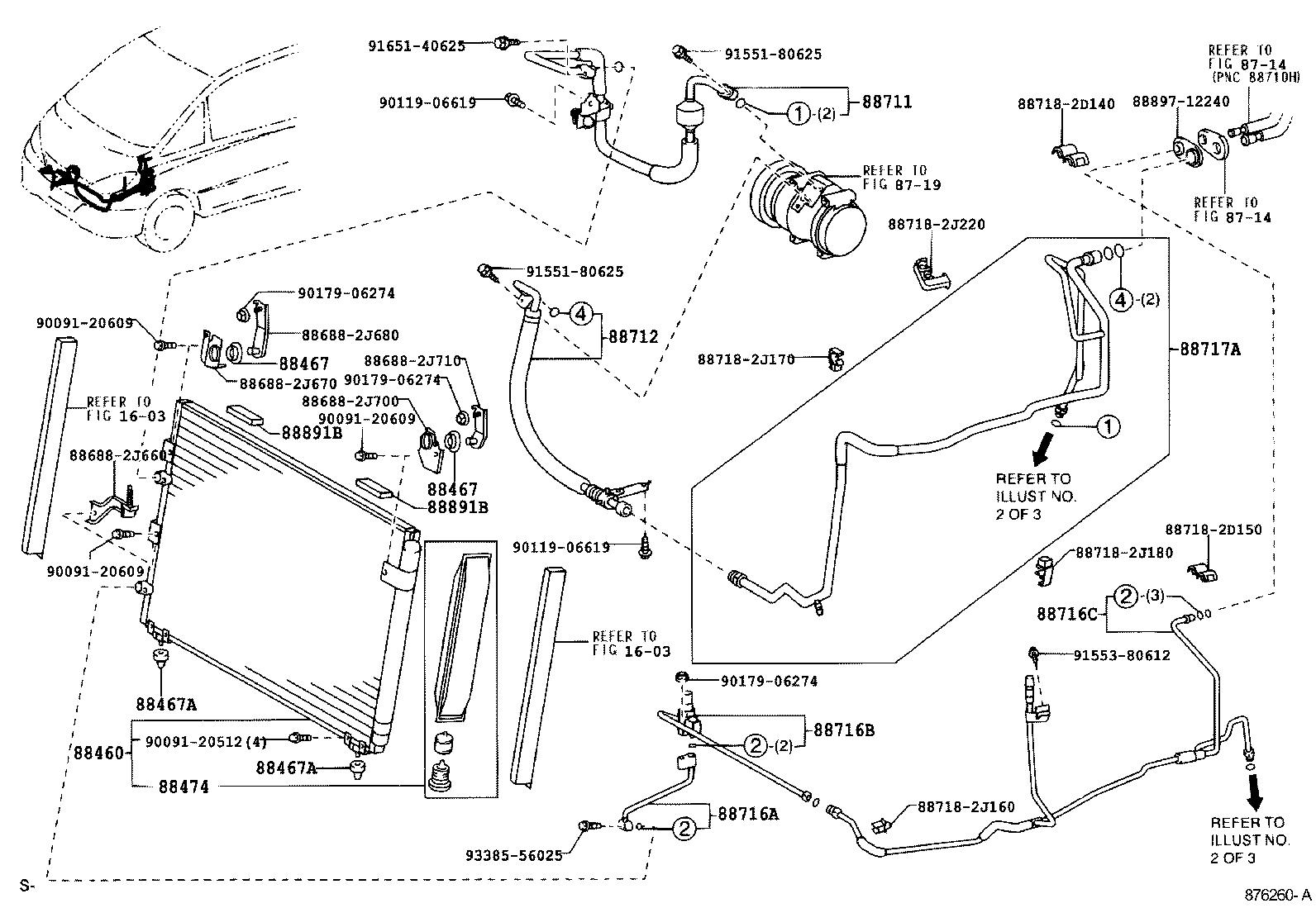

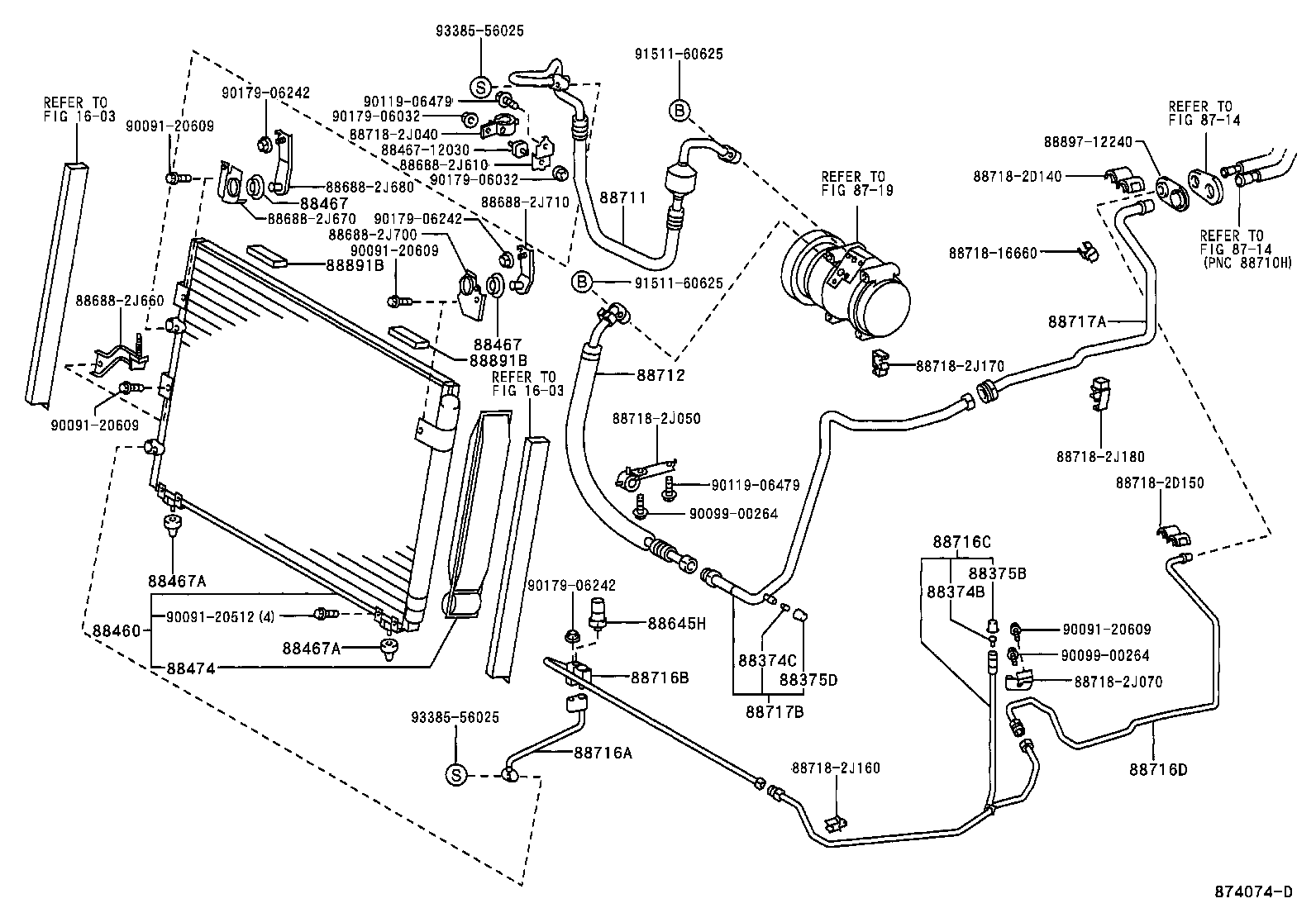

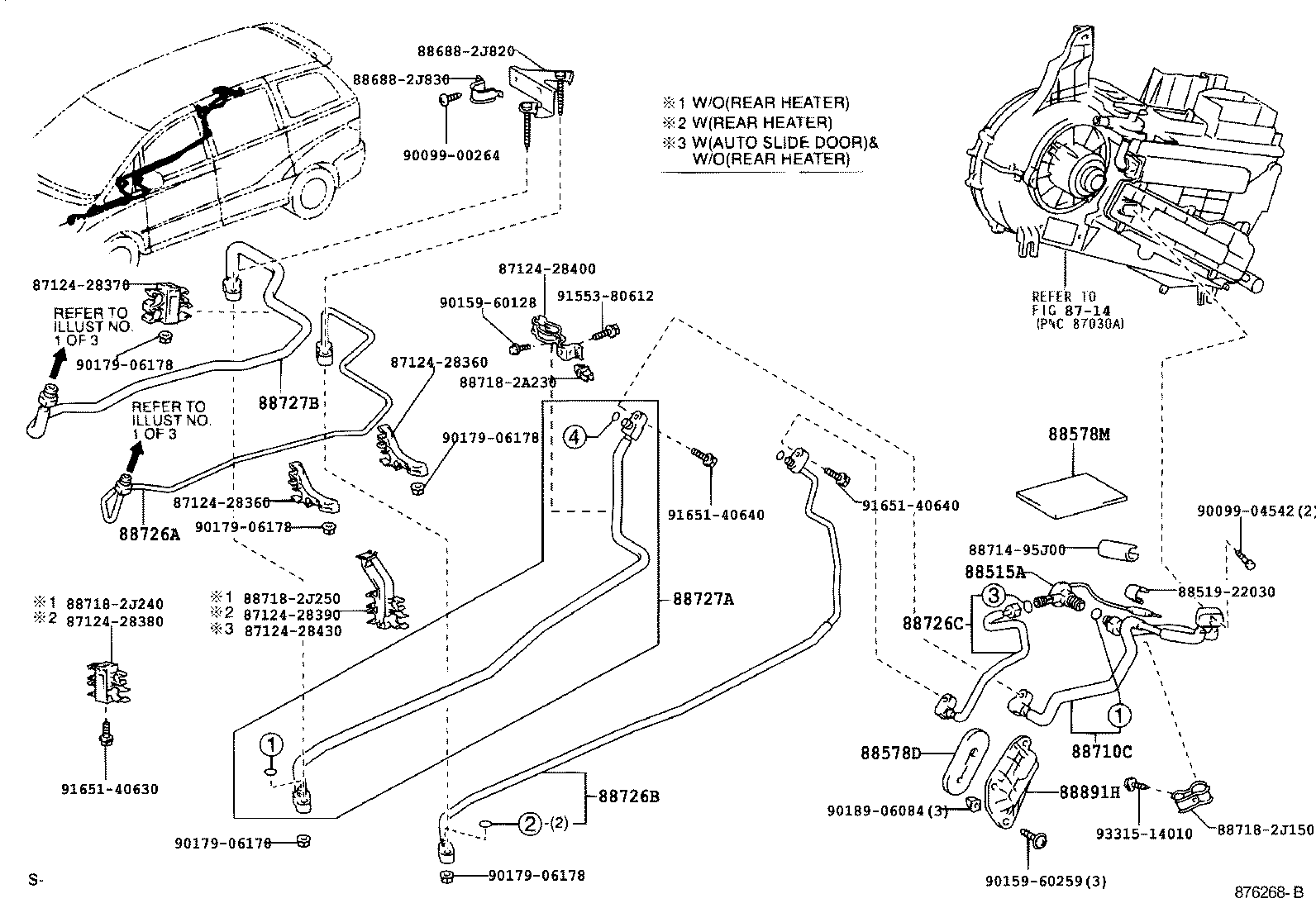

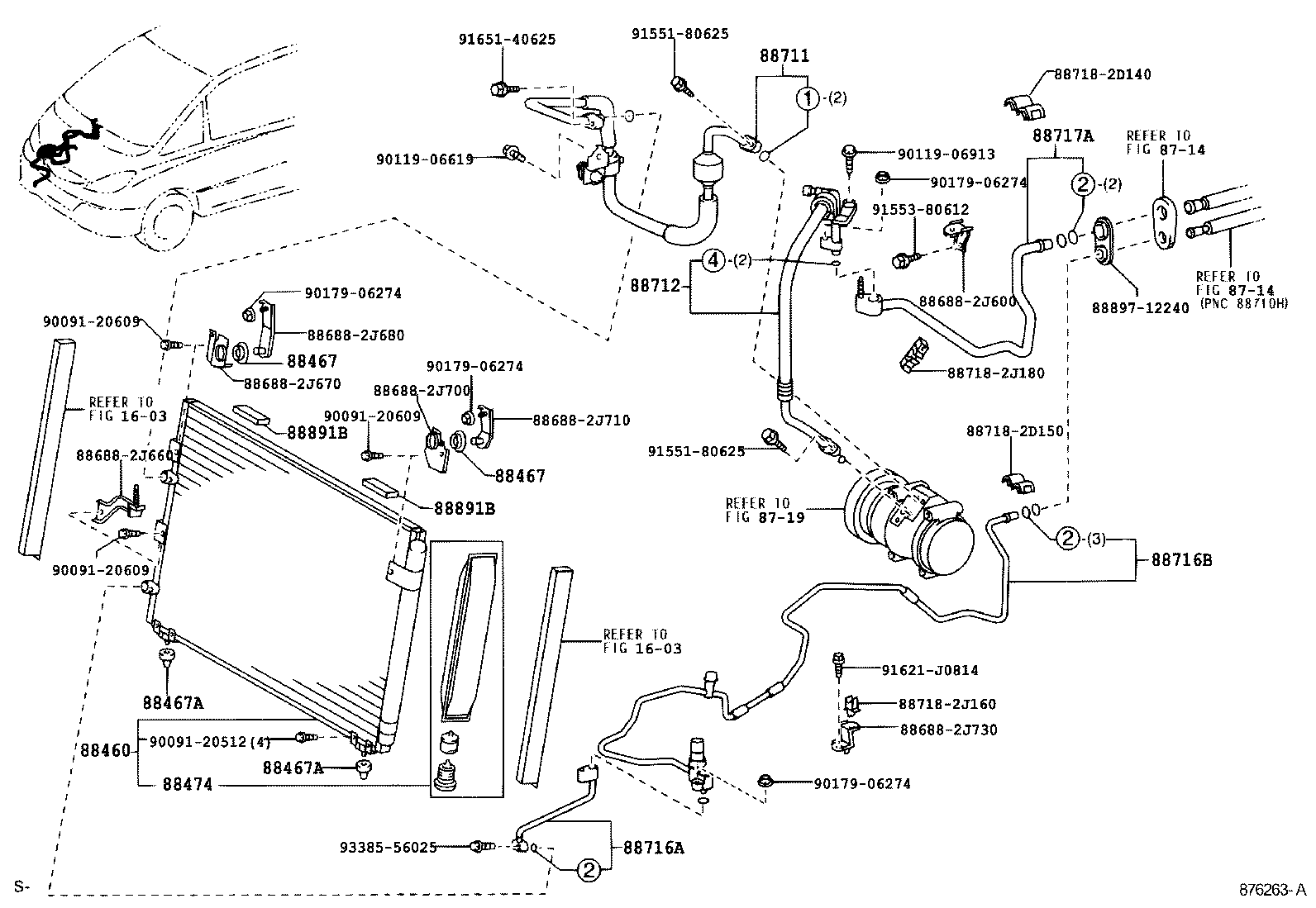

Figure 874048G 874048G 2000-02 → 2003-04 Figure 874049G 874049G 2000-02 → 2003-04 Figure 874074D 874074D 2000-02 → 2003-04 Figure 874053G 874053G 2000-02 → 2003-04 Figure 874052G 874052G 2000-02 → 2003-04 Figure 874075C 874075C 2000-02 → 2003-04 Figure 874693C 874693C 2001-02 → 2003-04 Figure 874694C 874694C 2001-02 → 2003-04 Figure 874886A 874886A 2001-02 → 2003-04 Figure 874695C 874695C 2001-02 → 2003-04 Figure 874696C 874696C 2001-02 → 2003-04 Figure 874887A 874887A 2001-02 → 2003-04 Figure 876260A 876260A 2003-04 → — Figure 876261A 876261A 2003-04 → — Figure 876262A 876262A 2003-04 → — Figure 876263A 876263A 2003-04 → — Figure 876264A 876264A 2003-04 → — Figure 876265A 876265A 2003-04 → — Figure 876266A 876266A 2003-04 → — Figure 876267A 876267A 2003-04 → — Figure 874054E 874054E 2000-02 → 2003-04 Figure 876268B 876268B 2003-04 → — Figure 874055G 874055G 2000-02 → — Figure 872875C 872875C 2000-02 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88474 Dryer, Cooler
88515A Valve, Cooler Expansion
88578D Packing, Cooler Pipe, NO.1
88578E Packing, Cooler Pipe, NO.2
88578M Packing, Cooling Pipe, NO.3
88645H Switch, Pressure NO.1
88688L Bracket, Condenser Packing
88710C Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726C Pipe, Cooler Refrigerant Liquid, C
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88891B Packing B (FOR COOLER)
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
