Toyota Previa

1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

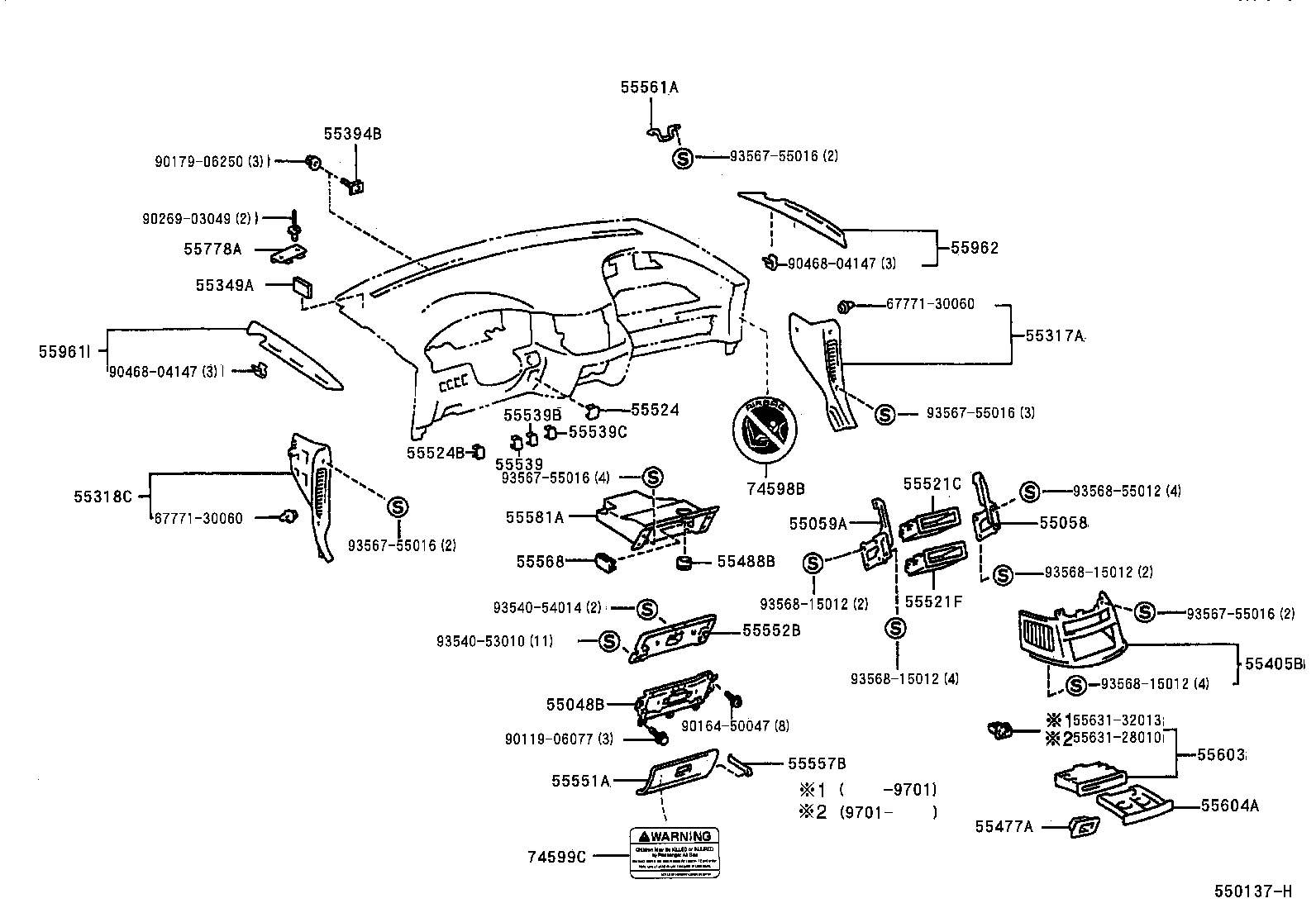

Exploded illustration 550137H 55561A — STRIKER, GLOVE COMPARTMENT DOOR LOCK (2 parts) 55394B — BOLT, INSTRUMENT PANEL (1 parts) 9356755016 — not listed in this catalogue 9017906250 — not listed in this catalogue 9026903049 — not listed in this catalogue 55962 — NOZZLE, SIDE DEFROSTER, NO.2 (10 parts) 55778A — BRACKET, IDENTIFICATION NUMBER PLATE (1 parts) 9046804147 — not listed in this catalogue 55349A — CUSHION, INSTRUMENT PANEL (1 parts) 6777130060 — not listed in this catalogue 55317A — PANEL, INSTRUMENT SIDE, RH (7 parts) 55961 — NOZZLE, SIDE DEFROSTER, NO.1 (10 parts) 9046804147 — not listed in this catalogue 55524 — COVER, SWITCH BACE HOLE (3 parts) 9356755016 — not listed in this catalogue 55539B — COVER, SPARE SWITCH HOLE, NO.2 (10 parts) 55539C — COVER, SPARE SWITCH HOLE (5 parts) 55524B — COVER, SWITCH BASE HOLE (9 parts) 55539 — COVER, SPARE SWITCH HOLE (11 parts) 9356755016 — not listed in this catalogue 55521C — COVER, STEREO OPENING (3 parts) 74598B — LABEL, PASSENGER AIRBAG CAUTION (3 parts) 9356855012 — not listed in this catalogue 55318C — PANEL, INSTRUMENT SIDE, LH (7 parts) 55581A — COMPARTMENT, GLOVE (2 parts) 6777130060 — not listed in this catalogue 55058 — RETAINER SUB-ASSY, RADIO TUNER OPENING, RH (1 parts) 55059A — RETAINER SUB-ASSY, RADIO TUNER OPENING, LH (1 parts) 9356755016 — not listed in this catalogue 55568 — PLATE, GLOVE COMPARTMENT DOOR PAD (1 parts) 55488B — LENS, FRONT FOOT LAMP, NO.1 (1 parts) 9356815012 — not listed in this catalogue 55521F — COVER, STEREO OPENING, NO.2 (1 parts) 9356815012 — not listed in this catalogue 9354054014 — not listed in this catalogue 9356755016 — not listed in this catalogue 55552B — DOOR, GLOVE COMPARTMENT, INNER (1 parts) 9354053010 — not listed in this catalogue 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (1 parts) 9356815012 — not listed in this catalogue 9356815012 — not listed in this catalogue 55048B — INSERT SUB-ASSY, INSTRUMENT PANEL SAFETY PAD, NO.2 (1 parts) 5563132013 — not listed in this catalogue 9016450047 — not listed in this catalogue 5563128010 — not listed in this catalogue 9011906077 — not listed in this catalogue 55603 — CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER (1 parts) 55557B — STOPPER, GLOVE COMPERTMENT DOOR CHECK (1 parts) 55551A — DOOR, GLOVE COMPARTMENT, OUTER (3 parts) 55604A — HOLDER SUB-ASSY, INSTRUMENT PANEL CUP (7 parts) 55477A — BEZEL, CIGARETTE LIGHTER HOLE (7 parts) 74599C — LABEL, DRIVER & PASSENGER AIRBAG INFORMATION (1 parts)
550137H · 30 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
113 parts on this figure
Part number Description Fitment Price
55048B — Insert Sub-assy, Instrument Panel Safety Pad, NO.2
55048-28010 Insert Sub-assy, Instrument Panel Safety Pad, NO.2
1993-08 → 1997-07 ended
TCR10,20 —
55058 — Retainer Sub-assy, Radio Tuner Opening, RH
55058-95D00 Retainer Sub-assy, Radio Tuner Opening, RH
1990-01 → 1997-07 ended
TCR10,20 —
55059A — Retainer Sub-assy, Radio Tuner Opening, LH
55059-95D00 Retainer Sub-assy, Radio Tuner Opening, LH
1990-01 → 1997-07 ended
TCR10,20 —
55317A — Panel, Instrument Side, RH
55317-95D01-03 note Panel, Instrument Side, RH
1990-01 → 1993-08 ended
TCR10,20 —
55317-95D01-04 note Panel, Instrument Side, RH
1990-01 → 1993-08 ended
TCR10,20 —
55317-95D01-05 note Panel, Instrument Side, RH
1991-08 → 1993-08 ended
TCR10,20 —
55317-95D01-06 note Panel, Instrument Side, RH
1990-01 → 1991-08 ended
TCR10,20 —
55317-95D01-B0 note Panel, Instrument Side, RH
1993-08 → 1997-07 ended
TCR10,20 —
55317-95D01-E2 note Panel, Instrument Side, RH
1993-08 → 1997-07 ended
TCR10,20 —
55317-95D01-R9 note Panel, Instrument Side, RH
1993-08 → 1994-08 ended
TCR10,20 —
55318C — Panel, Instrument Side, LH
55318-95D01-03 note Panel, Instrument Side, LH
1990-01 → 1993-08 ended
TCR10,20 —
55318-95D01-04 note Panel, Instrument Side, LH
1990-01 → 1993-08 ended
TCR10,20 —
55318-95D01-05 note Panel, Instrument Side, LH
1991-08 → 1993-08 ended
TCR10,20 —
55318-95D01-06 note Panel, Instrument Side, LH
1990-01 → 1991-08 ended
TCR10,20 —
55318-95D01-B0 note Panel, Instrument Side, LH
1993-08 → 1997-07 ended
TCR10,20 —
55318-95D01-E2 note Panel, Instrument Side, LH
1993-08 → 1997-07 ended
TCR10,20 —
55318-95D01-R9 note Panel, Instrument Side, LH
1993-08 → 1994-08 ended
TCR10,20 —
55349A — Cushion, Instrument Panel
55349-28010 Cushion, Instrument Panel
1990-04 → 1997-07 ended
TCR10,20 —
55394B — Bolt, Instrument Panel
55394-95D00 Bolt, Instrument Panel
1990-01 → 1997-07 ended
TCR10,20 —
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
55405-95D00 Panel Sub-assy, Instrument Cluster Finish, Center
1990-01 → 1997-07 ended
TCR10,20 —
55477A — Bezel, Cigarette Lighter Hole
55477-95D00-03 note Bezel, Cigarette Lighter Hole
1990-01 → 1993-08 ended
TCR10,20 —
55477-95D00-04 note Bezel, Cigarette Lighter Hole
1990-01 → 1993-08 ended
TCR10,20 —
55477-95D00-05 note Bezel, Cigarette Lighter Hole
1991-08 → 1993-08 ended
TCR10,20 —
55477-95D00-06 note Bezel, Cigarette Lighter Hole
1990-01 → 1991-08 ended
TCR10,20 —
55477-95D00-17 note Bezel, Cigarette Lighter Hole
1993-08 → 1997-07 ended
TCR10,20 —
55477-95D00-44 note Bezel, Cigarette Lighter Hole
1993-08 → 1997-07 ended
TCR10,20 —
55477-95D00-J0 note Bezel, Cigarette Lighter Hole
1993-08 → 1994-08 ended
TCR10,20 —
55488B — Lens, Front Foot Lamp, NO.1
55488-28010 Lens, Front Foot Lamp, NO.1
1993-08 → 1997-07 ended
TCR10,20 —
55521C — Cover, Stereo Opening
55521-16030 Cover, Stereo Opening
1995-08 → 1997-07 ended
TCR10 EFI;TCR10 05S CND —
55521-16030 Cover, Stereo Opening
1993-08 → 1995-08 ended
TCR10,20 05S CND —
55521-16030 Cover, Stereo Opening
1990-01 → 1993-08 ended
TCR10,20 05S —
55521F — Cover, Stereo Opening, NO.2
55521-16030 Cover, Stereo Opening, NO.2
1990-01 → 1997-07 ended
TCR10,20 —
55524 — Cover, Switch Bace Hole
55524-28010-B0 note Cover, Switch Bace Hole
1991-08 → 1997-07 ended
TCR10,20 —
55524-28010-E1 note Cover, Switch Bace Hole
1991-08 → 1997-07 ended
TCR10,20 —
55524-28010-J0 note Cover, Switch Bace Hole
1991-08 → 1994-08 ended
TCR10,20 —
55524B — Cover, Switch Base Hole
55524-28020-B0 note Cover, Switch Base Hole
1991-08 → 1993-08 ended
TCR10,20 —
55524-28020-B0 note Cover, Switch Base Hole
1993-12 → 1997-07 ended
TCR10,20 —
55524-28020-E1 note Cover, Switch Base Hole
1993-12 → 1997-07 ended
TCR10,20 —
55524-28020-E1 note Cover, Switch Base Hole
1991-08 → 1993-08 ended
TCR10,20 —
55524-28020-J0 note Cover, Switch Base Hole
1993-12 → 1994-08 ended
TCR10,20 —
55524-28020-J0 note Cover, Switch Base Hole
1991-08 → 1993-08 ended
TCR10,20 —
55524-28021-B1 note Cover, Switch Base Hole
1993-08 → 1993-12 ended
TCR10,20 —
55524-28021-E2 note Cover, Switch Base Hole
1993-08 → 1993-12 ended
TCR10,20 —
55524-28021-J1 note Cover, Switch Base Hole
1993-08 → 1993-12 ended
TCR10,20 —
55539 — Cover, Spare Switch Hole
55539-28010-03 note Cover, Spare Switch Hole
1990-01 → 1993-08 ended
TCR10,20 —
55539-28010-04 note Cover, Spare Switch Hole
1990-01 → 1993-08 ended
TCR10,20 —
55539-28010-05 note Cover, Spare Switch Hole
1991-08 → 1993-08 ended
TCR10,20 —
55539-28010-06 note Cover, Spare Switch Hole
1990-01 → 1991-08 ended
TCR10,20 —
55539-28010-17 note Cover, Spare Switch Hole
1993-12 → 1996-08 ended
TCR10,20 —
55539-28010-17 note Cover, Spare Switch Hole
1996-08 → 1997-07 ended
TCR10,20 07S —
55539-28010-44 note Cover, Spare Switch Hole
1993-12 → 1997-07 ended
TCR10,20 —
55539-28010-J0 note Cover, Spare Switch Hole
1993-12 → 1994-08 ended
TCR10,20 —
55539-28011-B0 note Cover, Spare Switch Hole
1993-08 → 1993-12 ended
TCR10,20 —
55539-28011-E1 note Cover, Spare Switch Hole
1993-08 → 1993-12 ended
TCR10,20 —
55539-28011-J1 note Cover, Spare Switch Hole
1993-08 → 1993-12 ended
TCR10,20 —
55539B — Cover, Spare Switch Hole, NO.2
55539-28010-03 note Cover, Spare Switch Hole, NO.2
1990-01 → 1993-08 ended
TCR10,20 —
55539-28010-04 note Cover, Spare Switch Hole, NO.2
1990-01 → 1993-08 ended
TCR10,20 —
55539-28010-05 note Cover, Spare Switch Hole, NO.2
1991-08 → 1993-08 ended
TCR10,20 —
55539-28010-06 note Cover, Spare Switch Hole, NO.2
1990-01 → 1991-08 ended
TCR10,20 —
55539-28010-17 note Cover, Spare Switch Hole, NO.2
1993-12 → 1996-08 ended
TCR10,20 EFI;TCR10,20 CND SPC —
55539-28010-44 note Cover, Spare Switch Hole, NO.2
1993-12 → 1996-08 ended
TCR10,20 EFI;TCR10,20 CND SPC —
55539-28010-J0 note Cover, Spare Switch Hole, NO.2
1993-12 → 1994-08 ended
TCR10,20 EFI —
55539-28011-B0 note Cover, Spare Switch Hole, NO.2
1993-08 → 1993-12 ended
TCR10,20 —
55539-28011-E1 note Cover, Spare Switch Hole, NO.2
1993-08 → 1993-12 ended
TCR10,20 —
55539-28011-J1 note Cover, Spare Switch Hole, NO.2
1993-08 → 1993-12 ended
TCR10,20 —
55539C — Cover, Spare Switch Hole
55539-28010-03 note Cover, Spare Switch Hole
1990-01 → 1991-08 ended
TCR10,20 —
55539-28010-04 note Cover, Spare Switch Hole
1990-01 → 1991-08 ended
TCR10,20 —
55539-28010-06 note Cover, Spare Switch Hole
1990-01 → 1991-08 ended
TCR10,20 —
55539-28010-17 note Cover, Spare Switch Hole
1996-08 → 1997-07 ended
TCR10,20 07S —
55539-28010-44 note Cover, Spare Switch Hole
1996-08 → 1997-07 ended
TCR10,20 —
55551A — Door, Glove Compartment, Outer
55551-28020-B0 note Door, Glove Compartment, Outer
1993-08 → 1997-07 ended
TCR10,20 —
55551-28020-E0 note Door, Glove Compartment, Outer
1993-08 → 1997-07 ended
TCR10,20 —
55551-28020-J0 note Door, Glove Compartment, Outer
1993-08 → 1994-08 ended
TCR10,20 —
55552B — Door, Glove Compartment, Inner
55552-28020 Door, Glove Compartment, Inner
1993-08 → 1997-07 ended
TCR10,20 —
55557B — Stopper, Glove Compertment Door Check
55557-28040 Stopper, Glove Compertment Door Check
1993-08 → 1997-07 ended
TCR10,20 —
55561A — Striker, Glove Compartment Door Lock
55561-28040 Striker, Glove Compartment Door Lock
1993-08 → 1997-07 ended
TCR10,20 —
55561-95D00 Striker, Glove Compartment Door Lock
1990-01 → 1993-08 ended
TCR10,20 —
55568 — Plate, Glove Compartment Door Pad
55568-24020 Plate, Glove Compartment Door Pad
1993-08 → 1997-07 ended
TCR10,20 —
55581A — Compartment, Glove
55506-28060 Compartment, Glove
1993-08 → 1997-07 ended
TCR10,20 —
55581-95D00 Compartment, Glove
1990-01 → 1993-08 ended
TCR10,20 —
55603 — Case Sub-assy, Instrument Panel Cup Holder
55603-95D00 Case Sub-assy, Instrument Panel Cup Holder
1990-01 → 1997-07 ended
TCR10,20 —
55604A — Holder Sub-assy, Instrument Panel Cup
55604-95D00-03 note Holder Sub-assy, Instrument Panel Cup
1990-01 → 1993-08 ended
TCR10,20 —
55604-95D00-04 note Holder Sub-assy, Instrument Panel Cup
1990-01 → 1993-08 ended
TCR10,20 —
55604-95D00-05 note Holder Sub-assy, Instrument Panel Cup
1991-08 → 1993-08 ended
TCR10,20 —
55604-95D00-06 note Holder Sub-assy, Instrument Panel Cup
1990-01 → 1991-08 ended
TCR10,20 —
55604-95D00-17 note Holder Sub-assy, Instrument Panel Cup
1993-08 → 1997-07 ended
TCR10,20 —
55604-95D00-44 note Holder Sub-assy, Instrument Panel Cup
1993-08 → 1997-07 ended
TCR10,20 —
55604-95D00-J0 note Holder Sub-assy, Instrument Panel Cup
1993-08 → 1994-08 ended
TCR10,20 —
55778A — Bracket, Identification Number Plate
55778-95D00 Bracket, Identification Number Plate
1990-01 → 1997-07 ended
TCR10,20 —
55961 — Nozzle, Side Defroster, NO.1
55961-28010-03 note Nozzle, Side Defroster, NO.1
1990-04 → 1993-08 ended
TCR10,20 —
55961-28010-04 note Nozzle, Side Defroster, NO.1
1990-04 → 1993-08 ended
TCR10,20 —
55961-28010-05 note Nozzle, Side Defroster, NO.1
1991-08 → 1993-08 ended
TCR10,20 —
55961-28010-06 note Nozzle, Side Defroster, NO.1
1990-04 → 1991-08 ended
TCR10,20 —
55961-28010-B0 note Nozzle, Side Defroster, NO.1
1993-08 → 1997-07 ended
TCR10,20 —
55961-28010-E0 note Nozzle, Side Defroster, NO.1
1993-08 → 1997-07 ended
TCR10,20 —
55961-28010-J0 note Nozzle, Side Defroster, NO.1
1993-08 → 1994-08 ended
TCR10,20 —
55961-95D00-03 note Nozzle, Side Defroster, NO.1
1990-01 → 1990-04 ended
TCR10,20 —
55961-95D00-04 note Nozzle, Side Defroster, NO.1
1990-01 → 1990-04 ended
TCR10,20 —
55961-95D00-06 note Nozzle, Side Defroster, NO.1
1990-01 → 1990-04 ended
TCR10,20 —
55962 — Nozzle, Side Defroster, NO.2
55962-28010-03 note Nozzle, Side Defroster, NO.2
1990-04 → 1993-08 ended
TCR10,20 —
55962-28010-04 note Nozzle, Side Defroster, NO.2
1990-04 → 1993-08 ended
TCR10,20 —
55962-28010-05 note Nozzle, Side Defroster, NO.2
1991-08 → 1993-08 ended
TCR10,20 —
55962-28010-06 note Nozzle, Side Defroster, NO.2
1990-04 → 1991-08 ended
TCR10,20 —
55962-28010-B0 note Nozzle, Side Defroster, NO.2
1993-08 → 1997-07 ended
TCR10,20 —
55962-28010-E0 note Nozzle, Side Defroster, NO.2
1993-08 → 1997-07 ended
TCR10,20 —
55962-28010-J0 note Nozzle, Side Defroster, NO.2
1993-08 → 1994-08 ended
TCR10,20 —
55962-95D00-03 note Nozzle, Side Defroster, NO.2
1990-01 → 1990-04 ended
TCR10,20 —
55962-95D00-04 note Nozzle, Side Defroster, NO.2
1990-01 → 1990-04 ended
TCR10,20 —
55962-95D00-06 note Nozzle, Side Defroster, NO.2
1990-01 → 1990-04 ended
TCR10,20 —
74598B — Label, Passenger Airbag Caution
74598-20010 Label, Passenger Airbag Caution
1995-08 → 1995-11 ended
TCR10,20 —
74598-30040 Label, Passenger Airbag Caution
1995-11 → 1997-02 ended
TCR10,20 —
74598-30040 Label, Passenger Airbag Caution
1997-02 → 1997-07 ended
TCR10,20 CND —
74599C — Label, Driver & Passenger Airbag Information
74599-50010 Label, Driver & Passenger Airbag Information
1997-02 → 1997-07 ended
TCR10,20 USA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
