Toyota Previa
1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · Europe
Discontinued model
Data version 1998-02

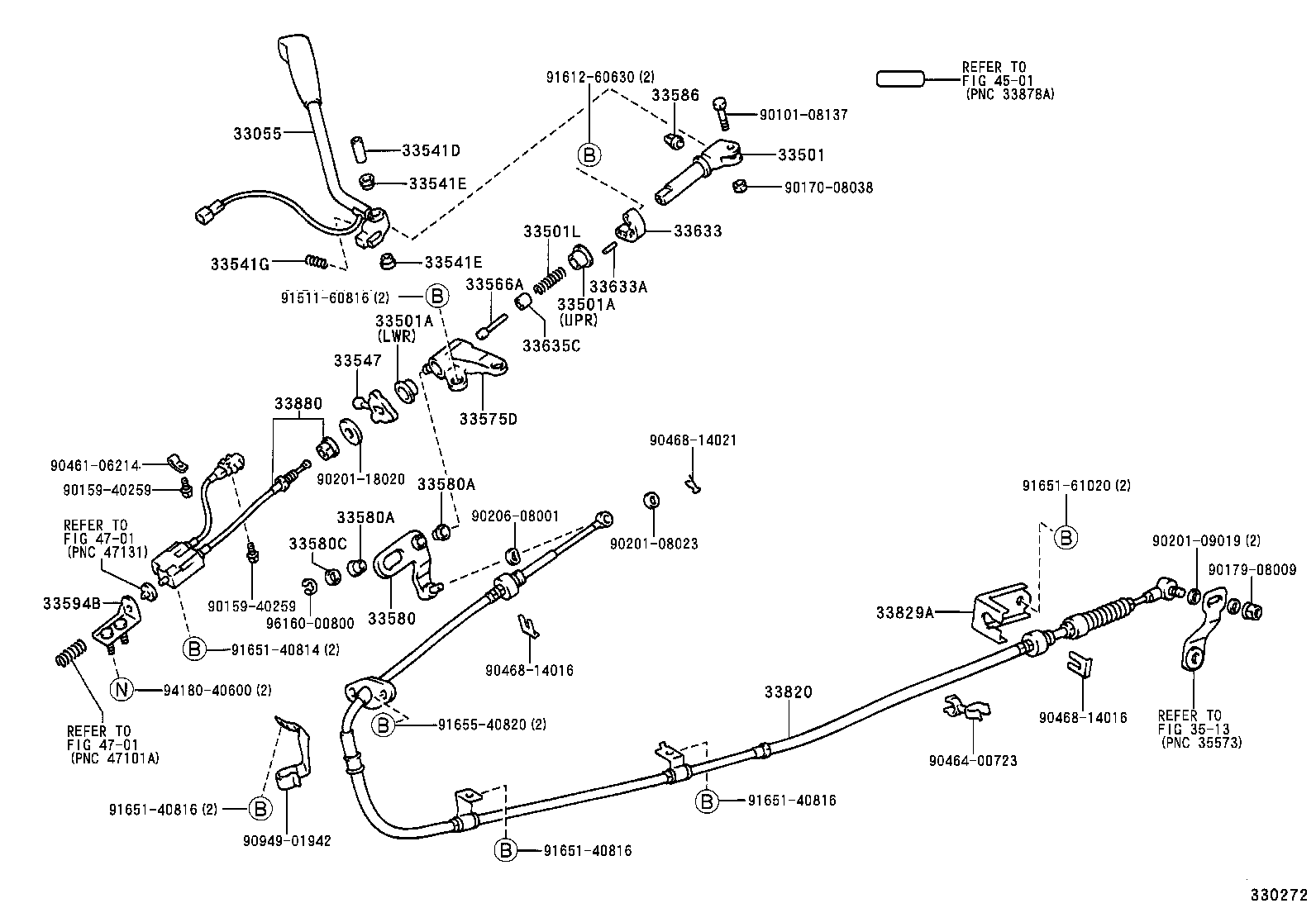

Control Shaft & Crossshaft
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33055 | Lever Sub-assy, Column Shift |
| 33501 | Shaft Sub-assy, Control (FOR COLUMN SHIFT) |
| 33501A | Bush (FOR COLUMN SHIFT CONTROL SHAFT) |
| 33501L | Spring, Compression (FOR COLUMN SHIFT CONTROL SHAFT) |
| 33541D | Collar (FOR COLUMN SHIFT LEVER) |
| 33541E | Bush (FOR COLUMN SHIFT LEVER) |
| 33541G | Spring, Compression (FOR COLUMN SHIFT LEVER) |
| 33547 | Lever, Column Shift, NO.3 |
| 33548C | Bush, Shift Lever (FOR COLUMN SHIFT) |
| 33566A | Pin, Shift Lever Stop (FOR COLUMN SHIFT) |
| 33575D | Retainer, Control Shift Lever (FOR COLUMN SHIFT) |
| 33580 | Bellcrank Assy, Shifting (FOR COLUMN SHIFT) |
| 33580A | Bush (FOR SHIFTING BELLCRANK) |
| 33580C | Washer, Plate (FOR SHIFTING BELL CRANK) |
| 33586 | Stopper, Control Shift Lever |
| 33587B | Bush, Lever Selecting |
| 33594B | Plate, Shift Lock (FOR COLUMN SHIFT) |
| 33633 | Plate, Column Shift Lever Detent |
| 33633A | Pin, Slotted Spring(FOR COLUMN SHIFT LEVER DETENT PLATE) |
| 33635C | Guide, Wire |
| 33663H | Lever, Transmission Control (FOR COLUMN SHIFT) |
| 33820 | Cable Assy, Transmission Control (FOR COLUMN SHIFT) |
| 33829A | Support, Transmission Control Cable |
| 33880 | Cable Assy, Parking Lock (FOR COLUMN SHIFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
