Toyota Previa
1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · Europe
Discontinued model
Data version 1998-02

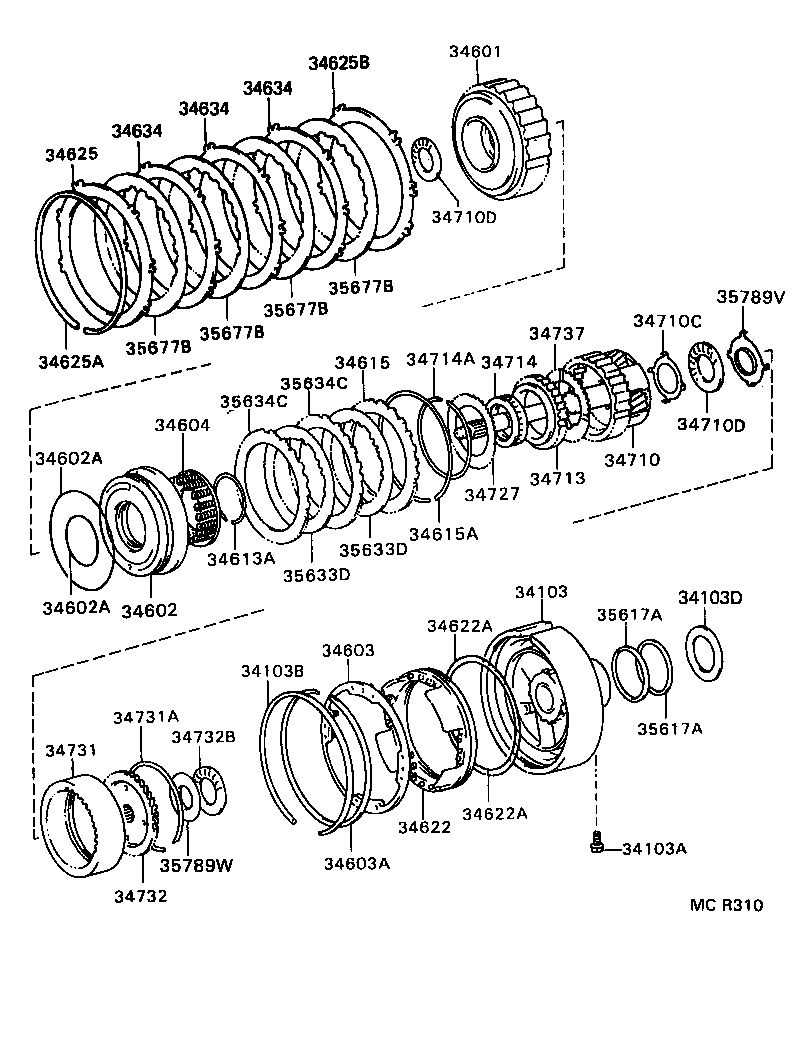

Overdrive Gear (ATM)
57 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 34101 | Case Sub-assy, Overdrive |
| 34103 | Support Sub-assy, Overdrive |
| 34103A | Bolt (FOR OVERDRIVE SUPPORT) |
| 34103B | Ring, Hole Snap (FOR OVERDRIVE SUPPORT) |
| 34103D | Race, Thrust Bearing (FOR OVERDRIVE SUPPORT REAR) |
| 34601 | Drum Sub-assy, Overdrive Direct Clutch |
| 34601B | Ring, Shaft Snap (FOR OVERDRIVE DIRECT CLUTCH) |
| 34601E | Ring, Hole Snap, NO.1 (FOR OVERDRIVE) |
| 34601F | Ring, Hole Snap, NO.2 (FOR OVERDRIVE) |
| 34602 | Piston Sub-assy, Overdrive Direct Clutch |
| 34602A | Ring, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) |
| 34603 | Spring Sub-assy, Overdrive Brake Return |
| 34603A | Ring, Hole Snap (FOR OVERDRIVE BRAKE RETURN SPRING) |
| 34604 | Spring Sub-assy, Overdrive Clutch Return |
| 34613A | Ring, Shaft Snap (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING) |
| 34615 | Flange, Overdrive Clutch |
| 34615A | Ring, Hole Snap (FOR OVERDRIVE CLUTCH FLANGE) |
| 34618 | Plate, Overdrive Direct Clutch Cushion |
| 34622 | Piston, Overdrive Brake |
| 34622A | Ring, O (FOR OVERDRIVE BRAKE PISTON) |
| 34623 | Seat, Overdrive Brake Return Spring |
| 34623A | Spring, Compression (FOR OVERDRIVE BRAKE RETURN SPRING SEAT) |
| 34623B | Ring, Hole Snap (FOR OVERDRIVE BRAKE RETURN SPRING SEAT) |
| 34624 | Hub, Overdrive Brake |
| 34625 | Flange, Overdrive Brake, NO.1 |
| 34625A | Ring, Hole Snap (FOR OVERDRIVE BRAKE FLANGE) |
| 34625B | Flange, Overdrive Brake, NO.2 |
| 34626 | Plate, Overdrive Brake Cushion |
| 34634 | Plate, Overdrive Brake |
| 34705 | Gear Sub-assy, Overdrive Planetary Ring |
| 34710 | Gear Assy, Overdrive Planetary |
| 34710A | Ring, Hole Snap(FOR OVERDRIVE PLANETARY GEAR) |
| 34710B | Clutch, 1Way, NO.1(FOR OVERDRIVE) |
| 34710C | Race, Thrust Bearing(FOR OVERDRIVE PLANETARY GEAR) |
| 34710D | Bearing, Thrust Needle Roller(FOR OVERDRIVE PLANETARY GEAR) |
| 34710F | Pin, Straight(FOR OVERDRIVE PLANETARY GEAR) |
| 34713 | Race, 1 Way Clutch Outer (FOR OVERDRIVE) |
| 34714 | Clutch, 1 Way(FOR OVERDRIVE) |
| 34714A | Ring, Hole Snap(FOR 1 WAY CLUTCH) |
| 34727 | Plate, Retaining (FOR OVERDRIVE) |
| 34731 | Gear, Overdrive Planetary Ring |
| 34731A | Ring, Hole Snap (FOR OVERDRIVE PLANETARY RING GEAR) |
| 34732 | Flange, Overdrive Planetary Ring Gear |
| 34732B | Bearing, Thrust(FOR OVERDRIVE PLANETARY RING GEAR FLANGE) |
| 34735 | Washer, Overdrive Planetary Gear Thrust, NO.1 |
| 34736 | Washer, Overdrive Planetary Gear Thrust, NO.2 |
| 34737 | Washer, Overdrive Planetary Gear Thrust, NO.3 |
| 34738 | Washer, Overdrive Planetary Gear Thrust, NO.4 |
| 34739 | Race, Thrust Bearing(FOR OVERDRIVE) |
| 34739A | Bearing, Thrust Needle Roller(FOR OVERDRIVE) |
| 35617A | Ring, Clutch Drum Oil Seal (FOR OVERDRIVE) |
| 35633D | Disc, Clutch (FOR OVERDRIVE DIRECT CLUTCH) |
| 35634C | Plate, Clutch (FOR OVERDRIVE DIRECT CLUTCH) |
| 35677B | Disc, Clutch (FOR OVERDRIVE BRAKE) |
| 35677G | Disc, Clutch, NO.3 (FOR OVERDRIVE) |
| 35789V | Race, Thrust Bearing |
| 35789W | Race, Thrust Bearing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
