Toyota Previa

1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake NO.3, 1ST & Reverse Brake (ATM)

23 part groups · 2 illustrations

Illustrations

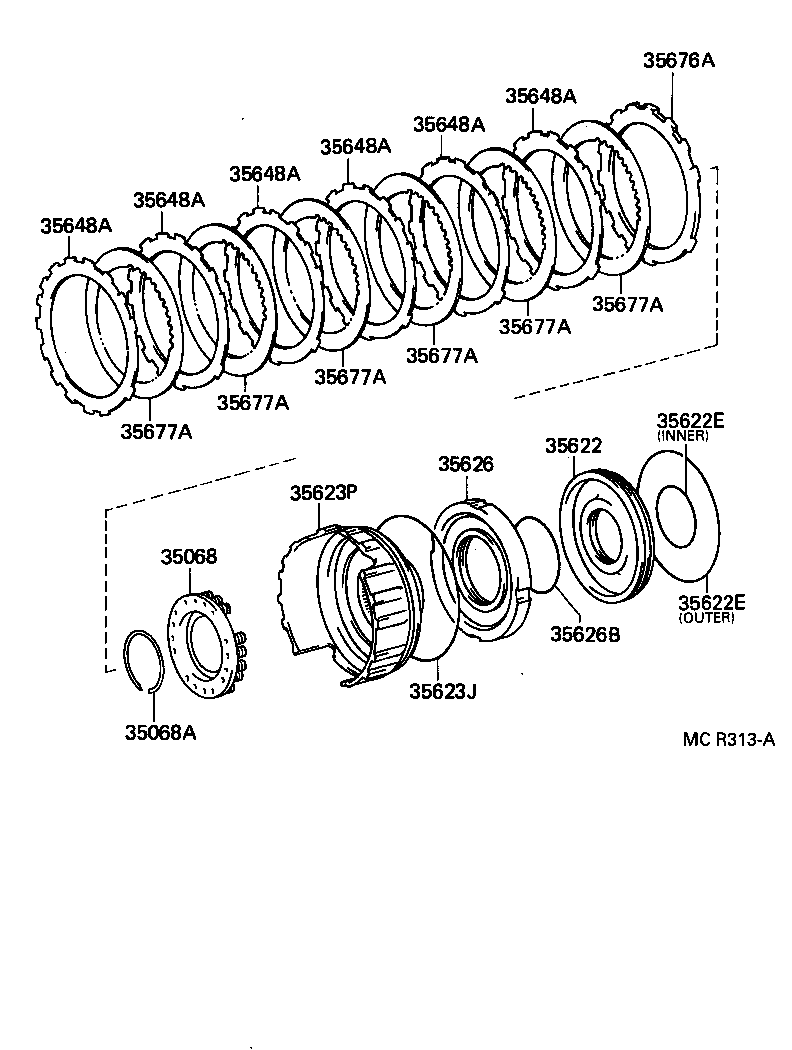

Figure MCK049A MCK049A 1990-01 → 1996-08 Figure MCR313A MCR313A 1994-01 → 1997-07

Part groups

PNCDescription
35068 Spring Sub-assy, 1ST & Reverse Brake Return
35068A Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35608C Spring Sub-assy, NO.3 Brake Piston Return
35622 Piston, Brake, NO.2
35622E Ring, O (FOR BRAKE PISTON NO.2)
35623 Piston, Brake, NO.3
35623A Ring, O (FOR BRAKE PISTON NO.3 )
35623D Ring, Shaft Snap (FOR BRAKE)
35623J Ring, O (FOR 1ST & REVERSE BRAKE)
35623P Piston, 1ST & Reverse Brake, NO.2
35626 Sleeve, Brake Reaction
35626A Ring (FOR BRAKE REACTION SLEEVE OUTER)
35626B Ring (FOR BRAKE REACTION SLEEVE INNER)
35629 Spring (1ST & REVS BRAKE PLATE STOPPER)
35639A Plate, Clutch Pressure (FOR BRAKE)
35647 Plate, Clutch, NO.2
35648A Plate, Clutch (FOR 1ST & REVERSE BRAKE)
35666 Tube, Brake Apply
35666B Disc, Clutch (FOR BRAKE)
35676A Flange, Brake (FOR 1ST & REVERSE BRAKE)
35677A Disc, Clutch (FOR 1ST & REVERSE BRAKE)
35707 Race Sub-assy, 1 Way Clutch, Inner
35707A Ring, Hole Snap (FOR 1 WAY CLUTCH INNER RACE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
