Toyota Previa

1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · Europe

Discontinued model Data version 1998-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

140 part groups · 7 illustrations

Illustrations

MCK052F 1990-01 → 1996-08

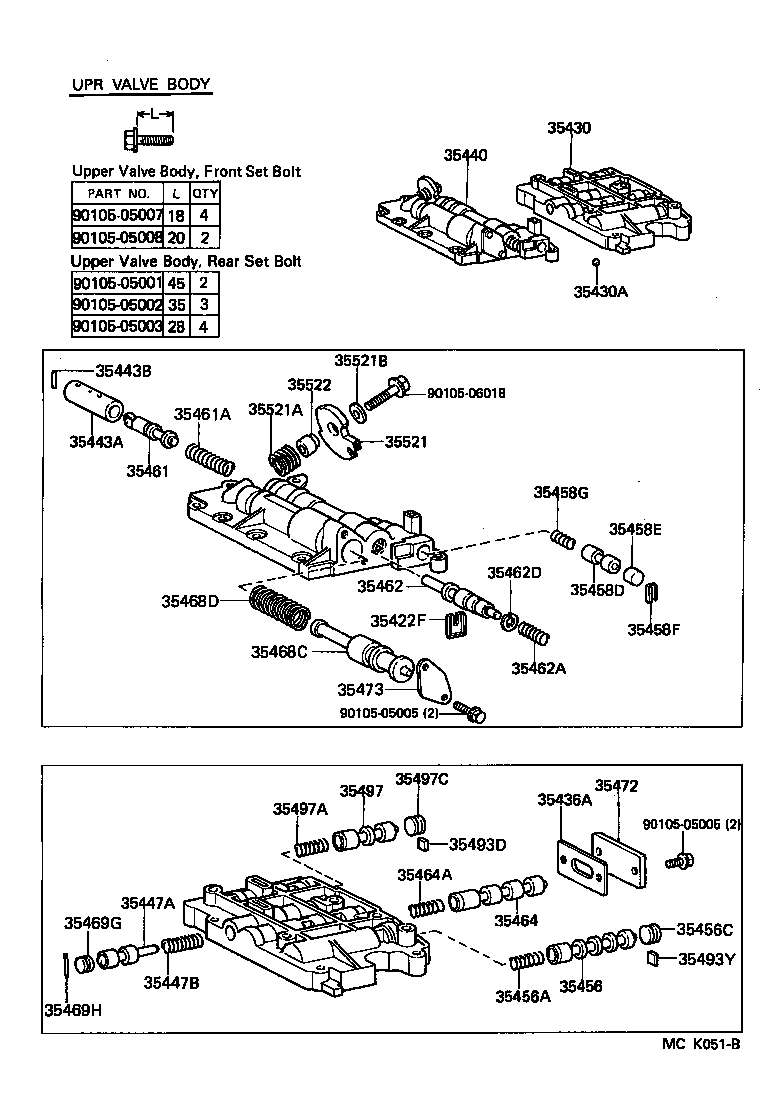

MCK051B 1990-01 → 1996-08

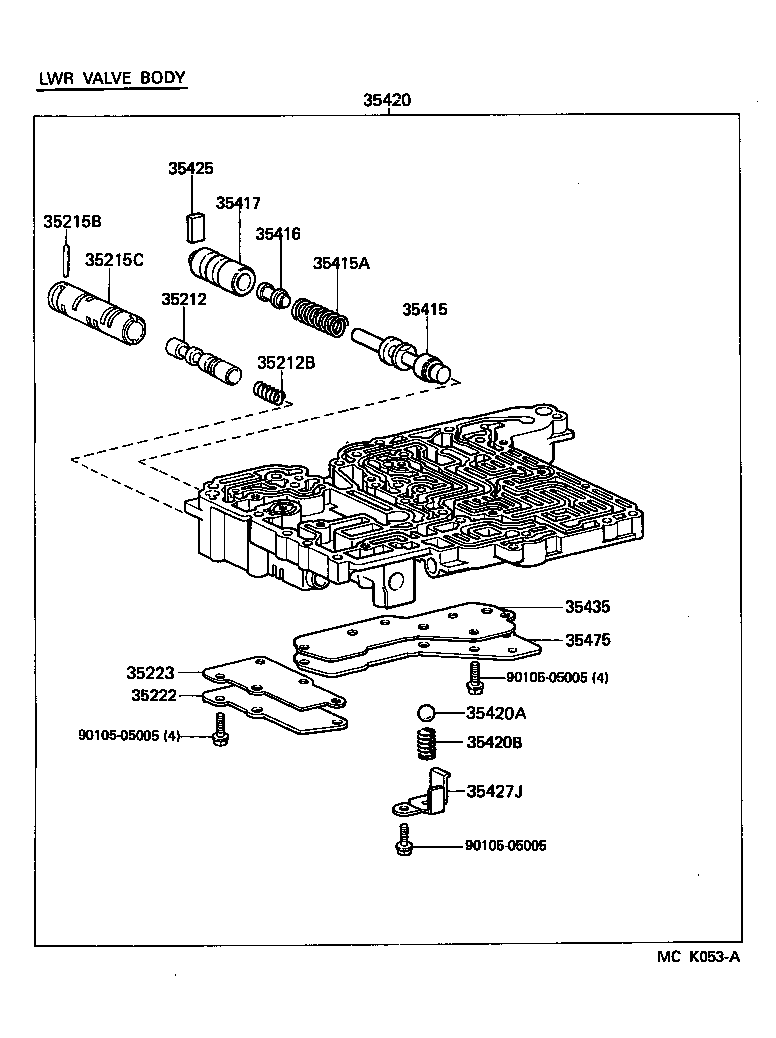

MCK053A 1990-01 → 1996-08

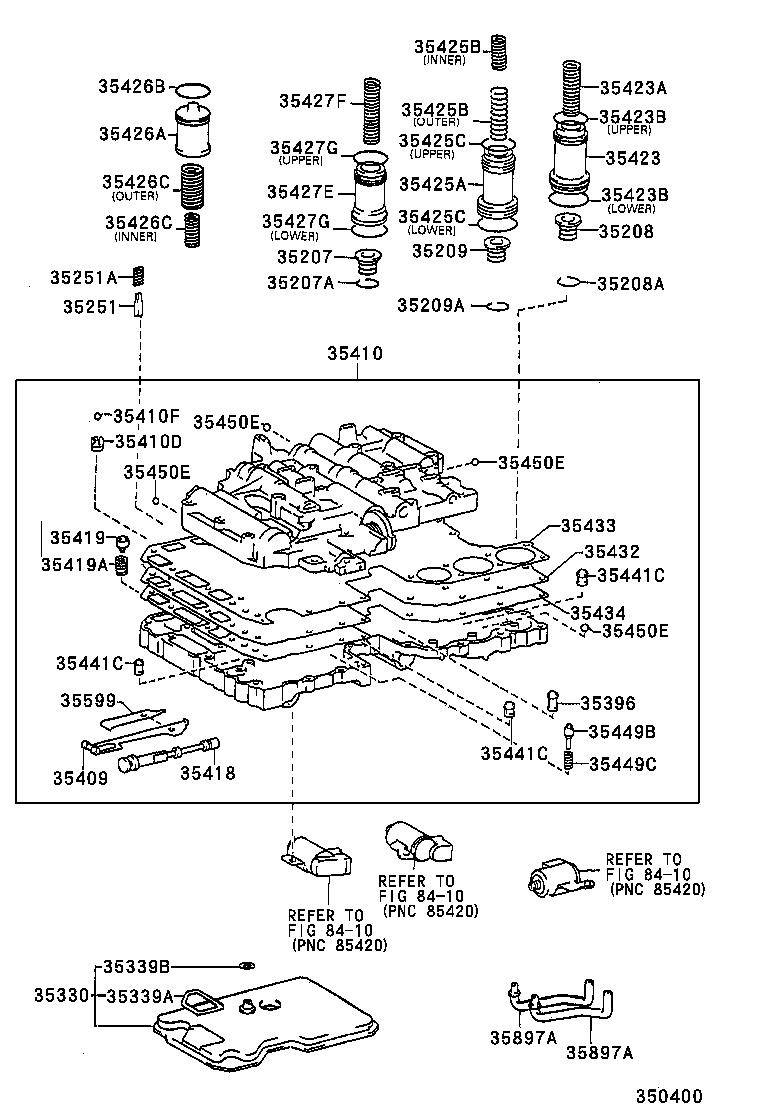

350400 1994-01 → 1997-07

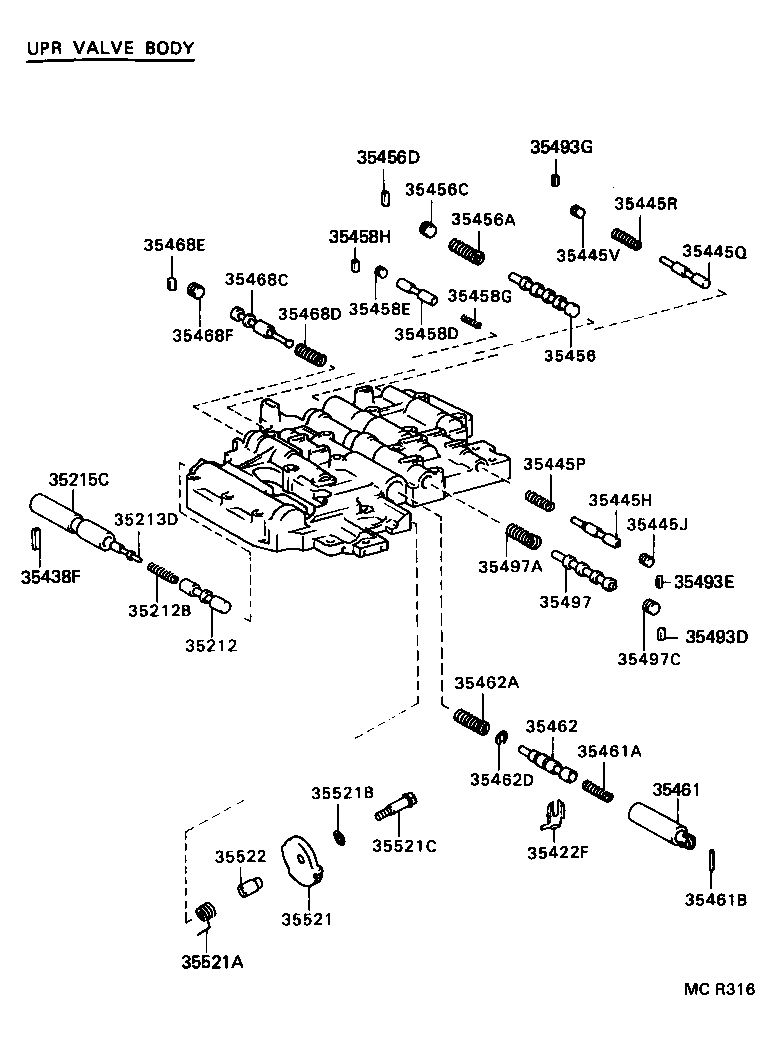

MCR316 1994-01 → 1997-07

MCR317 1994-01 → 1997-07

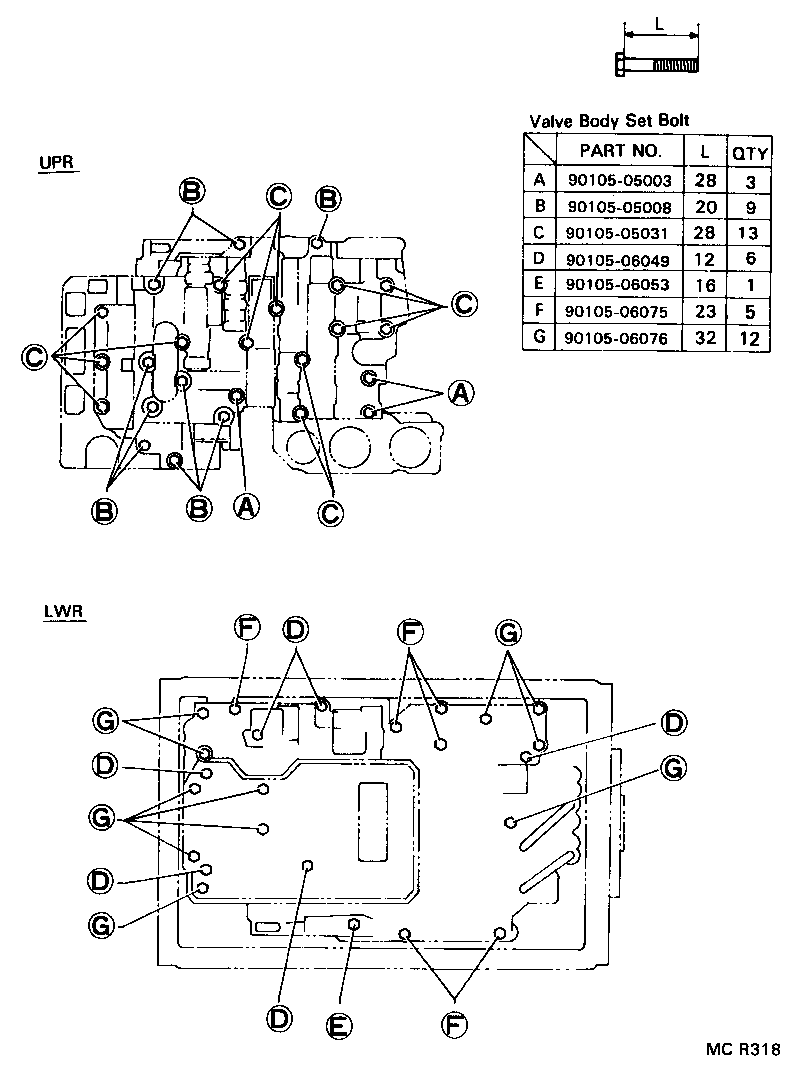

MCR318 1994-01 → 1997-07

Part groups

PNC	Description
35151	Cover, Transmission Case, Lower
35153A	Gasket, Transmission Case Lower Cover
35207	Spring Sub-assy, B-0 Accumulator
35207A	Ring, Hole Snap (FOR B-0 ACCUMULATOR SPRING)
35208	Spring Sub-assy, B-2 Accumulator
35208A	Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209	Spring Sub-assy, C-2 Accumulator
35209A	Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35212	Valve, Lock UP Relay
35212B	Spring, Compression (FOR LOCK UP RELAY VALVE)
35213D	Plunger, Lock UP Relay Valve
35215B	Pin, Straight (FOR LOCK UP RELAY VALVE SLEEVE)
35215C	Sleeve, Lock UP Relay Valve, NO.1
35222	Plate, Lock UP Relay Valve Body
35223	Gasket, Lock UP Relay Valve Body
35251	Body, Check Ball
35251A	Spring, Compression (FOR CHECK BALL BODY)
35303	Strainer Sub-assy, Oil
35330	Strainer Assy, Valve Body Oil
35339	Gasket, Oil Strainer
35339A	Gasket, Oil Strainer, NO.1
35339B	Gasket, Oil Strainer, NO.2
35396	Strainer, Throttle Oil
35409	Spring Sub-assy, Manual Detent
35410	Body Assy, Transmission Valve
35410D	Valve, Check
35410F	Ball (FOR CHECK VALVE)
35415	Valve, Pressure Regulator
35415A	Spring, Compression (FOR PRESSURE REGULATOR VALVE)
35415F	Valve, Primary Regulator
35415H	Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J	Washer (FOR PRIMARY REGULATOR VALVE)
35416	Plunger, Primary Regulator Valve, NO.1
35417	Sleeve, Pressure Regulator Valve
35417A	Sleeve, Primary Regulator Valve
35418	Valve, Manual
35419	Valve, Check, NO.1
35419A	Spring, Compression (FOR CHECK VALVE)
35420	Body Assy, Lower Valve
35420A	Ball (FOR PRESSURE RELIEF)
35420B	Spring (FOR PRESSURE RELIEF)
35420D	Ball (FOR LOWER VALVE BODY)
35420E	Spring (FOR LOWER VALVE BODY)
35422F	Stopper, Valve Vibrating
35423	Piston, B-2 Accumulator
35423A	Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B	Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424C	Piston, C-1 Accumulator
35424D	Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E	Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425	Seat, Pressure Regulator Valve Sleeve
35425A	Piston, C-2 Accumulator
35425B	Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C	Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426A	Piston, C-0 Accumulator
35426B	Ring, O (FOR C-0 ACCUMULATOR PISTON)
35426C	Spring, Compression (FOR C-0 ACCUMULATOR PISTON)
35427E	Piston, B-0 Accumulator
35427F	Spring, Compression (FOR B-0 ACCUMULATOR PISTON)
35427G	Ring, O (FOR B-0 ACCUMULATOR PISTON)
35427J	Seat, Check Valve Spring (FOR PRESSURE RELIEF)
35430	Body Assy, Rear Upper Valve
35430A	Ball (FOR REAR UPPER VALVE BODY)
35432	Plate, Valve Body, NO.1
35433	Gasket, Valve Body, NO.1
35434	Gasket, Valve Body, NO.2
35435	Gasket, Valve Body Plate, NO.3
35436A	Gasket, Valve Body Plate, NO.4
35438D	Seat, Accumulator Control Valve Spring
35438F	Seat, Detent Spring
35440	Body Assy, Front Upper Valve
35441C	Strainer, Solenoid Oil
35443A	Sleeve, Down Shift Plug
35443B	Pin (FOR DOWN SHIFT PLUG SLEEVE)
35444D	Valve, Release Control
35444F	Valve, Intermediate Coast Modulator
35444G	Spring (FOR INTERMEDIATE COAST MODULATOR VALVE)
35444H	Pin,Straight(FOR INTERMEDIATE MODULATOR PLUG)
35445H	Valve, 2ND Coast Modulator
35445J	Plug (FOR 2ND COAST MODULATOR VALVE)
35445P	Spring, Compression (FOR 2ND COAST MODULATOR VALVE)
35445Q	Valve, Low Coast Modulator
35445R	Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35445V	Plug (FOR LOW COAST MODULATOR VALVE)
35447A	Valve, Reverse Clutch Sequence
35447B	Spring, Compression (FOR REVERSE CLUTCH SEQUENCE VALVE)
35449B	Valve, Pressure Relief
35449C	Spring, Compression (FOR VALVE PRESSURE RELIEF)
35450E	Ball (FOR UPPER VALVE BODY)
35456	Valve, 2-3 Shift
35456A	Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C	Plug (FOR 2-3 SHIFT VALVE)
35456D	Seat (FOR 2-3 SHIFT VALVE)
35458D	Valve, Cut Back
35458E	Plug (FOR CUT BACK VALVE)
35458F	Seat (FOR CUT BACK VALVE)
35458G	Spring, Compression (FOR CUT BACK VALVE)
35458H	Key, Straight (FOR CUT BACK VALVE)
35461	Plug, Down Shift
35461A	Spring, Compression (FOR DOWN SHIFT PLUG)
35461B	Pin, Straight (FOR DOWN SHIFT PLUG)
35462	Valve, Throttle
35462A	Spring, Compression (FOR THROTTLE VALVE)
35462D	Ring, E (FOR THROTTLE VALVE)
35464	Valve, 1-2 Shift
35464A	Spring, Compression (FOR 1-2 SHIFT VALVE)
35464E	Plug (FOR 1-2 SHIFT VALVE)
35468C	Valve, Secondary Regulator
35468D	Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E	Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F	Plug (FOR SECONDARY REGULATOR VALVE)
35469G	Plug, Reverse Clutch Sequence Valve
35469H	Roller (FOR REVERSE CLUTCH SEQUENCE VALVE)
35472	Cover, Valve Body, NO.2
35473	Cover, Transmission Valve Body
35475	Cover, Valve Body, NO.5
35487B	Ball, Check, NO.4
35487C	Spring, Compression (FOR CHECK BALL)
35491A	Valve, Accumulator Control, NO.1
35491B	Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492E	Sleeve, Accumulator Control Valve
35493A	Seat, Primary Regulator Valve Plug
35493B	Seat, 1-2 Shift Valve Plug
35493D	Seat, 3-4 Shift Valve Plug
35493E	Seat, 2ND Coast Modulator Valve Plug
35493G	Seat, Low Coast Modulator Valve Plug
35493Y	Seat, 2-3 Shift Valve Plug
35497	Valve, 3-4 Shift
35497A	Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C	Plug (FOR 3-4 SHIFT VALVE)
35521	Cam, Throttle Valve
35521A	Spring (FOR THROTTLE VALVE CAM RETURN)
35521B	Washer (FOR THROTTLE VALVE CAM SET)
35521C	Bolt (FOR THROTTLE VALVE CAM SET)
35522	Pin, Throttle Valve Cam
35599	Cover, Manual Detent Spring
35847	Tube, Transmission Lube Apply
35892	Tube, Overdrive Brake
35895	Tube, Front Clutch Apply
35897A	Tube, 1ST & Reverse Brake, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
