Toyota Previa

1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

12 part groups · 2 illustrations

Illustrations

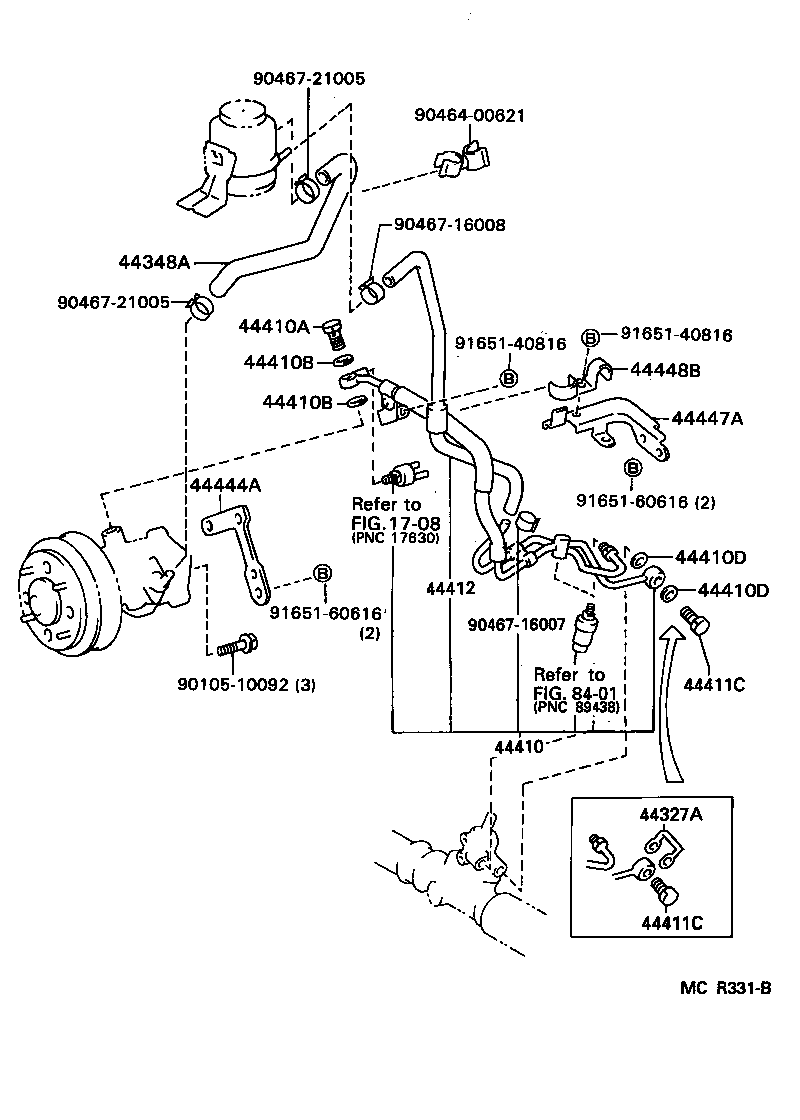

Figure 450828A 450828A 1990-01 → — Figure MCR331B MCR331B 1994-01 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410B Gasket(FOR PRESSURE FEED TUBE)
44410D Tube Assy, Pressure Feed, NO.2
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44444A Stay, Pump, Rear NO.1
44447A Bracket, Hose Support, NO.1
44448B Bracket, Hose Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
