Toyota Previa
1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · Europe
Discontinued model
Data version 1998-02

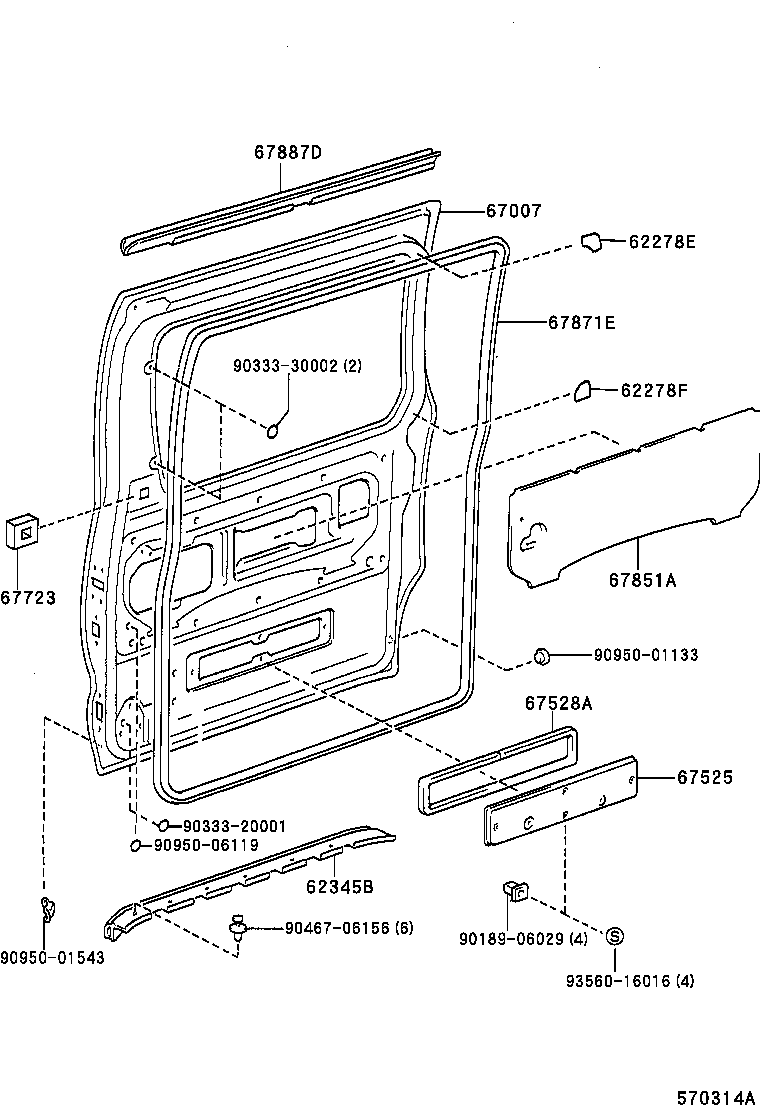

Rear Door Panel & Glass
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61937A | Bracket, Side Window Garnish |
| 62278E | Protector, Side Window |
| 62278F | Protector, Side Window |
| 62345B | Weatherstrip, Slide Door, NO.3 RH |
| 67007 | Panel Sub-assy, Slide Door, RH |
| 67525 | Cover, Slide Door Panel, Lower |
| 67528A | Packing, Slide Door Lower Cover |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67604B | Clip(FOR SLIDE DOOR TRIM BOARD) |
| 67645B | Bracket, Slide Door Trim Base |
| 67663A | Garnish, Door Frame, RH |
| 67663B | Garnish, Door Frame, Upper RH |
| 67663C | Clip(FOR DOOR FRAME GARNISH) |
| 67667A | Garnish, Slide Door Window, RH |
| 67723 | Pad, Rear Door Trim, Upper |
| 67772F | Cap, Rear Door Trim Retainer |
| 67851A | Cover, Slide Door Service Hole, NO.1 |
| 67871E | Weatherstrip, Slide Door, NO.1 RH |
| 67887D | Weatherstrip, Slide Door, NO.2 RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
