Toyota Previa

1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · Europe

Discontinued model Data version 1998-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

5 part groups · 2 illustrations

Illustrations

Figure MBU067B

MBU067B 1990-01 → 1996-08

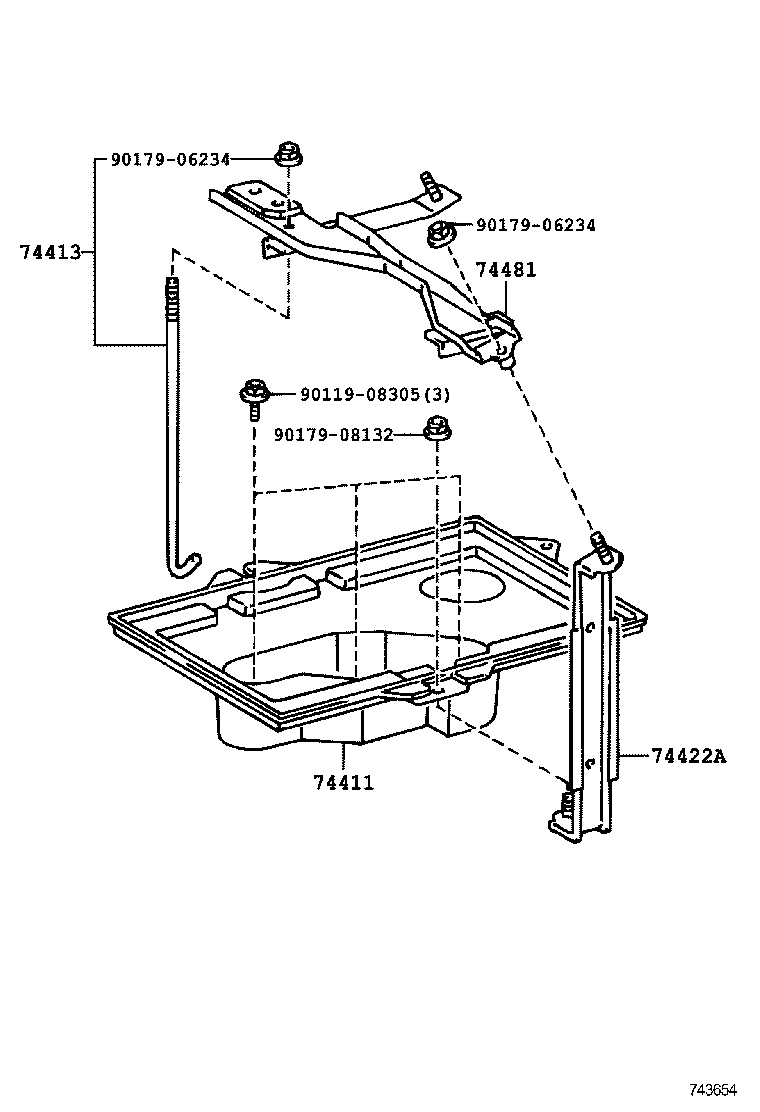

743654 1994-01 → —

Part groups

PNC	Description
74411	Carrier, Battery
74413	Bolt, Battery Clamp
74422A	Handle, Battery Carrier Pull
74453A	Bar, Battery Set Plate
74481	Clamp, Battery Hold Down

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
