Toyota Previa
1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · Europe
Discontinued model
Data version 1998-02

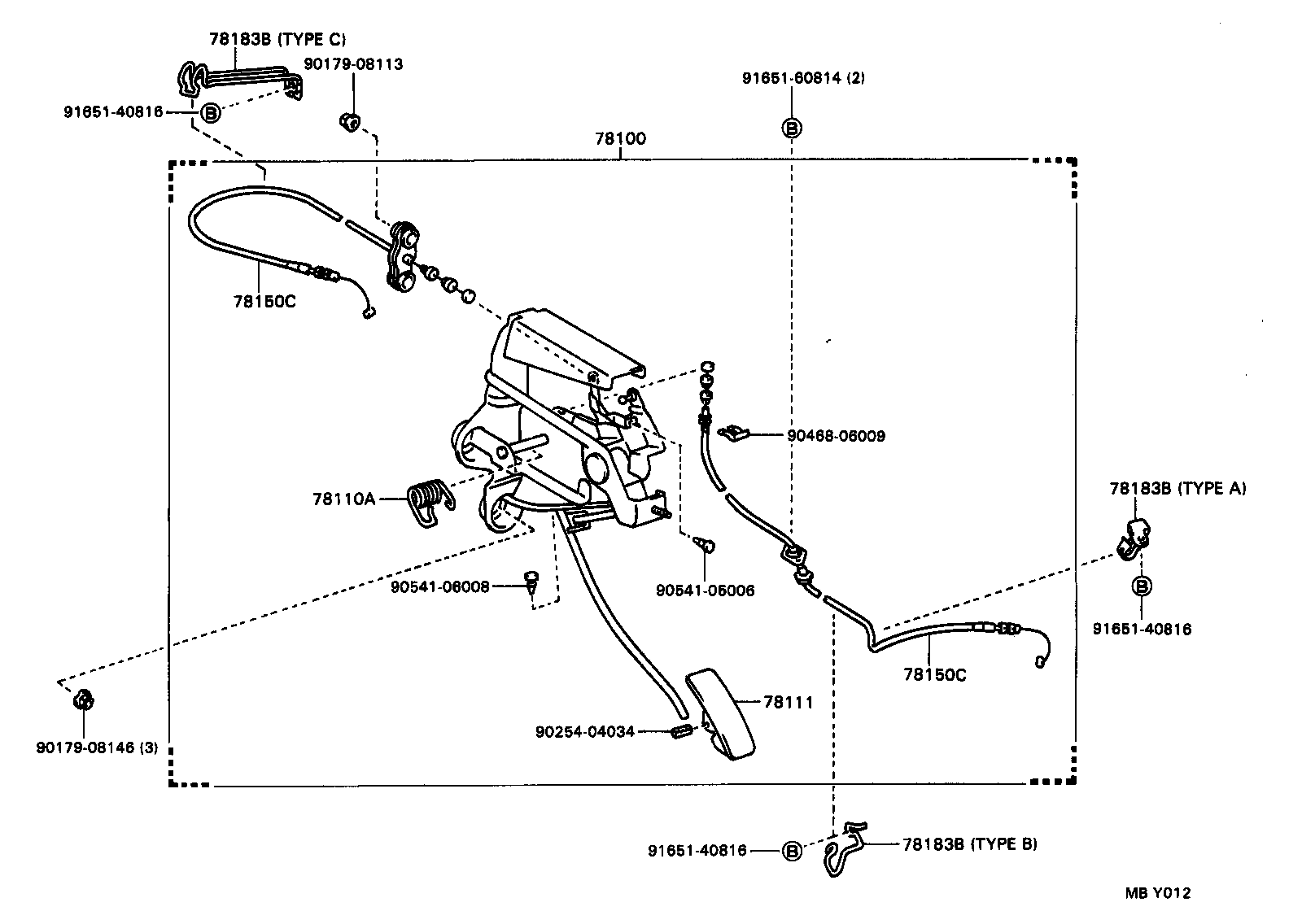

Accelerator Link
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78100 | Link Assy, Accelerator |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78111 | Pedal, Accelerator |
| 78150C | Wire Assy, Accelerator Flexible |
| 78183B | Clamp, Accelerator Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
