Toyota Previa
1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · Europe
Discontinued model
Data version 1998-02
Abs & Vsc
8 part groups · 3 illustrations

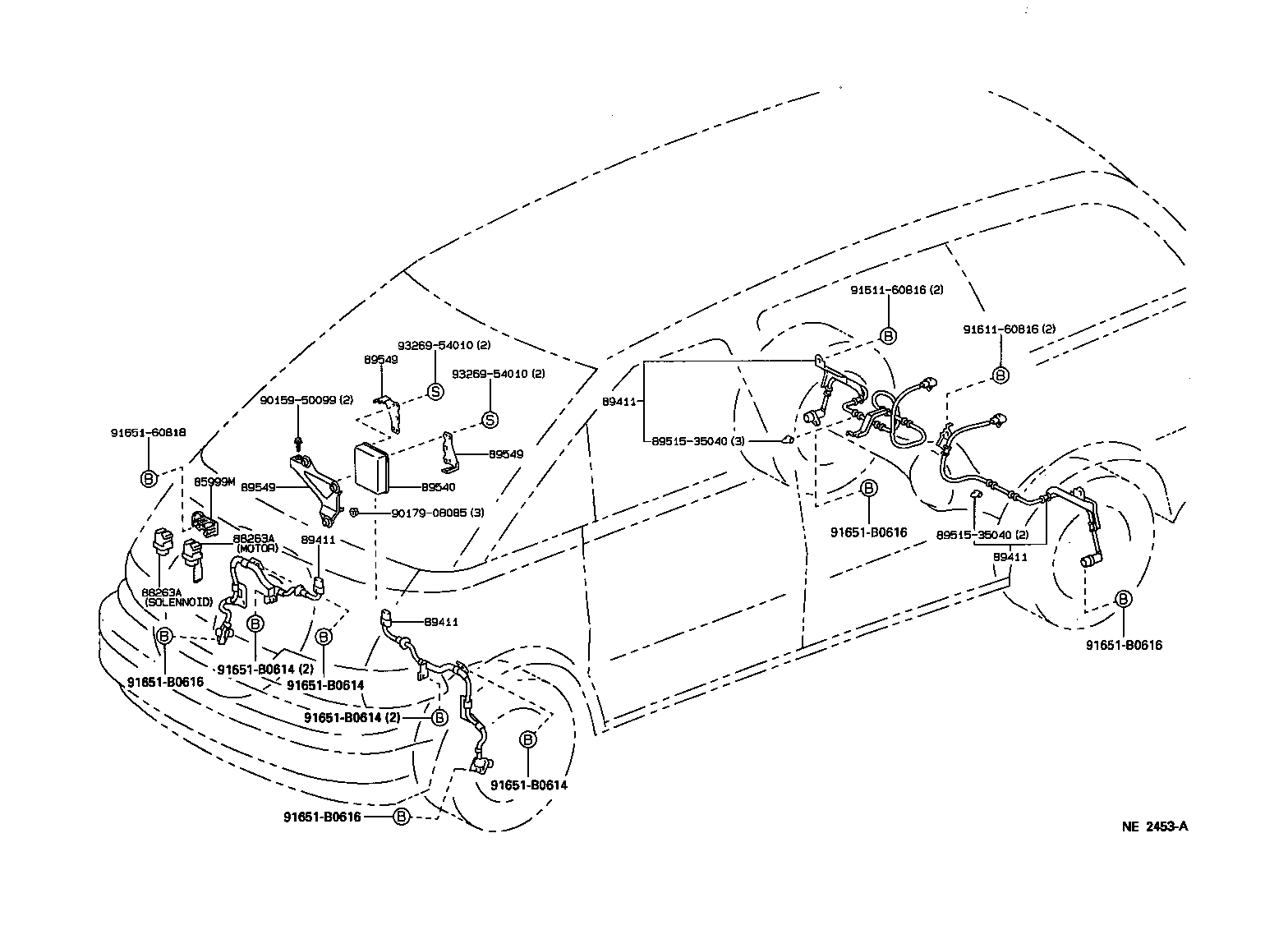

Part groups
| PNC | Description |
|---|---|
| 85999M | Bracket, Relay |
| 88263A | Relay, Skid Control |
| 88265 | Label, Skid Control Caution |
| 89411 | Sensor, Speed |
| 89439B | Bracket, Sensor |
| 89441A | Sensor, Deceleration |
| 89540 | Computer Assy, Skid Control |
| 89549 | Bracket, Skid Control Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
