Toyota Previa

1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

18 part groups · 4 illustrations

Illustrations

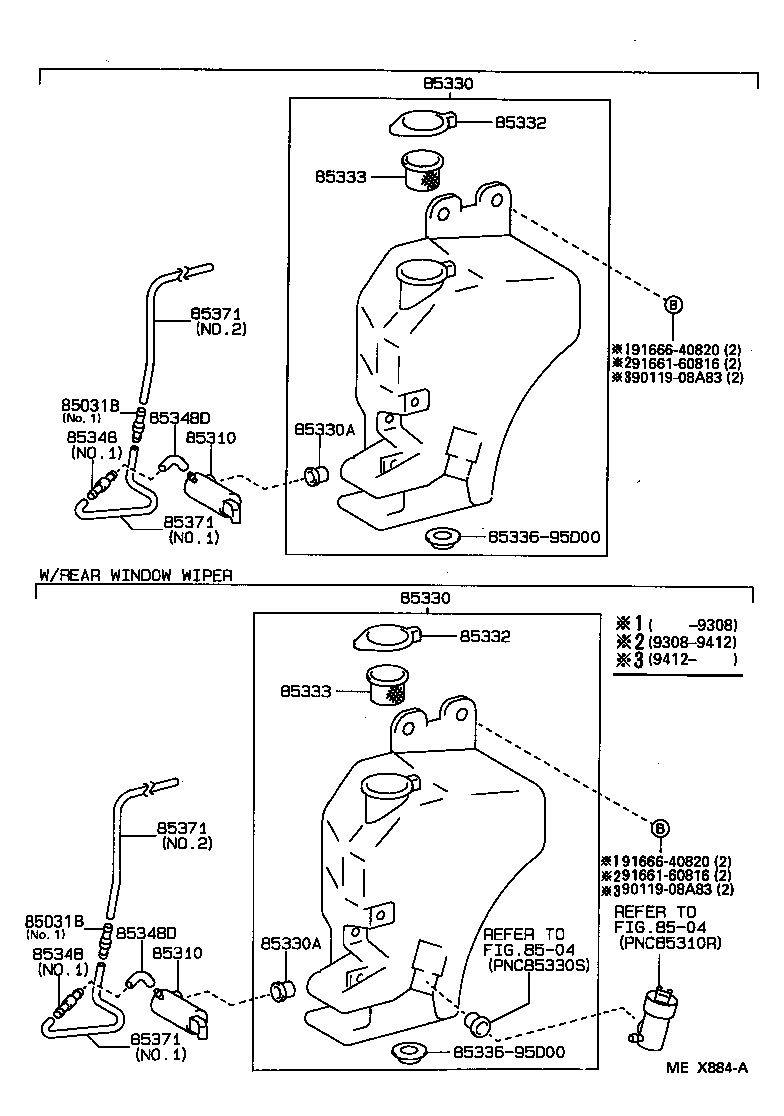

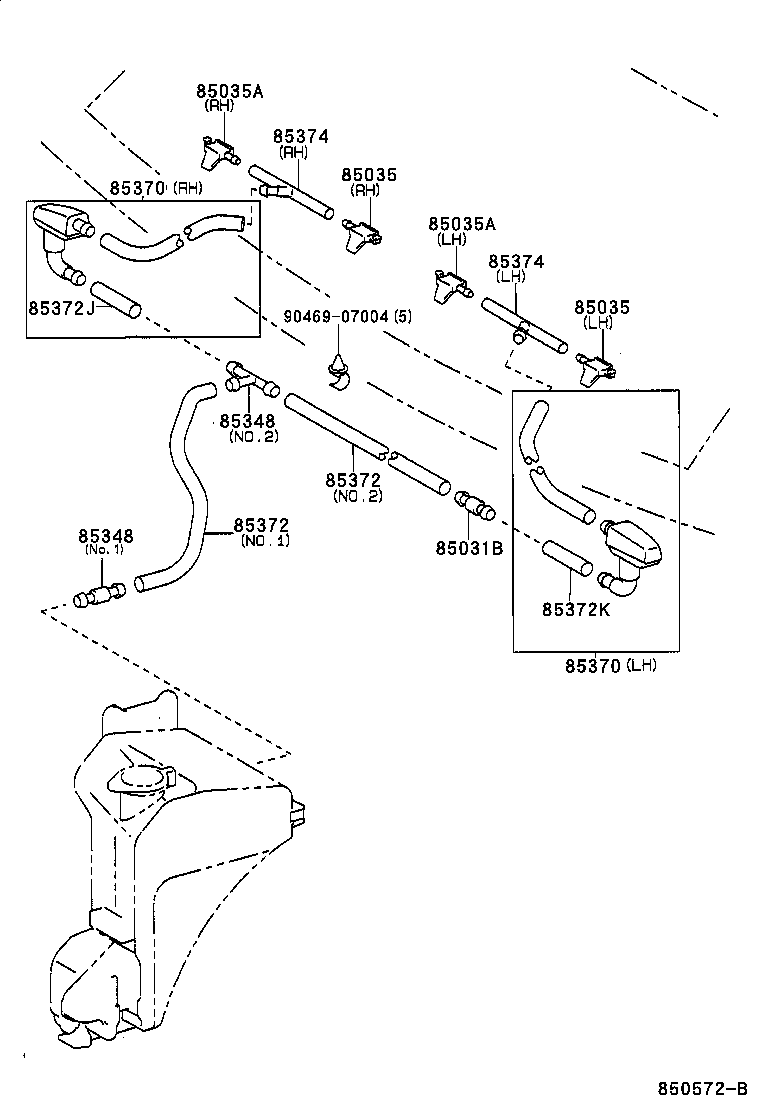

Figure MEP831E MEP831E 1990-01 → 1993-08 Figure 850572B 850572B 1993-08 → — Figure MEX884A MEX884A 1990-01 → — Figure MEX340A MEX340A 1990-01 → —

Part groups

PNCDescription
85031B Valve Sub-assy, Washer
85035 Nozzle Sub-assy, Washer
85035A Nozzle, FR Washer, RH
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85370 Hose Assy, Windshield Washer
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85372J Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85372K Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85374 Hose, Windshield Washer (FROM NOZZLE TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
