Factory parts data · Europe

Toyota Previa

1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · Europe

Discontinued model Data version 1998-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

3 part groups · 3 illustrations

Illustrations

Figure MEW740A

MEW740A 1990-01 → —

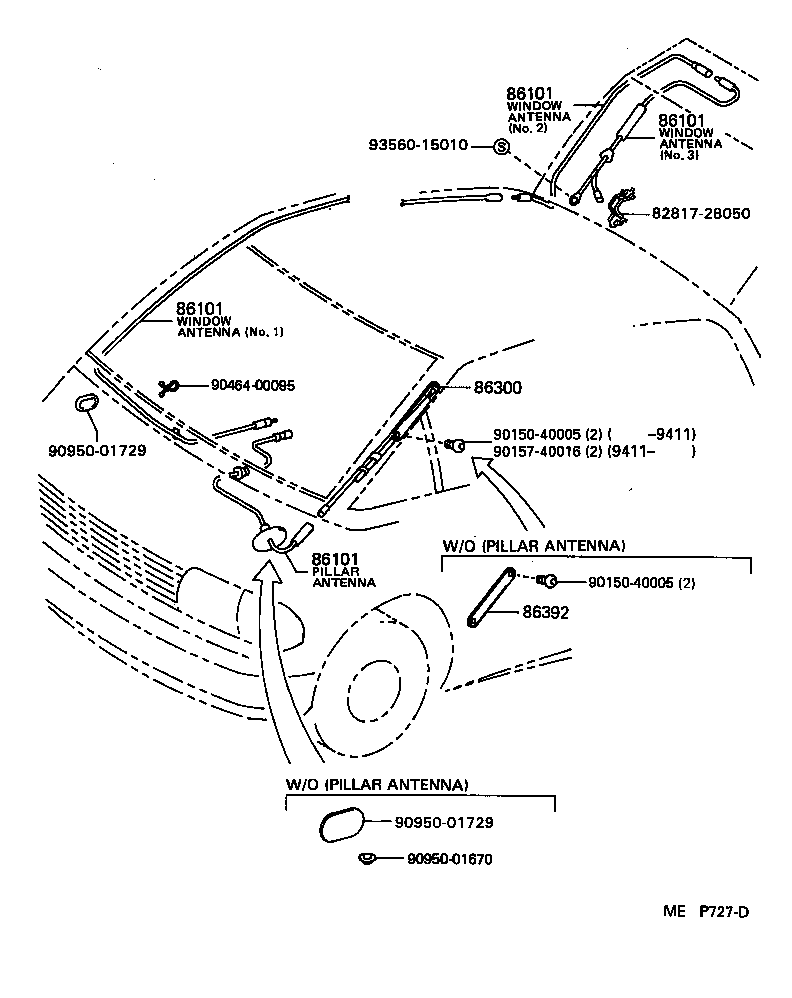

Figure MEP727D

MEP727D 1990-01 → 1993-08

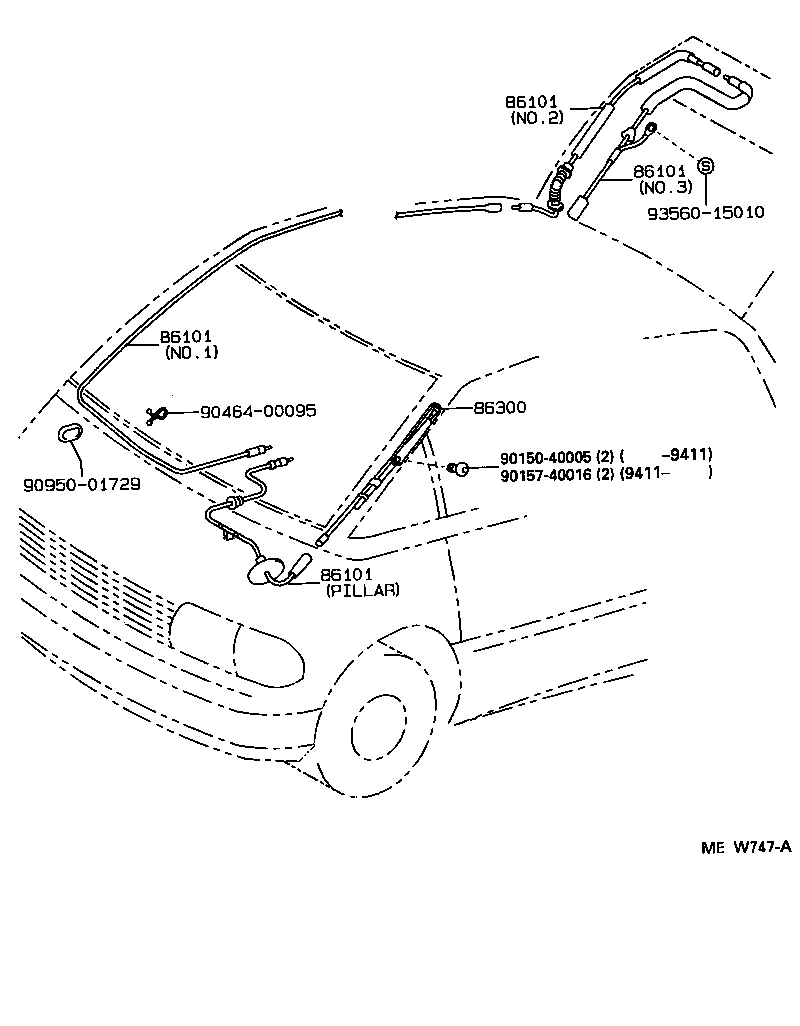

Figure MEW747A

MEW747A 1993-08 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86392	Ornament, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
