Toyota Previa
1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · Europe
Discontinued model
Data version 1998-02

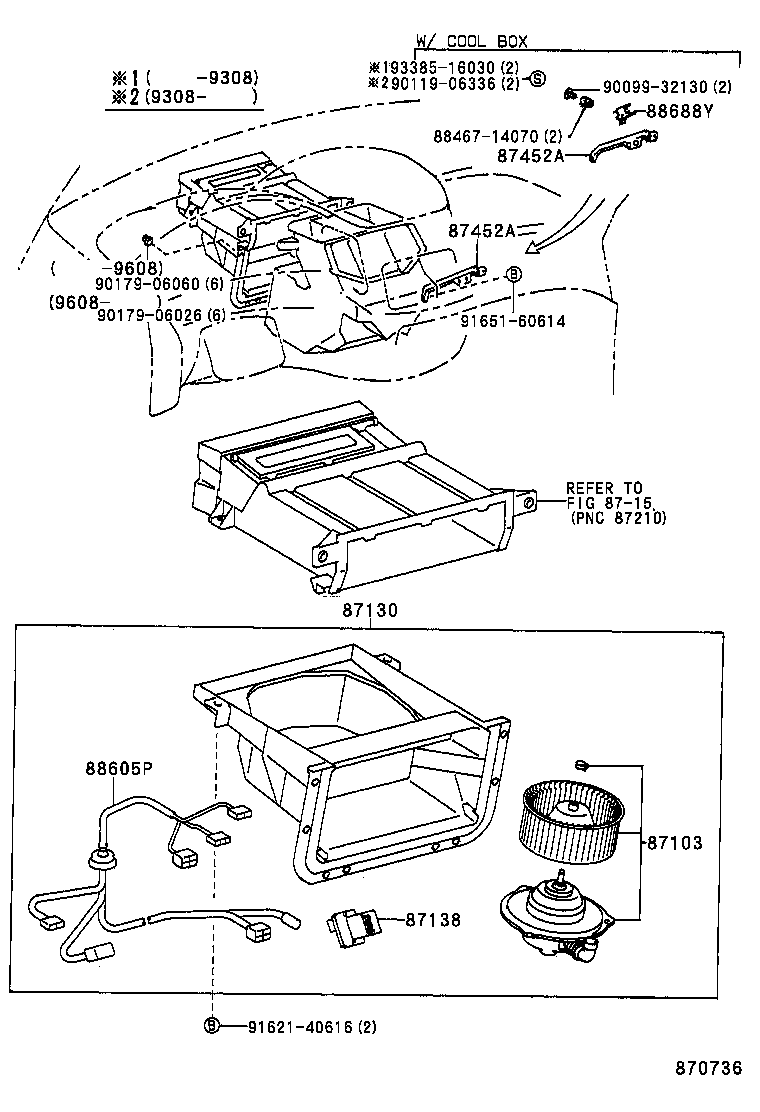

Heating & Air Conditioning - Heater Unit & Blower
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87114 | Cover, Heater |
| 87130 | Blower Assy, Heater, Front |
| 87138 | Resistor, Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87452A | Bracket, Heater, Front |
| 88326B | Plate, Cover |
| 88605P | Harness Sub-assy, Air Conditioner Wiring |
| 88688Y | Bracket, Cooler Stabilizer Amplifier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
