Toyota Previa

1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

35 part groups · 15 illustrations

Illustrations

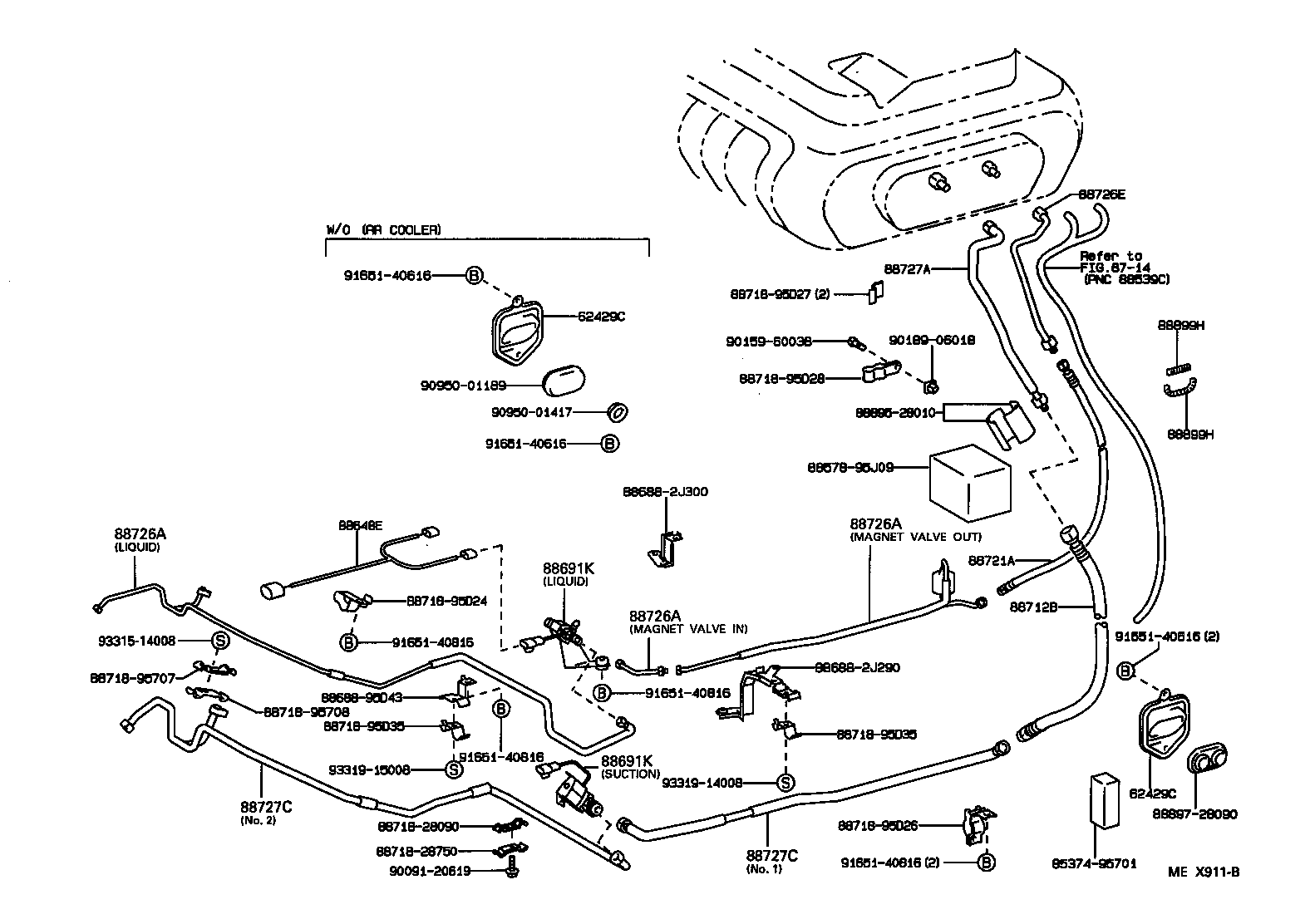

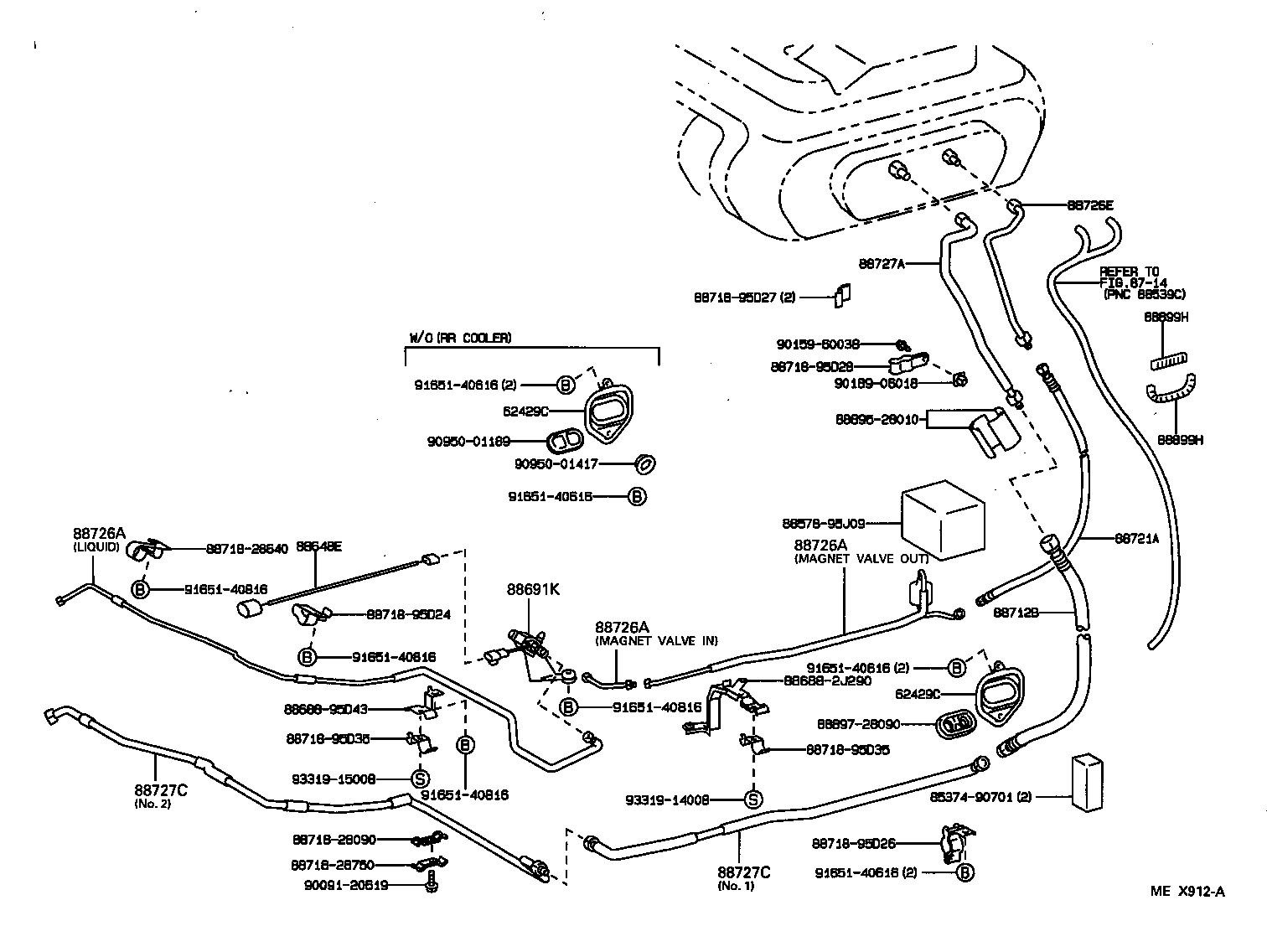

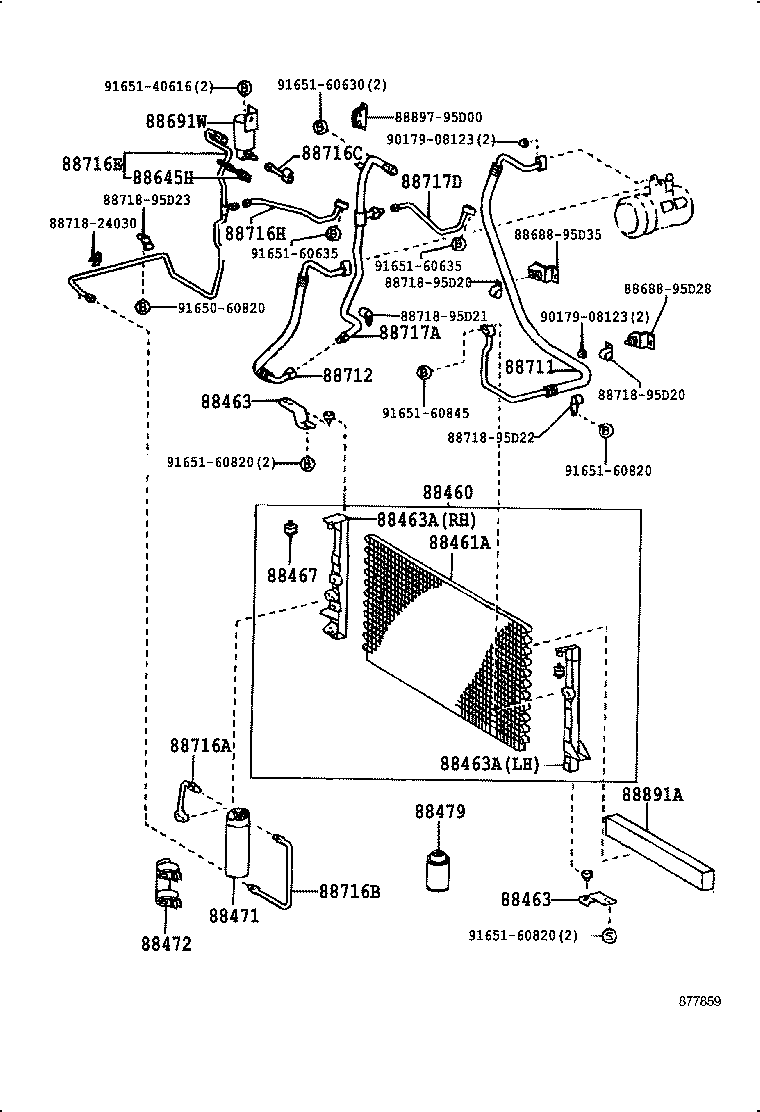

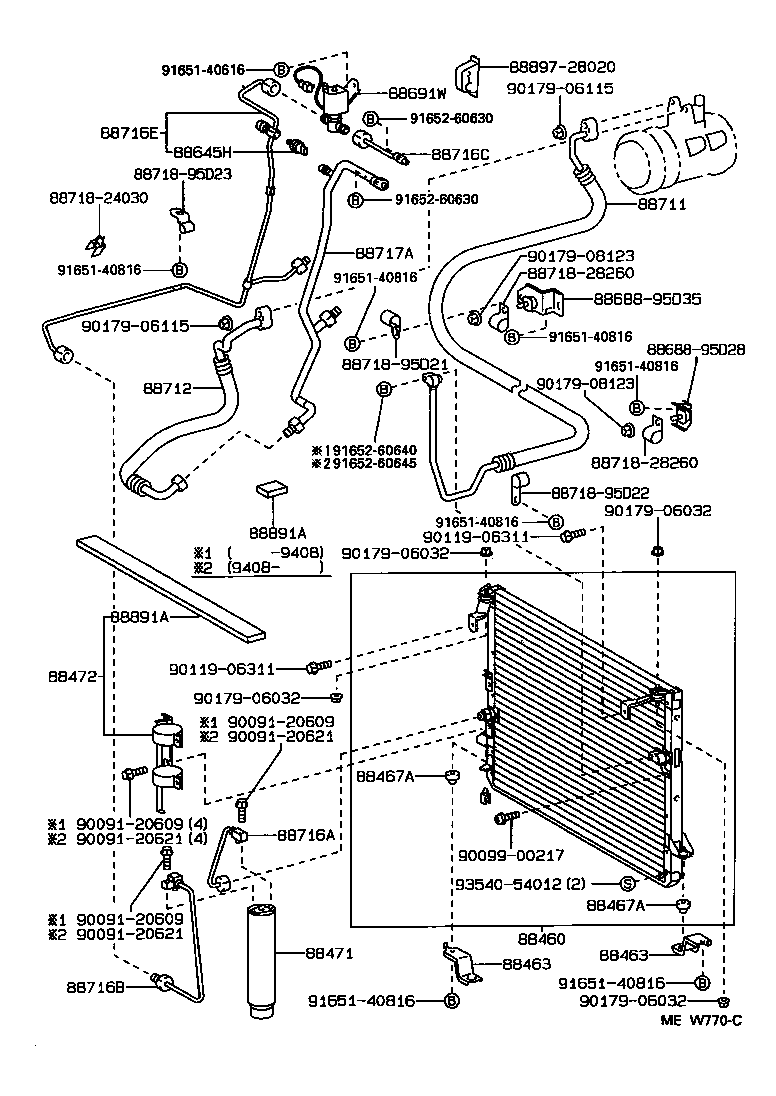

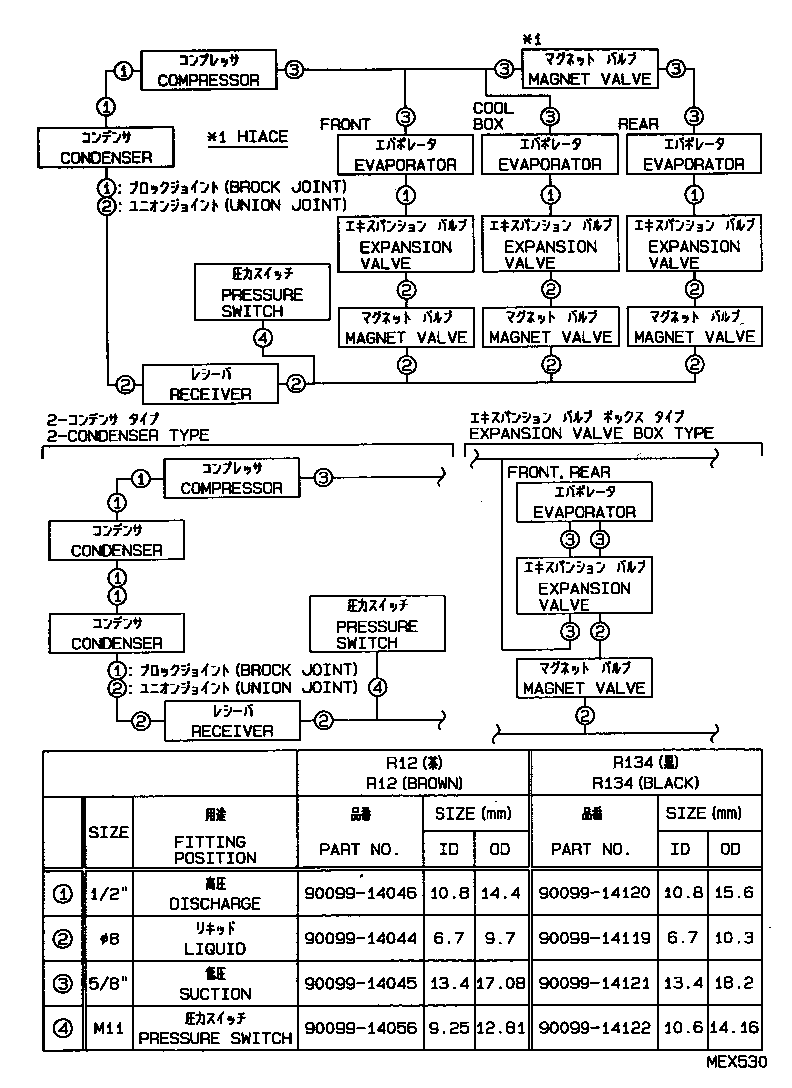

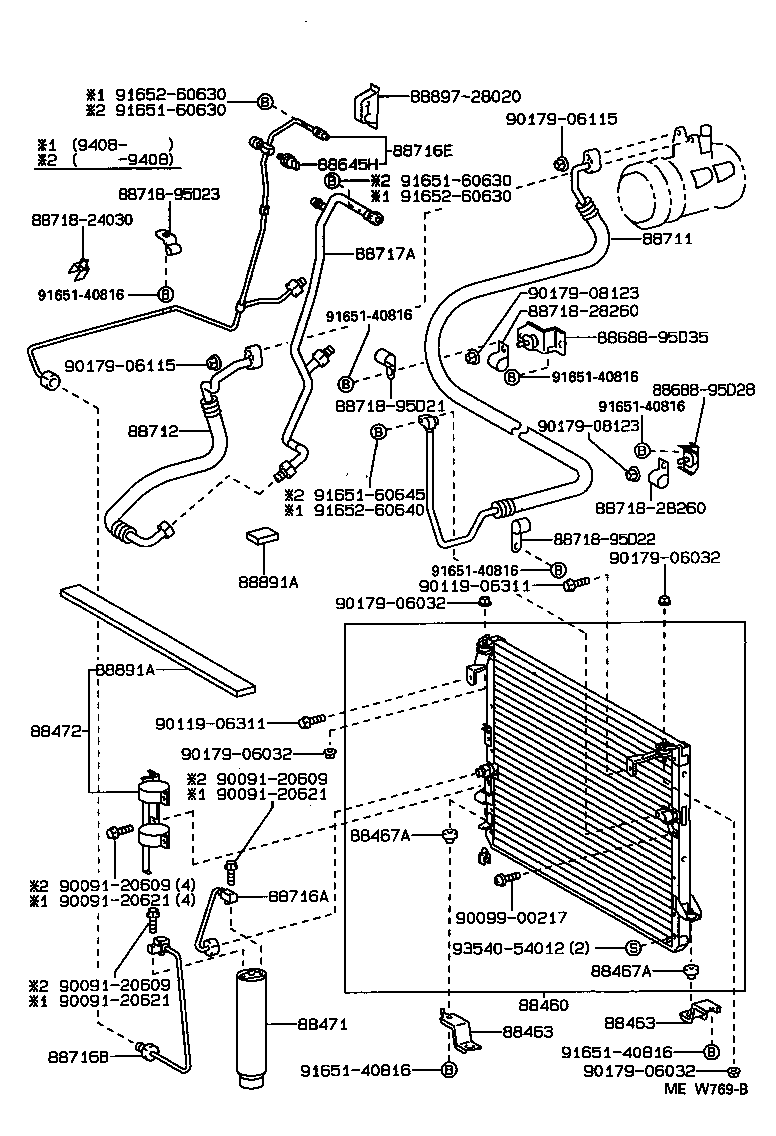

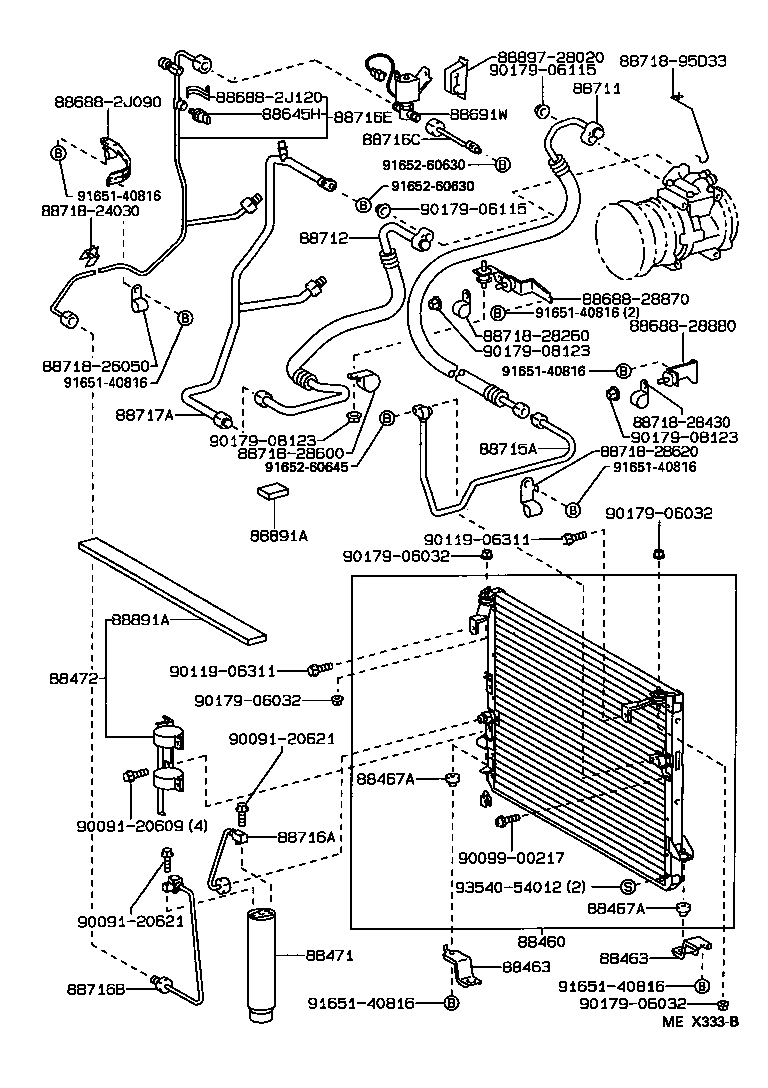

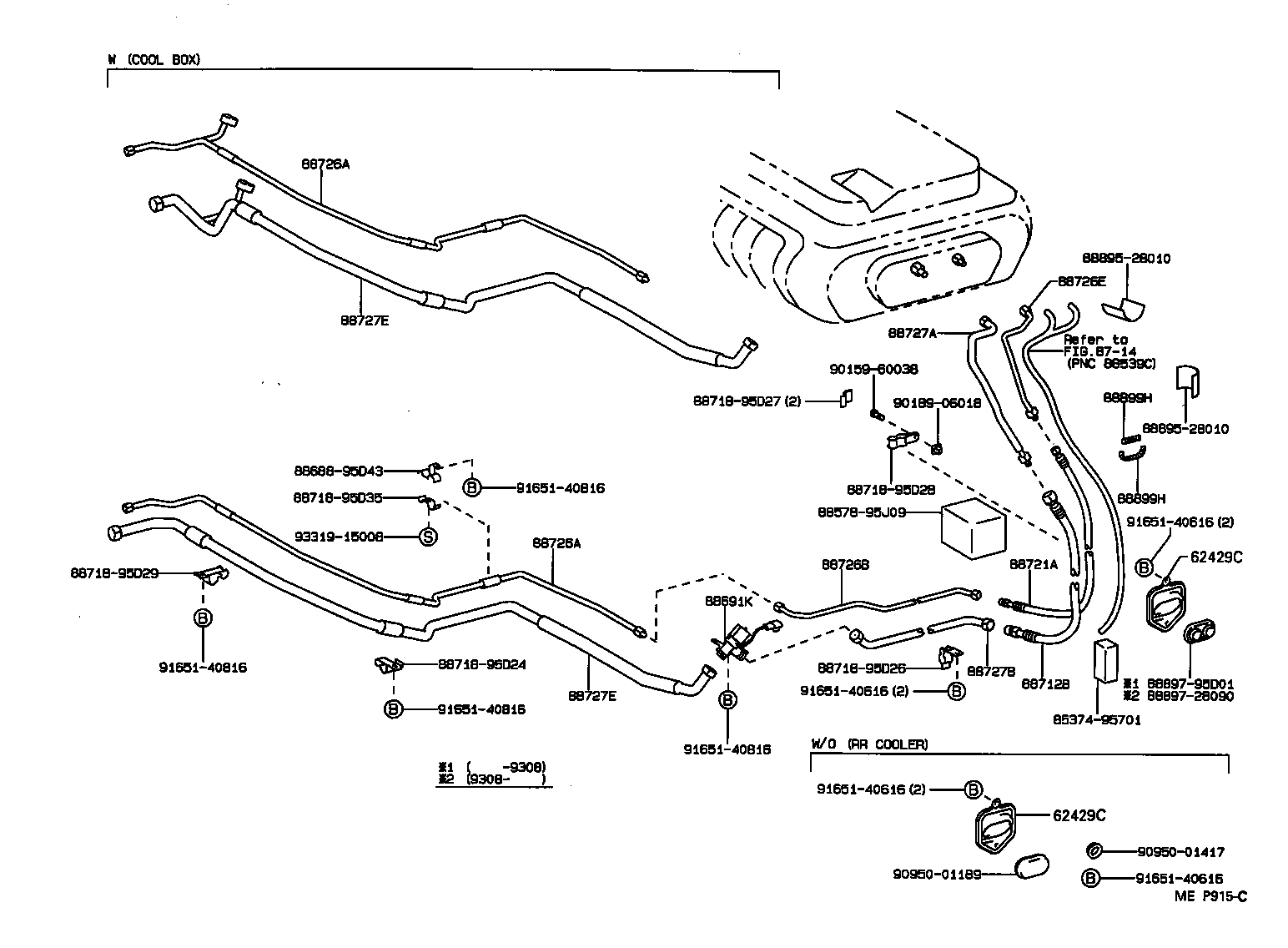

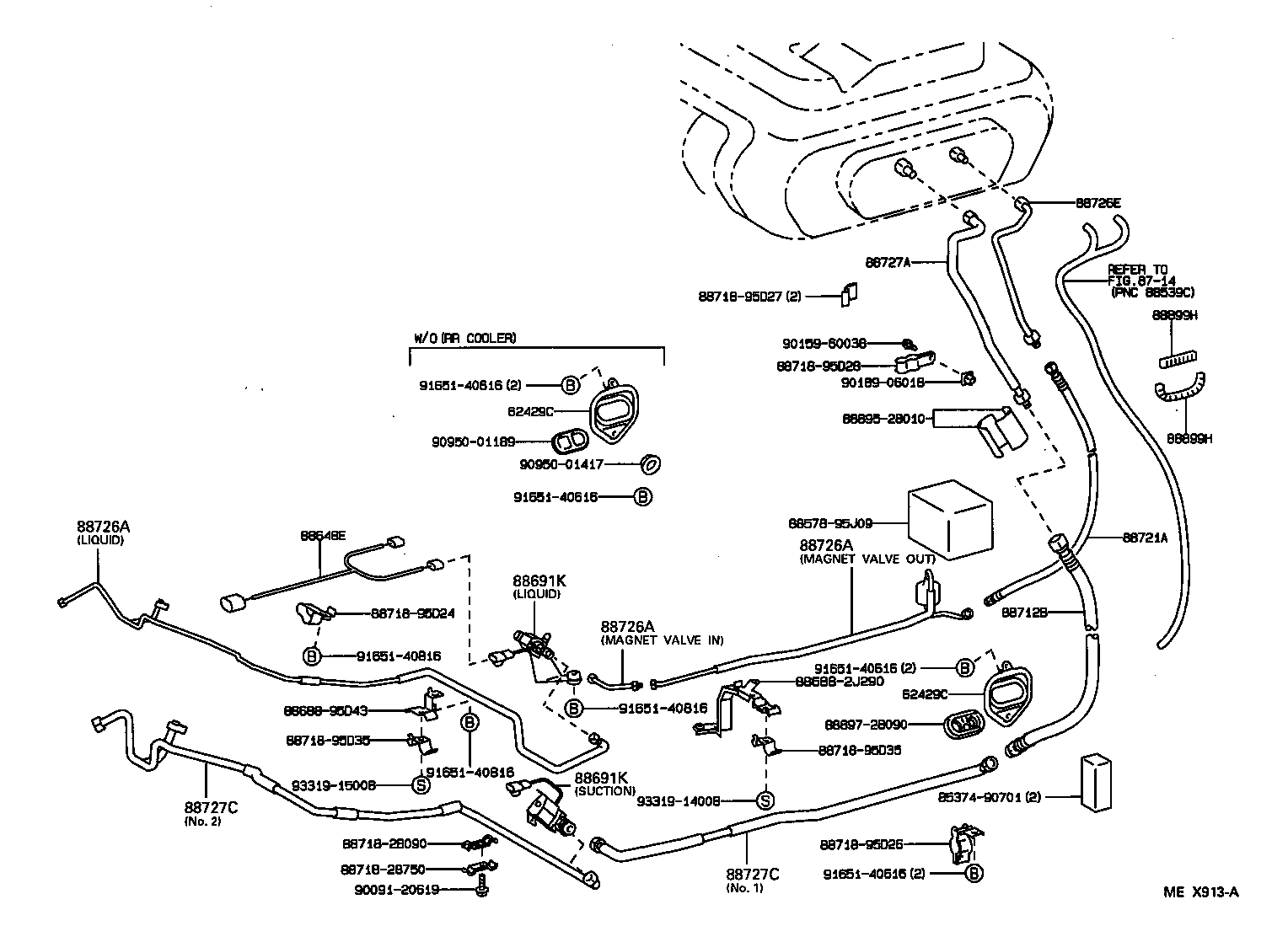

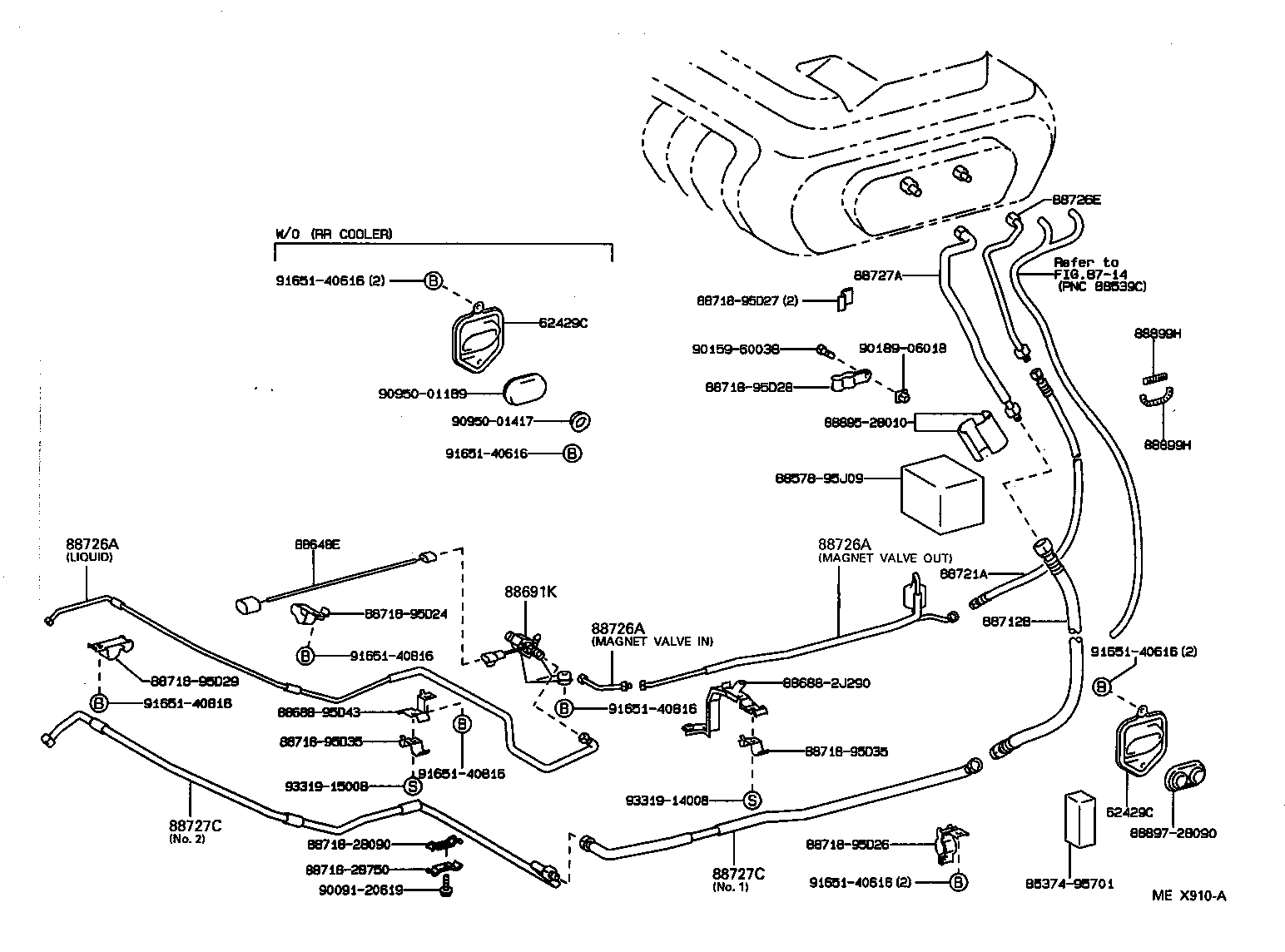

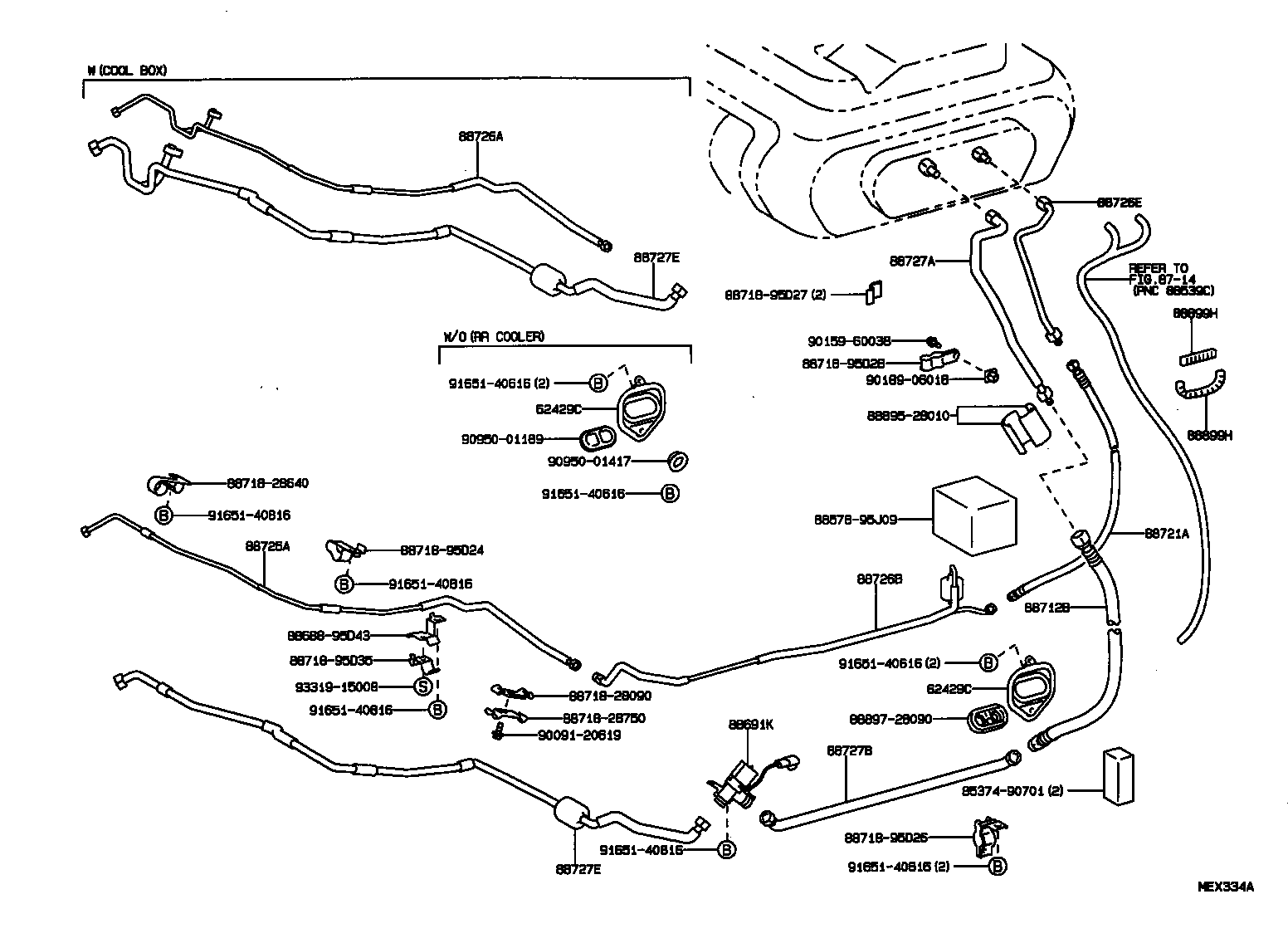

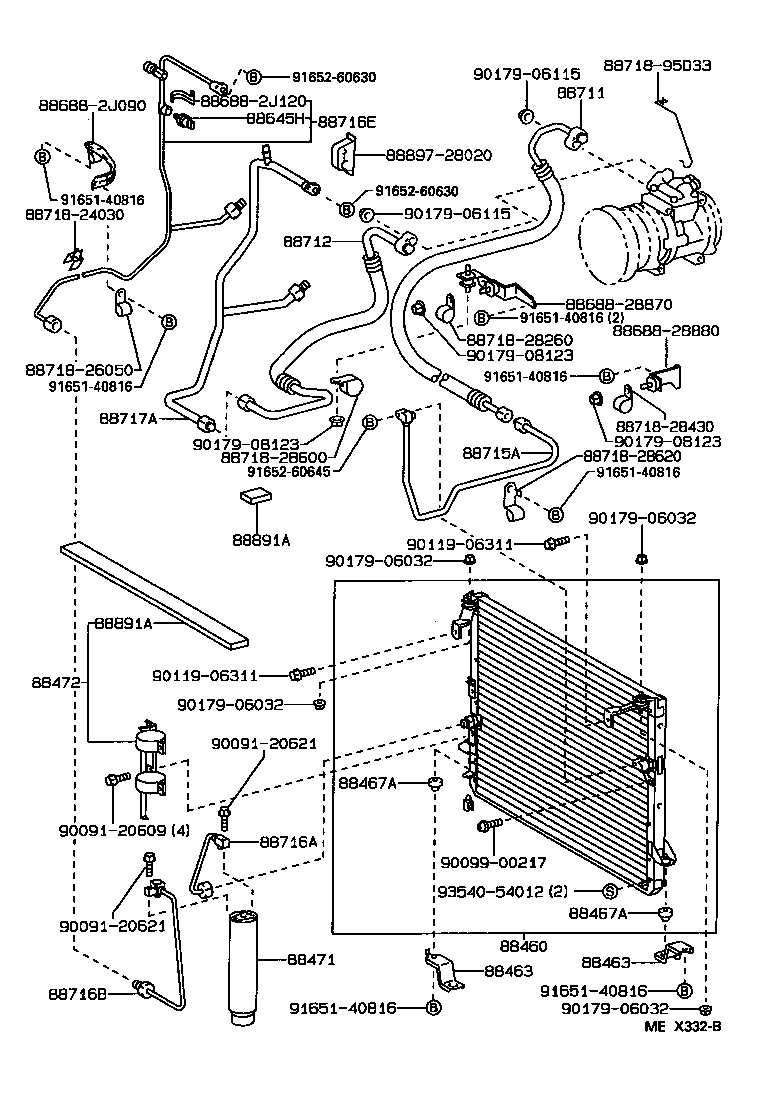

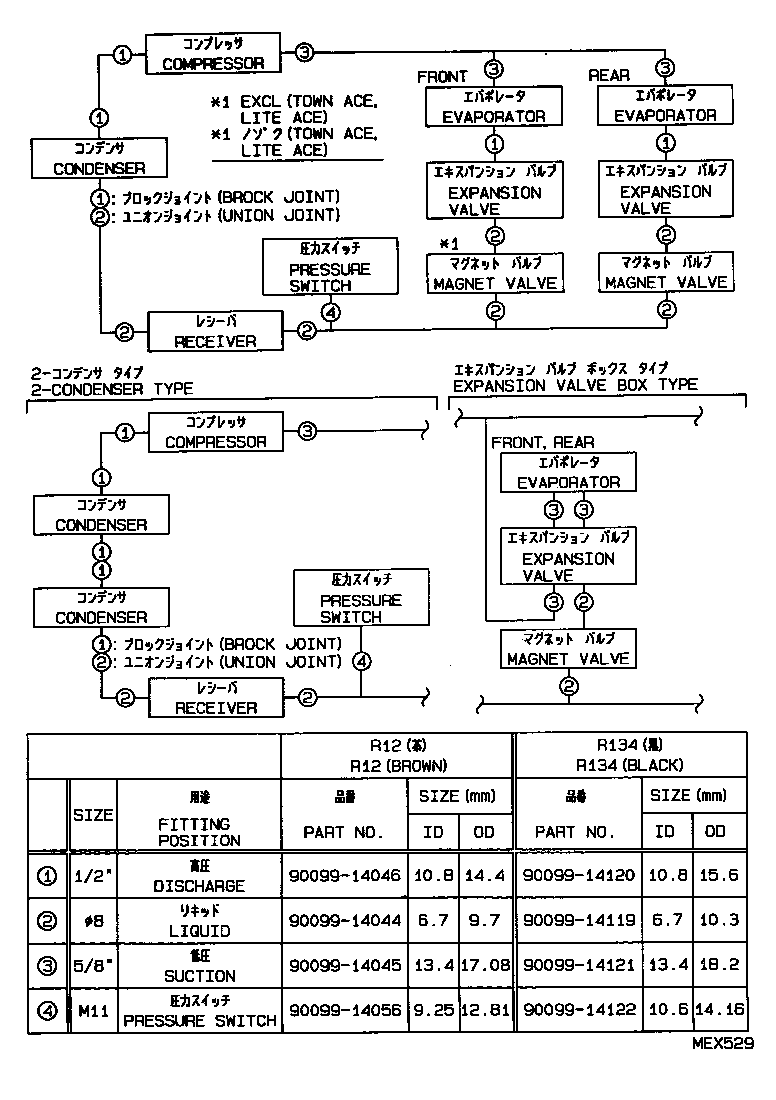

Figure 872744A 872744A 1990-01 → 1993-08 Figure 877859 877859 1990-01 → 1993-08 Figure MEW769B MEW769B 1993-08 → 1997-07 Figure MEW770C MEW770C 1993-08 → 1997-07 Figure MEX332B MEX332B 1994-01 → 1997-07 Figure MEX333B MEX333B 1994-01 → 1997-07 Figure MEP915C MEP915C 1990-01 → 1994-10 Figure MEX910A MEX910A 1994-10 → 1996-08 Figure MEX911B MEX911B 1994-10 → 1996-08 Figure MEX334A MEX334A 1994-01 → 1994-10 Figure MEX912A MEX912A 1994-10 → 1997-07 Figure MEX913A MEX913A 1994-10 → 1997-07 Figure MEX529 MEX529 1990-05 → 1997-07 Figure MEX530 MEX530 1990-05 → 1997-07 Figure 870756 870756 1990-01 → 1997-07

Part groups

PNCDescription
62429C Cover, Center Pillar Service Hole
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88691K Valve Assy, Magnet
88691W Valve, Magnet
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88712B Hose, Cooler Refrigerant Suction
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88717A Pipe, Cooler Refrigerant Suction, A
88717D Pipe, Cooler Refrigerant Suction, D
88721A Hose, Liquid, A
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726E Pipe, Cooler Refrigerant Liquid, E
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88727C Pipe, Cooler Refrigerant Suction, C
88727E Pipe, Cooler Refrigerant Suction, E
88891A Packing A (FOR COOLER)
88899H Moulding, Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
