Toyota Blizzard

1982-01 → 1984-04 · chassis LD10 · catalogue 661210 · Europe

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Lever & Shift Rod

24 part groups · 2 illustrations

Illustrations

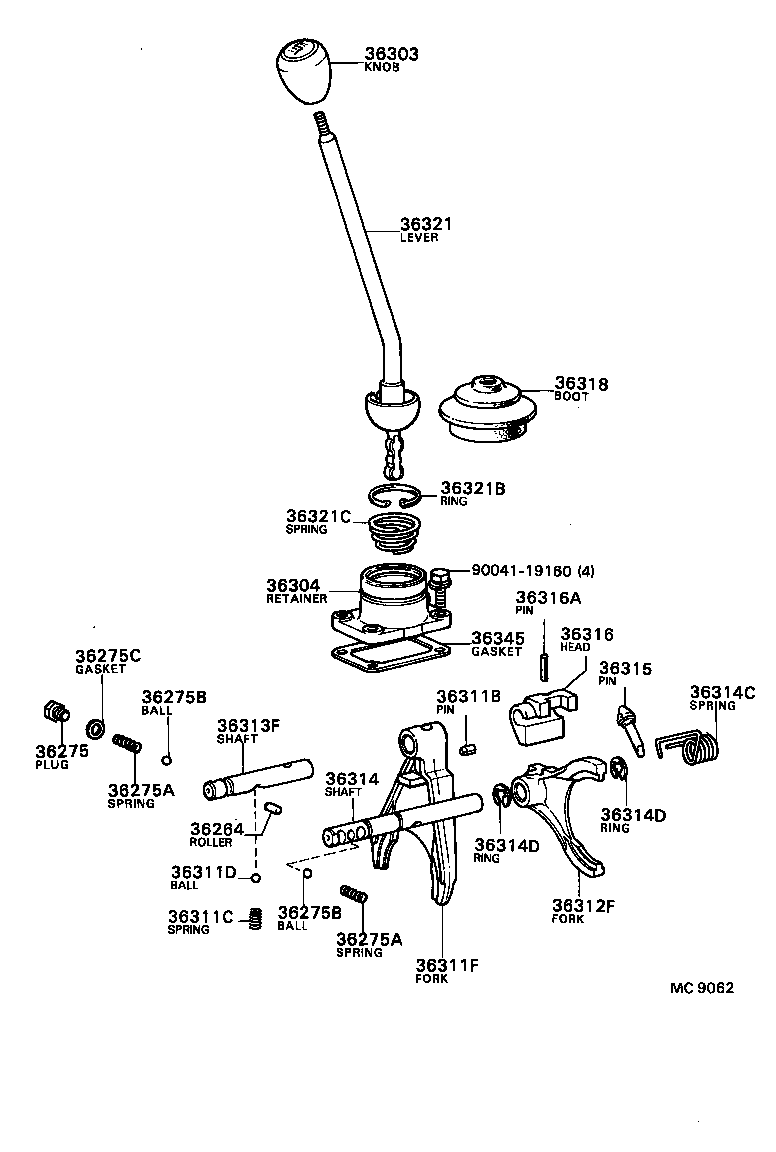

Figure MC6921A MC6921A 1982-01 → 1982-10 Figure MC9062 MC9062 1982-10 → —

Part groups

PNCDescription
36264 Pin OR Roller, Shift Inter-lock
36275 Plug, Shift Detent Ball Spring
36275A Spring, Compression (FOR SHIFT DETENT BALL)
36275B Ball, Shift Detent
36275C Gasket (FOR SHIFT DETENT BALL SPRING PLUG)
36303 Knob Sub-assy, Shift Lever
36304 Retainer Sub-assy, Transfer Control Shift Lever
36311B Pin, Slotted Spring (FOR TRANSFER SHIFT FORK)
36311C Spring, Compresion (FOR SHIFT FORK)
36311D Ball (FOR SHIFT FORK)
36311F Fork, Transfer Gear Shift, NO.1
36312F Fork, Transfer Gear Shift, NO.2
36313F Shaft, Transfer Front Drive Shift Fork
36314 Shaft, Transfer High And Low Shift Fork
36314C Spring (FOR TRANSFER SHIFT FORK SHAFT)
36314D Ring, E (FOR TRANSFER SHIFT FORK SHAFT)
36315 Pin, Transfer Fork Shaft
36316 Head, Transfer Gear Shift, NO.2
36316A Pin, Slotted Spring (FOR TRANSFER GEAR SHIFT HEAD)
36318 Boot, Transfer Front Drive Shift
36321 Lever, Transfer Front Drive Shift
36321B Ring, Hole Snap (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
36321C Spring, Conical (FOR TRANSFER FRONT DRIVE SHIFT)
36345 Gasket, Transfer Control Shift Lever Retainer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
