Toyota Blizzard
1982-01 → 1984-04 · chassis LD10 · catalogue 661210 · Europe
Discontinued model
Data version 1984-11

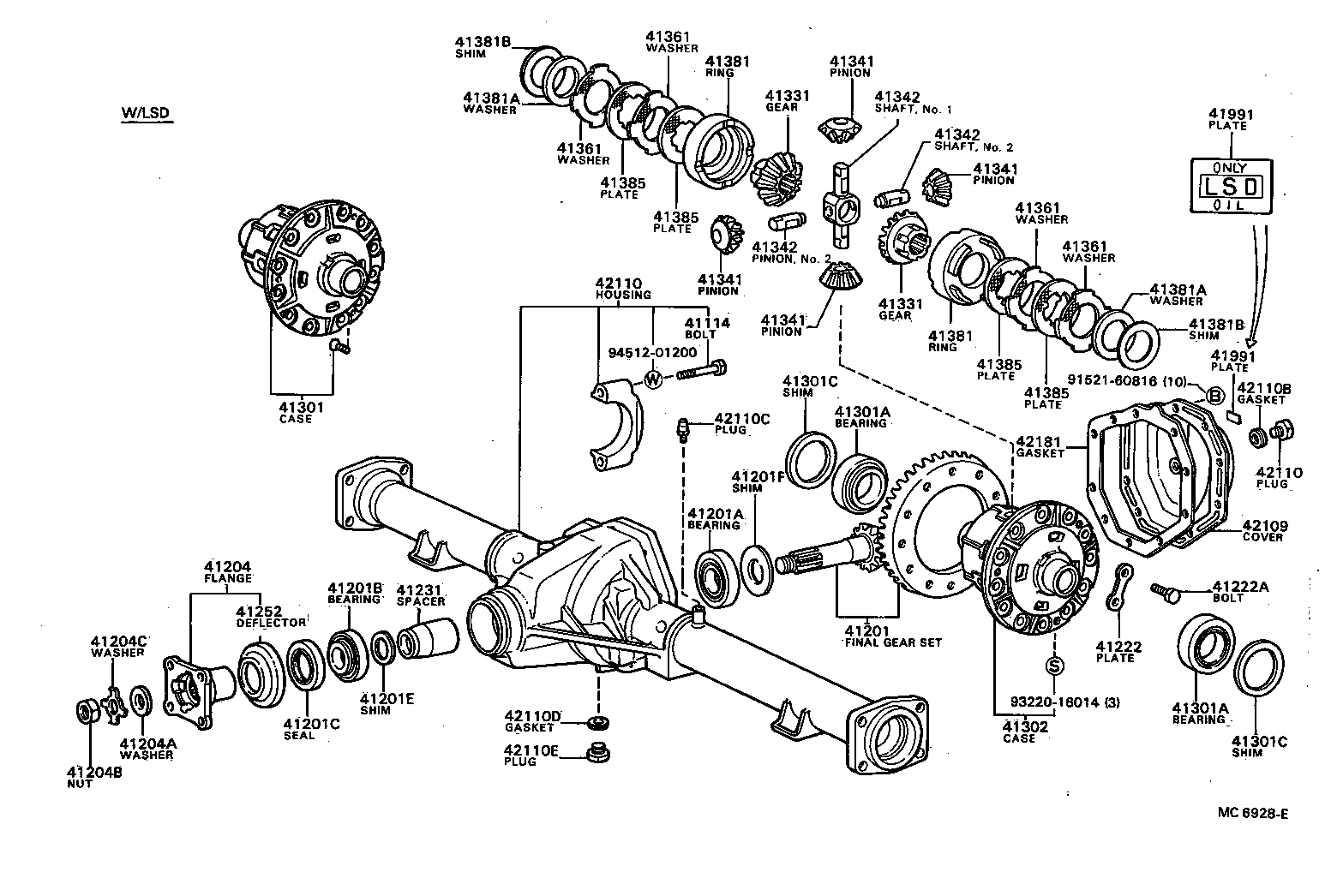

Rear Axle Housing & Differential
37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 41114 | Bolt, Rear Differential Bearing Cap |
| 41201 | Final Gear Kit, Differential, Rear |
| 41201A | Bearing (FOR REAR DRIVE PINION REAR) |
| 41201B | Bearing (FOR REAR DRIVE PINION FRONT) |
| 41201C | Seal, Oil (FOR REAR DIFFERENTIAL CARRIER) |
| 41201E | Shim (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) |
| 41201F | Shim (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) |
| 41204 | Flange Sub-assy, Rear Drive Pinion Companion, Rear |
| 41204A | Washer, Plate (FOR REAR DRIVE PINION) |
| 41204B | Nut (FOR REAR DRIVE PINION) |
| 41204C | Washer, Lock (FOR DRIVE PINION) |
| 41222 | Plate, Rear Differential Ring Gear Set Bolt Lock |
| 41222A | Bolt (FOR REAR DIFFERENTIAL RING GEAR SET) |
| 41231 | Spacer, Rear Differential Drive Pinion Bearing |
| 41252 | Deflector, Dust (FOR REAR DIFFERENTIAL) |
| 41301 | Case Sub-assy, Rear Differential |
| 41301A | Bearing(FOR REAR DIFFERENTIAL CASE) |
| 41301C | Shim, Differential Bearing Adjusting Inner |
| 41302 | Case Sub-assy, Rear Differential |
| 41331 | Gear, Rear Differential Side |
| 41341 | Pinion, Rear Differential |
| 41342 | Shaft, Rear Differential Pinion |
| 41361 | Washer, Rear Differential Side Gear Thrust, NO.1 |
| 41371 | Spider, Rear Differential |
| 41381 | Ring, Clutch Pressure |
| 41381A | Washer, Conical Spring |
| 41381B | Shim |
| 41385 | Plate, Clutch |
| 41991 | Caution Plate, Rear Differential |
| 42109 | Cover Sub-assy, Rear Axle Housing |
| 42110 | Housing Assy, Rear Axle |
| 42110A | Plug (FOR REAR AXLE HOUSING FILLER) |
| 42110B | Gasket (FOR REAR AXLE HOUSING FILLER PLUG) |
| 42110C | Plug, Breather (FOR REAR AXLE HOUSING) |
| 42110D | Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) |
| 42110E | Plug (FOR REAR AXLE HOUSING DRAIN) |
| 42181 | Gasket, Rear Differential Carrier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
