Toyota Blizzard

1982-01 → 1984-04 · chassis LD10 · catalogue 661210 · Europe

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

16 part groups · 3 illustrations

Illustrations

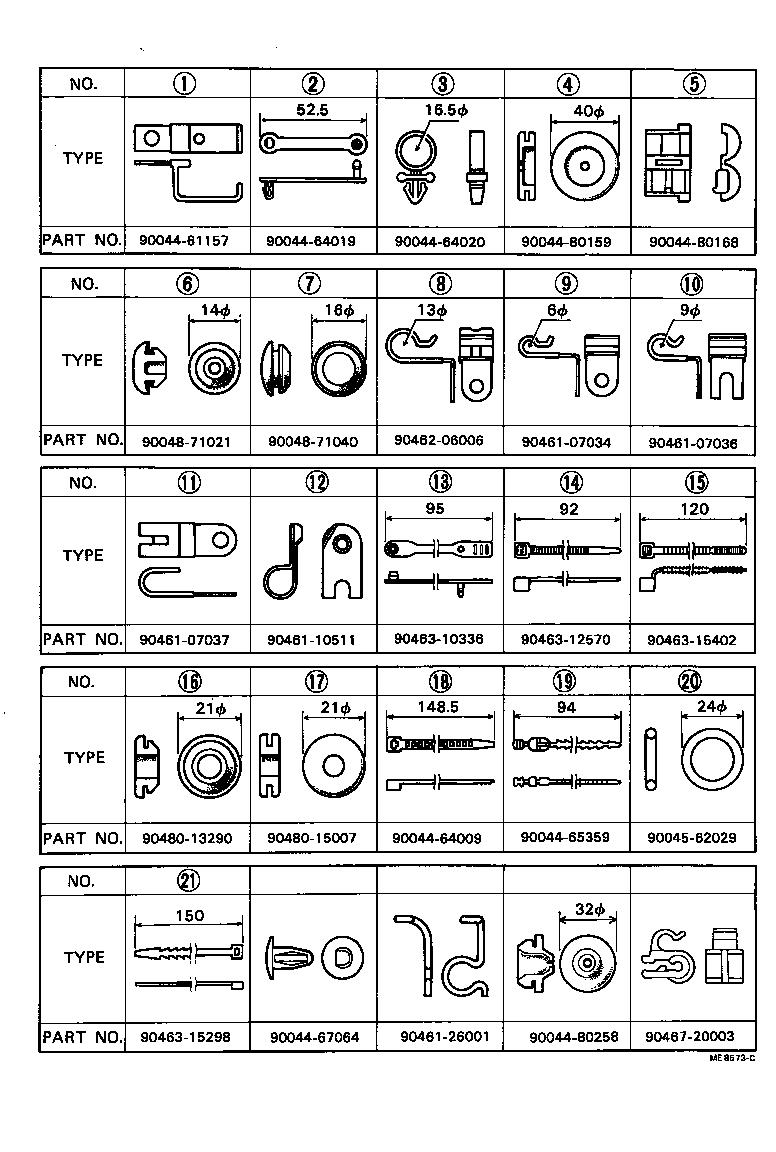

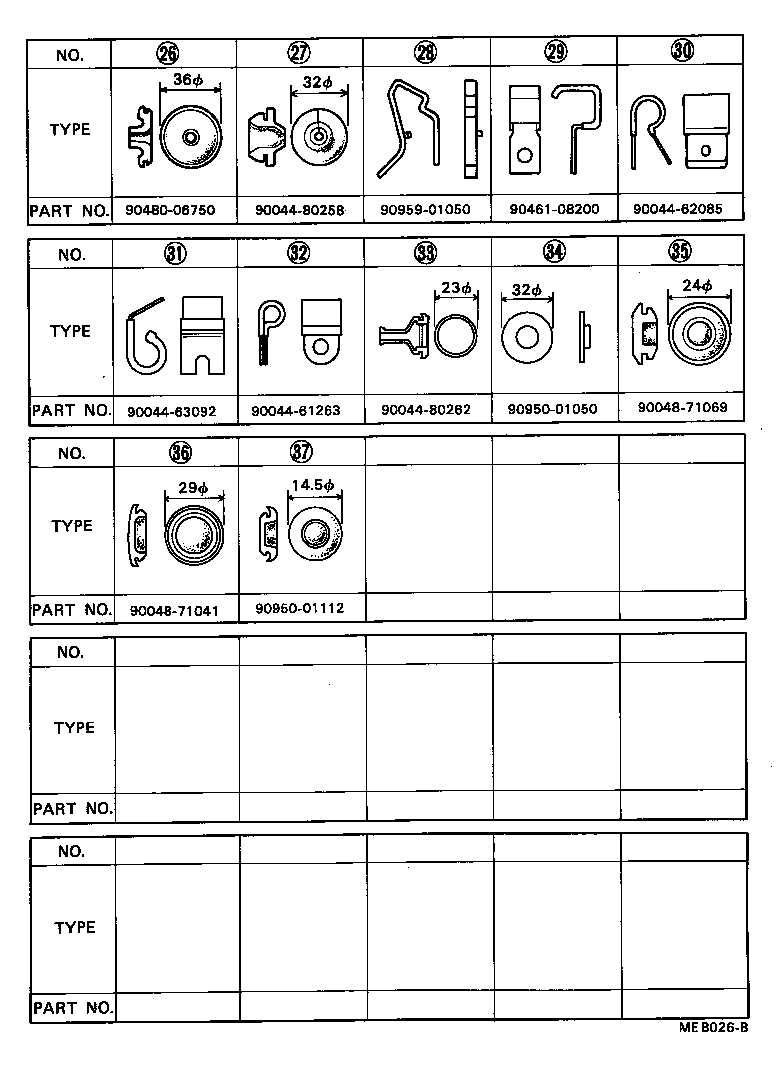

Figure MEB298B MEB298B 1982-01 → — Figure ME8573C ME8573C 1982-01 → — Figure MEB026B MEB026B 1982-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82201 Wiring Sub-assy, Instrument Panel
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82210D Fusible Link
82210E Fusible Link
82211 Wire, Heater Blower Fan Switch
82211A Wire, Rear Heater
82250 Wiring Assy, TO Generator
82341A Wire, Map Lamp
82370 Wire Assy, Wiper Switch TO Wiper
82401 Wiring, Rear Combination Lamp
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82470 Wire Assy, License Lamp Feed
82673 Bracket, Junction Block
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
