Toyota Blizzard
1982-01 → 1984-04 · chassis LD10 · catalogue 661210 · Europe
Discontinued model
Data version 1984-11
Heating & Air Conditioning - Heater Unit & Blower

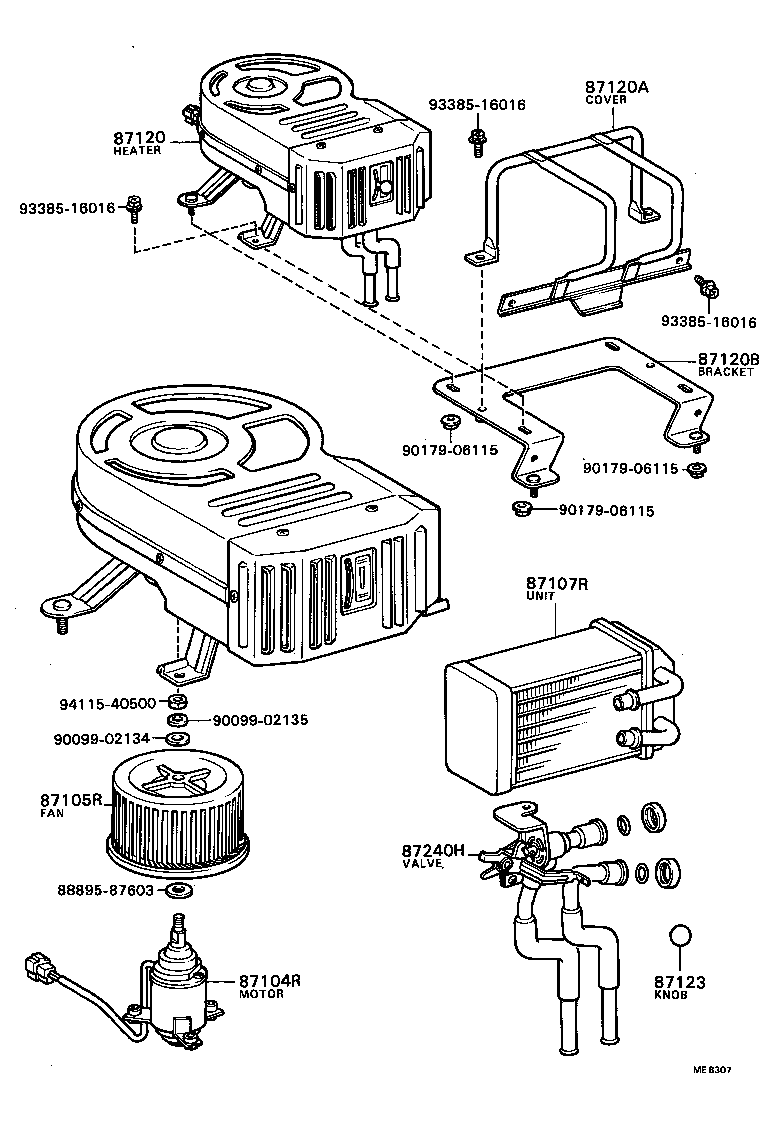

15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87105R | Fan Sub-assy, Rear Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |
| 87110 | Heater Assy |
| 87120 | Heater Assy, Rear |
| 87120A | Cover, Rear Heater |
| 87120B | Base, Rear Heater, NO.1 |
| 87123 | Knob, Heater |
| 87138 | Resistor, Heater Blower |
| 87174A | Guide, Air Heater |
| 87240H | Valve Assy, Water Unit |
| 87245G | Hose, Heater Radiator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
