Toyota RAV4

1994-04 → 2000-08 · chassis SXA1# · catalogue 662210 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

13 part groups · 4 illustrations

Illustrations

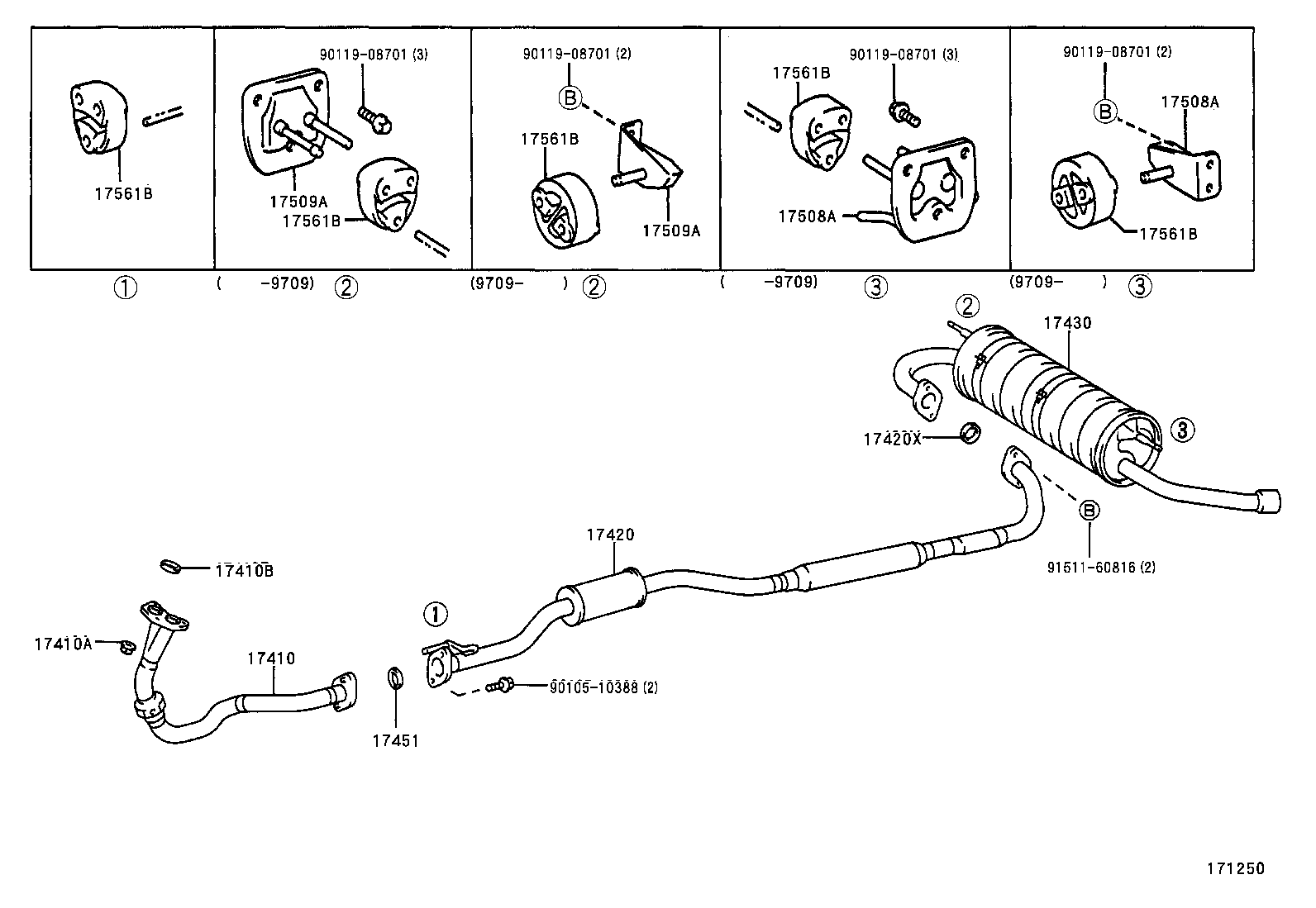

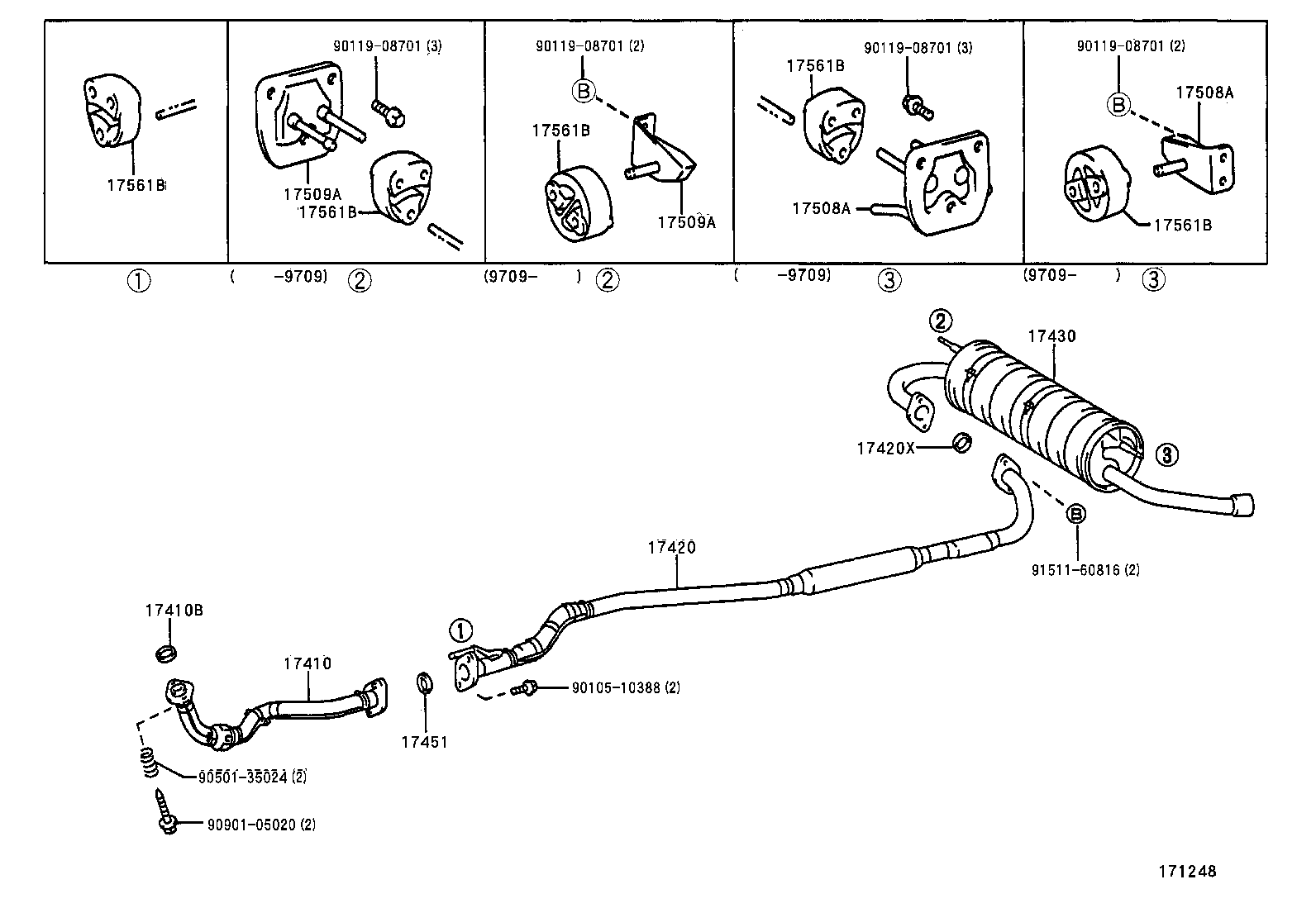

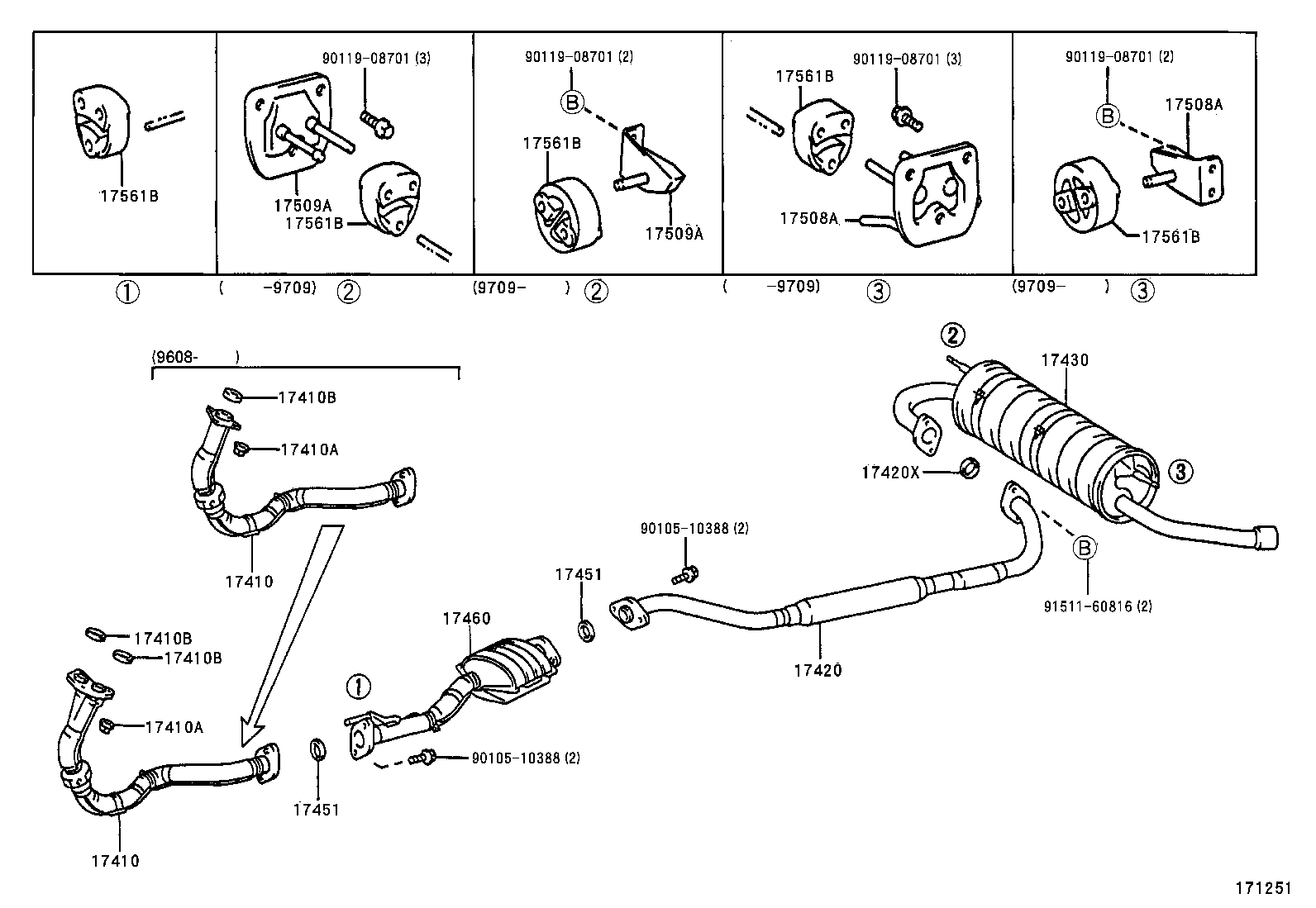

Figure MAH183B MAH183B 1994-04 → 1996-08 Figure 171248 171248 1996-08 → — Figure 171250 171250 1994-04 → — Figure 171251 171251 1994-04 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17551 Insulator, Exhaust Pipe Heat, NO.1
17561B Support, Exhaust Pipe, NO.1
17581A Damper, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
