Toyota RAV4

1994-04 → 2000-08 · chassis SXA1# · catalogue 662210 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

12 part groups · 5 illustrations

Illustrations

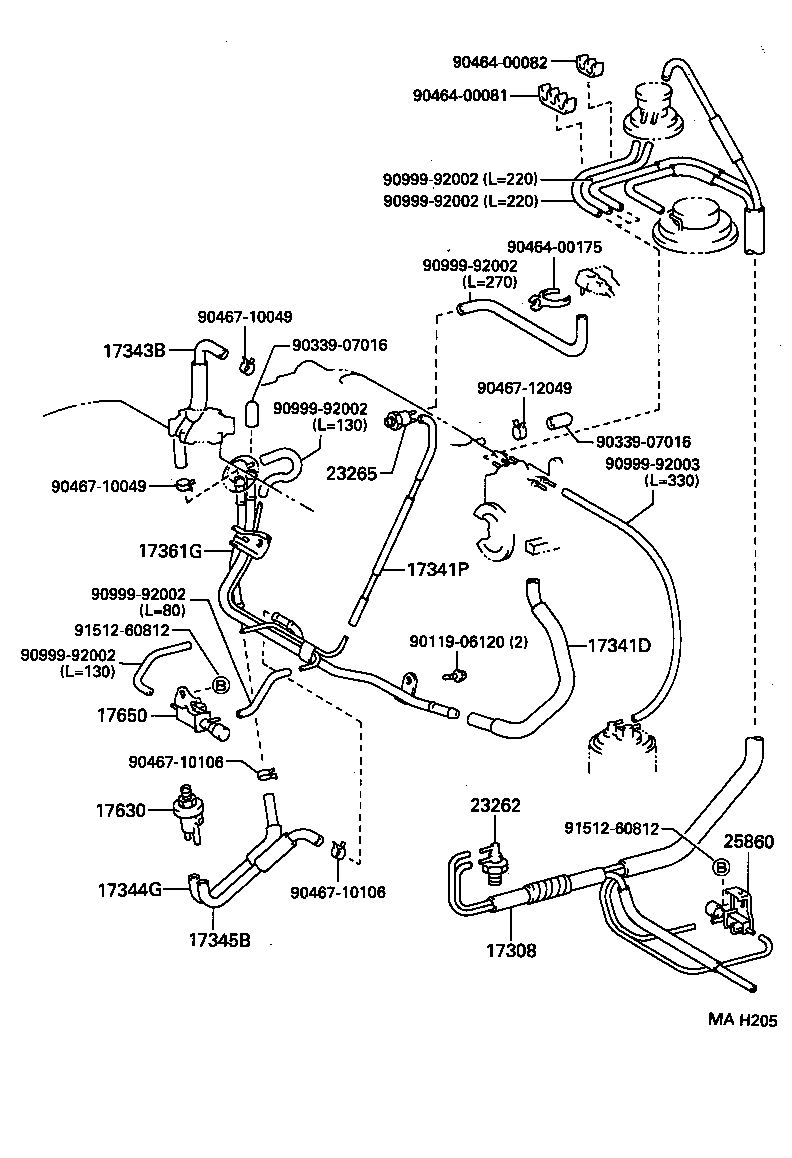

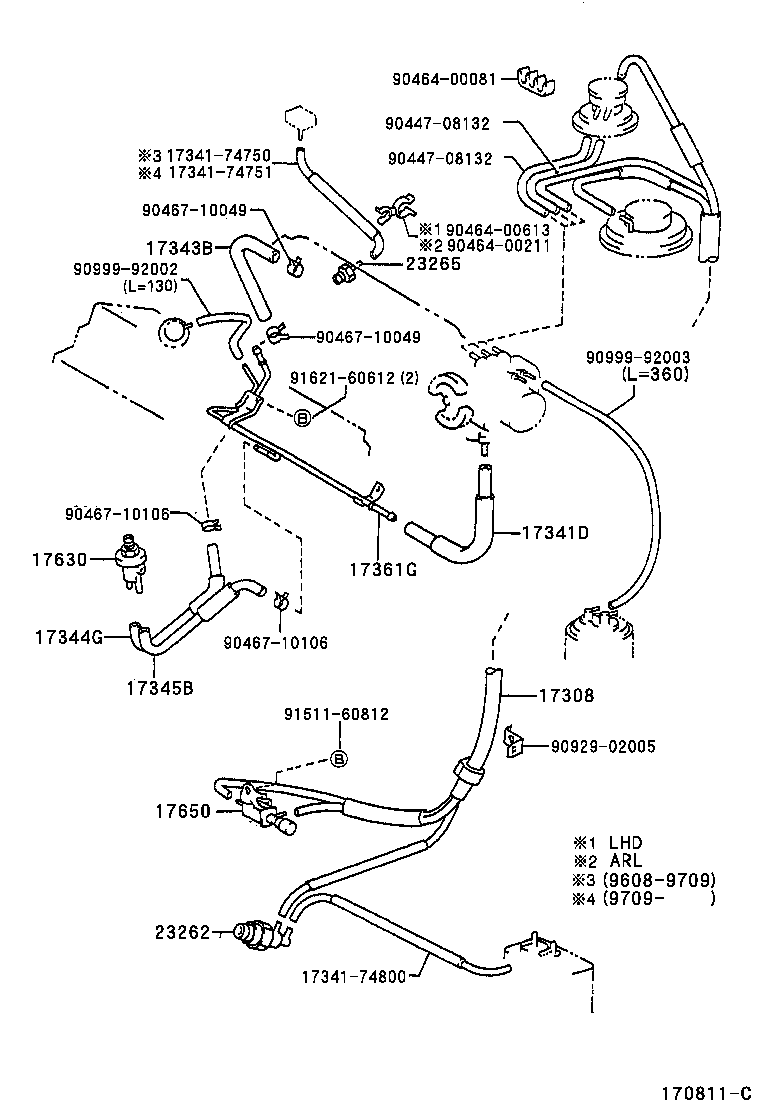

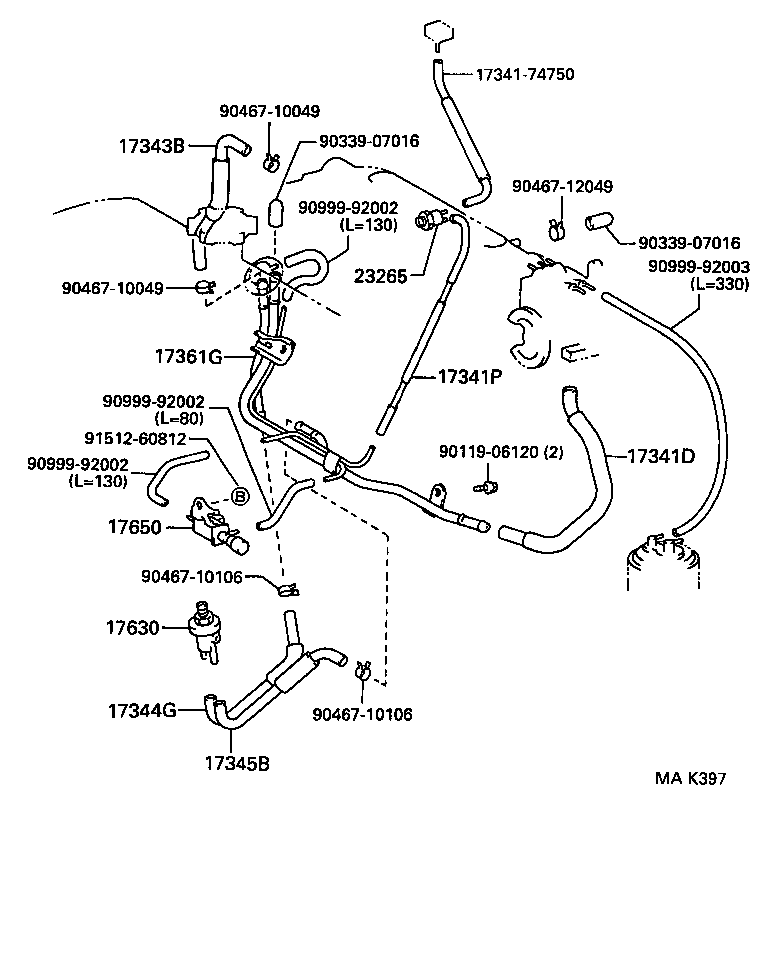

Figure 170021 170021 1994-04 → — Figure MAH205 MAH205 1994-04 → 1996-08 Figure MAK397 MAK397 1996-08 → 1997-09 Figure 170811C 170811C 1996-08 → 1997-09 Figure 170811C 170811C 1997-09 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341P Hose, Air
17343B Hose, NO.3(FOR IDLE-UP)
17344G Hose, Air, NO.4
17345B Hose, NO.5(FOR IDLE-UP)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
