Toyota RAV4
1994-04 → 2000-08 · chassis SXA1# · catalogue 662210 · Europe
Discontinued model
Data version 2001-03

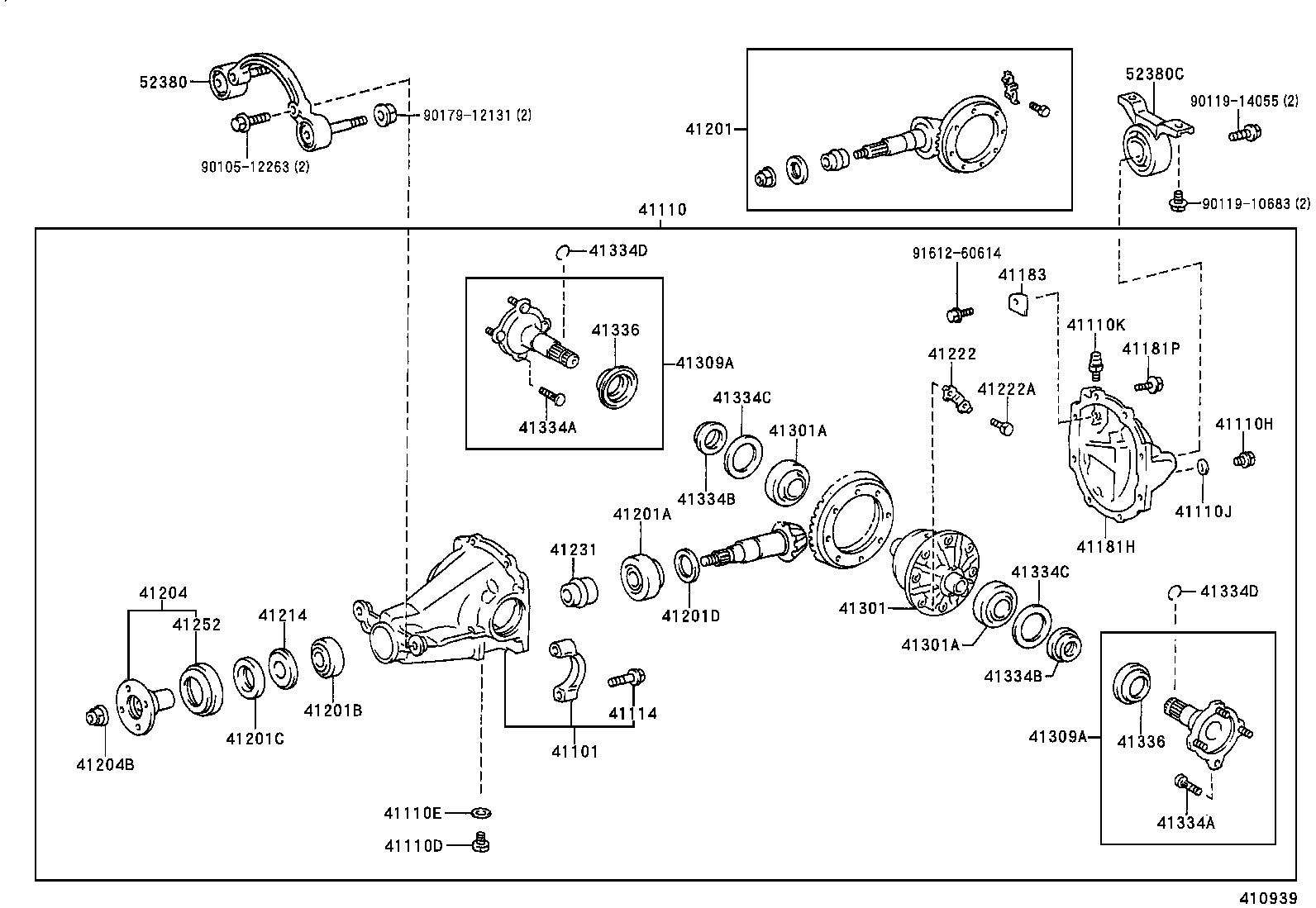

Rear Axle Housing & Differential
41 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 41101 | Carrier Sub-assy, Differential, Rear |
| 41110 | Carrier Assy, Differential, Rear |
| 41110D | Plug (FOR REAR DIFFERENTIAL DRAIN) |
| 41110E | Gasket (FOR REAR DIFFERENTIAL DRAIN PLUG) |
| 41110H | Plug (FOR REAR DIFFERENTIAL FILLER) |
| 41110J | Gasket (FOR REAR DIFFERENTIAL FILLER PLUG) |
| 41110K | Plug, Breather (FOR REAR DIFFERENTIAL) |
| 41114 | Bolt, Rear Differential Bearing Cap |
| 41181H | Cover, Rear Differential Carrier |
| 41181P | Bolt (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) |
| 41183 | Deflector, Rear Differential Breather Plug Oil |
| 41196 | Damper, Rear Differential Dynamic |
| 41201 | Final Gear Kit, Differential, Rear |
| 41201A | Bearing (FOR REAR DRIVE PINION REAR) |
| 41201B | Bearing (FOR REAR DRIVE PINION FRONT) |
| 41201C | Seal, Oil (FOR REAR DIFFERENTIAL CARRIER) |
| 41201D | Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION) |
| 41204 | Flange Sub-assy, Rear Drive Pinion Companion, Rear |
| 41204B | Nut (FOR REAR DRIVE PINION) |
| 41214 | Slinger, Rear Differential Drive Pinion Oil |
| 41222 | Plate, Rear Differential Ring Gear Set Bolt Lock |
| 41222A | Bolt (FOR REAR DIFFERENTIAL RING GEAR SET) |
| 41231 | Spacer, Rear Differential Drive Pinion Bearing |
| 41252 | Deflector, Dust (FOR REAR DIFFERENTIAL) |
| 41301 | Case Sub-assy, Rear Differential |
| 41301A | Bearing(FOR REAR DIFFERENTIAL CASE) |
| 41309A | Shaft Sub-assy, Rear Differential Side Gear |
| 41311J | Case, Rear Differential |
| 41331 | Gear, Rear Differential Side |
| 41334A | Bolt, Serration (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41334B | Seal, Oil (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41334C | Washer, Plate (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41334D | Ring, Shaft Snap (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41336 | Cover, Dust(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41341 | Pinion, Rear Differential |
| 41342 | Shaft, Rear Differential Pinion |
| 41343 | Pin, Rear Differential Pinion Shaft |
| 41351 | Washer, Rear Differential Pinion Thrust |
| 41361 | Washer, Rear Differential Side Gear Thrust, NO.1 |
| 52380 | Support, Rear Differential, NO.1 |
| 52380C | Support, Rear Differential, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
