Toyota RAV4
1994-04 → 2000-08 · chassis SXA1# · catalogue 662210 · Europe
Discontinued model
Data version 2001-03
Disc Wheel & Wheel Cap
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

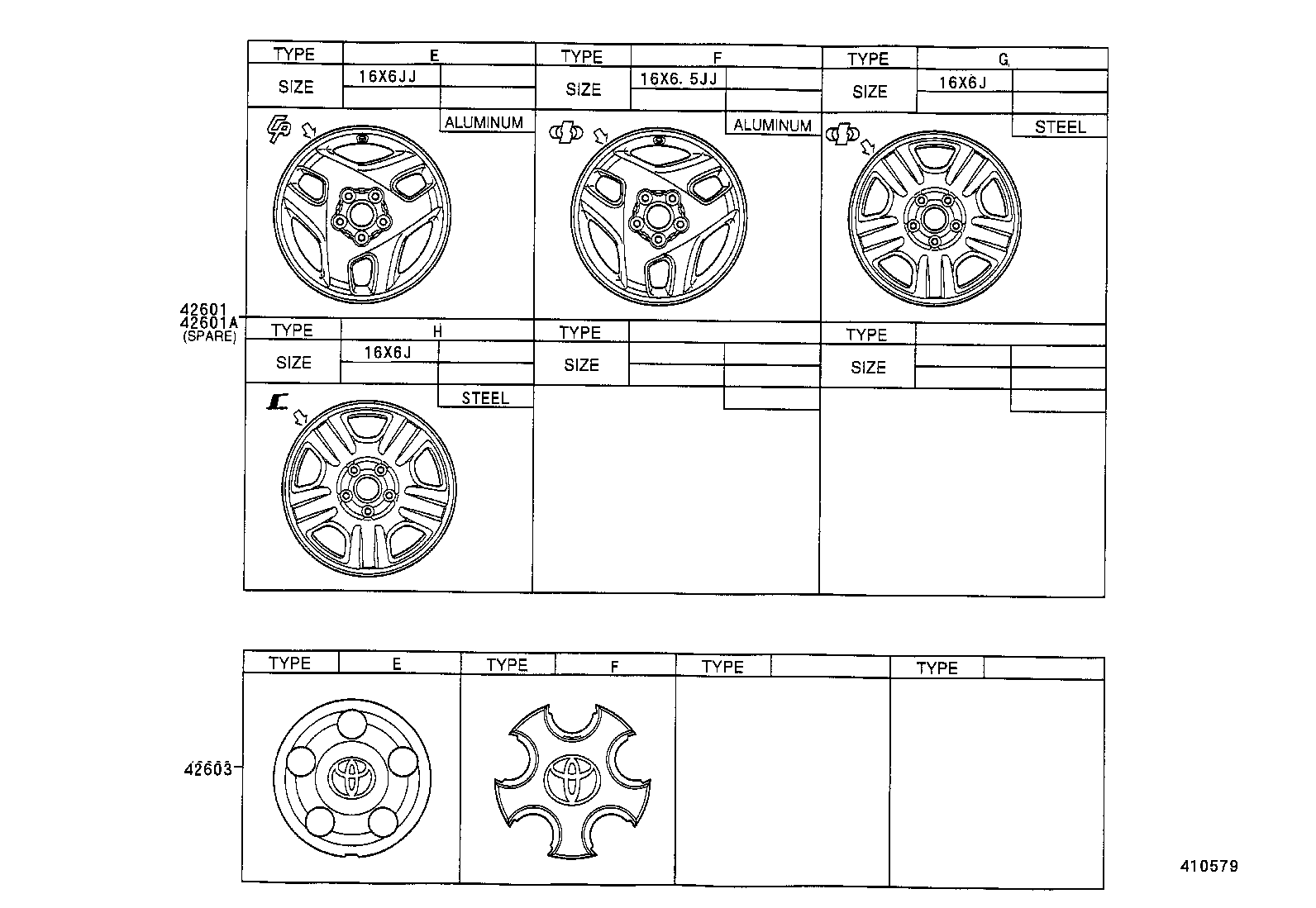

| 42601 | Wheel, Disc |
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42652 | Tire |
| 42652A | Tire (FOR SPARE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
