Toyota RAV4

1994-04 → 2000-08 · chassis SXA1# · catalogue 662210 · Europe

Discontinued model Data version 2001-03

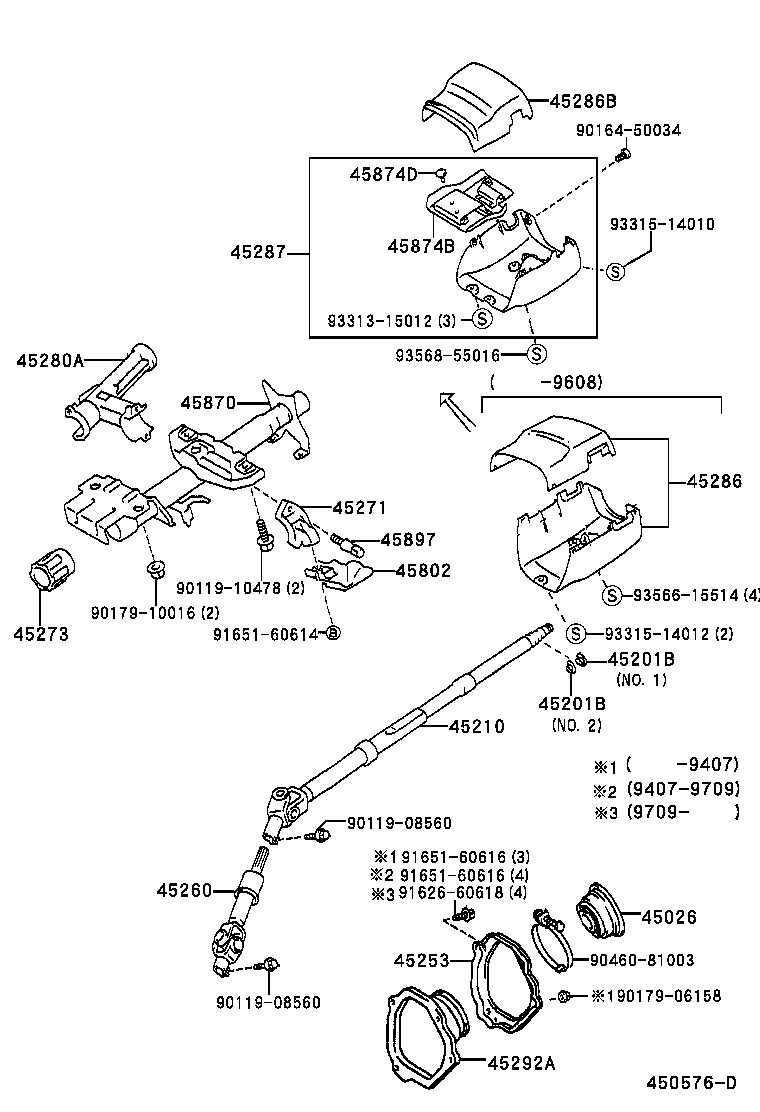

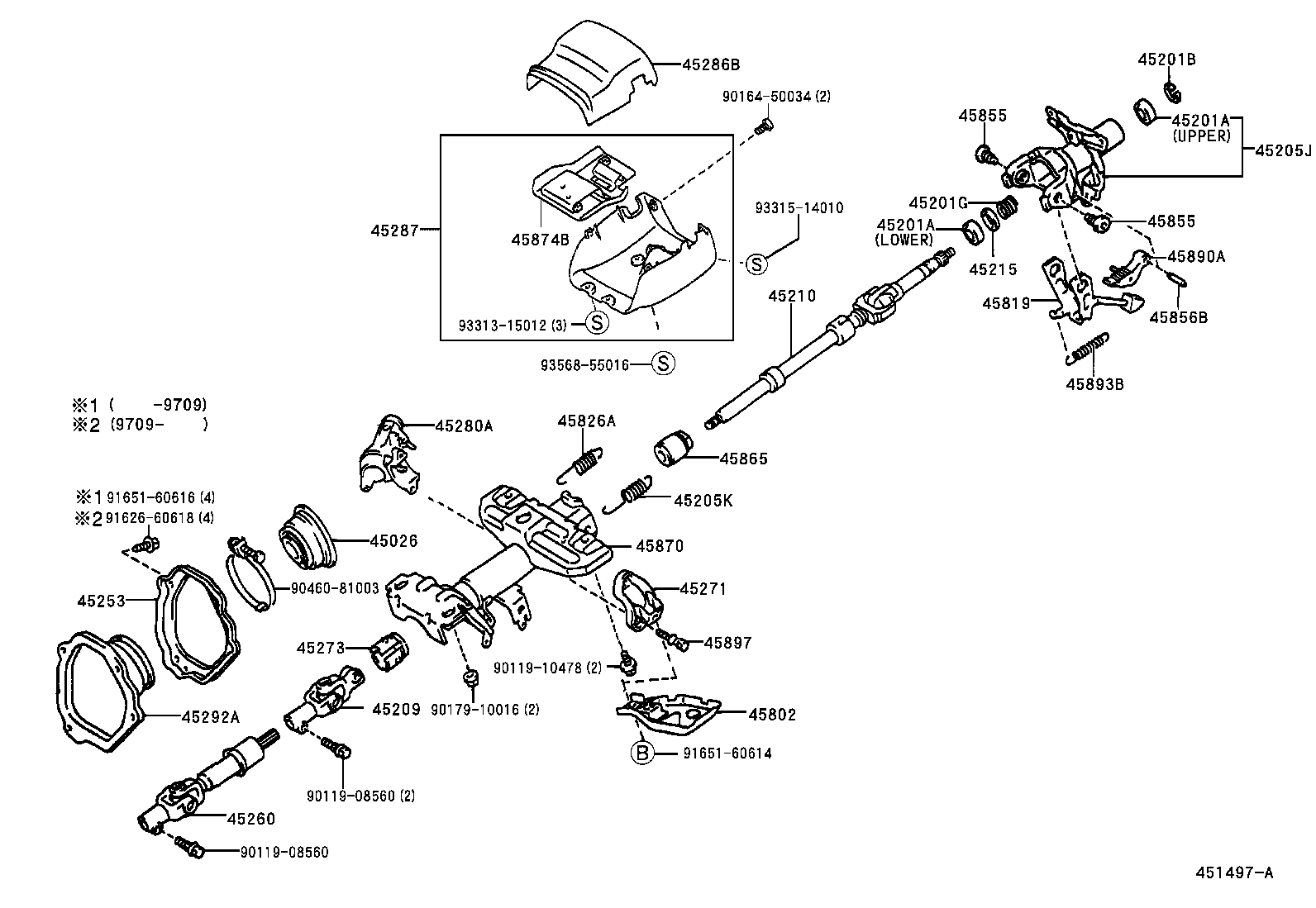

Steering Column & Shaft

39 part groups · 3 illustrations

PNC	Description
45026	Cover Sub-assy, Steering Column Hole, NO.2
45201A	Bearing(FOR STEERING MAIN SHAFT)
45201B	Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201G	Spring, Compression(FOR STEERING MAIN SHAFT)
45204	Tube Assy, Steering Column, Lower
45205J	Tube Sub-assy, Steering Column, Upper
45205K	Spring(FOR STEERING COLUMN TUBE)
45209	Yoke Sub-assy, Steering Sliding
45210	Shaft Assy, Steering Main
45215	Collar, Main Shaft Bearing Thrust
45253	Cover, Steering Column Hole
45260	Shaft Assy, Steering Intermediate, NO.2
45271	Clamp, Steering Column, Upper
45273	Bush, Steering Main Shaft
45280A	Bracket Assy, Steering Column, Upper
45286	Cover, Steering Column
45286B	Cover, Steering Column, Upr
45287	Cover, Steering Column, Lwr
45292A	Cover, Main Shaft Lower Dust
45802	Protector Sub-assy, Steering Column, NO.1
45805A	Support Sub-assy, Tilt Steering
45819	Retainer, Tilt Lever
45820	Spring Assy, Tilt Steering Support
45826	Lever, Steering Tilt
45826A	Spring, Tension(FOR STEERING TILT LEVER)
45827A	Lever, Steering Tilt Sub
45831	Bolt, Tilt Lever Lock, NO.1
45855	Bolt, Tilt Steering, NO.1
45856	Bolt, Tilt Steering, NO.2
45856B	Shaft, T1LT Steering, NO.2
45865	Collar, Steering Main Shaft
45870	Tube Assy, Steering Column
45874B	Protector, Steering Column, NO.1
45874D	Cushion(FOR STEERING COLUMN PROTECTOR)
45890A	Pawl Assy, Tilt Steering
45890C	Collar(FOR TILT STEERING PAWL)
45893A	Stopper, Tilt Steering Pawl
45893B	Spring, Tension(FOR TILT STEERING PAWL STOPPER)
45897	Bolt, Steering Lock Set

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
