Toyota RAV4

1994-04 → 2000-08 · chassis SXA1# · catalogue 662210 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

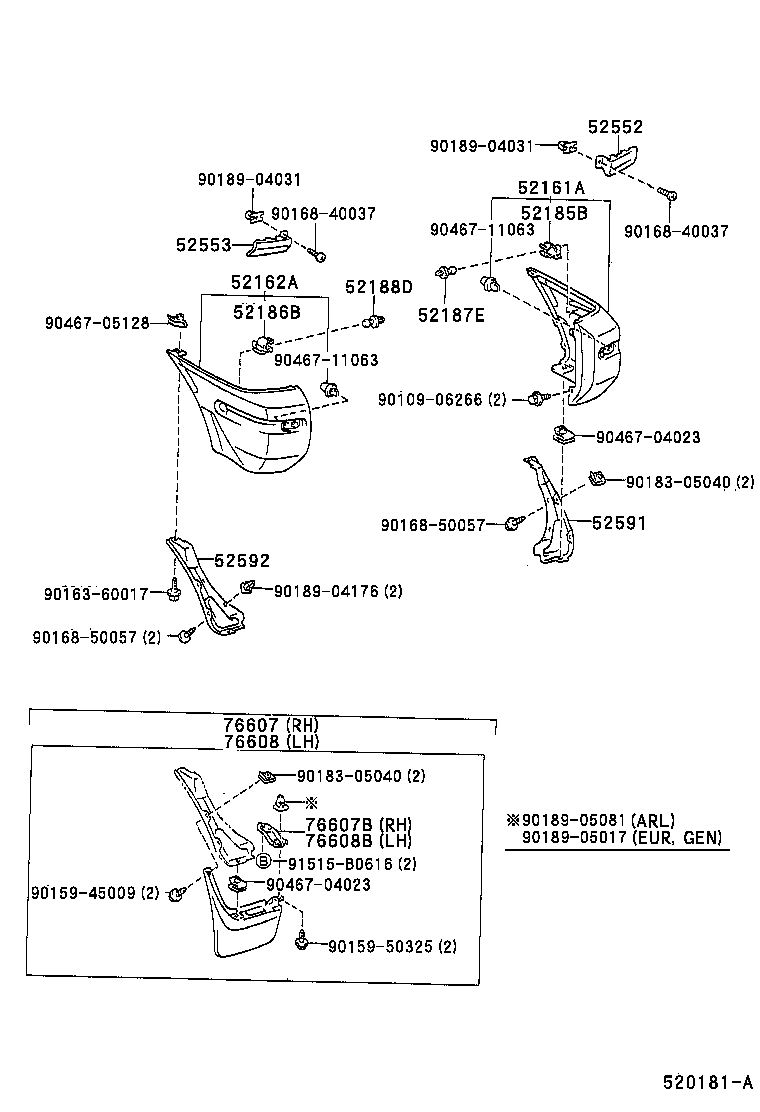

Figure 520180 520180 1994-04 → — Figure 520181A 520181A 1995-04 → —

Part groups

PNCDescription
52161A Piece, Rear Bumper, RH
52162A Piece, Rear Bumper, LH
52185B Bracket, Rear Bumper Side Mounting, RH
52186B Bracket, Rear Bumper Side Mounting, LH
52187E Guide, Rear Bumper Location, RH
52188D Guide, Rear Bumper Location, LH
52552 Filler, Rear Bumper, RH
52553 Filler, Rear Bumper, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76607B Bracket, Quarter Panel Rear Mudguard, RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76608B Bracket, Quarter Panel Rear Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
