Toyota RAV4
1994-04 → 2000-08 · chassis SXA1# · catalogue 662210 · Europe
Discontinued model
Data version 2001-03

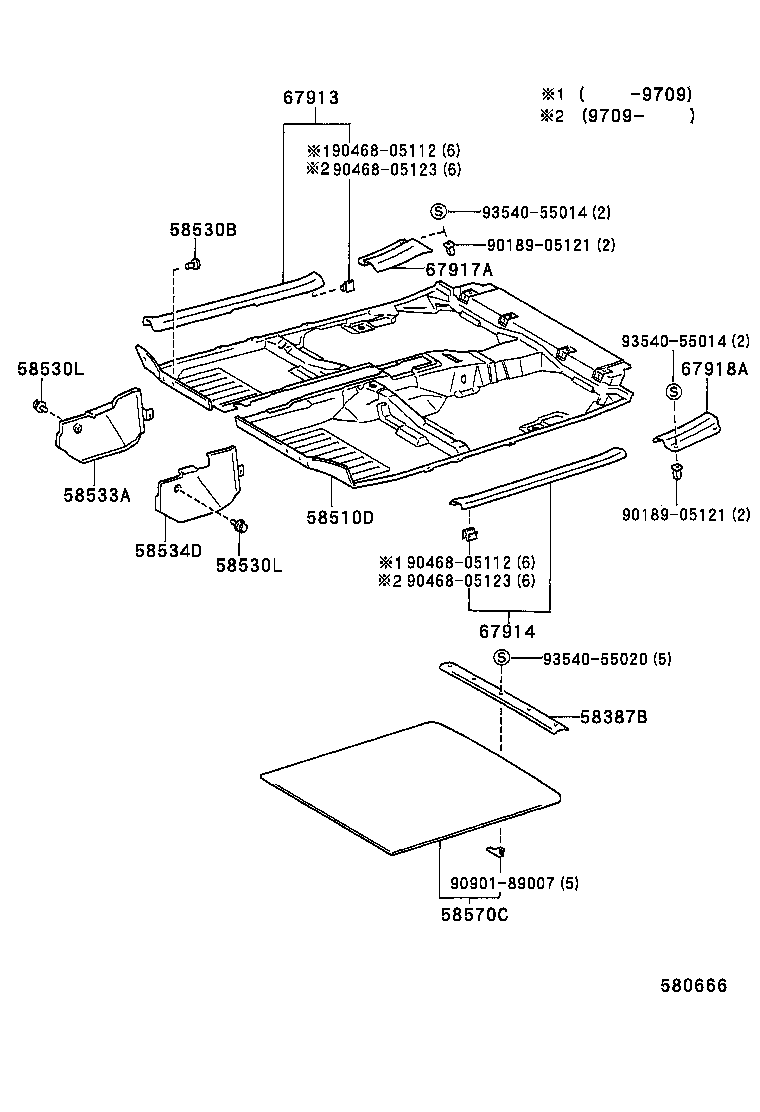

Floor Mat & Silencer Pad
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387B | Plate, Rear Floor Finish |
| 58510D | Carpet Assy, Floor, Front |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58530L | Clip, Floor Carpet, Center |
| 58533A | Cover, Floor Carpet, Center RH |
| 58534D | Cover, Floor Carpet, Center LH |
| 58570C | Carpet Assy, Rear Floor |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
