Toyota RAV4
1994-04 → 2000-08 · chassis SXA1# · catalogue 662210 · Europe
Discontinued model
Data version 2001-03
Roof Panel & Back Panel
69 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

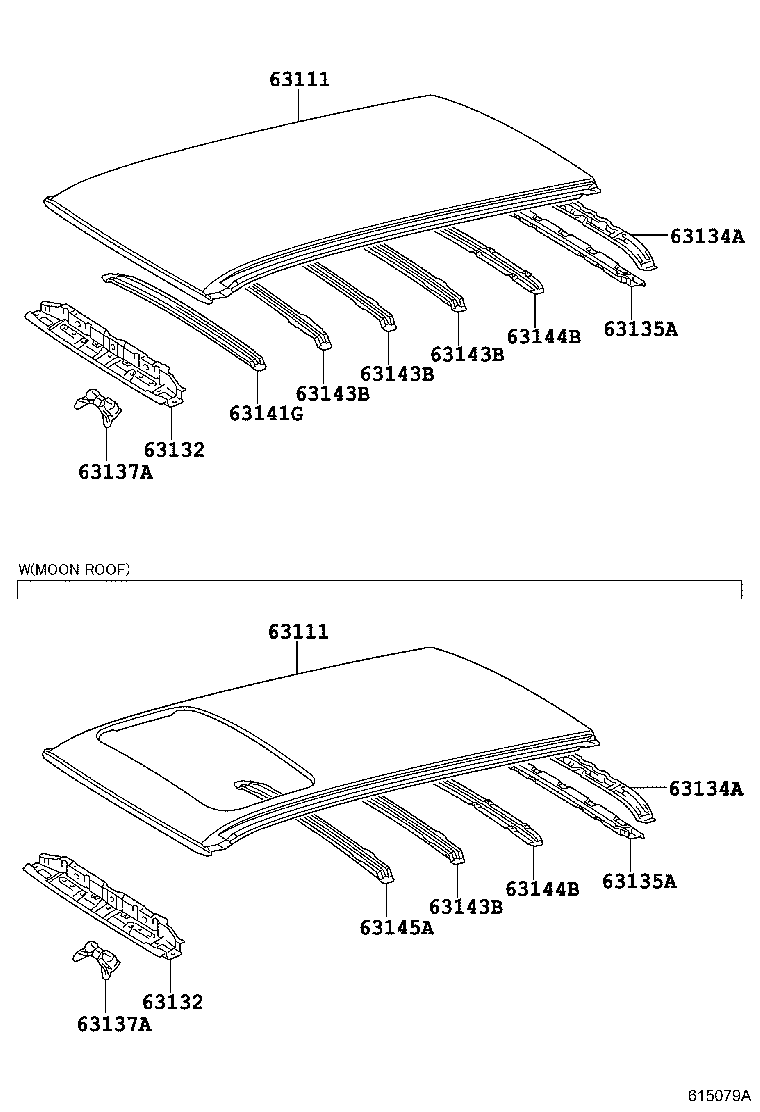

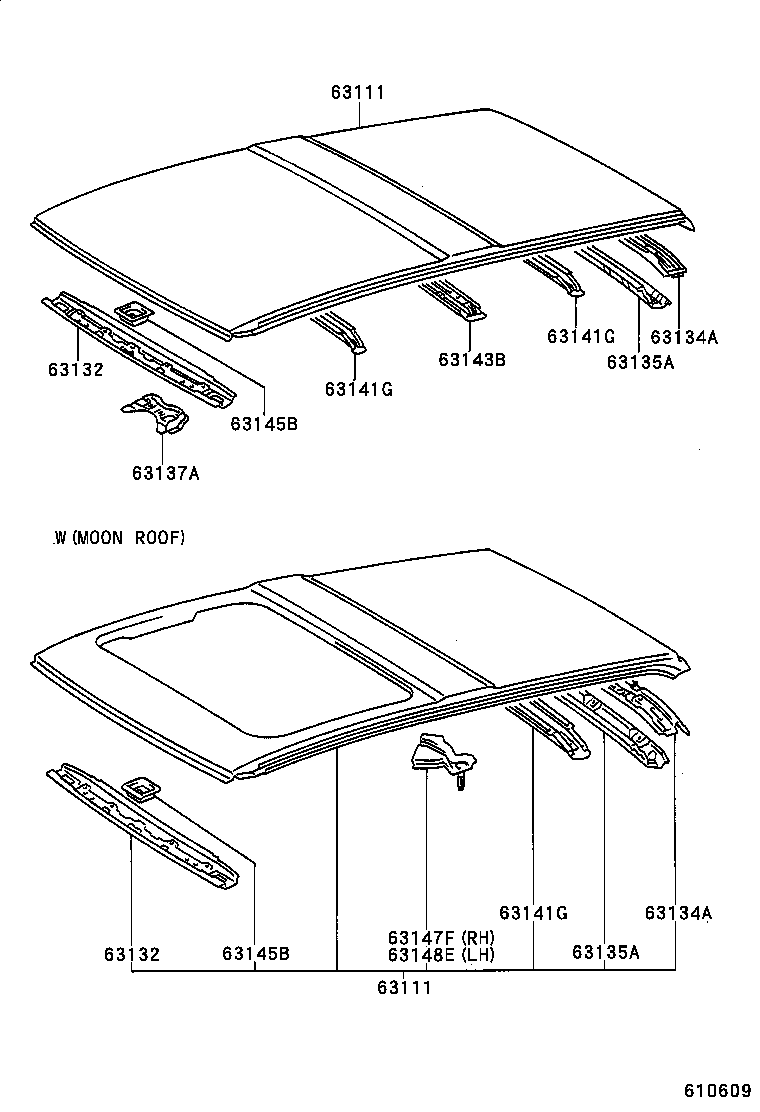

| 63111 | Panel, Roof |
| 63132 | Panel, Windshield Header, Inner |
| 63134A | Frame, Back Door Opening, Upper |
| 63135A | Frame, Back Door Opening, Lower |
| 63137A | Bracket, Dome Lamp, NO.1 |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63145A | Reinforcement, Roof Panel, NO.5 |
| 63145B | Reinforcement, Windshield Header Panel |
| 63147F | Bracket, Roof Panel Reinforcement, RH |
| 63148E | Bracket, Roof Panel Reinforcement, LH |
| 63169C | Retainer, Roof Reinforcement, NO.2 |

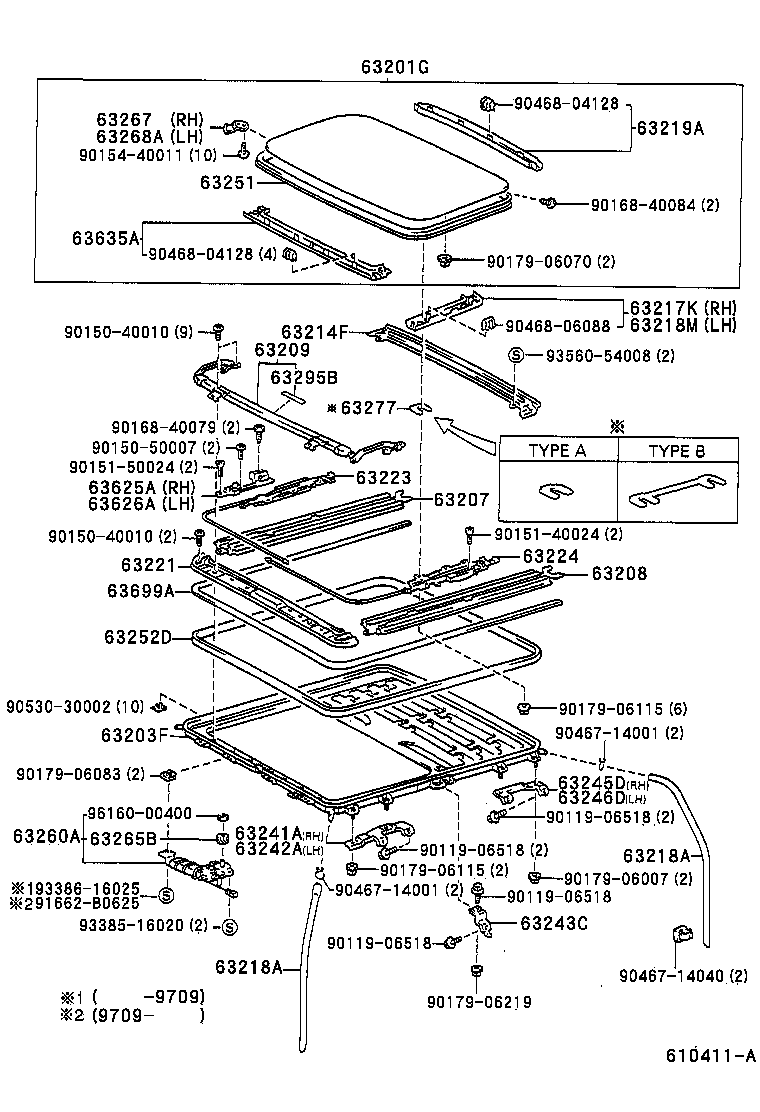

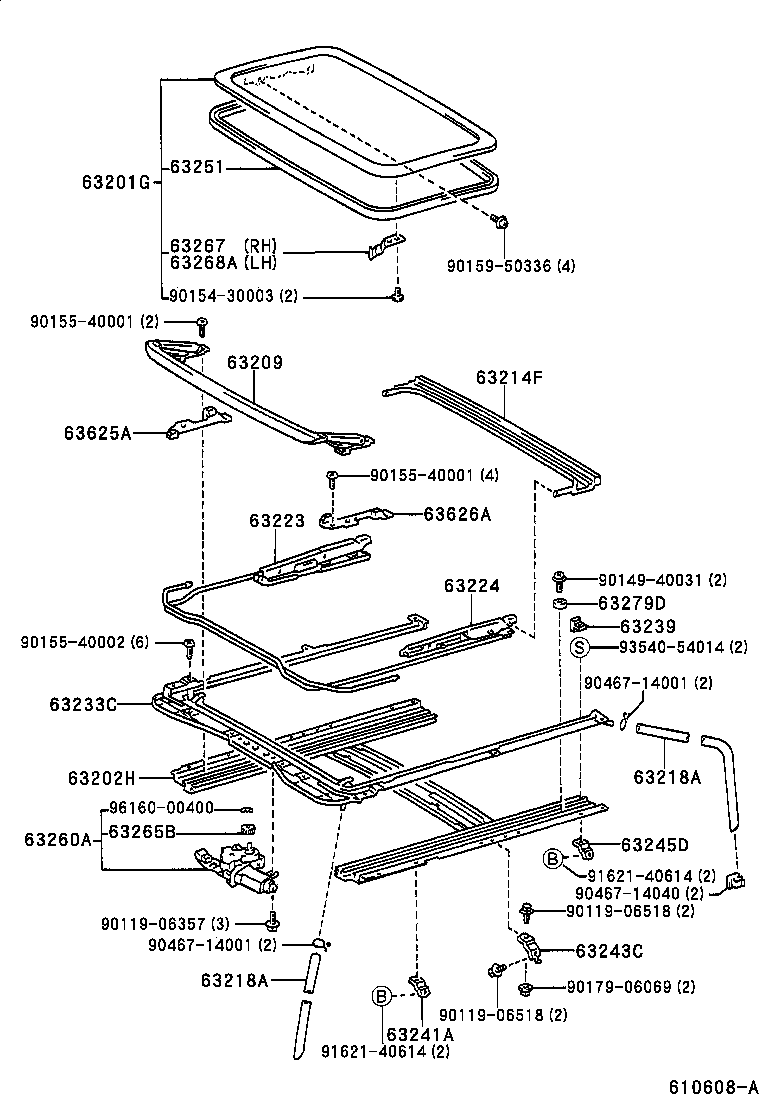

| 63201G | Glass Sub-assy, Sliding Roof |

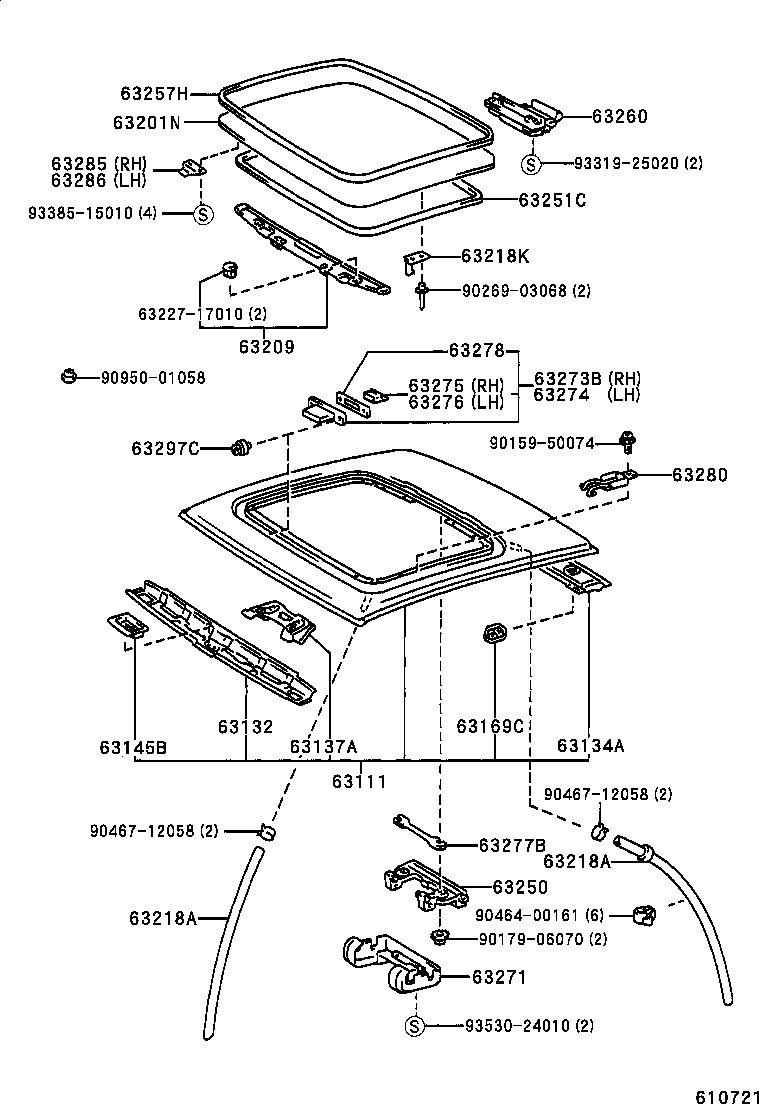

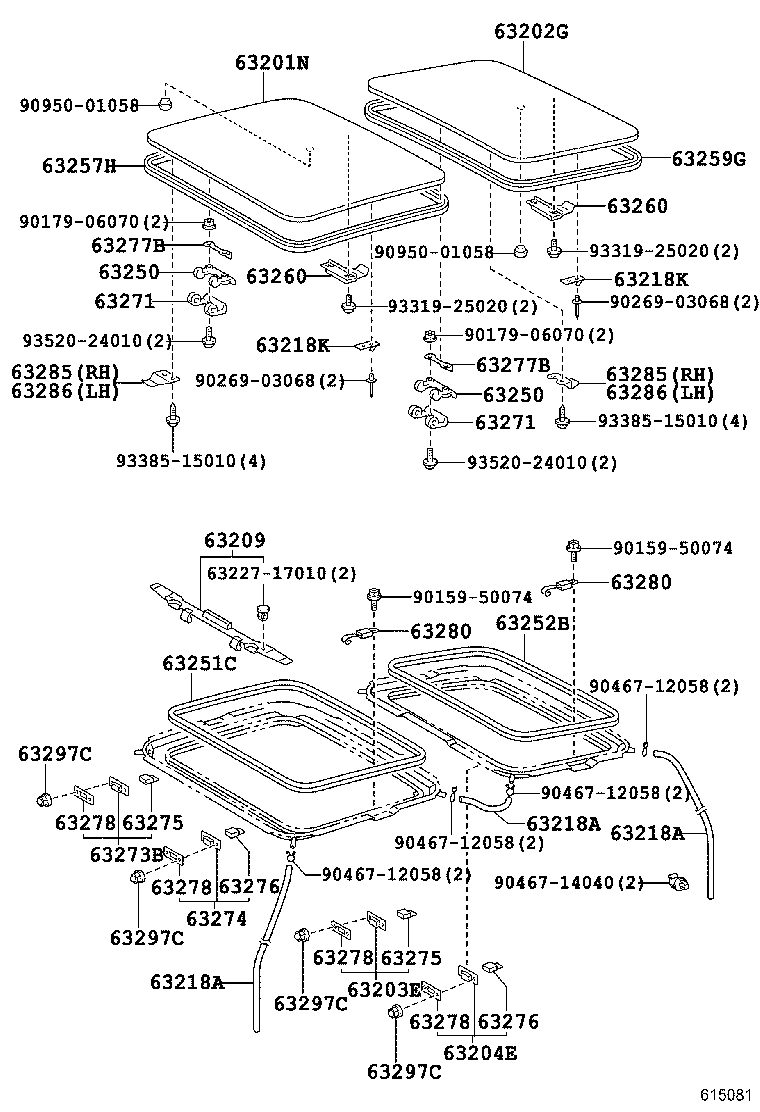

| 63201N | Panel Sub-assy, Removable Roof |
| 63202G | Panel Sub-assy, Slide Roof, Rear |
| 63202H | Rail Sub-assy, Slide Roof |
| 63203E | Lock Sub-assy, Removable Roof, RH |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63204E | Lock Sub-assy, Removable Roof, LH |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218K | Hook, Removable Roof Auxiliary |
| 63218M | Garnish, Sliding Roof Side, LH |
| 63219A | Garnish, Sliding Roof, Rear |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63233C | Panel, Sliding Roof Housing |
| 63239 | Stopper, Sliding Roof Panel |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63243C | Bracket, Sliding Roof Housing Center Mounting, RH |
| 63245D | Bracket, Sliding Roof Housing Rear Mounting, RH |
| 63246D | Bracket, Sliding Roof Housing Rear Mounting, LH |
| 63250 | Base Assy, Removable Roof Lock |
| 63251 | Weatherstrip, Sliding Roof Panel OR Removable Roof |
| 63251C | Weatherstrip, Removable Roof |
| 63252B | Weatherstrip, Removable Roof, Rear |
| 63252D | Weatherstrip, Sliding Roof Housing |
| 63257H | Seal, Removable Roof |
| 63259G | Seal, Removable Roof, NO.2 |
| 63260 | Handle Assy, Removable Roof Lock |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63265B | Gear, Sliding Roof Drive |
| 63267 | Protector, Sliding Roof Weatherstrip |
| 63268A | Protector, Sliding Roof Weatherstrip, LH |
| 63271 | Garnish, Removable Roof Lock |
| 63273B | Retainer, Roof Window Hinge |
| 63274 | Case, Removable Roof Hinge, LH |
| 63275 | Holder, Removable Roof Hinge, RH |
| 63276 | Holder, Removable Roof Hinge, LH |
| 63277 | Shim, Sliding Roof Rail |
| 63277B | Spacer, Removable Roof Lock Base |
| 63278 | Seal, Removable Roof Hinge Case |
| 63279D | Stopper, Sliding Roof Guide Rail |
| 63280 | Catch Assy, Removable Roof Auxiliary, LH |
| 63285 | Hinge, Removable Roof, RH |
| 63286 | Hinge, Removable Roof, LH |
| 63295B | Pad, Roof Wind Deflector Panel |
| 63297C | Bolt, Removable Roof Hinge Case |
| 63625A | Block, Sliding Roof Guide, RH |
| 63626A | Block, Sliding Roof Guide, LH |
| 63635A | Garnish, Sliding Roof, Front |
| 63699A | Seal, Sliding Roof Guide Rail |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
