Toyota RAV4
1994-04 → 2000-08 · chassis SXA1# · catalogue 662210 · Europe
Discontinued model
Data version 2001-03

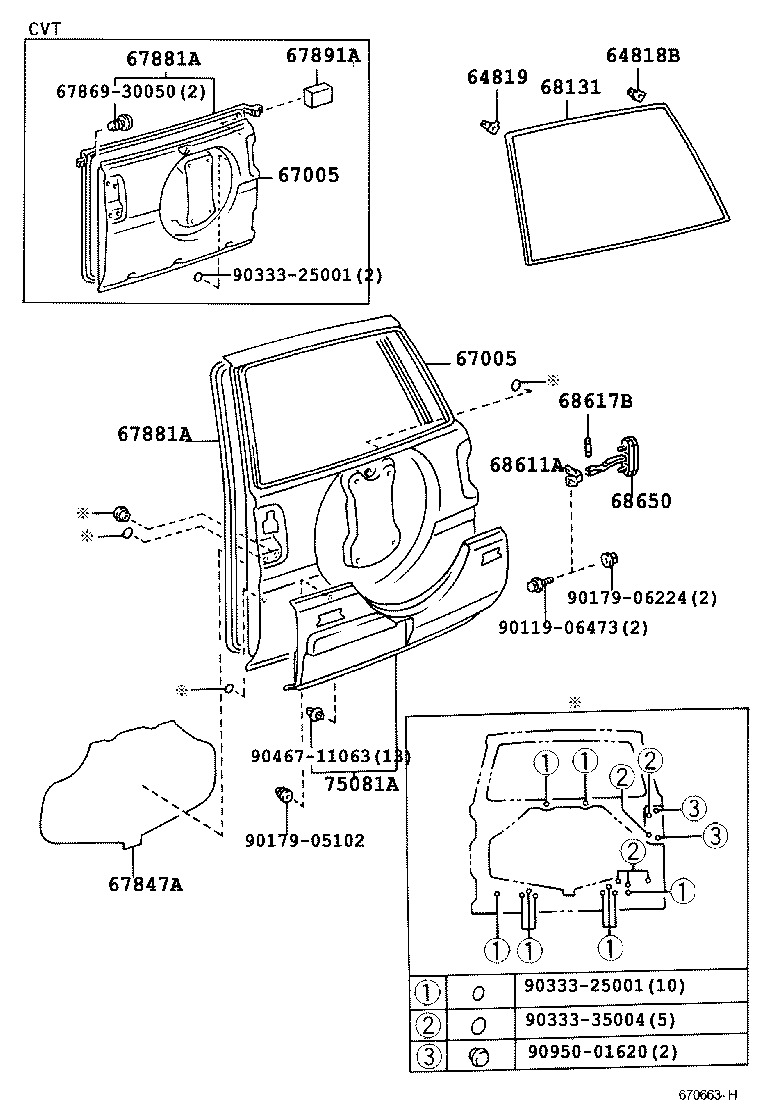

Back Door Panel & Glass
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64276A | Bracket, Back Panel Trim, Upper |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67765B | Cover, Back Door Trim, Upper |
| 67847A | Cover, Back Door Service Hole |
| 67881A | Weatherstrip, Back Door |
| 67891A | Seal, Back Door |
| 67935B | Garnish, Back Door |
| 67936A | Garnish, Back Door, LH |
| 67937A | Garnish, Back Door Side |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 68131 | Glass, Back Door |
| 68611A | Base, Back Door Check |
| 68617B | Pin, Back Door Check |
| 68650 | Check Assy, Back Door |
| 75081A | Panel Sub-assy, Back Door Finish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
