Seat & Seat Track

112 part groups · 6 illustrations

Illustrations

710619A 1994-04 → —

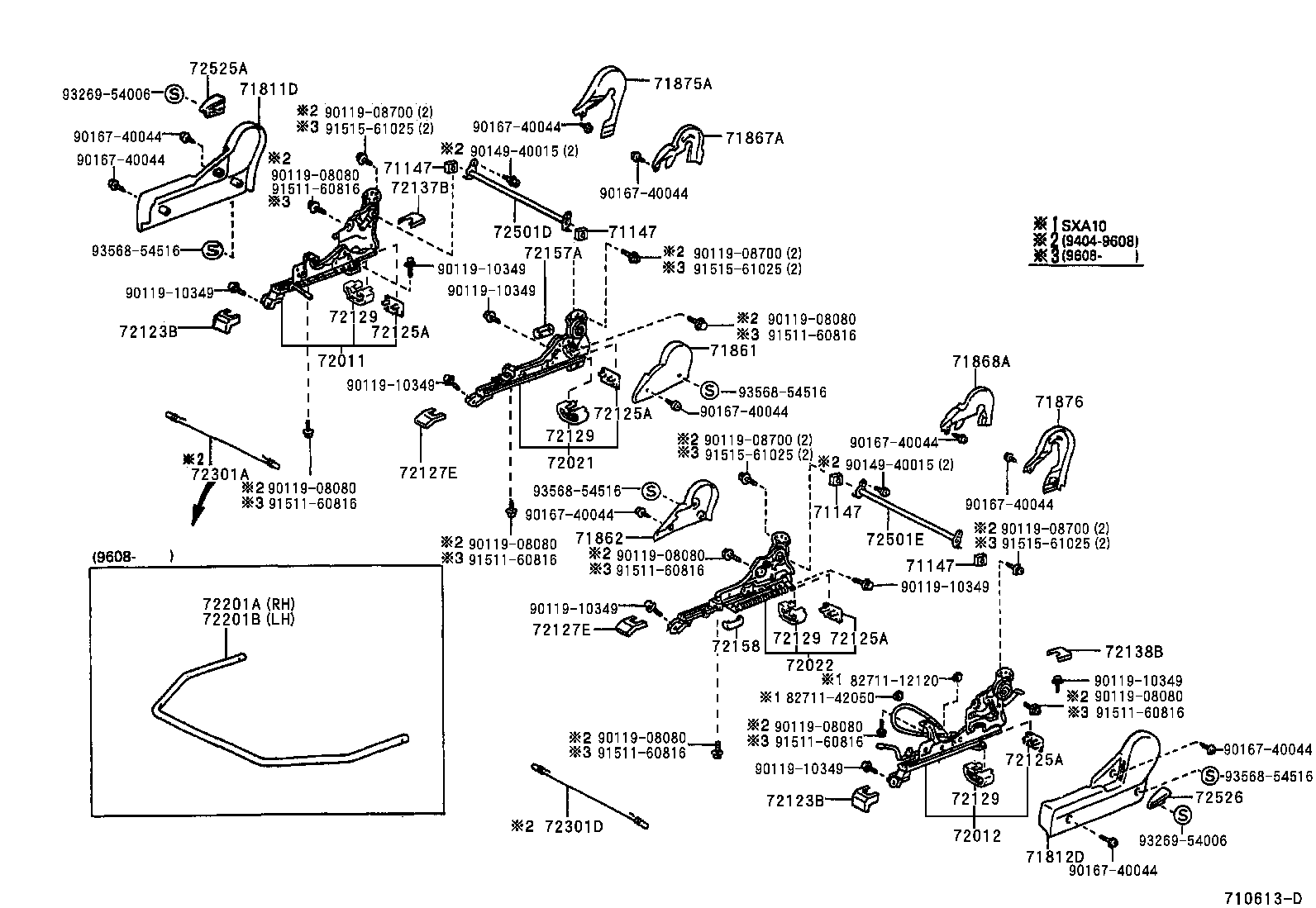

710613D 1994-04 → —

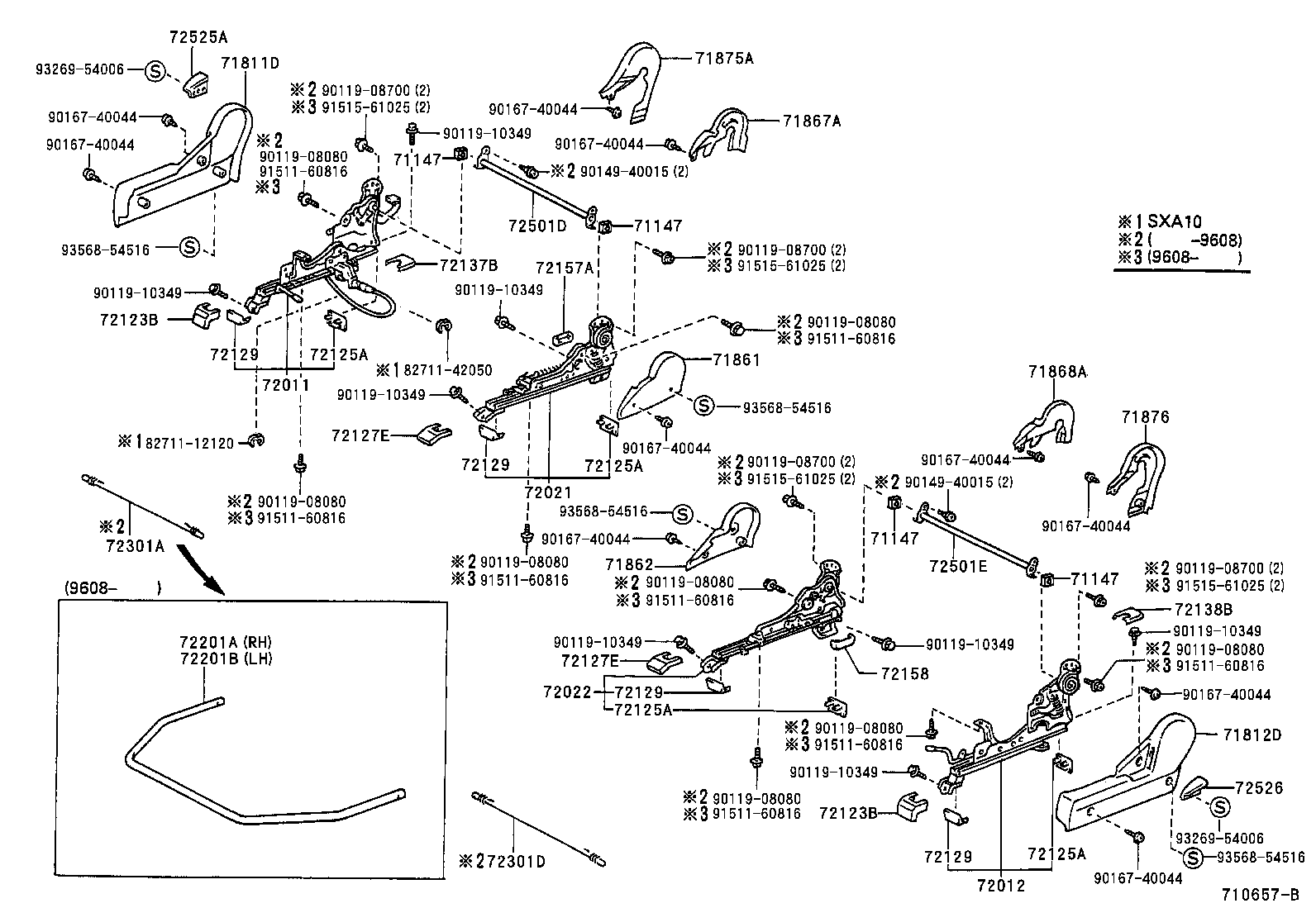

710657B 1994-04 → —

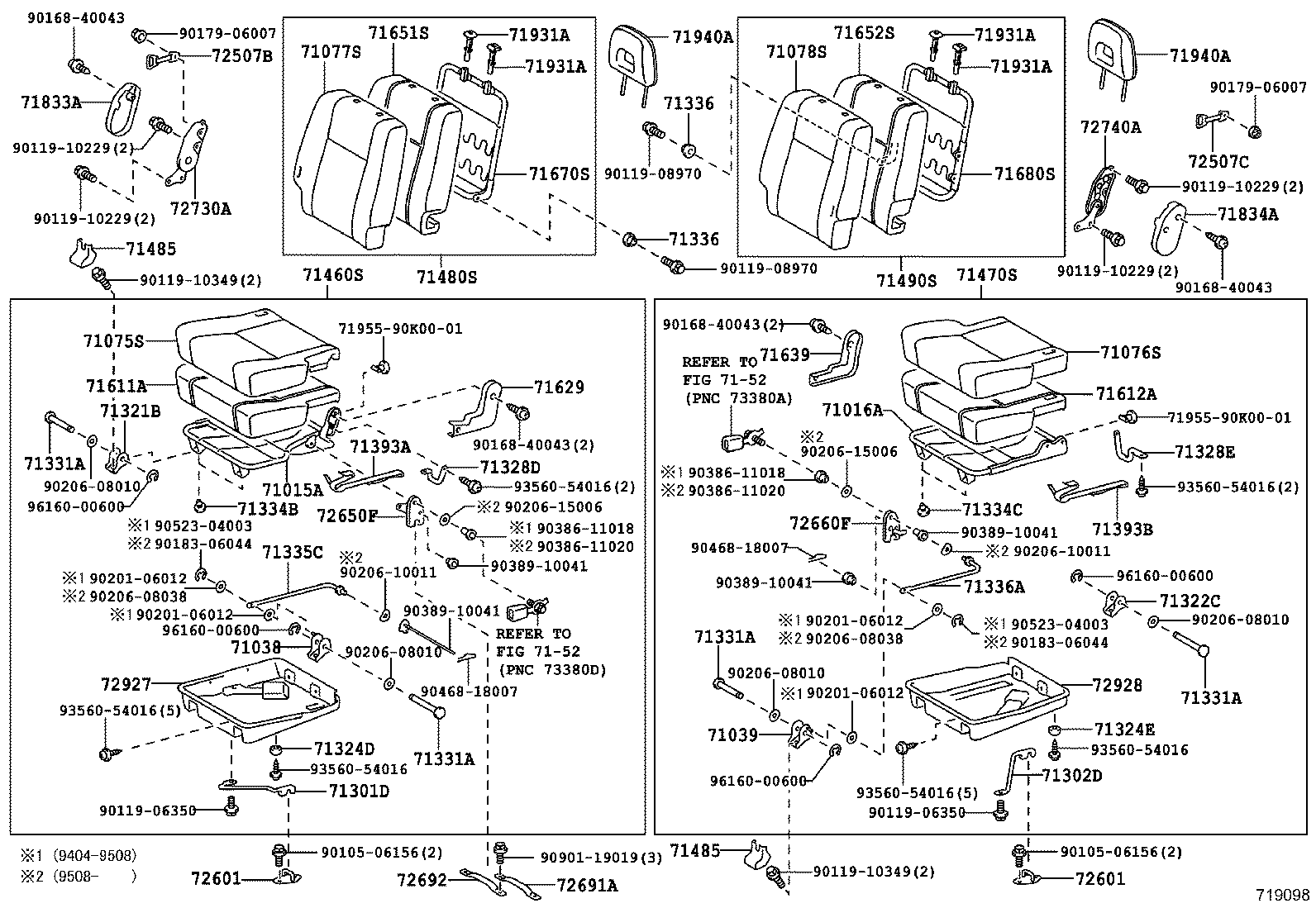

719098 1994-04 → 1996-08

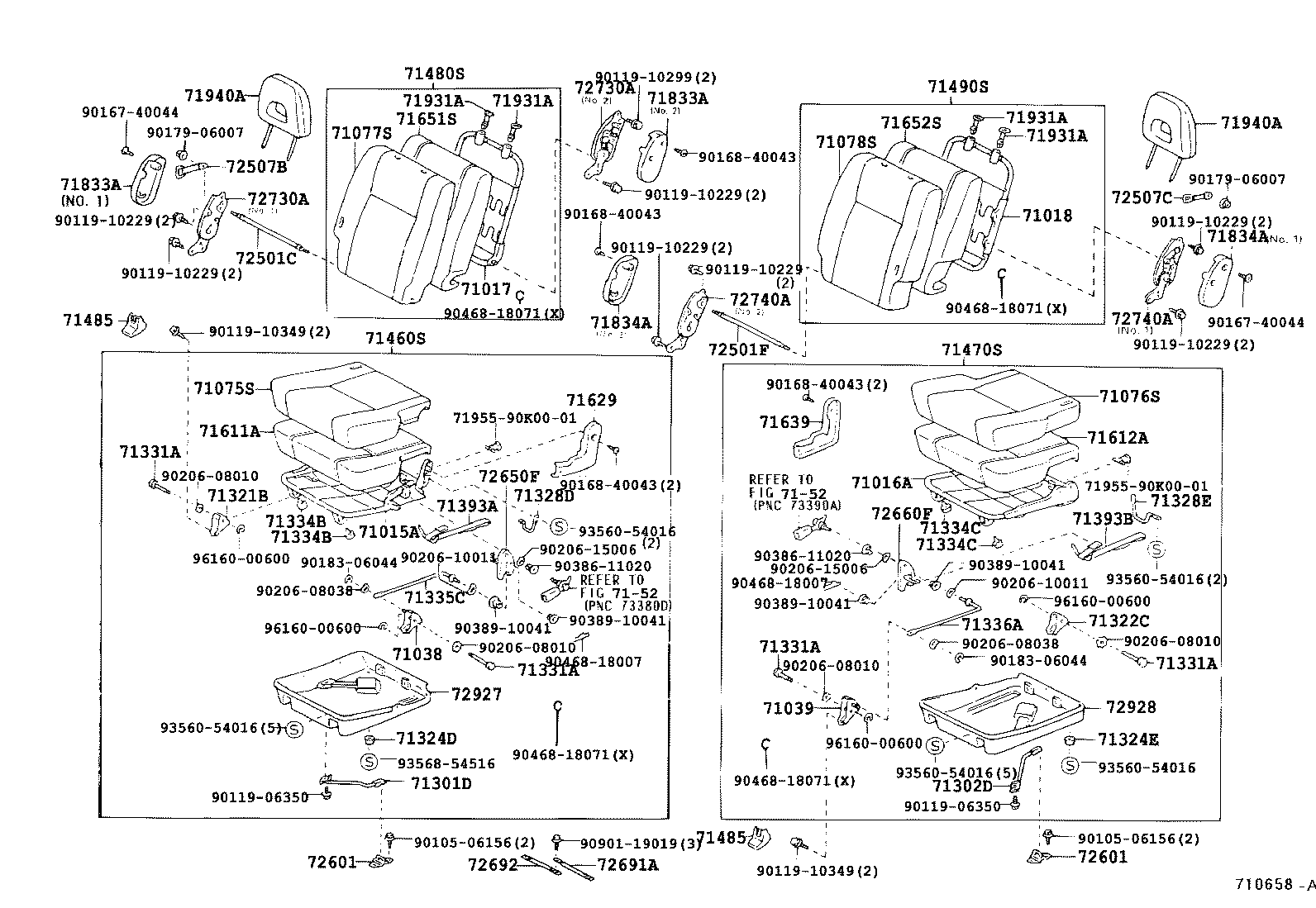

710658A 1996-08 → —

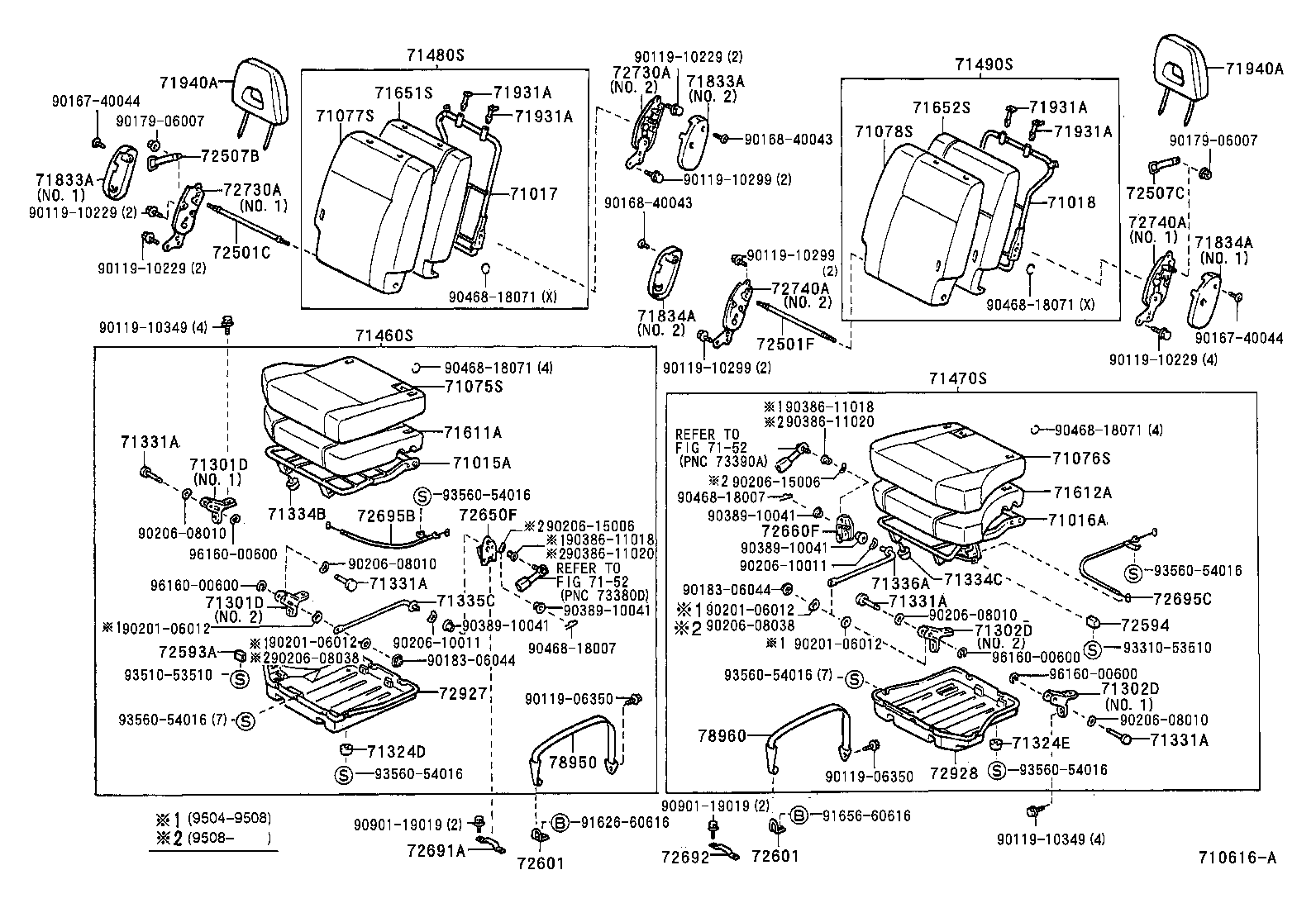

710616A 1994-04 → —

Part groups

PNC	Description
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71038	Hinge Sub-assy, Center Seatback, LH
71039	Hinge Sub-assy, Rear Seat Cushion Leg, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71147	Silencer, Seat Spring
71301D	Hinge Sub-assy, Rear Seat, RH
71302D	Hinge Sub-assy, Rear Seat, LH
71321B	Hinge, Rear Seat Cushion, RH
71322C	Hinge, Rear Seat Cushion, LH
71324D	Cushion, Rear Seat, RH
71324E	Cushion, Rear Seat, LH
71328D	Wire, Rear Seat Cushion Support
71328E	Wire, Rear Seat Cushion Support
71331A	Pin, Rear Seat Hinge
71334B	Stopper, Rear Seat Leg, RH
71334C	Stopper, Rear Seat Leg, LH
71335C	Stay, Rear Seat Cushion Link, RH
71336	Bush OR Spacer, Rear Seatback Hinge
71336A	Stay, Rear Seat Cushion Link, LH
71393A	Band, Rear Seat Cushion, RH
71393B	Band, Rear Seat Cushion, LH
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71485	Cover, Rear Seat Hinge
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71557	Cloth, Front Seatback Under
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71629	Cover, Rear Seat Cushion Hinge
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71639	Cover, Rear Seat Cushion Hinge, LH
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71670S	Spring Assy, Rear Seatback, RH(FOR SEPARATE SEAT)
71680S	Spring Assy, Rear Seatback, LH(FOR SEPARATE SEAT)
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71875A	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
72011	Adjuster Sub-assy, Front Seat, Outer RH
72012	Adjuster Sub-assy, Front Seat, Outer LH
72021	Adjuster Sub-assy, Front Seat, Inner RH
72022	Adjuster Sub-assy, Front Seat, Inner LH
72123B	Cover, Seat Track Bracket, Outer Front
72125A	Cover, Seat Track, Upper Rear
72127E	Cover, Seat Track Bracket, Inner Front
72129	Protector, Seat Track Lower Rail, NO.1
72137B	Cover, Seat Track, RH
72138B	Cover, Seat Track, LH
72157A	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72201A	Handle Sub-assy, Seat Track RH
72201B	Handle Sub-assy, Seat Track LH
72301A	Wire Sub-assy, Seat Track Equalizing, RH
72301D	Wire Sub-assy, Seat Track Equalizing, LH
72501C	Pipe Sub-assy, Reclining Connecting
72501D	Pipe Sub-assy, Reclining Connecting, RH
72501E	Pipe Sub-assy, Reclining Connecting, LH
72501F	Pipe Sub-assy, Reclining Connecting
72507B	Handle Sub-assy, Reclining Release, RH
72507C	Handle Sub-assy, Reclining Release, LH
72525A	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72593A	Knob, Remote Control Lever, RH
72594	Knob, Remote Control Lever, LH
72601	Striker Sub-assy, Rear Seat Lock
72650F	Lock Assy, Rear Seat, RH
72660F	Lock Assy, Rear Seat, LH
72691A	Striker, Rear Seat Cushion Lock, NO.1
72692	Striker, Rear Seat Cushion Lock, NO.2
72695B	Cable, Rear Seat Lock Control, RH
72695C	Cable, Rear Seat Lock Control, LH
72730A	Adjuster Assy, Rear Seat Reclining, RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72927	Cover, Rear Seat Cushion Under, RH
72928	Cover, Rear Seat Cushion Under, LH
78950	Band Assy, Fold Seat Stopper, NO.1
78960	Band Assy, Fold Seat Stopper, NO.2
