Toyota RAV4
1994-04 → 2000-08 · chassis SXA1# · catalogue 662210 · Europe
Discontinued model
Data version 2001-03

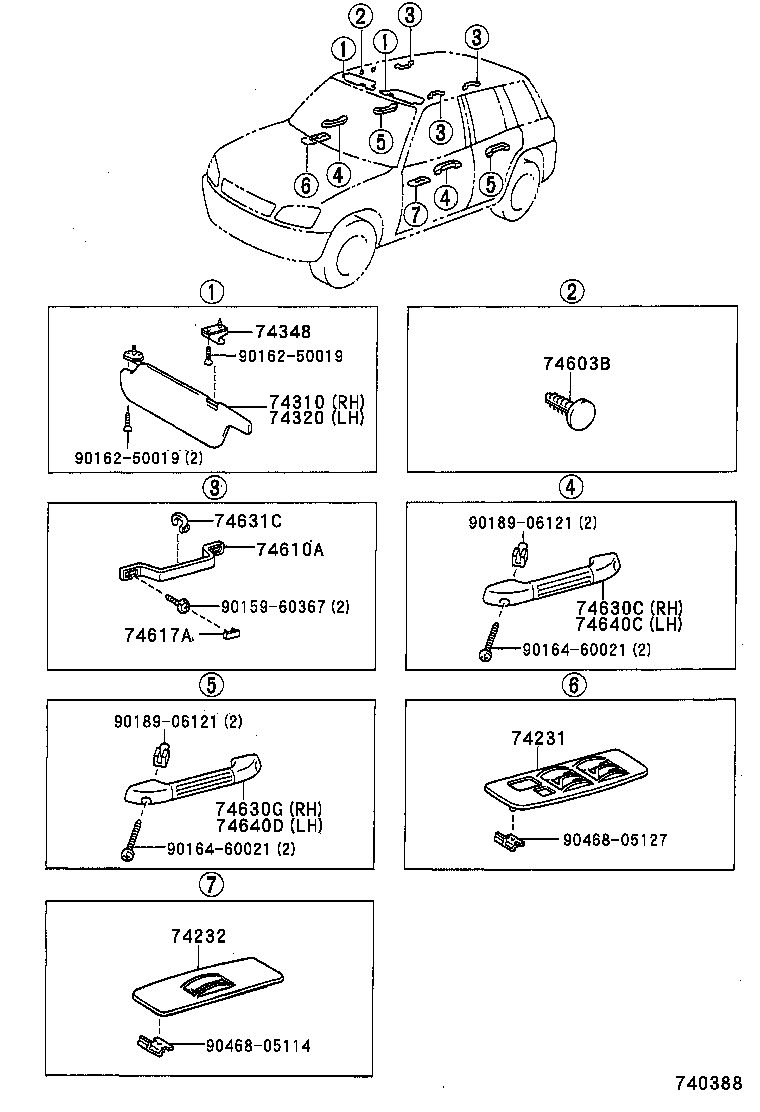

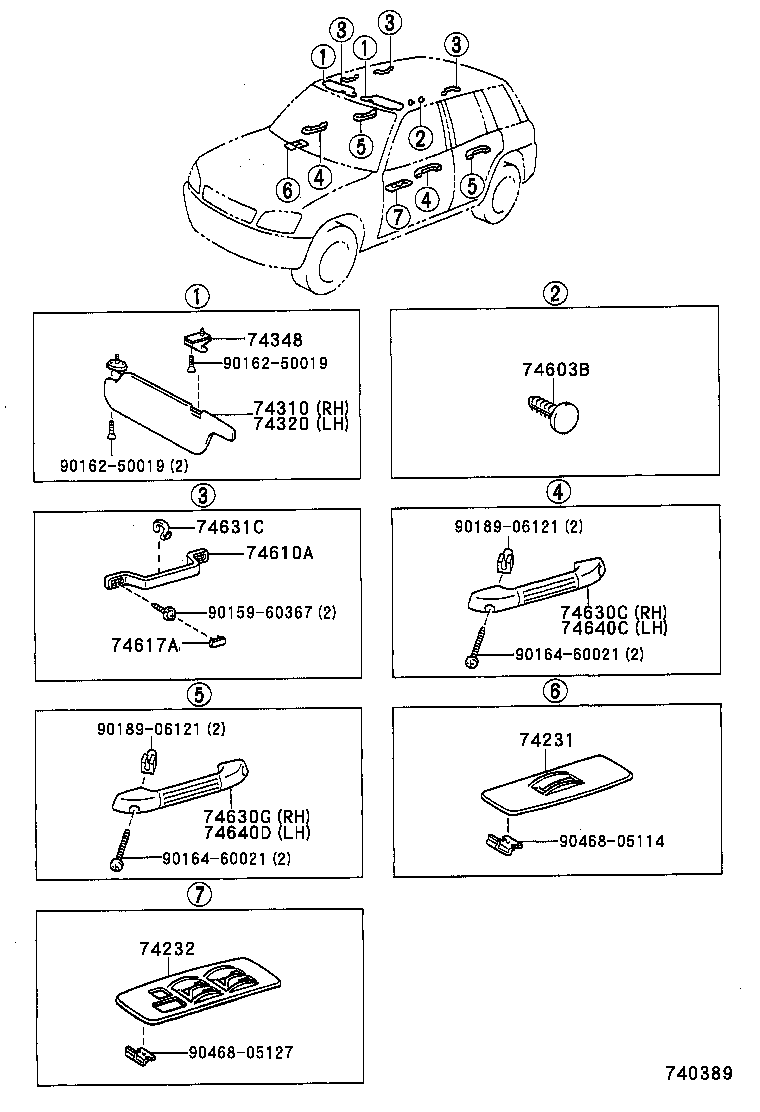

Armrest & Visor
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74603B | Clip (FOR ASSIST GRIP) |
| 74610A | Grip Sub-assy, Assist |
| 74617A | Plug, Assist Grip |
| 74630C | Grip Assy, Door Assist, RH |
| 74630G | Grip Assy, Rear Door Assist RH |
| 74631C | Hook, Coat |
| 74640C | Grip Assy, Door Assist, LH |
| 74640D | Grip Assy, Rear Door Assist LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
