Toyota RAV4

1994-04 → 2000-08 · chassis SXA1# · catalogue 662210 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

8 part groups · 2 illustrations

Illustrations

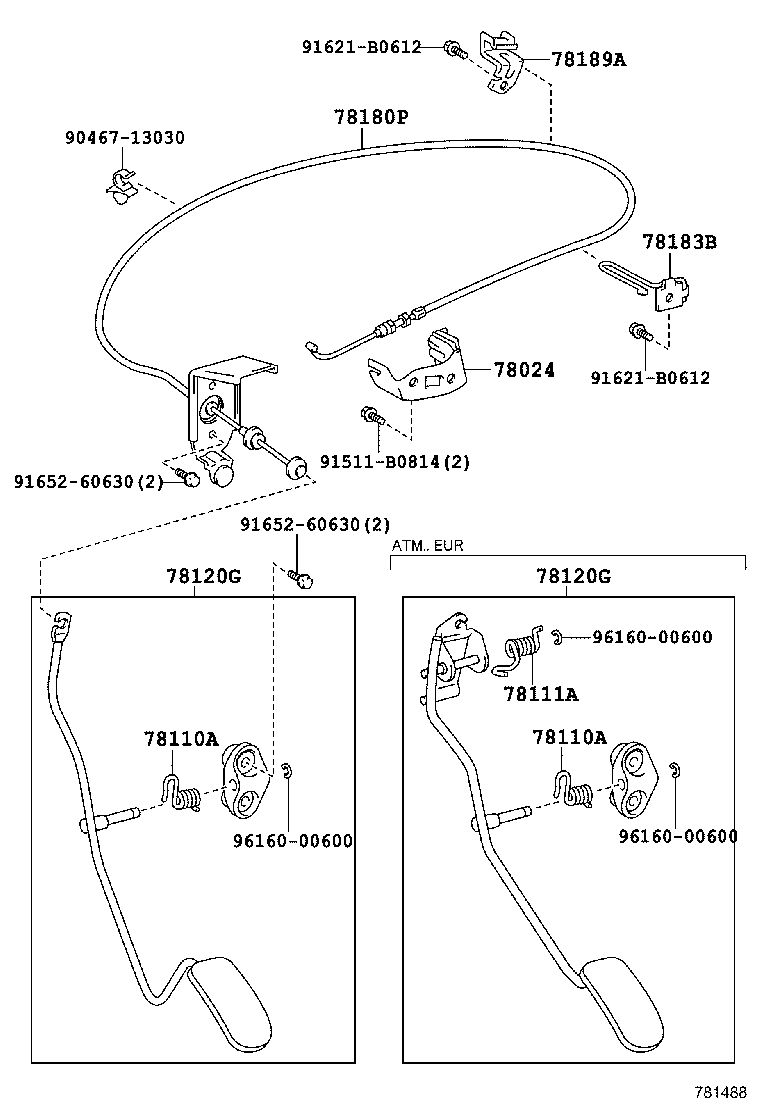

Figure 781486 781486 1994-04 → — Figure 781488 781488 1994-04 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111A Spring (FOR ACCELERATOR PEDAL)
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
78189A Support, Accelerator Control Cable, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
