Toyota RAV4

1994-04 → 2000-08 · chassis SXA1# · catalogue 662210 · Europe

Discontinued model Data version 2001-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 3 illustrations

Illustrations

Figure 860425A

860425A 1994-04 → —

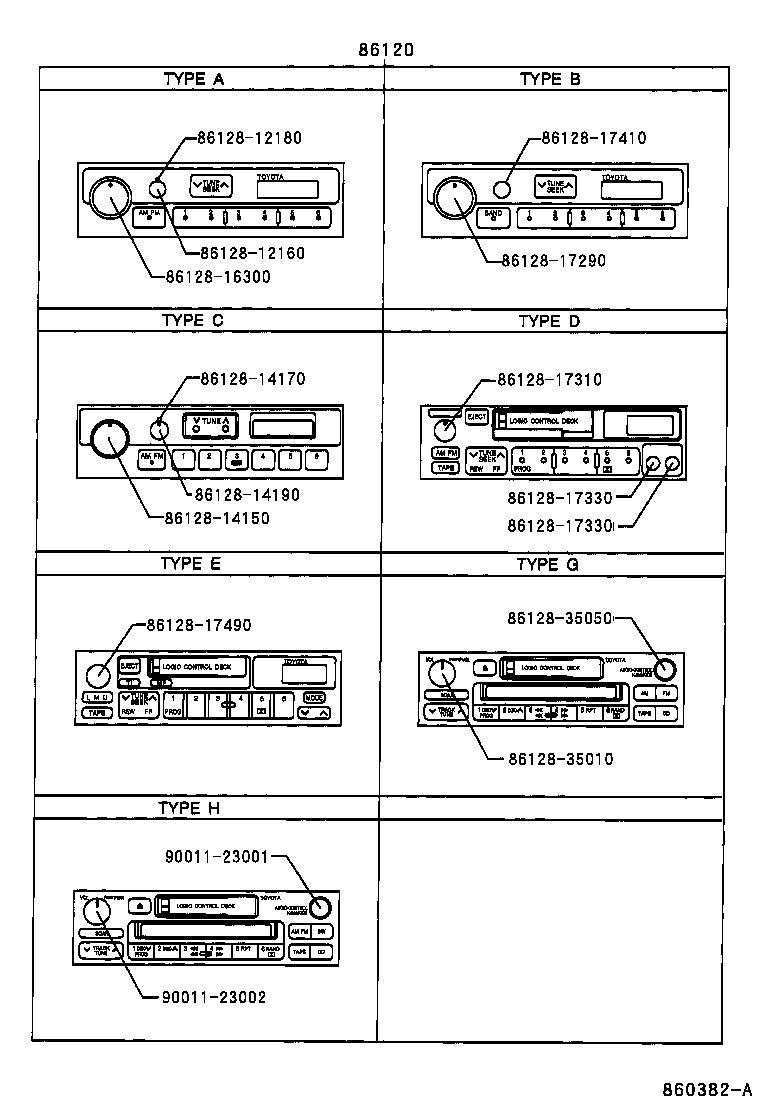

Figure 860382A

860382A 1994-04 → —

Figure 860424A

860424A 1996-08 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86120	Receiver Assy, Radio
86170	Switch And Volume Assy, Radio
86174	Case, Switch & Volume
86211	Bracket, Radio, NO.1
86211H	Bracket, Radio, NO.2
86212	Bracket, Radio, NO.2
86212B	Bracket, Radio, NO.1
86213	Bracket, Radio, NO.3
86270A	Disc Player Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
