Toyota RAV4

1994-04 → 2000-08 · chassis SXA1# · catalogue 662210 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

15 part groups · 3 illustrations

Illustrations

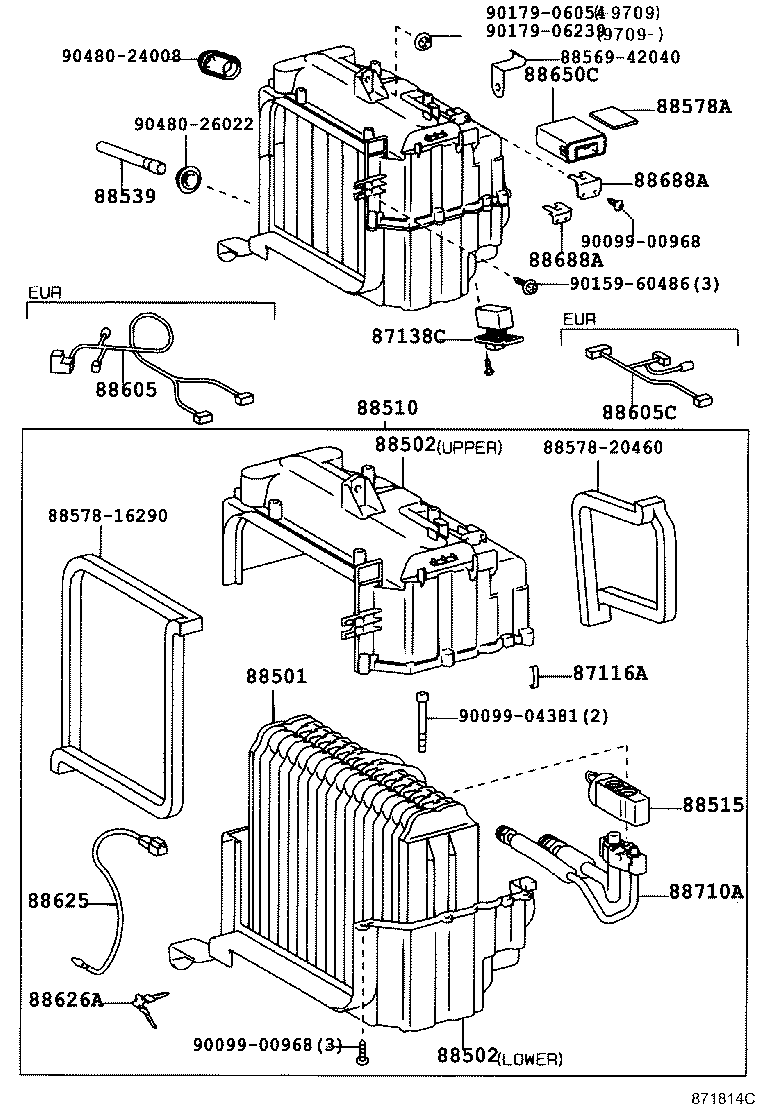

Figure 871813D 871813D 1994-04 → — Figure 871814C 871814C 1994-04 → — Figure 870488 870488 1996-08 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88578A Packing, Cooler Stabilizer Amplifier
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88625 Thermistor, Cooler, NO.1
88626A Holder, Thermistor
88650C Amplifier Sub-assy, Airconditioner
88688A Bracket, Cooler Stabilizer Amplifier
88710A Tube Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
