Heating & Air Conditioning - Control & Air Duct

21 part groups · 3 illustrations

Illustrations

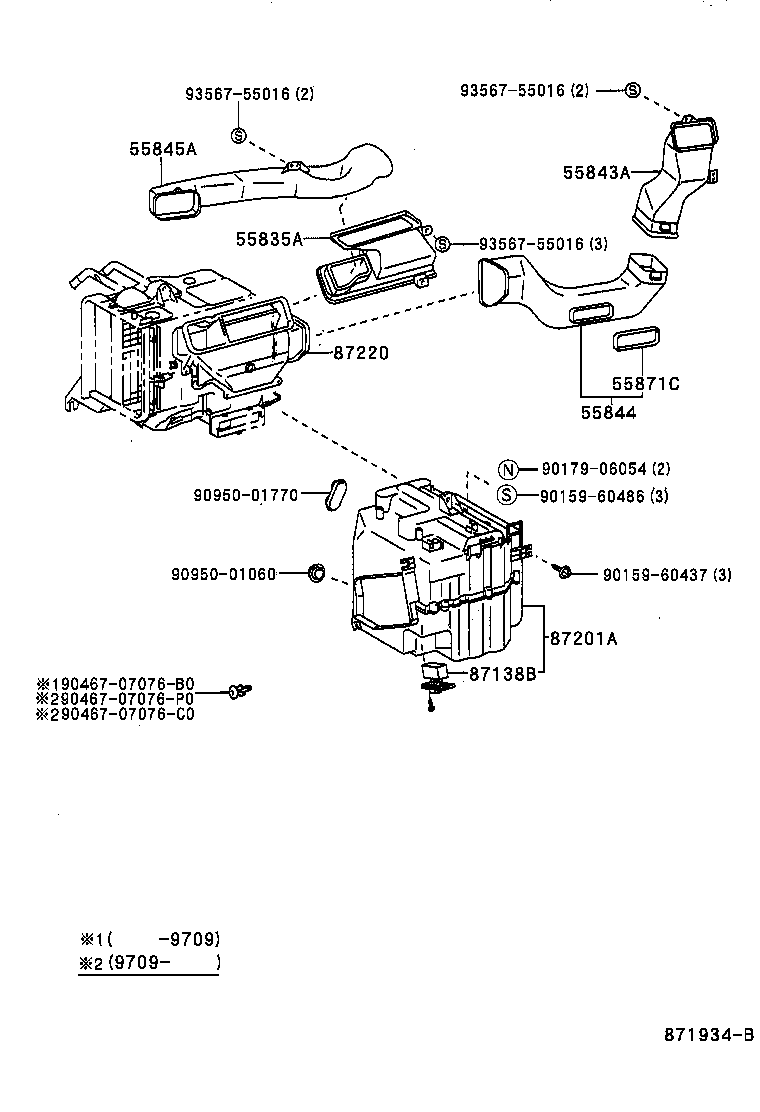

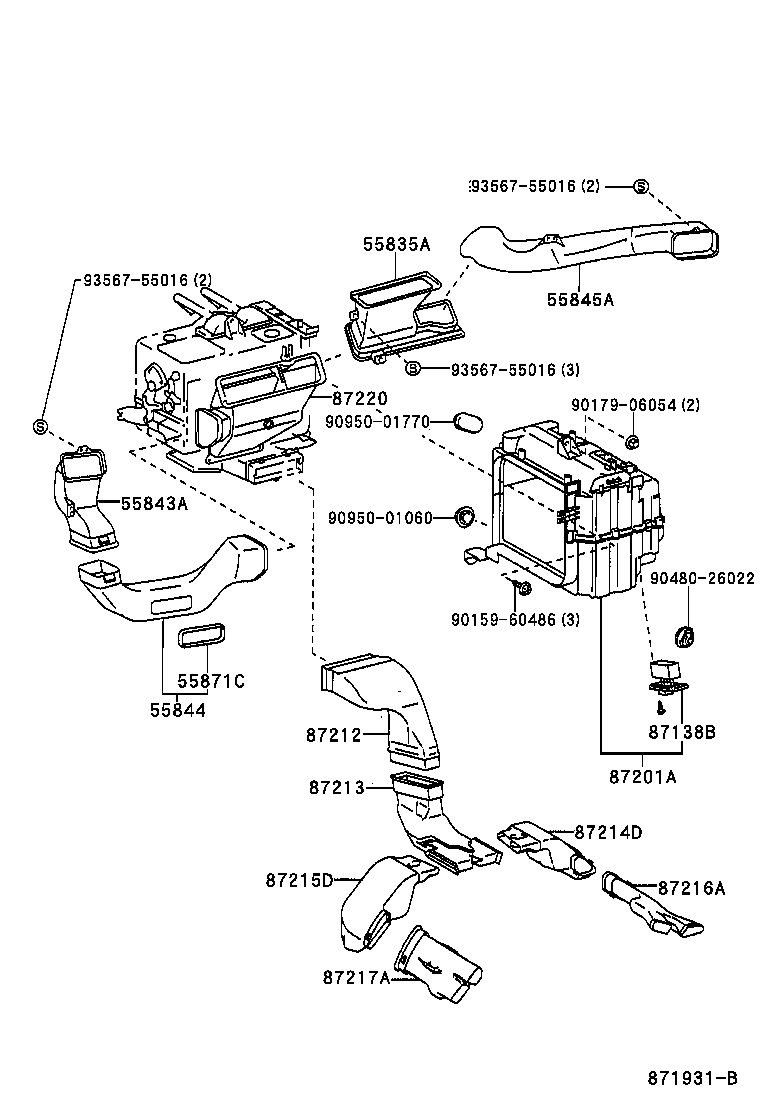

Figure 871933B 871933B 1994-04 → — Figure 871934B 871934B 1994-04 → — Figure 871931B 871931B 1994-04 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55835A Duct, Heater TO Register, Center
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55871C Seal, Air Duct
55900B Bulb, Air Conditioner Control
55905A Knob, Heater Control
55906 Cable Sub-assy, Heater Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87138B Resistor, Heater Blower
87201A Duct Sub-assy, Air
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214D Duct, Air, Rear NO.3
87215D Duct, Air, Rear NO.4
87216A Duct, Air, Rear NO.5
87217A Duct, Air, Rear NO.6
87220 Duct Assy, Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
