Toyota RAV4
2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe
Discontinued model
Data version 2006-05
Cylinder Head

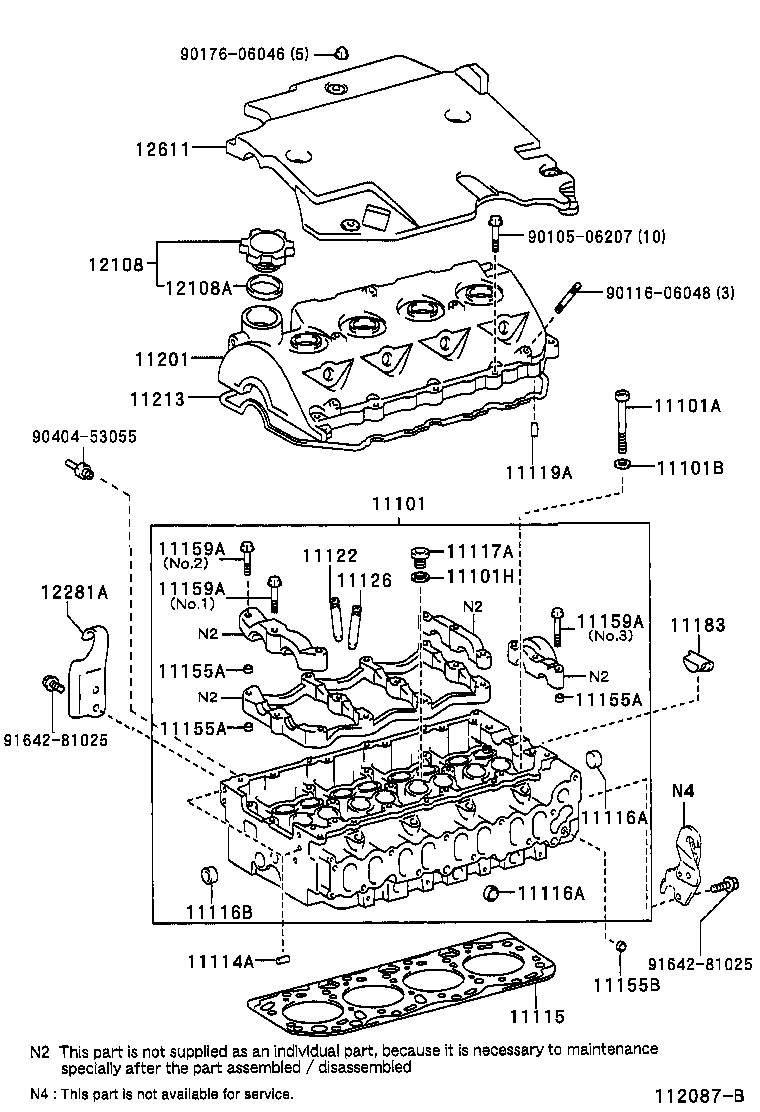

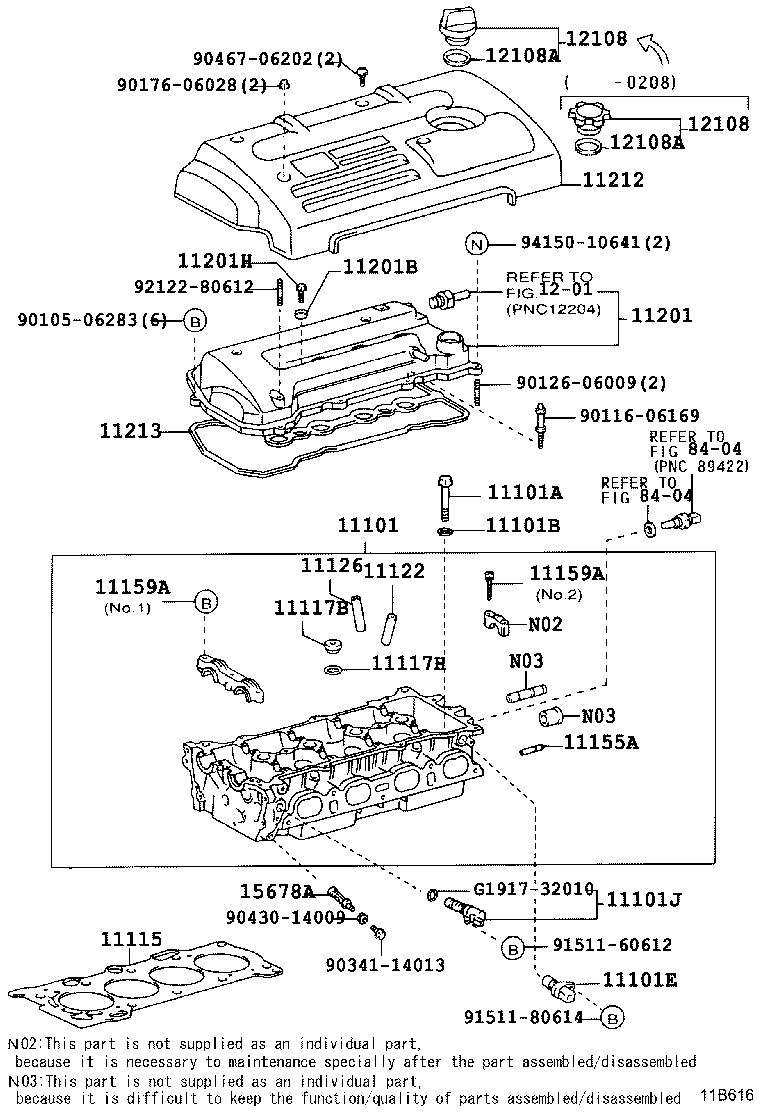

37 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101E | Sensor, Cam Position |
| 11101H | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11101J | Valve Assy, Camshaft Timing Oil Control |
| 11102A | Sensor, Camshaft Position |
| 11114A | Pin, Straight |
| 11115 | Gasket, Cylinder Head |
| 11116A | Plug, Tight, NO.1 |
| 11116B | Plug, Tight, NO.2 |
| 11117A | Plug, W/Head Taper Screw, NO.1 |
| 11117B | Plug, W/Head Taper Screw, NO.2 |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117H | Gasket(FOR WATER HOLE) |
| 11117J | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11119A | Pin, Straight, NO.1 |
| 11122 | Bush, Intake Valve Guide |
| 11126 | Bush, Exhaust Valve Guide |
| 11131 | Seat, Intake Valve |
| 11135 | Seat, Exhaust Valve |
| 11155A | Pin, Ring W/Head |
| 11155B | Pin, Ring |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159C | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11183 | Plug, Semicircular |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11212 | Cover, Cylinder Head, NO.2 |
| 11213 | Gasket, Cylinder Head Cover |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12281A | Hanger, Engine, NO.1 |
| 12282D | Hanger, Engine, NO.2 |
| 12611 | Cover, Engine, NO.1 |
| 15678A | Filter, Oil Control Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
