Toyota RAV4

2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

14 part groups · 4 illustrations

Illustrations

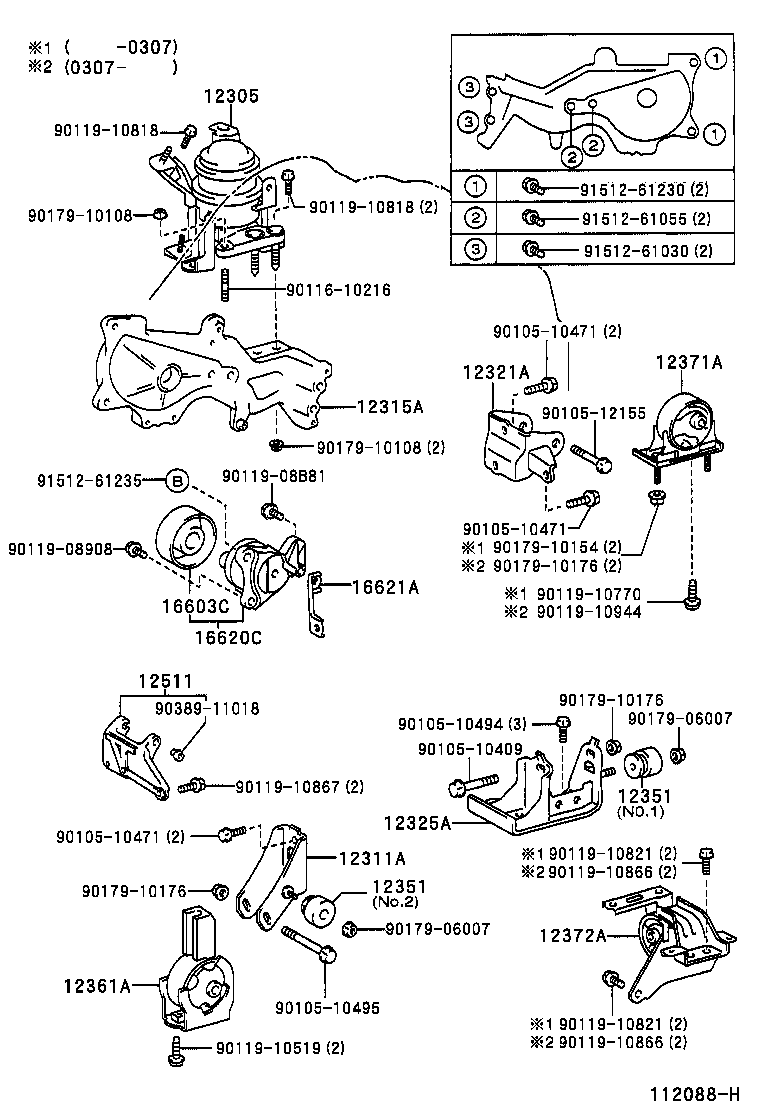

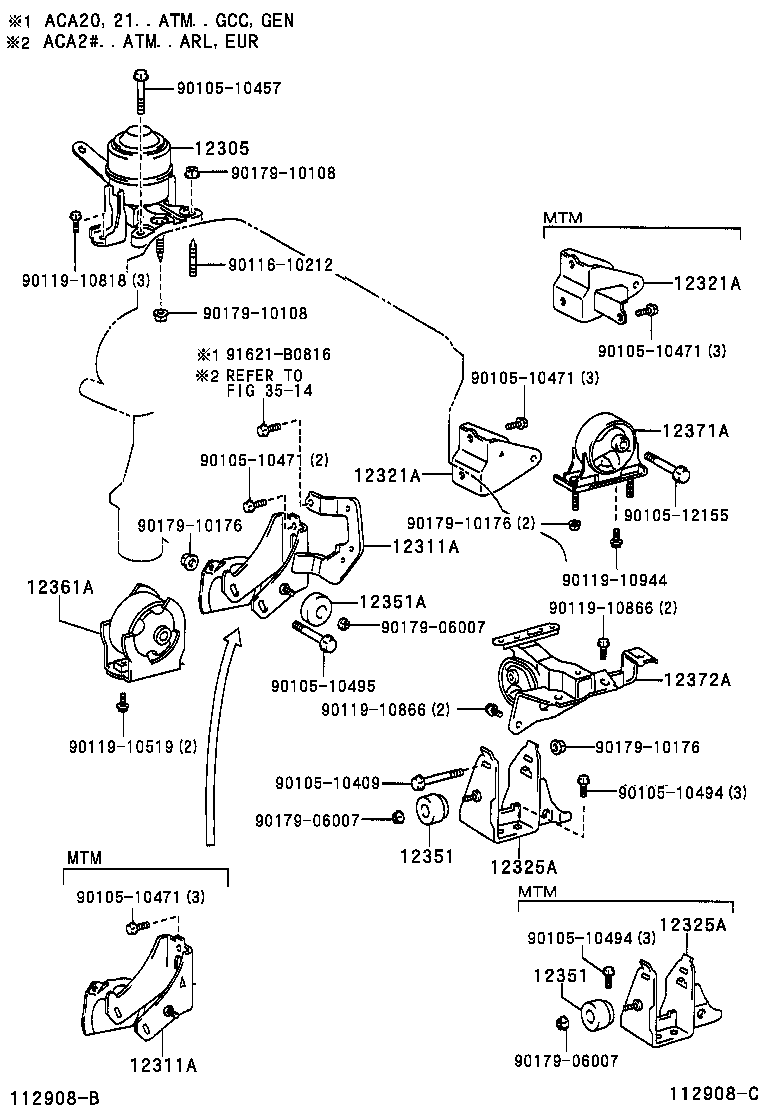

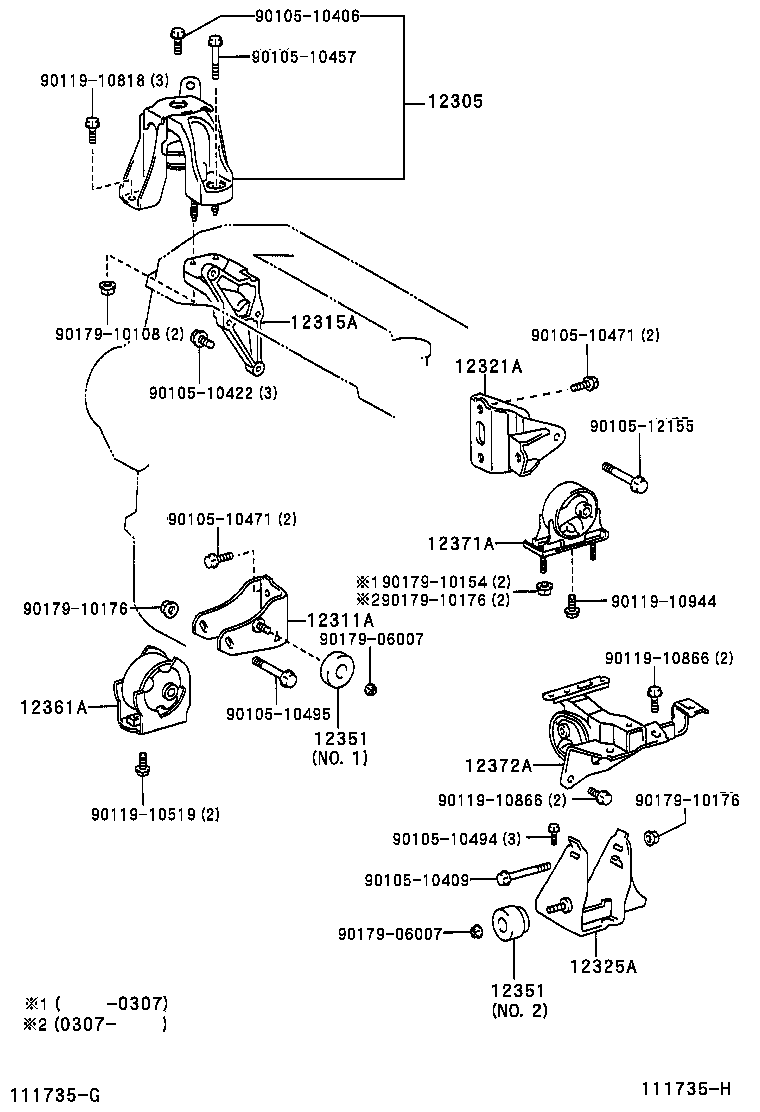

Figure 111717C 111717C 2000-05 → 2003-07 Figure 112908C 112908C 2003-07 → — Figure 112088H 112088H 2001-05 → — Figure 111735H 111735H 2000-05 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12351A Damper, Engine Mounting(FOR INSULATOR)
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
16603C Pulley Sub-assy, Idler
16620C Tensioner Assy, V-ribbed Belt
16621A Bracket, V-ribbed Belt Tensioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
