Toyota RAV4
2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe
Discontinued model
Data version 2006-05

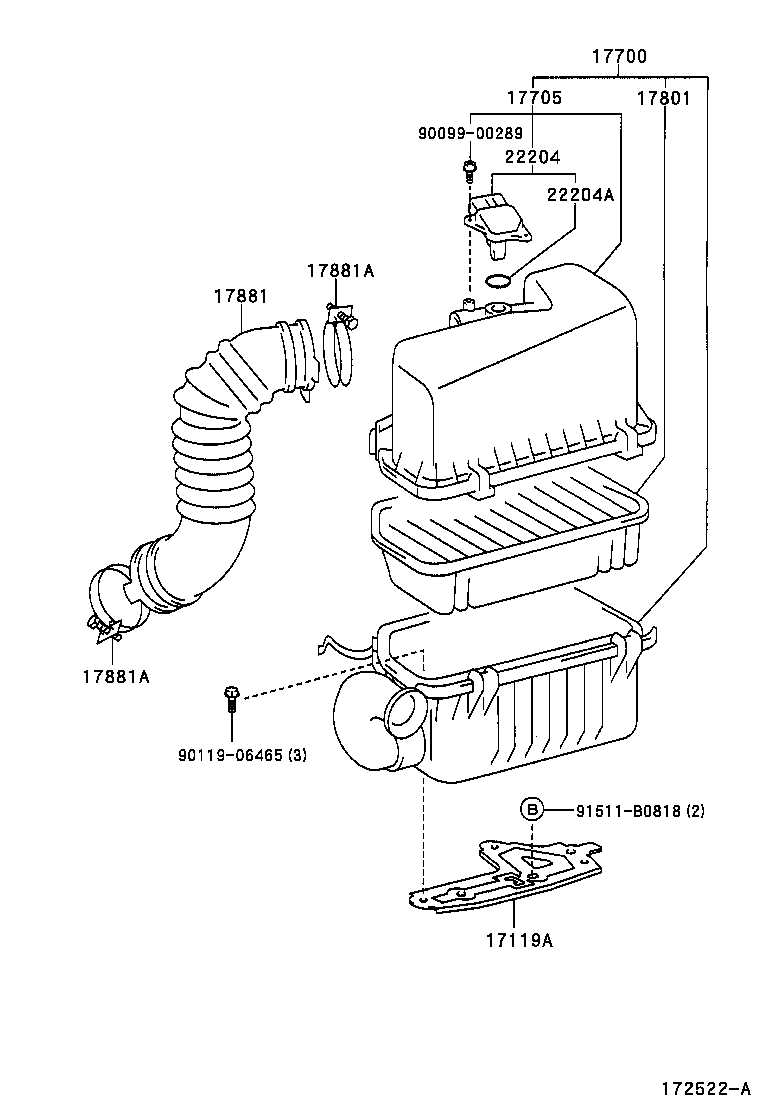

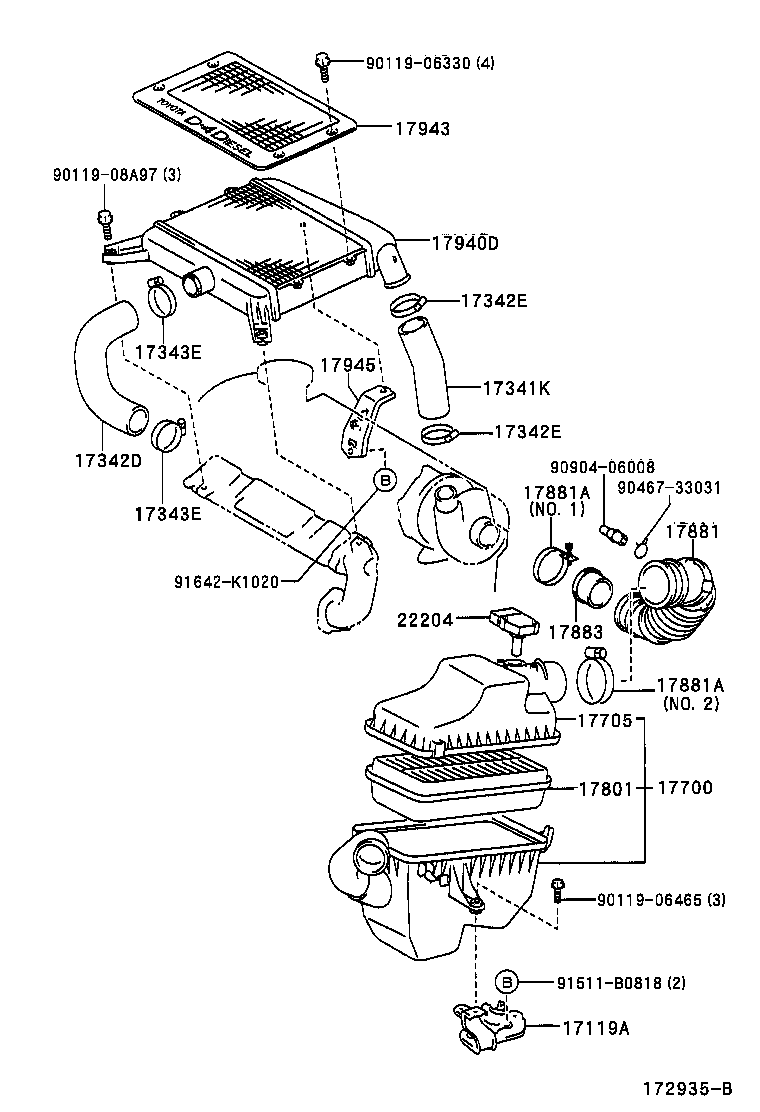

Air Cleaner
17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17119A | Bracket, Air Cleaner |
| 17341K | Hose, Air, NO.1(FOR INTERCOOLER) |
| 17342D | Hose, Air, NO.2 |
| 17342E | Clamp OR Clip(FOR AIR HOSE, NO.2) |
| 17343E | Clamp, Hose(FOR AIR HOSE, NO.3) |
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17750 | Cover Assy, Air Cleaner Inlet, Seal |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17940D | Intercooler Assy |
| 17943 | Protector, Intercooler |
| 17945 | Bracket, Intercooler Support |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 22204A | Ring, O(FOR INTAKE AIR FLOW METER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
