Toyota RAV4

2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe

Discontinued model Data version 2006-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

9 part groups · 2 illustrations

Illustrations

Figure 230187A

230187A 2001-05 → —

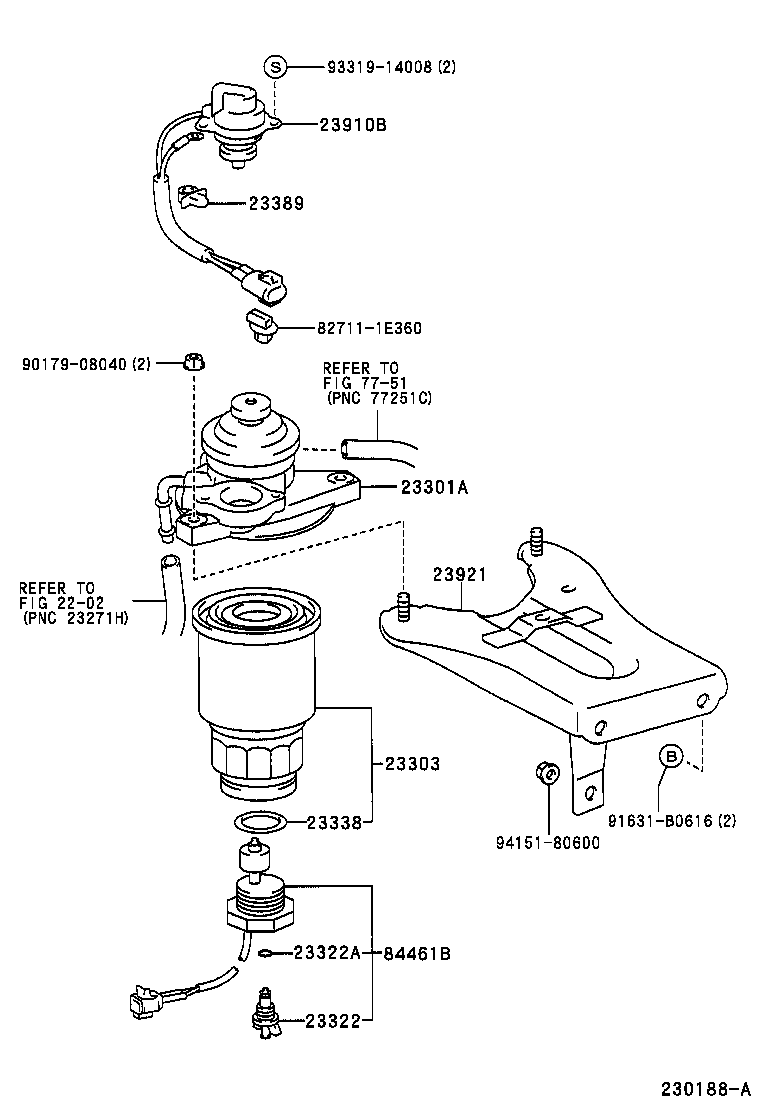

Figure 230188A

230188A 2001-05 → —

Part groups

PNC	Description
23301A	Cap Assy, Fuel Filter
23303	Element Sub-assy, Fuel Filter
23322	Plug, Drain(FOR FUEL FILTER)
23322A	Ring, O(FOR DRAIN PLUG)
23338	Gasket(FOR WARNING SWITCH)
23389	Clamp, Fuel Filter
23910B	Heater Assy, Fuel
23921	Support, Fuel Filter
84461B	Switch, Level Warning

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
