Toyota RAV4
2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe
Discontinued model
Data version 2006-05

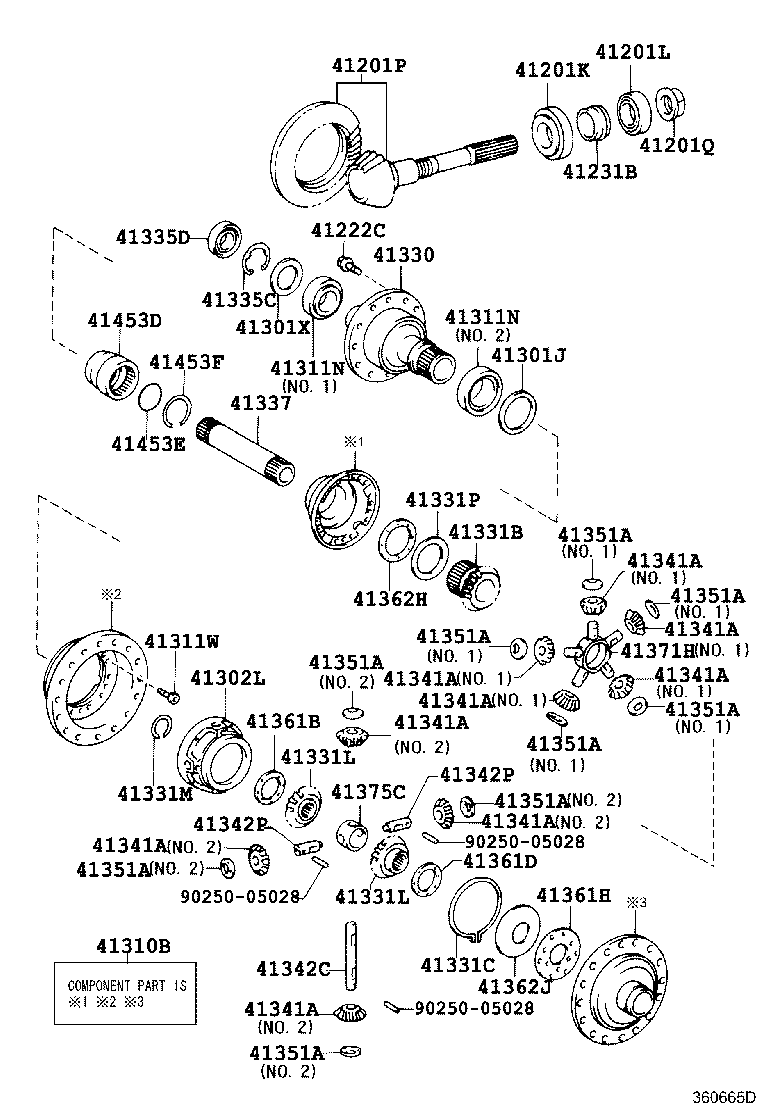

Transfer Gear
37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 36231A | Spacer (FOR TRANSFER OUTPUT SHAFT) |
| 41201K | Bearing (FOR TRANSFER DRIVEN PINION FRONT) |
| 41201L | Bearing (FOR TRANSFER DRIVEN PINION REAR) |
| 41201P | Gear Kit, Transfer |
| 41201Q | Nut (FOR TRANSFER GEAR) |
| 41222C | Bolt (FOR TRANSFER RING GEAR) |
| 41231B | Spacer, Transfer Pinion Bearing |
| 41301J | Washer, Plate(FOR RING GEAR MOUNTING CASE) |
| 41301X | Washer, Transfer Ring Gear Mounting Case, NO.2 |
| 41302L | Case Sub-assy, Differential, NO.2 |
| 41310B | Gear Assy, Center Differential Planetary |
| 41311N | Bearing, Tapered Roller (FOR CENTER DIFFERENTIAL CASE) |
| 41311W | Screw |
| 41330 | Coupling Assy, Center Differential Control |
| 41331B | Gear, Center Differential Side |
| 41331C | Ring, Shaft Snap(FOR PINION SHAFT SPACER) |
| 41331L | Gear, Center Differential Planetary Ring |
| 41331M | Ring, Hole Snap(FOR CENTER DIFFERENTIAL PLANETARY RING GEAR) |
| 41331P | Washer, Conical Spring |
| 41335C | Ring, Hole Snap (FOR SIDE GEAR SHAFT HOLDER) |
| 41335D | Bearing (FOR SIDE GEAR SHAFT HOLDER) |
| 41337 | Shaft, Differential Side Gear Intermediate, NO.2 |
| 41341A | Pinion, Center Differential |
| 41342C | Shaft, Center Differential Pinion |
| 41342P | Shaft, Differential Pinion |
| 41344A | Spacer, Center Differential Pinion Shaft, NO.1 |
| 41351A | Washer, Center Differential Pinion Trust |
| 41361B | Washer, Center Differential Side Gear Thrust, NO.1 |
| 41361D | Washer, Center Differential Side Gear Thrust, NO.2 |
| 41361H | Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR) |
| 41362H | Washer, Differential Side Gear Thrust, NO.2, LH |
| 41362J | Washer, Differential Side Gear Thrust, NO.2, RH |
| 41371H | Spider, Differential |
| 41375C | Holder, Center Differential Pinion Shaft |
| 41453D | Sleeve, Center Differential Lock |
| 41453E | Ring, O |
| 41453F | Ring, Shaft Snap |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
