Toyota RAV4

2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

11 part groups · 7 illustrations

Illustrations

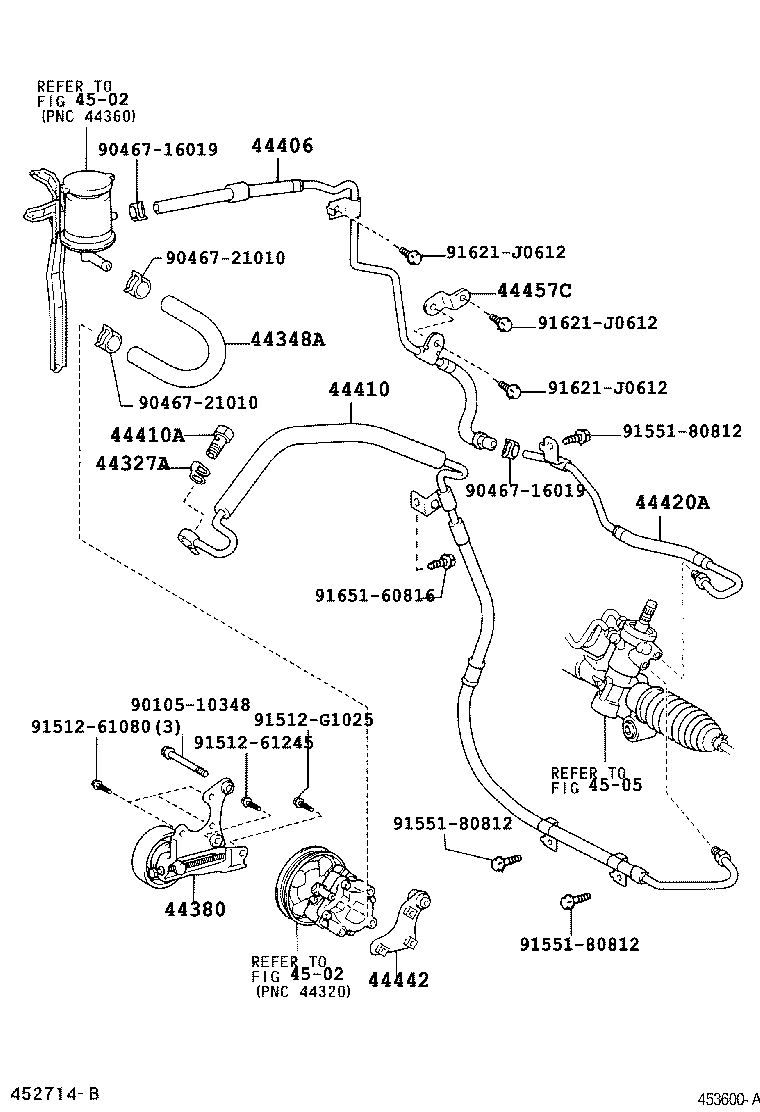

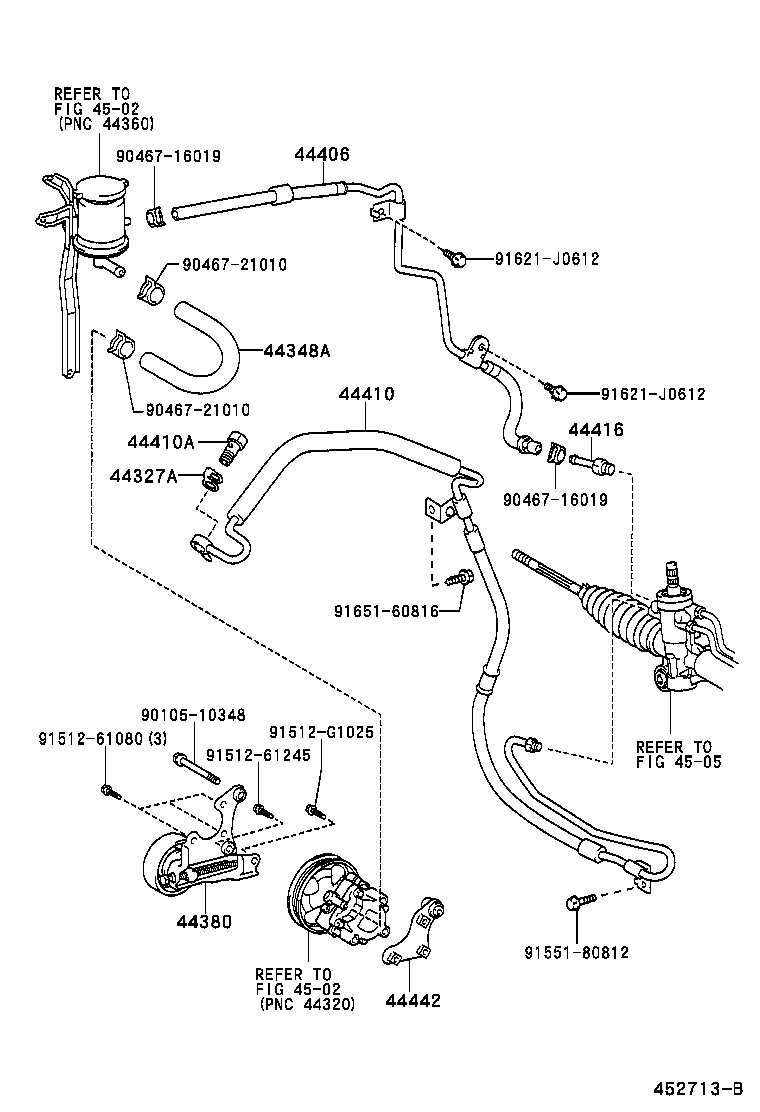

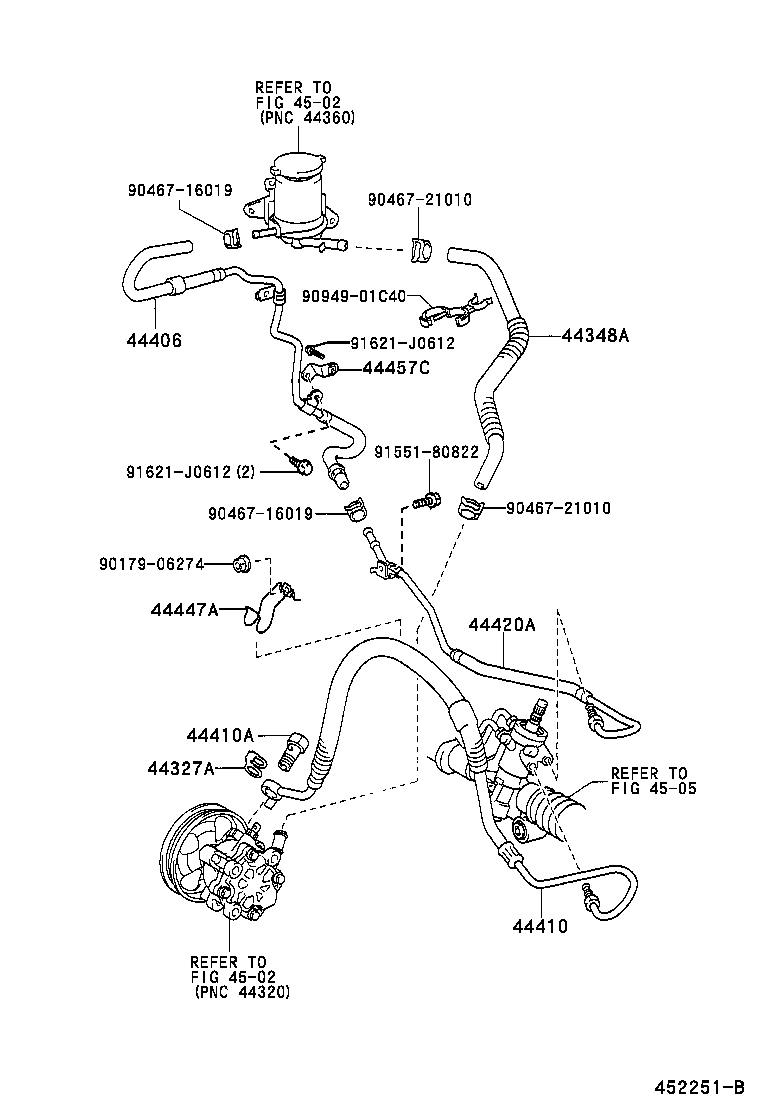

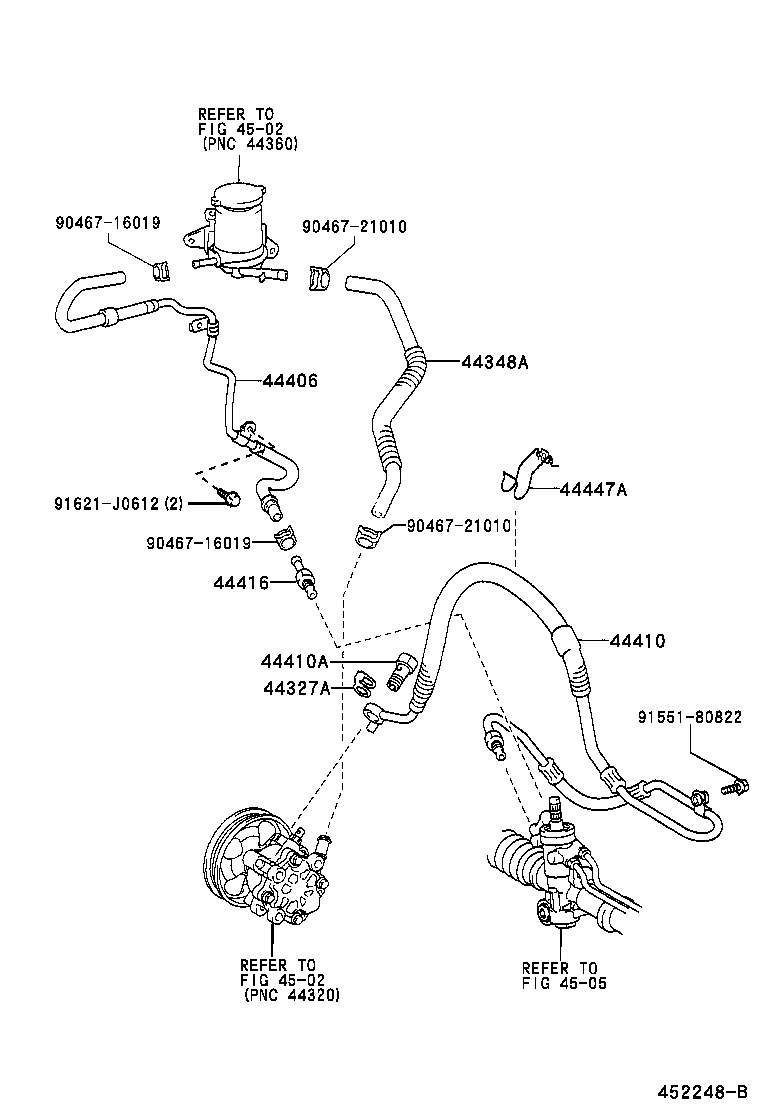

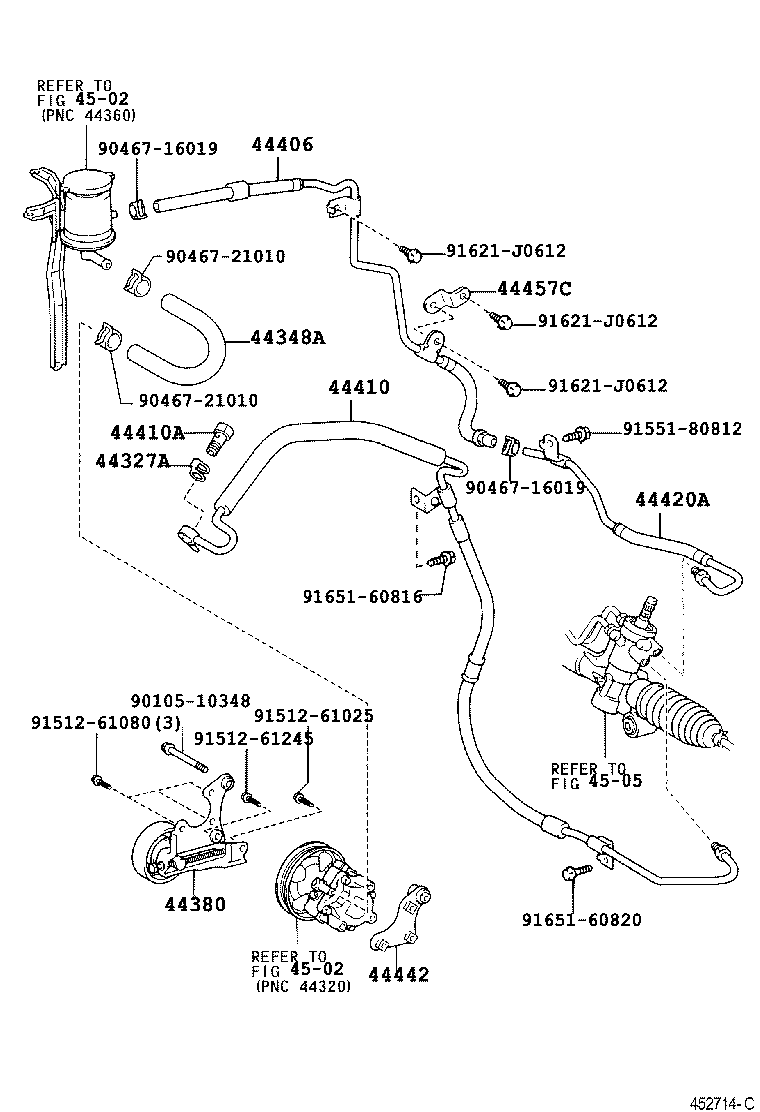

Figure 452262B 452262B 2000-05 → — Figure 452250C 452250C 2000-05 → — Figure 452248B 452248B 2000-05 → — Figure 452251B 452251B 2000-05 → — Figure 452713B 452713B 2001-05 → — Figure 452714C 452714C 2001-05 → 2003-07 Figure 453600A 453600A 2003-07 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44380 Pulley Assy, Power Steering Idle W/Bracket
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420A Tube Assy, Return
44442 Bracket, Pump, Rear
44447A Bracket, Hose Support, NO.1
44457C Bracket, Power Steering Tube Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
