Toyota RAV4
2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe
Discontinued model
Data version 2006-05

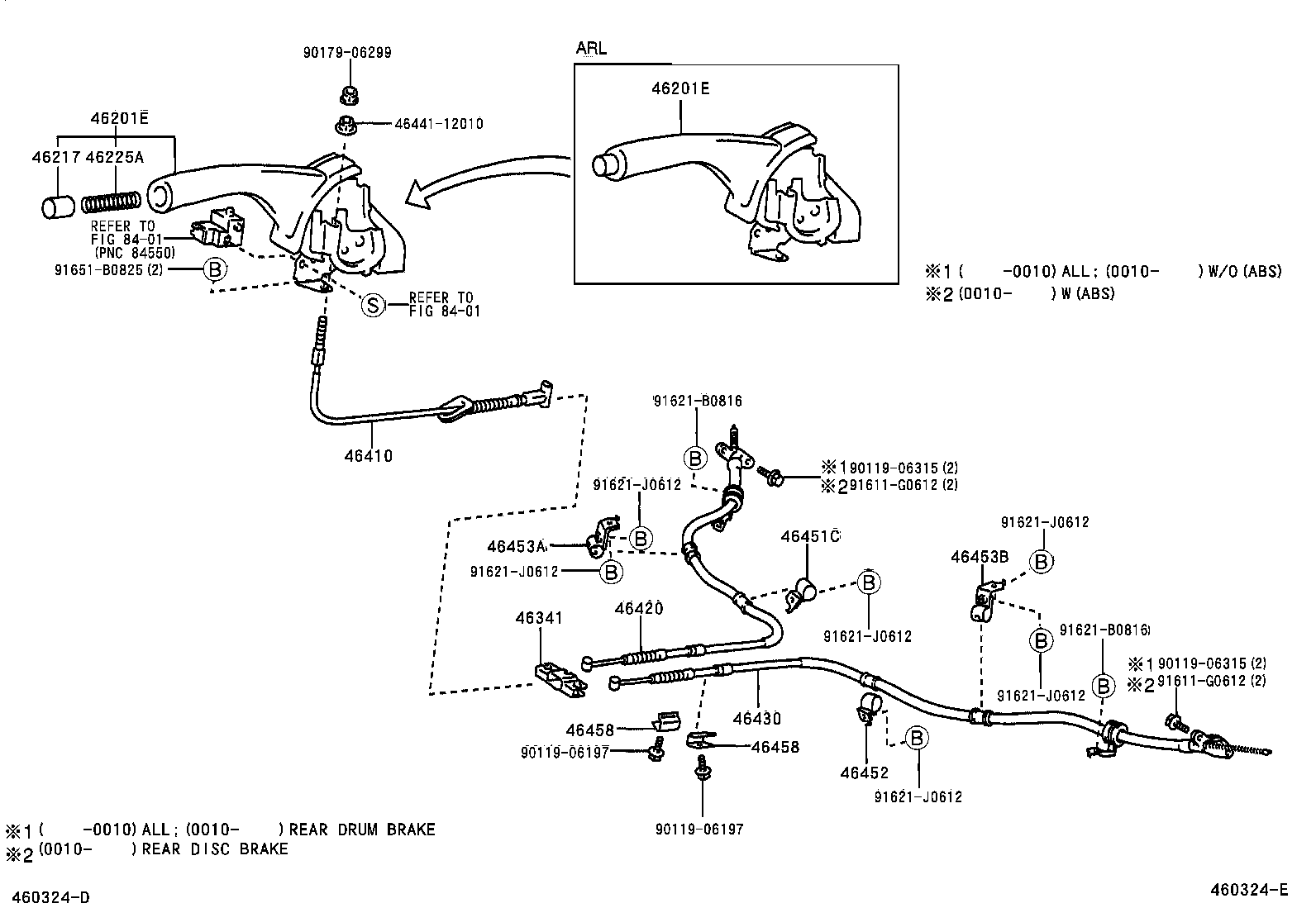

Parking Brake & Cable
38 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 46201E | Lever Sub-assy, Parking Brake |
| 46217 | Knob, Parking Brake Release Rod |
| 46225A | Spring, Compression(FOR PARKING BRAKE PAWL ROD) |
| 46341 | Equalizer, Parking Brake |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46451C | Bracket, Parking Brake Cable Support, NO.1 |
| 46452 | Bracket, Parking Brake Cable Support, NO.2 |
| 46453A | Bracket, Cable Support, NO.3 |
| 46453B | Bracket, Cable Support, NO.3 |
| 46458 | Retainer, Cable |
| 46503 | Plate Sub-assy, Parking Brake, RH |
| 46504 | Plate Sub-assy, Parking Brake, LH |
| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550A | Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46550G | Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN) |
| 46580 | Shoe Assy, Parking Brake, LH NO.1 |
| 46590 | Shoe Assy, Parking Brake, LH NO.2 |
| 47405A | Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE) |
| 47406A | Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE) |
| 47447E | Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) |
| 47447F | Pin, Shoe Hold Down Spring, NO.2(FOR PARKING BRAKE) |
| 47447H | Spring, Compression, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN) |
| 47447J | Spring, Compression, NO.2(FOR PARKING BRAKE SHOE HOLD DOWN) |
| 47449A | Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) |
| 47449C | Cup, Shoe Hold Down Spring, NO.2(FOR PARKING BRAKE) |
| 47456A | Plate, Shoe Guide(FOR PARKING BRAKE) |
| 47459B | Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE) |
| 47611 | Lever, Parking Brake Shoe, RH |
| 47611A | Washer, Type C(FOR PARKING BRAKE SHOE LEVER) |
| 47611B | Shim(FOR PARKING BRAKE SHOE LEVER) |
| 47612 | Lever, Parking Brake Shoe, LH |
| 47613D | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 47613E | Strut, Parking Brake Shoe, RH |
| 47614 | Strut, Parking Brake Shoe, LH |
