Toyota RAV4

2000-05 → 2005-11 · chassis ACA2#,CLA2#,ZCA2# · catalogue 662220 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

12 part groups · 6 illustrations

Illustrations

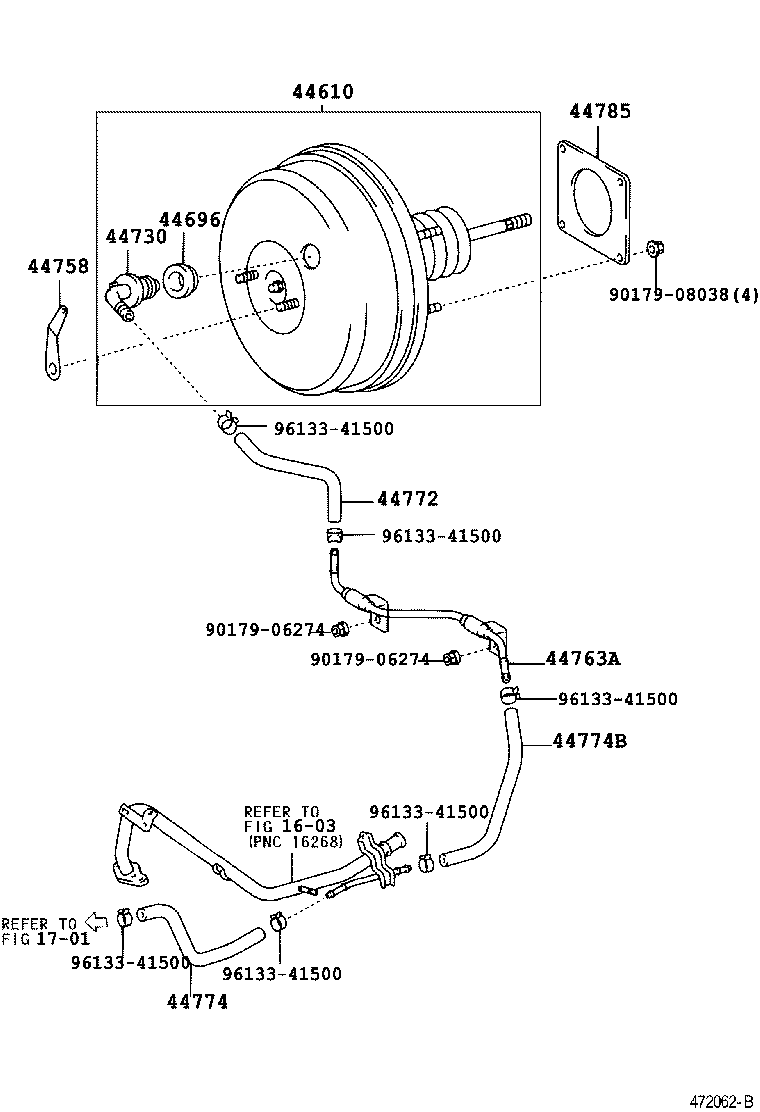

Figure 472063B 472063B 2000-05 → — Figure 472064B 472064B 2000-05 → — Figure 472062B 472062B 2000-05 → — Figure 472065B 472065B 2000-05 → — Figure 472531B 472531B 2001-05 → — Figure 472532B 472532B 2001-05 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44772 Hose, Check Valve TO Connector Tube
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44774B Hose, Union TO Connector Tube
44785 Gasket, Brake Booster
47289 Label, Brake Master Cylinder Adjust Information
83390H Switch Assy, Vacuum Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
